.... Speech
dialogue system
� Note
Please observe the notes in the chapter Notes
on Audi connect ¢page 145.
Messages
Applies to vehicles: with speech dialogue system and Audi connect
Important: A SIM card with a messaging option
must be inserted in the control console's SIM
card reader* ¢ page 126. Or: A mobile phone with
active MAP (Message Access Profile) must be
connected to the MMI ¢ page 123.
Function
Having a new message read out
Having messages read out
{Q) Note Say:
Read new text message
Read text message
www.audi.com/bluetooth or contact an Audi
dealer.
For more information on which mobile
phones are supported, please go to
Navigation
Applies to vehicles: with speech dialogue system and navigation system
Important: The Navigation menu must be open
¢ table on page 117. You
can say the following commands to enter a
destination:
Function Say:
Calling up a list of recent navigation
Last destinations
destinations
Calling up the favourites
Navigation favourites
Calling up your home address
Home address or Drive home
Entering an address with assistance Enter
address > follow the directions given by the system
from the system
Individual commands for entering a
Enter country/ Enter town/ Enter post code/ Enter street I
destination Enter house number
Making corrections while entering a
Correction
destination
Navigating to a contact
Drive me to (XV) or Navigate to (XV), e.g. Drive me to John
Smith
Navigating to a specific address
Navigate to (XV) business / private,
stored for a contact e.g.
"Navigate to John Smith private"
Navigating to favourites
Navigation favourites> Line (XV) / line content > start route
guidance when requested
Starting route guidance when an ad-
Navigate / Navigate to private address / Navigate to business
dress card is open
address
Entering a new destination/stop-
Enter address > desired address when requested > confirm new
over while route guidance is active destination/stopover
when requested
119

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system
Function Say:
Starting route guidance after enter-
Start route guidance
ing a destination
Cancelling the active route guidance
Stop route guidance
Calculating alternative routes
Calculate alternative routes
Entering a special destination with
Special destination > Change search area > enter desired cote-
search area with assistance from
gory or subcategory when requested, e.g. "Restaurant"
the system
Categories for entering special des-
Audi Service / Railway station/ Airport/ Hotel/ Hospital /
ti nations
Parking space/ Service area/ Restaurant/ Filling station etc.
Search areas for entering special
In immediate vicinity/ In vicinity of route / In vicinity of desti-
destinations nation/ In vicinity of stopover / In new town/ In new country
Entering an online destination* Online destination (XV), e.g. "Online destination Palace Hotel"
Correcting an entry
No, I meant (XV)
Closing the full list of commands
Close
You can say the following commands to make ad­
ditional navigation settings:
Function
General map options
Map type
Displaying the route list
Displaying remaining distance/time
while route guidance is active
Highest speed query
Setting the navigation cues during
active route guidance
Dynamic traffic avoidance
Excluding the next section of the
route
Excluding a certain section of the
route
(©) Note Say:
Map / Day map/ Night map/ Change map colours automati-
cally
20 driving position map/ 20 north position map/ 30 map/
Destination map/ Overview map/ Standard map/ Traffic
map / Google Earth map
Route list
Destination info
How fast can I go here?
Voice guidance on/ Voice guidance off/ Voice guidance com-
pact / Voice guidance complete/ Voice guidance traffic
Manual traffic avoidance / Automatic traffic avoidance /
Switch off traffic avoidance
Exclude route
Exclude route for (XV) metres/kilometres/yards/miles / Ex-
elude next street/ Exclude next section of route
spell destinations to enter them for route
guidance.
- Depending on the selected menu language
and the country you are in, you may have to -
Please observe the notes in the chapter
Notes on Audi connect ¢ page 145.
120

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... Speech
dialogue system
Radio
Applies to vehicles: with speech dialogue system
Important: The Radio menu must already have
been called up, regardless of the menu you are
currently in.
Function Say:
Selecting a waveband FM
and DAB* / DAB* / FM / AM
Tuning to a station from the station
Station (XV) / Ensemble (XV)a) I Last stations
list
Selecting a station from the favour-
Radio favourites > Line (XV)
ites
Setting the frequency
Frequency (XV)
Receiving traffic news stations and
Traffic announcements on/ Traffic announcements off
switching traffic announcements
on/off
Correcting an entry
No, I meant (XV)
Closing the full list of commands
Close
a) Applies to the DAB* waveband
Media
Applies to vehicles: with speech dialogue system
Important: A medium must already have been
called up, regardless of the menu you are cur­
rently in.
Function Say:
Selecting a source directly Jukebox*/ CD/ DVD/ SD card 1 / SD card 2 / Audi music inter-
face* I iPod* / USB* / Bluetooth* / Wi-Fi* / Medium (XV), e.g.
"Rachel's player"
Selecting audio/video* files from Media favourites / Artists /Albums / Genres / Tracks / Play-
the jukebox*
lists / Videos
Selecting audio/video* files from an Artists/ Albums/ Genres / Tracks / Playlists /Videos / Com-
iPod (source: Audi music interface*)
posers I Podcasts / Audiobooks
Navigating in a structure of folders/ Folder
up/ Line (XV)
list
Selecting random playback
Switch on random playback/ Switch off random playback
Correcting an entry
No, I meant (XV)
Closing the full list of commands
Close
121

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system

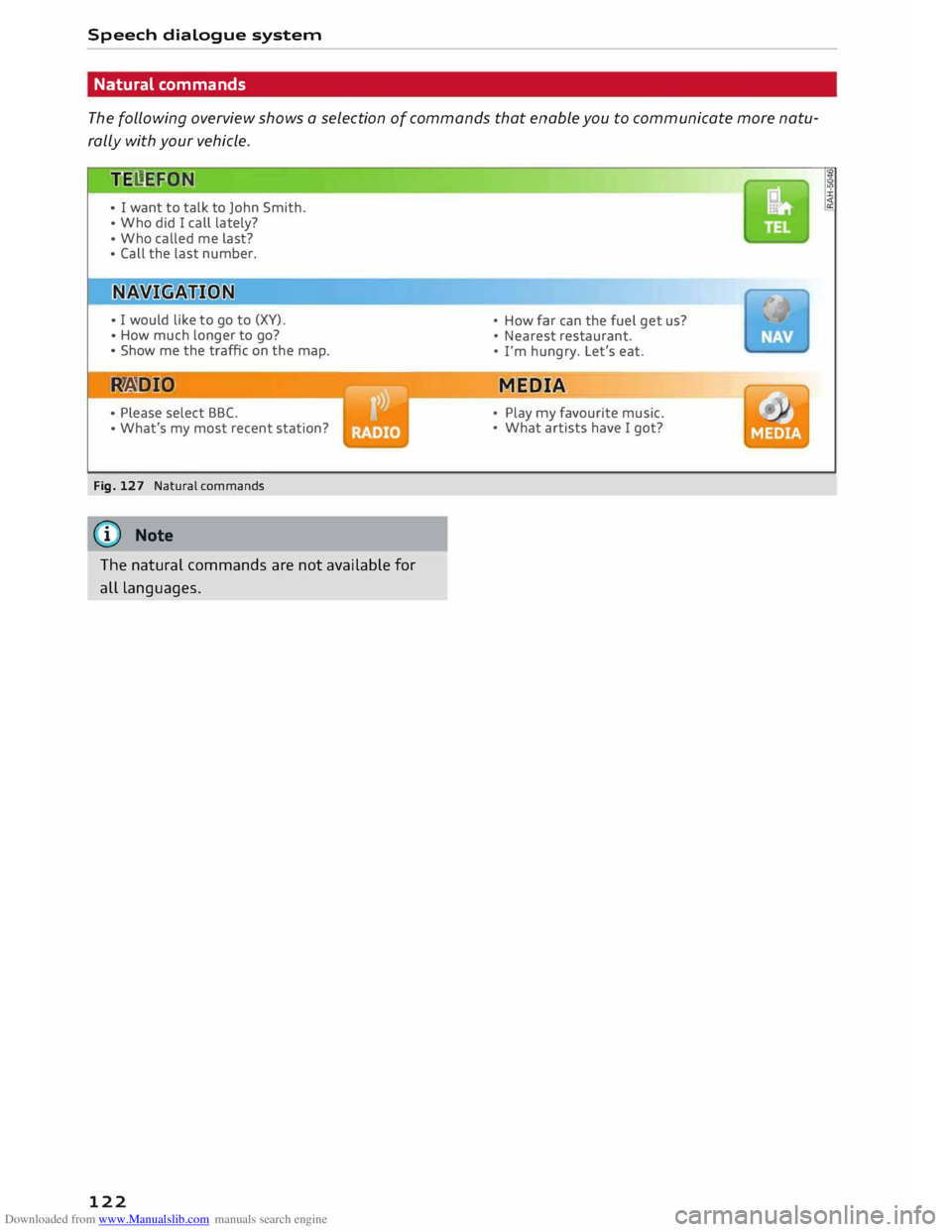

Natural commands
The following overview shows a selection of commands that enable you to communicate more natu­
rally with your vehicle.
JE l!.E!GJN
• I want to talk to John Smith.
• Who did I call lately?
• Who called me last?
• Call the last number.
• I would like to go to (XV).
• How much longer to go?
• Show me the traffic on the map.
R A DI©
• Please select BBC.
• What's my most recent station?
Fig. 127 Natural commands
@ Note
The natural commands are not available for
all languages.
122 •
How far can the fuel get us?
• Nearest restaurant.
• I'm hungry. Let's eat.
MEDIA
• Play
my favourite music.
• What artists have I got?

Downloaded from www.Manualslib.com manuals search engine 0
N
co
,-j
\D U'l
N
U'l
,-j Telephone
Introduction
Applies to vehicles: with telephone
Depending on your vehicle's equipment and the
number of functions available, you have different
options for making calls via the MMI:
Option 1
Connecting the mobile phone via Bluetooth. See
¢page 123.
Option 2
Using a separate SIM card in the SIM card read­
er*. See¢ page 126.
,&. WARNING
- According to health organisations, mobile
phones may interfere with the function of
pacemakers. A minimum distance of 20 cm
should be kept between the mobile phone
aerial and the pacemaker.
- Do not carry a mobile phone in your breast
pocket directly over the pacemaker when
the phone is switched on.
- If you suspect interference, switch the
mobile phone off immediately.
-The speech dialogue system ¢page 116
must not be used in cases of emergency,
since the voice changes in stressful situa­
tions. This could result in a failed or delayed
telephone connection. Always dial emergen­
cy numbers manually!
-Switch off your mobile phones in all areas
where there may be a risk of explosion. Re­
member that these areas may not always be
adequately marked. Such places are filling
stations, fuel and chemical storage facilities
or transport vehicles and other places where
fumes, chemicals (e.g. from leaking propane
or fuel vapours in vehicles or buildings) or
large quantities of dust particles (e.g. from
flour, wood or metal) could accumulate in
the air. This warning also applies to all other
places where you would normally switch off
your engine.
- To day's driving conditions require the full at­
tention of drivers. Please see ¢page 192.-
Telephone
CD CAUTION
- Always obey the laws regulating the use of
telephones in vehicles.
- You must switch off the telephone in areas
where the use of mobile telephones is pro­
hibited. Please observe all relevant caution
notices and regulations.
- The car telephone kit may be installed, serv­
iced and repaired only by an Audi workshop
or other qualified workshop.
(D) Note
The maximum range of the Bluetooth connec­
tion is limited to the interior of the vehicle.
The connection can be susceptible to interfer­
ence from other electronic devices.
Connecting a telephone
Bluetooth profiles
Applies to vehicles: with telephone
Fig. 128 This QR code takes you directly to the mobile de­
vice database (data connection costs vary according to your
mobile phone contract). "'
,...
<
a:
For information on which Bluetooth connections
and functions are supported by your mobile
phone, please contact your mobile network serv­
ice provider or consult the mobile device data­
base at www.audi.com/bluetooth.
Car telephone kit*
This connection uses the vehicle's integrated car
telephone kit and external aerial to achieve the
best possible speech and reception quality when
making calls. Your mobile phone may then oper-
ate in power saving mode.
..,.
123

Downloaded from www.Manualslib.com manuals search engine Telephone
Your
mobile phone must support the remote SIM
Access Profile (rSAP) and be connected to the
MMI using the Car phone mode in order to use
the online functions of Audi connect*. Alterna­
tively, you can use a separate SIM card in the SIM
card reader* ¢ page 126. A data plan1
l
is neces­
sary in both cases.
You can use the online functions of Audi connect
¢ page 137 if your mobile phone contract in­
cludes a data option 1
l
.
Handsfree
With this type of connection, you can use the
handsfree system to operate the telephone func­
tions via the MMI. Your phone calls will be made
via the antenna of your mobile phone.
With the Audi phone box*, you can use the vehi­
cle's external aerial to make calls. You can also
charge your phone with a USB adapter.
Connecting a mobile phone using
Bluetooth
Applies to vehicles: with telephone
Fig. 129 PIN display for entry on mobile phone
Requirements
The vehicle must be stationary, and the ignition
must be switched on.
The Bluetooth function and the discoverability
option of the MMI system ¢ page 188 and the
mobile phone must be activated.
l) Connection costs depend on your mobile phone contract.
We strongly recommend an unlimited data plan.
2 l
Not available in all markets and applies to mobile phones
with Bluetooth remote SIM Access Profile.
124 The
mobile phone you would like to connect must
not be connected actively to any other Bluetooth
device.
The MMI must not be connected to a mobile
phone.
Access to your SIM card (SIM Access) must be ac­
tivated on your mobile phone. 2
)
Connecting a mobile phone ... Sel ect: !TELi button > Connect mobile phone>
Continue. The available Bluetooth devices will
be shown on the infotainment display. Or:
Search for the MMI system via the Bluetooth
device search function on your mobile phone.
... Select and confirm the desired mobile phone
from the list of Bluetooth devices shown.
... The MMI will generate a PIN for the connection
¢Fig. 129 .
... Select and confirm Yes.
"' Enter the PIN to establish a connection on your
mobile phone. Or: If the PIN is already being
displayed on your mobile phone, confirm it on
the phone and in the MMI. You have about 30
seconds to enter the PIN code.
You may need to enter the PIN for your SIM card
in the MMI 2
l
_
Please note any additional system queries on
your mobile phone, e.g. whether the phone
should connect automatically in the future. On
some mobile phones, you may also need to
download the directory and allow access to your
text messages separately.
After connecting successfully
After the connection has been established suc­
cessfully, you will be shown a short message con­
taining information on the profiles used to estab­
lish the connection. You can make changes to the
profiles via I MENU I> Settings > left control but­
ton > MMI settings > Conn ection manager
¢ page 188. This can also be done retrospective-
� �

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl
.... In
addition, the contacts on the mobile phone are
automatically Loaded into the directory of the
MMI. This may take several minutes, depending
on how many contacts are stored on the mobile
phone.
After you have connected your mobile phone to
the MMI successfully, you can immediately begin
configuring Audi connect ¢page 137.
{i)) Note
- You can adjust further settings for connec­
ted mobile phones using the connection
manager ¢page 187.
- Bluetooth devices only have to be bonded
once. Any devices that have already been
bonded to the MMI system are connected
automatically when they are within range
and the ignition is on.
- You will need to authorise the MMI connec­
tion on your mobile phone to enable auto­
matic connection.
- Please note any system queries on your mo­
bile phone, e.g. whether the phone should
connect automatically in the future. On
some mobile phones, you may also need to
download the directory and allow access to
your text messages separately.
- You receive the SIM PIN code from your mo­
bile network service provider together with
the SIM card. If you enter the SIM PIN code
incorrectly three times1
)
in a row, the SIM
card will be be blocked. A PUK (personal un­
blocking key) must be entered in order to re­
activate the SIM card.
- You can bond several mobile phones to the
MMI system; however only one connection
is active at a time.
- Any Bluetooth device that is already connec­
ted to the MMI system is disconnected
when another device is connected to the
system.
- The Bluetooth connection between the sys­
tem and the mobile phone is automatically
terminated when you Leave the car.
l l
The number of possible attempts depends on the SIM
card. Telephone
- For further information regarding your mo­
bile phone, contact your mobile network
service provider or refer to the operating in­
structions for your mobile phone. For infor­
mation on using a phone in your car, please
go online (e.g. www.audi.com/bluetooth) or
ask an Audi dealer.
Using the Audi phone box
Applies to vehicles: with Audi phone box
With the Audi phone box*, you can use the vehi­
cle's external aerial to make calls. You can also
charge your phone with a USB adapter. The use
of the external aerial reduces radiation in the ve­
hicle and also ensures better reception quality.
Fig. 130 Using the Audi phone box
The Audi phone box is Located in the centre con­
sole's storage compartment¢ page 6, Fig. 2.
Impor tant: A mobile phone must be connected
via Bluetooth ¢ page 123.
- To establish a connection with the external car
aerial: Place your mobile phone onto the mid­
dle of the telephone symbol in the Audi phone
box with the phone's display facing upwards.
When doing so, make sure that there are no ob­
jects between the Audi phone box and the mo­
bile phone.
- To charge a mobile phone with a USB adapter:
Connect your mobile phone to the USB socket
@ ¢Fig. 130 using a USB charging cable.
For ease of use, Audi offers special USB adapters*
¢ page 174, Fig. 161. The following USB adapt-
ers are currently available:
.,..
125

Downloaded from www.Manualslib.com manuals search engine Telephone
® USB adapter for mobile phones with micro
USB connector*
@ USB adapter for mobile phones with Apple
Lightning connector*
© USB adapter for mobile phones with Apple
dock connector*
_& WARNING
Loose objects can be flung around in the pas­
senger compartment in the event of sudden
driving or braking manoeuvres. This could re­
sult in serious injuries and also cause you to
lose control of the vehicle. Always keep the
centre armrest closed when driving.
- The Audi phone box is not available in all
countries. Your Audi dealer will be able to
provide you with more detailed information.
- If the mobile phone is placed in the Audi
phone box in a bag or a protective case, this
may interfere with the connection to the ex­
ternal aerial.
- An enhanced transmission quality cannot be
guaranteed if more than one mobile phone
is placed inside.
- Audi recommends the use of Audi Genuine
Accessories. Audi has tested these products
for suitability, reliability and safety.
- USB adapters are available from Audi deal­
ers or specialist retailers.
- To avoid malfunctions, ensure that the mo­
bile phone is correctly placed inside the Audi
phone box.
Using the SIM card reader
Applies to vehicles: with SIM card reader
You can choose how you wish to make telephone
calls when you insert a separate SIM card in the
SIM card reader:
Telephone installed in vehicle (SIM card)*
The SIM card in the SIM card reader is used both
for telephone calls and Audi connect services
¢page 137.
126 Your
telephone conversations are directed via the
external vehicle aerial to optimise sound and re­
ception quality. For the telephone options, you
can be reached on the telephone number of the
SIM card in the SIM card reader. Depending on
the SIM card type, this may be the same number
as for your the current mobile phone contract
(twin/Multi SIM card) or another number from a
different mobile phone contract.
Personal mobile phone (Bluetooth)
Calls are made with the mobile phone connected
using the Handsfree function. You can therefore
be reached on the phone number of the SIM card
in your mobile phone. In this case, the SIM card
in the SIM card reader is used for Audi connect
services only.
Using a separate SIM card
Applies to vehicles: with SIM card reader
Fig. 131 Inserting the SIM card (mini SIM card, actual
size)
Requirements
The vehicle must be stationary , the ignition must
be switched on and the Telephone menu must
have been called up.
liJ.
