2 Table of contents Vehicle literature .. .. .. .. .. ... .
4
About this Owner's Manual . . . 5
Controls and equipment .. ... .
Cockpit ................ .... .. . .
General illus tration .... ... .. .. ... .
Instruments and warning/
indicator lights ........ .. .. .. . .
Ins truments . .. .. ..... ... .. .. ... .
War ning/ indi cator lights ... .. ... .. .
Driver information system .. .
Introduct ion . .. .. ..... ... .. .. ... .
Trip computer .. .. ..... ... .. .. ... .
M enu display . ........... .... ... .
Service interval d isp lay .... .. .. .. . .
Lap timer .. ........ ..... .. ..... .
On -Board Diagnostic system (OBD) .. .
Opening and closing .... .. .. . .
Keys .. .. .. ... .... .... .. .. .. .. . .
P owe r locking system ......... .. . .
Fr ont lid . .. ... ....... ... .... ... . 6
6
6
8
8
11
20
20
2
1
22
24
25
26
28
28
30
33
Anti-theft alarm system . . . . . . . . . . . 34
P owe r wi ndows .......... .. .. .. . .
Convertible top ......... .. ... .
Conve rtible top ........ .. .. .. .. . .
W ind deflecto r .. ...... ... .. .. ... .
Rear window . .. .. ..... ... .. .. ... .
Conve rtible top emergency operation .
Clear vision .. .. ..... ... .. .. ... .
Lights ...... .. .. ..... ... .. .. ... .
Inter ior lights .. . ...... ... .. .. ... .
V1s1on . .. ................. .. ... .
W iper and washer system .. .. .. ... .
D ig ita l compass . .......... ... .. . .
Seats and storage ....... .. .. . .
General recommendat ions . .... .. . .
P owe r seats .............. ... .. . .
H ead restraints .... .... .. .. .. .. . .
Cup holder . ............. .. .. .. . .
Ashtray ...... ........... ....... .
35
37
3 7
39
39
4 0
4 6
46
49
so
51
55
57 57
58
59
5 9
60
C igarette lighter/soc ket . ..... .... . .
Storage ... .... .. .. ... ..... ... .. . 60
60
Warm and cold . . . . . . . . . . . . . . . . 63
Climate controls . .... .. ..... .... . .
Rea r window defogger ... .... ... .. .
Heated seats .. .. ... .......... .. .
On the road ... ... .. ..... .... . .
Steering .. .. .. .. .. ........... .. .
Ig nit ion lock/Ignition switch ....... .
Starting and stopping t he engine . .. .
Parking brake .. .. ..... ......... . .
Start ing on hills .. ............... .
Speed warning system ... .... ... .. .
C ru ise cont ro l ................. .. .
Audi mag net ic r ide ............. .. .
S po rty driving .... .. ... ..... ... .. .
Transmission ............... .. .
Manua l transm ission . ... .... ... .. .
S tronic ® .. .... .. .. ... ..... ... .. .
Parking system ............... .
Pa rking sys tem advanced
63
67
67
68
68
68
69
70
71
72
73
7S
75
77
7 7
78
8 4
84
Homelink ® . . . . . . . . . . . . . . . . . . . . 9 0
U niversa l remote control . . . . . . . . . . . 90
Safety first . . . . . . . . . . . . . . . . . . . . 93
Driving Safely . . . . . . . . . . . . . . . . . 93
Genera l notes . . . . . . . . . . . . . . . . . . . . 93
Pro per occ upant seating positions . . . 94
Driver and passenger side footwe ll . . . 97
Pedal area . . . . . . . . . . . . . . . . . . . . . . . 98
Stow ing luggage . . . . . . . . . . . . . . . . . 98
Repo rting Safety Defects . . . . . . . . . . . 99
Active rollove r pro tect ion system
101
Safety belts . . . . . . . . . . . . . . . . . . . 103
Genera l notes . . . . . . . . . . . . . . . . . . . . 103
Why safety belts? . . . . . . . . . . . . . . . . 10 4
Safe ty be lts . . . . . . . . . . . . . . . . . . . . . 106
Sa fe ty be lt pretensioners . . . . . . . . . . 109
Airbag system.............. .. . 111
Impo rtant th ings to know . . . . . . . . . . 111
F ron t air bags . . . . . . . . . . . . . . . . . . . . llS

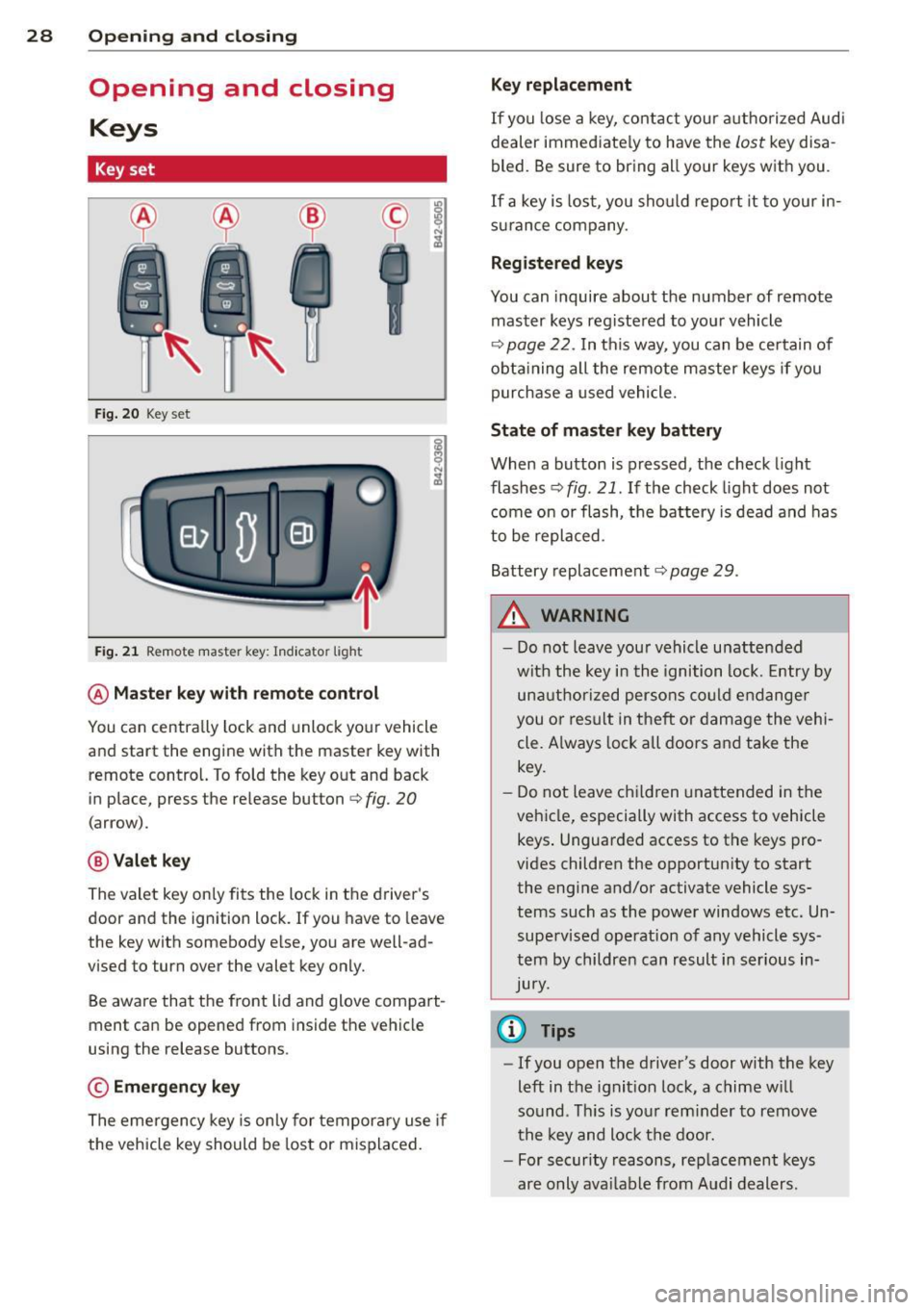

28 Opening and closing
Opening and closing
Keys
Key set
Fig. 20 Key set
Fig. 21 Remot e mas ter key : Indicator ligh t
@ Master key with remote control
You can centrally lock and unlock your vehicle
and start the engine with the master key with
remote control. To fold the key out and back
in place, press the re lease button
c:> fig. 20
( a rrow).
@ Valet key
The valet key on ly fits the lock in the driver's
door and the ignition lock . If you have to leave
the key with somebody e lse, you are well-ad ­
vi sed to tu rn over the valet key only.
Be aware that the front lid and glove compart­
ment can be opened from inside the vehicle
using the release buttons .
© Emergency key
The emergency key is only for temporary use if
the vehicle key should be lost or misplaced.
Key replacement
If you lose a key, contact your authorized Audi
dealer immed iate ly to have the
Lost key disa­
bled. Be sure to bring all your keys with you .
If a key is lost, you should report it to your in­
surance company .
Registered keys
You can inquire about the number of remote
master keys registered to your vehicle
c:> page 22 . In this way , you can be certain of
obtaining all the remote master keys if you
purchase a used vehicle.
State of master key battery
When a button is pressed, the check light
flashes
c:> fig . 21 . If the check light does not
come on or flash, the battery is dead and has
to be replaced.
Battery replacement
c:::;, page 29 .
.&_ WARNING ~
- Do not leave your vehicle unattended
with the key in the ignition lock. Entry by
unauthorized persons could endanger
you or result in t heft or damage the vehi­
cle. A lways lock all doors and take the
key.
- Do not leave children unattended in the
vehicle, especially with access to vehicle keys . Unguarded access to the keys pro­
vides children the opportunity to start the engine and/or activate vehicle sys­
tems such as the power windows etc. Un­ supervised operation of any vehicle sys­
tem by children can result in serious in­
Jury.
{l) Tips
- If you open the driver's door with the key
left in the ignit ion lock, a chime will
so und . This is your reminder to remove
the key and lock the door.
- For security reasons, replacement keys
are only available from Audi dealers.

Master key with remote control
The remote control allows you to lock or un­
lock the vehicle electronically .
The transmitter and battery are located in the
head of the remote control. The receiver is lo­
cated inside the vehicle. The maximum effec ­
tive range depends on several things . Remem­
ber, if the battery is wea k, the effective range
decreases.
If you need to replace the remote control, or if
you need to have it repaired, you must see
your author ized Audi dealer. Only then can
you use the key again.
(D Tips
- If the ignition is sw itched on, the remote
control system is deactivated .
- The remote control system can be affect­ ed by other systems operating in the
same frequency range close to the vehi­
cle, such as mobi le telephones, televi­
sion broadcasting stations, etc.
- Fo r De clarat ion of Compliance to United
Sta tes FCC and Indus try Canada regula­
tions ¢
page 230.
Master key battery replacement
Each master key contains a battery housed
under the cover .
Fig . 22 Remote master key: opening the cover
.. Pry apart the base¢ fig. 22@and the cover
@ care full y with a coin .
.,. Remove the cover (arrow) .
.,. Remove the dead battery from the cover .
.. Install the new battery . Please make certain
that the" +" sign on the batte ry faces down
Op enin g an d clos ing 29
in the cover . Correct polarity is shown on the
cover .
.. Place the cover with the new battery on the
key base and press both parts together .
@ For the sake of the env ironment
Dispose of dead batteries properly so as
not to pollute the environment.
(D Tips
The replacement battery must be the
same specification as the origina l.
Electronic immobilizer
The immobilizer helps to prevent unauthor­
ized use of your vehicle.
A computer chip ins ide your key automatica lly
deactivates the electron ic immobilizer when
you insert the key in the ign ition lock. When
you remove the key from the ignition lock, the
electronic immobilizer is automatically acti­
vated once again.
A WARNING
---
Always take the key with you when you leave the vehicle. The key can disarm the
electronic engine immobilizer and permit
an unauthorized person to start the engine
and enable operation of the vehicle sys ­
tems such as power w indow leading to se­
rious pe rsonal injury.
(D Tips
- T he ve hicle cannot be started if an unau­
thorized key is used. The vehicle may not
start if another radio device s uch as a key
for another vehicle or a transponder is
located on the key ring .
- For Declaration of Compliance to United
States FCC and Industry Canada reg ula­
tions¢
page 230 .

30 Opening and closing
Power locking system
General description
The power locking system locks or unlocks all
doors simultaneously.
The power lock ing system in your ve hicle in­
corporates the fo llow ing funct ions:
- Central locking function
- Remote con tro l feature q page 29.
- Anti -Theft Alarm Sys tem q page 34.
A ll the doors and the fron t lid are loc ked by
the central locking system when you lock the
ve hicl e.
The unlocking a nd lock ing mode * can be
cha nged in t he d river i nfo rmation system
qpage22.
Unlocking the vehicle
You can un lock the vehicle from outs ide e ither
by using the remote control
or by insert ing
a nd turning the key in t he d river's doo r lock.
When you
unlock your veh icle:
- The anti-theft alarm system is deactivated br iefly.
- The veh icle inter ior lights ill uminate for ap­
proximate ly 30 seconds.
- All turn signa l lights will f lash twice w hen
the car is unlocked.
- After unloc king the vehicle, yo u have 30 sec­
onds t o open a door or the front lid. After 30
seconds, the vehicle automatically locks and
the ant i-theft a larm system activates again.
The front lid can be locked or u nlocked e it h er
by using the remote control
or by insert ing
a nd turning the key in the driver's door lock.
Unlock ing the ve hicle w ith the remote co ntrol
c::::5 will only unlock the front lid, to open it,
the lid handle needs to be p ressed.
Locking the vehicle
You can lock the vehicle from o utside e ither by
using the remote control
or by insert ing and
turning the key in t he d rivers's door lock.
When you
lo ck the vehicle:
- All doors and the front lid are locked. -
All turn signal lights wi ll flash once when
the car is loc ke d.
- The ant i-theft alarm system is ac tiva ted.
The ho rn of the anti -theft alarm system wi ll
sound and the anti-theft a la rm system read­
iness light, located in the center of the in­
strument panel be low the w indshield on the
r ight side of the a ir vent, will start to blink.
- The vehicle interior lights turn off.
Automatic lock ing*
T he au tom atic locking fea ture locks a ll the ve­
hicle doors and the fron t lid when yo u drive
faster than
9 mph (15 km/h).
You can unl ock t he vehi cle from the inside by:
- remov ing the key from the igni tion swi tc h
(the vehi cle w ill automatically u nlock itself)
or
- pressi ng the un lock pa rt of the power lock
sw itch
ll:D or
pull ing the door handle (to open the doo r).
If you wish, yo u can have an autho rized Aud i
dealer convert your power doo r lock system to
automat ic locking.
Unintentionally locking yourself out
T he vehicle does not lock with t he centra l
l ocking switch
¢ page 3 2 if the driver's door
is open .
D o no t lock your ve hicle w ith the
remote mas ­
ter key
un til a ll doo rs and t he front lid a re
closed. In this way yo u avoid locking yourse lf
o ut acc identally .
_& WARNING
- When you lock yo ur vehicle from o utside,
nobody- espec ia lly children -shou ld re­
main inside the vehicle. Remember,
when yo u lock th e vehicle from the out­
side th e wi ndows canno t be o pened from
the inside.
- W hen you leav e th e ve hicle, always r e­
move the ign ition key an d take it with
you. This will preven t passe ngers (chil­
d ren, f or example) from a ccidenta lly be­
i ng l ocke d in the vehicle s hould they

accidentally press the power locking
switch in one of the doors.
- Do not leave children inside the vehicle
unsupervised. In an emergency it would
be impossible to open the doors from
the outside without the key.
@ Tips
- The dr iver's door can be locked and un­
locked with the key if the power locking
system fails. The passenger's door can be locked manually
o page 33.
- In the event of a crash with airbag de­
ployment all locked doors will be auto­
matically unlocked to give access to the
vehicle occupants from the outside.
- The anti-theft alarm system cannot be
activated if the power locking system is
not activated.
- You are well advised not to keep valua­
bles inside an unattended vehicle, visible
or not . Even a properly locked vehicle
cannot provide the security of a safe!
Unlocking and locking the vehicle with
the remote control
How the remote control works.
Fig. 23 Remote control: fu nctio n buttons
Whether only the driver's door or the entire
vehicle is unlocked when the opening button
@ is pressed once, depends on the settings in
the Driver information system
Central locking
menu o page 22.
To unlock the vehicle m
.. Press button @.
Opening and closing 31
.. Press button @ two times within two sec­
onds
to unlock all doors and the front lid.
To lock the vehicle i'.'fl
.. Press button @ o &_ in General description
on page 30.
.,. Watch that all tu rn signal lights flash once.
To unlock front lid only C::$
.. Press button © for approximately one sec­
ond.
PANIC Button
.,. Push the red button @to activate the panic
function . The horn sounds and the turn sig­
nals flash.
.. Push the button @again to deact ivate the
pan ic function.
The remote controls allows you to:
- lock or unlock the vehicle
- selectively un lock the front lid.
The turn signals will flash briefly whenever
you lock or unlock the vehicle. Also, the interi­
or light will come on or go off whenever you
open or close the driver's door .
The transmitter and battery are located in the
head of the remote control. The receiver is lo­
cated inside the vehicle. The maximum effec­
tive range depends on several things . Remem­
ber, if the battery is weak, the effective range
decreases.
The remote-contro l key contains a fo ld-out
key that you can use to manually lock or un­
lock the vehicle and to start the engine.
If you need to replace the remote control, or if
you need to have it repaired, you must see
your authorized Audi dea ler . Only then can
you use the key again.
A WARNING
Read and follow all WARNINGS o .&. in
General description on page 30.

32 Opening and clo sing
@ Tips
- The remote control key is automatica lly
deactivated when the ignition is sw itch­
ed on.
- The operation of the remote contro l key
can be temporarily disrupted by interfer­
ence from transmitters in the vicinity of
the vehicle work ing in the same frequen­
cy range (e.g. a cell phone, radio equip­
ment) .
- In order to make sure the locking func­
tion is working, you shou ld always keep
you r eye on the vehicle to make sure it is
proper ly locked.
- Do not use the remote control if you are
i ns ide the car, otherwise you may unin­
tentiona lly lock the vehi cle, and then you
would set off the anti-theft alarm when
you try to start the engine or open a
door . In case this happens anyhow, push
the un lock button @.
- Use the panic funct ion only if you are in
an emergency situation.
Resetting the remote control
The remote control must be reset if the vehi­
cle does not unlock .
• Pres s the unlock button ffi on the remo te
control.
• Manua lly unlock the drive r's door lock with
the mechanical key within 30 seconds.
• Press e ither the lock-
ffi or the unlock @ but­
ton to complete the reset sequence.
Operating locks with the key
To lock and unlock the vehicle from the out­
side, turn the key in the lock of the driver's
door.
F ig . 24 Key turns for opening and dosing
• To unlock the vehicle, turn the key to the
opening position@¢
fig. 24 .
• To lock the vehicle, tu rn the key in the lock
of the driver's door to the lock pos ition @
¢ .&.-
A WARNING
=
Always read and heed WARNING¢.&. in
General description on page 30 .
Locking and unlocking the vehicle from
inside
The vehicle can be locked or unlocked from
the inside using the power locking switch .
Fig . 25 Sect ion fro m driver's door: Power locking
switc h
• Press the upper part of the power lock ing
sw itch@ to lock the vehicle ¢_&. .
• Press lower pa rt of the switch
al to unlock
t he vehicle.
-

The indicator li ght q fig . 30 starts flashing
rapidly fo r 2 seconds and then blinks slowly.
How is the anti-theft alarm system
switched off?
The anti -the ft alarm system is switched off
on ly when you unlock your vehicle. If yo u do
not open a door with in 30 seconds after yo u
have unlocked with the remote control, the
ve hicle w ill lock itse lf again a utomat ically.
When will the anti theft alarm system be
triggered?
When the veh icle is locked, the alarm system
monitors and protects the following parts of
the vehicle:
- engine compartment
- luggage compartment
- doo rs
- ignition
When the system is activated , the alarm wi ll
be tr iggered if one of the doors, the eng ine
compa rtment lid or the front lid are opened .
The anti-theft a larm system will also go off
when the battery is disconnected .
You can a lso trigger the alarm by pressing t he
PANIC button on your remote-control key .
This will a lert other peop le in case of emer­
gency . Press the
PANIC button again to tu rn
off the alarm .
How is the ant i-theft alarm switched off
when triggered?
The alarm system is switched off w hen you
u nl ock the vehicle us ing the remote-control
key or when the ignition is sw itche d on . T he
a larm w ill also switch itse lf off when it comes
t o the en d of its cycle.
Emergency flasher
The emergency f lasher w ill blink b riefly w hen
the doors, e ngine compartment l id and fron t
lid are properly clos ed .
If the emergency flashers do not blink, check
the doors, e ngine compartment l id and front
l id to make sure t hey a re p roperly closed . If
Opening and clo sin g 35
you close a doo r, the eng ine compartment lid
o r the fro nt lid with the anti -theft alarm
switched on, the eme rgency flashers w ill blink
o nl y after yo u have closed the door or lid.
@ Tips
For the a nti-theft alarm system to f unc­
tion properly, make sure all ve hicle do ors
and windows are closed bef ore leaving t he
vehicle.
Power windows
Controls
Th e driver can opera te all windo ws.
F ig. 31 Driver 's doo r: power w indow sw it ches
T he powe r window swi tc hes have a two-posi­
tion function :
Opening the windows
.,. Press the swit ch and hold it down u nt il the
w indow h as reached the desired posi tio n.
.,. Press t he swi tch
briefly to open the win dow
automatically .
... By briefly press ing/p ulling the sw itch again,
the downward t ravel of the window can be
stopped in any pos ition
¢ ,& .
Closing the windows
.,. Pull the sw itch and hold it until the w indow
has reached the desire d posi tion .
... Pull the sw itch
briefly to close t he window
automatically.
... By briefly pressing/pull ing the sw itch again,
the upwa rd trave l of the w indow can be
stopped in any pos it ion
¢ ,& . .,.

90 Homelink®
Homelink®
Universal remote
control
General information
The Homelink universal remote control can
be programmed with hand-held transmitters
from existing equipment.
You must first program the Homelink ® trans­
mitter before you can use the system
~ page 90, Programming the Homelink ®
transmitter.
I n o rder to prog ram the Homelink ® transmit­
ter for devices utilizing rolling code, a second pe rson on a ladder who can safely reach the
garage doo r opener motor is recommended.
It is also necessary to locate the "learn" but­
ton on your garage door opener motor . Refer
to the operating instructions for the opener,
as the location and color of this button may
vary by manufacturer .
You can still use the original remote control
for the device at any time.
A WARNING
-
- Never use the Homelink® transmitter
with any garage door opener that does
have not the safety stop and reverse fea­
ture as requ ired by federa l safety stand­
ards. This includes any garage door open­
er model manufactured before April 1,
1982.
- A garage door opener which cannot de­
tect an object, signa ling the door to stop
and reverse does not meet current feder­
al safety standards. Using a garage door
opener without these features increases
risk of serious injury or death.
- For safety reasons never release the
parking brake or start the engine while
anyone is stand ing in front of the vehicle.
- A garage door or an estate gate may
sometimes be set in motion when the
Homelink ® remote control is being pro­
grammed. If the device is repeatedly ac- tivated, this can overstrain motor and
damage its e
lectrical components -an
overheated motor is a fire hazard!
- To avoid possib le injuries or property
damage, please always make absolutely
certain that no persons or objects are lo­
cated in the range of motion of any
equ ipment being operated.
(!) Tips
- If you would like more information on
Homelink ®, where to purchase the
Homelink ® compatible products, or
would like to purchase the Homelink®
Home Lighting Package, please call toll­
free: 1-800-355-3515.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions~
page 230.
Programming the Homelink ®
transmitter
The transmitter is programmed in two phas­
es. For rolling code transmitters, a third
phase is also necessary.
Fig. 99 Overhead co nsole: Homelink ® keypad
I
'-.. ~0000 - - ,r.;-_ - -
Fig. 100 Fro nt bumper : location of tra nsmi tter unit
