2014 AUDI R8 SPYDER ESP

when ESC is switched off, especially
when the road is slippery.
- Once you have accelerated, you should
switch the ESC back on by pressing the
[fil
button.
(D Tips
- The transmission temperature may in­
crease significantly after using the Launch Control Program. If that hap­
pens, the program may not be available
for a few minutes. It will be available again after a cool-down period.
- When accelerating using the Launch
Control program, all vehicle parts are
subject to heavy loads. This can result in
increased wear.
Steering wheel with shift paddles
Applies to vehicles: with S tronic
The shift paddles allow you to select gears
manually on the steering wheel .
Fig . 85 Steering wheel: shift paddles
~ To shift down, press the paddle on the left
0 -
~ To shift up, press the paddle on the right G).
You can continue to use the manual sh ift pro­
gram with the selector lever in the center con­
sole.
Transmission malfunction
Applies to vehicles: with S tronic
[O] Transmission: please press the brake ped­
al and select the position again Transmission 81
Press the brake pedal and select the desired
selector lever position again. You can then
continue driving.
[O] Transmission too hot: please modify driv·
ing style
The transmission temperature has increased
significantly due to the sporty driving manner.
Drive in a less sporty manner until the tem­
perature returns to the normal range and the
indicator light switches of.
[O] Transmission: System malfunction! You
may continue driving
There is a system malfunction in the transmis­ s ion. You may continue driving. Drive to your
authorized Audi dealer or qualified repair fa­
c ili ty soon to have the malfunction corrected.
Bii·Transmission: System malfunction !
You may continue driving in A until you turn
the engine off.
There is a system malfunction in the transmis­
sion. The transmission is switching to emer­
gency mode . Drive to your authorized Audi
dealer or qualified repair facility immediately
to have the malfunction corrected.
[O] Transmission: System malfunction ! Driv­
ing ability is restricted
There is a system malfunction in the transmis­
s ion . The transmission is switching to emer­
gency mode . This mode only shifts into cer­
tain gears or will no longer shift at all. The en­
gine may stall. Drive to your authorized Audi
dealer or qualified repair facility immediately
to have the malfunction corrected .
[oJ;t Transmission: System malfunction !
Driving ability is restricted. No reverse gear
There is a system malfunction in the transmis­
sion. The transmission is switching to emer­
gency mode . This mode only shifts into cer­
ta in gears or will no longer shift at all. The en ­
gine may stall. You cannot engage the reverse
gear. Drive to your authorized Audi dealer or
qualified repair facility immediately to have
the malfunction corrected.

Rear vi ew camer a coverage area
The rearview camera shows you the a rea be­
hind your vehicle in the navigation system dis­
p lay. This area roughly corresponds to the
area in¢
fig . 90 and (!)¢ fig. 91. Orientation
lines and colored surfaces are projected in the
area shown, which can help you with parking
and maneuvering. Objects that are located in
an area that is not captured by the camera @
¢
fig. 91 and that are closer to the bumper
will not appear on the nav igation system dis ­
p lay.
We recommend that you practice park ing with
the rearview camera in a traffic-free location
or pa rking lot to become familiar w ith the sys­
tem, the o rientation l ines, and their function.
There should be sufficient light and good
weather conditions when doing so.
I n the nav igat io n system disp lay, objects or
veh icles appear closer or fu rther away if:
Objects or vehicles appear closer or farther
away in the navigation system if:
- you are driving in reverse gear from a level
surface onto an incline, or a downward
slope,
- you are driving in reverse gear toward pro-
truding objects.
The accuracy of the orientation lines and blue
surfaces dimin ishes if:
- the rearview camera does not provide a reli­ able image, for examp le, in poor visibility
cond itions or if the lens is dirty,
- the image on the screen is not visible due to
sun g lare and reflect ion .
Caring f or the re arvi ew cam era len s
The rearview camera is located i n the center
of the vehicle above the rear license plate bra cket. In o rder for the rearview camera to
f u nction properly, the came ra lens must be
kept clean and free of snow and ice .
- Dampen the lens with a househo ld alcoho l­
based glass cleane r, and clean the lens with
a dry cloth.
Par king system 85
- Remove snow with a hand br ush and ice
preferably with a de-icing spray ¢(D .
A WARNING
-The parking system cannot replace the
driver's attention. The driver alone is re­
sponsib le for parking and similar driving
maneuvers.
- Sensors have blind spots in wh ich objects
can not be detected. Pay spec ia l attent ion
to small children and an imals because
the sensors cannot always detect them.
- Always keep your eyes on the vehicle's
sur ro undings, us ing the rearv iew mirro r
as well.
- Do not allow yourself to be distracted from traffic by the rearv iew camera pic­
tures in the navigat ion system display.
- If the position and the installation angle
of the camera has changed, for example,
after a rear end collision, do not conti nue
to use the system for safety reasons.
Have it checked by an au thori zed A ud i
dea ler or other q ualified workshop .
(D Note
-Low obstacles a lready s ignaled by a
wa rni ng can disappear from the system's
detect ion range as they are app roached
and wi ll not continue to be signaled. Ob­
jects such as barrier chains, trailer d raw
bars, narrow painted vertica l poles or
fences may not be detected by the sys­ tem, posing risk of damage.
- Never use warm or hot water to remove snow or ice from the rearv iew camera
lens because the lens could crack.
- Never use products that are abrasive when clean ing the lens.
-

Reverse parking
Applies to vehicles: with parking system advanced
Parking mode 1 can be used when parking in
a garage or into a parking space.
Fig. 94 Navigation system display: Aiming at a parking
spot
Fig.
95 Navigation system display: Al igning the veh icle
~ Switch the navigation system and the dis­
play of the navigation system on.
~ Select the reverse gear .
~ Turn the steering wheel until the orange ori­
entation lines
(D appear in the parking spot
C? fig. 94. Use the markings @to help you
estimate the distance from an obstacle.
Each marking represents 3
ft. (1 m). The
blue area represents an extension of the ve­
hicle's outline by approximately 16
ft. (5 m)
to the rear.
~ While driving in reverse gear, adjust the
stee ring wheel angle to fit the parking spot
with the a id of the orange orientation lines
E:?(D. @ marks the rear bumper. Stop the
vehicle once the red orientation line©
touches an object
E:? ,&. .
A WARNING
-The rearview camera does not show the
entire area behind the vehicle~
page 84,
fig. 91. Watch out especially for small
Parking system 87
children and animals. The rear view cam­
era cannot always detect them, posing
risk of an accident!
- Please note that objects not touching the
ground can appear to be farther away
than they really are (for example, the
bumper of a vehicle or the rear of a
truck). In this case, you should not use
the orientation lines to help with park­
ing, which poses danger of an accident!
(D Note
In the navigation system display, the direc­
tion of travel of the vehicle rear is repre­
sented depending on the steering wheel
angle. The vehicle front swings out more
than the vehicle rear. Maintain plenty of
distance so that your outside mirror or a
corner of your vehicle does not collide with
any obstacles. This can damage to your ve­
hicle.
Parallel parking
Applies to vehicles: with parking system advanced
Use parking mode 2 to help you parallel park
along the side of a street.
Fig. 96 Nav igation system display: Blue surface
a ligne d with parking spot
Fig. 97 Navigation system display: The blue curved line
contacting the curb
IJi,,-

88 Parking system
The following steps app ly only when there is
no obstacle such as a wall near the parking
spot. Otherwise, please read the informat ion
prov ided in the "Parking Next to Obstacles"
section.
.. Activate the turn signal.
.. Position yo ur vehicle parallel to the edge of
the street, approximately 3 ft. (1 m) from a parked vehicle .
.. Switch the navigation system and the nav i­
gat ion system d isplay on.
.. Se lect reverse gea r. The parking aid turns on
and park ing mode 1 appears on the disp lay.
.. Press the contro l bu tton
1 on the nav igat ion
system
r=> fig. 96 . Parking mode 2 appears .
.. Back up and align yo ur vehicle so the blue
area @ borders on the rear end of the vehi­
cle or on the parking spot line. The bl ue area
represents an extension of the veh icle's out­
li ne by approximate ly 16 ft (5 meters) to the
rear . The long side of the blue area should
be o n the cu rb. The entire blue area must fit
into the parking spot .
.. With the veh icle stopped, turn the s teer ing
wheel to the right as far as it w ill go.
.. Back into the par king spot until the blue
c ur ve to uches the curb
r=> fig. 97. Stop the
vehicle.
.. With the veh icle stopped, turn the steer ing
wheel to the left as far as it will go.
.. Co ntinue to back into the parking spot un til
the veh icle is parked para llel to the curb .@
marks the rear bumper . Stop the vehicle
when the red orientation line@ borders an
obje ct
r=> & -Keep an eye on the front of
yo ur vehicle while doing this
r=>0 .
Parking n ext to obstacles
When t here is an obstacle (such as a wall)
next to the pa rk ing spot, choose a spot w ith
mo re space on t he sides. Pos ition the long
side of the blue area so that there is sufficie nt
sp ace from the curb. The area m ust no t be on
the c urb. Yo u will also need to start turning
the steering wheel much earlier. There should
be a suffic ient amo unt of space between the
curb and the b lue curve, and the blue c urve
¢
fig. 97 must not to uch the curb.
A WARNING
- The rearview camera does not show the
entire area behind the vehicle¢ page
84 ,
fig . 91 . Watch out especially for small
children and anima ls . T he rea r view cam­
era cannot always de te ct them, pos ing
r is k of an a ccide nt!
- P lease note that objects not touching the
g round can appear to be far ther away
t han they really are (for examp le, the
bumper of a vehicle or the rear of a
truck) . In this case, you should not use
the orientation lines to help with par k­
ing, which poses danger of an accident!
(D Note
In the navigation system d isp lay, the direc ­
tion of trave l of the vehicle rear is rep re­
sented depending on the stee ring wheel
angle. The vehicle front swings out more
than the vehicle rear. Ma inta in p lenty of
distance s o that your outside mirror or a
corner of you r vehicle does not coll ide wi th
any obstacles. This can damage to your ve­ h icl e .
(D Tips
The left o r right orie ntation lines and su r­
faces will be disp layed, depending on t he
tu rn s ignal being used .
Adjusting the warning tones
Applies to vehicles: with parking system advanced
Fig . 98 Nav igat io n s ystem d is pl ay: adj ust ing the park­
i ng sys te m
Req uirement : The parking system must be
switched on.

Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others . We have
summarized here what you need to know
about safety belts, airbags, child restraints as
well as child safety. Your safety is for us
priori­
ty number 1.
Always observe the information
and warnings in this section - for your own
safety as well as for that of your passengers.
The information in this section applies to all
model versions of your vehicle . Some of the
features described in this section may be
standard equipment on some models, or may
be optional equipment on others. If you are
not sure, ask your authorized Audi dealer.
A WARNING
- Make certain that you follow the instruc­
tions and heed the WARNINGS in this
Manual. It is in your interest and in the
interest of your passengers.
- Always keep the complete owner's litera­
ture in your Audi when you lend or sell
your vehicle so that this important infor­
mation will always be available to the
driver and passengers.
- Always keep the owner's literature handy
so that you can find it easily if you have
questions.
Safety equipment
The safety features are part of the occupant
restraint system and work together to help
reduce the risk of injury in a wide variety of
accident situations .
Your safety and the safety of your passengers
should not be left to chance. Advances in
technology have made a variety of features
available to help reduce the risk of injury in an
Driving Safely 93
accident. The following is a listing of just a
few of the safety features in your Audi:
- sophisticated safety belts for driver and all
passenger seating positions,
- safety belt pretensioners ,
- front airbags,
- knee airbags,
- side airbags in the seats
- adjustable head restraints,
- adjustable steering column.
These individual safety features can work to­
gether as a system to help protect you and
your passengers in a wide range of accidents.
These features cannot work as a system if
they are not always properly adjusted and
properly used!
Safety is everybody's responsibility!
Important things to do before driving
Safety is everybody's job! Vehicle and occu­
pant safety always depends on the informed and careful driver.
For your safety and the safety of your passen­
gers,
before driving always:
~ Make sure that all lights and signals are op­
erating correctly .
~ Make sure that the tire pressure is correct.
~ Make sure that all windows are clean and af­
ford good visibility to the outside.
~ Secure all luggage and other items carefully
r=:> page 60.
~ Make sure that nothing can interfere with
the pedals.
~ Adjust front seat, head restraint and mirrors
correctly for your height .
~ Instruct passengers to adjust the head re­
straints according to their height .
~ Make sure to use the right child restraint
correctly to protect children¢
page 132,
Child Safety.
~ Sit properly in your seat and make sure that
your passengers do the same¢
page 57,
General recommendations. .,..
•
•

94 Driving Safel y
• Fasten your safety be lt and wear it properly .
Also instruct your passengers to fasten their
safety belts proper ly
¢ pag e 103.
What impairs driving safety?
Safe driving is directly related to the condi­
tion of the vehicle, the driver as well as the
driver 's ability to concentrate on the rood
without being distracted.
The driver is responsible for the safety of the
vehicle and all of its occupants. If your ability
to drive is impaired, safety risks for everybody
in the vehicle increase and you also become a
hazard to everyone else on the road
¢ .&, .
Therefore:
• Do not let yourself be distracted by passen­
gers or by using a cellular telephone.
• NEVER dr ive when your dr iving ability is im­
paired (by medicat ions, alcohol, drugs, etc.) .
• Observe all traffic laws, rules of the road
and speed limits and plain common sense.
• ALWAYS adjust your speed to road, traff ic
and weathe r conditions.
• Take frequent breaks on long trips . Do not
drive for more than two hours at a stretch .
• Do NOT drive when you are tired , under
pressure or when you are stressed.
A WARNING , .
Impaired driving safety increases the risk
of serious personal injury and death when­
ever a vehicle is being used.
Proper occupant
seating positions
Proper seating position for the driver
The proper driver seating position is impor­
tant for safe, relaxed driving.
Fig. 102 Correc t seat ing posit ion
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the driver's seat to the
following position:
• Adjust the steering wheel so that there is a
distance of at least 10 inches (25 cm) be­
tween the steering wheel and your breast
bone
¢ fig . 102 .
• Adjust the driver's seat so that you can easi­
ly push the pedals all the way to the floor
while keeping your knee(s) slightly bent
¢.&_ .
• Grasp the top o f the steer ing whee l w ith
your elbow(s) slightly bent.
• Adjust the head restraint so the upper edge
is as even as possible with the top of your
head. If that is not possible, try to adjust
the head restraint so that it is as close to
this position as possible .
• Adjust the steering wheel so that the steer­
ing wheel and airbag cover points at your
chest and not at your face.
• Adjust the angle of the seatback so that it is
in an upright position so that your back
comes in full contact with it when yo u drive.
• Fasten and wear safety be lts correctly
¢ page 103.
• Always keep both feet in the footwell so
that you are in control of the vehicle a t all
times .

-Children must always be properly re­
strained in a child restraint that is appro­
priate for their age and size
c:> page 132.

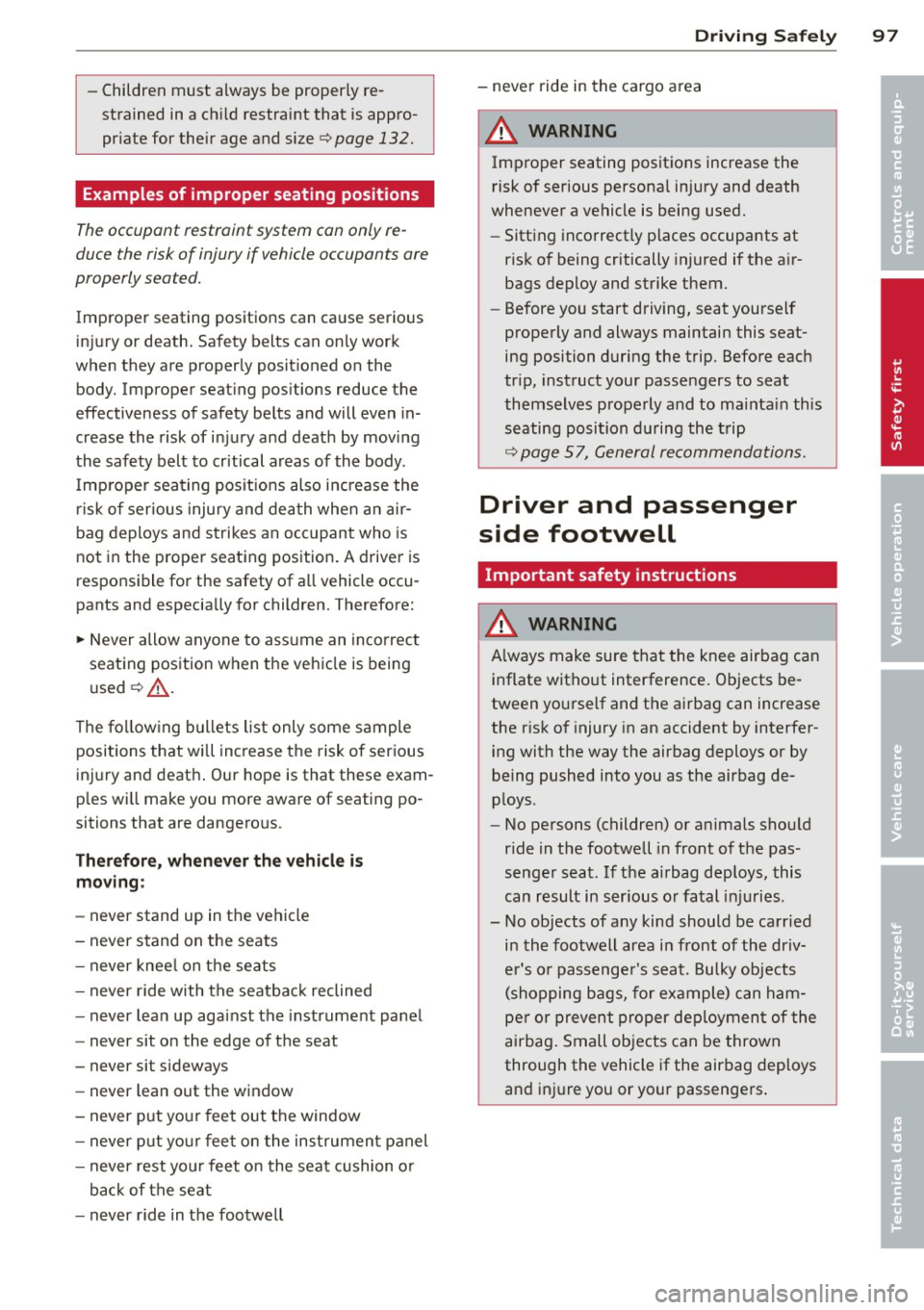

Examples of improper seating positions
The occupant restraint system can only re­
duce the risk of injury if vehicle occupants are
properly seated.
Improper seating positions can cause serious
injury or death. Safety belts can only work
when they are properly positioned on the
body. Improper seating positions reduce the
effectiveness of safety belts and will even in­
crease the risk of injury and death by moving
the safety belt to critical areas of the body .
Improper seating positions also increase the
risk of serious injury and death when an air­
bag deploys and strikes an occupant who is
not in the proper seating position. A driver is
responsible for the safety of all vehicle occu­
pants and especially for children. Therefore:
.,. Never allow anyone to assume an incorrect
seating position when the vehicle is being
used
c:> ,&. .
The following bullets list only some sample
positions that wi ll increase the risk of serious
injury and death . Our hope is that these exam ­
ples will make you more aware of seating po­
sitions that are dangerous.
Therefore, whenever the vehicle is
moving:
- never stand up in the vehicle
- never stand on the seats
- never kneel on the seats
- never ride with the seatback reclined
- never lean up against the instrument panel
- never sit on the edge of the seat
- never sit sideways
- never lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cushion or
back of the seat
- never ride in the footwell
Driving Safely 97
-never ride in the cargo area
A WARNING
Improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- Sitting incorrectly places occupants at
risk of being critically injured if the air­
bags deploy and strike them.
- Before you start driving, seat yourself
properly and always maintain this seat­
ing position during the trip. Before each
trip, instruct your passengers to seat
themselves properly and to maintain this
seating position during the trip
c:> page 57, General recommendations .
Driver and passenger
side footwell
Important safety instructions
A WARNING
A lways make sure that the knee airbag can
inflate without interference. Objects be­
tween yourself and the airbag can increase
the risk of injury in an accident by interfer­
ing with the way the airbag deploys or by
being pushed into you as the airbag de­
ploys .
- No persons (children) or animals should
ride in the footwell in front of the pas­
senger seat . If the airbag deploys, this
can result in serious or fatal injuries.
- No objects of any kind should be carried
in the footwell area in front of the driv­
er 's or passenger's seat. Bulky objects
(shopping bags, for example) can ham­
per or prevent proper deployment of the
airbag. Small objects can be thrown
through the vehicle if the airbag deploys
and injure you or your passengers .
•
•
-

In a collision, the laws of physics mean that
even smaller items that are loose in the ve hi­
cle will become heavy missiles that can cause
serious injury. Items in the vehicle possess en­
ergy which vary with vehicle speed and the
weight of the item . Vehicle speed is the most
sig nificant factor.
For examp le, in a frontal coll is ion at a speed
of 30 mph (48 km/h), the forces acting on a
10 -lb (4 .5 kg) object are about 20 times the
norma l we ight of the item. Th is means that
the we ight of the item would suddenly be
about 200 lbs. (90 kg). You can imag ine the
in ju ries that a 200 lbs. (90 kg) item flyi ng
freely th roug h the passenge r compartment
could cause in a collision like this.
~ WARNING
Improperly stored luggage or other items
can fly through the vehicle ca us ing serious
personal in jury in the event of hard brak­
ing or an acc ident. To help reduce the risk
of serious personal injury :
-Always put objects, for examp le, luggage
or other heavy items in the luggage com­
partment .
A WARNING
Heavy loads will influence the way your ve­
hicle handles . T o help reduce the r is k of a
loss of control leading to ser ious personal
injury:
- Always keep i n m ind whe n transporting
heavy objects, that a c hange in t he cen­
t er of g ravity c an also cause c hanges in
vehicle handling .
- Never exceed the G ross Ax le Weight R at­
ing or the Gross Veh icle Weight R ating
specified on t he safety compliance s tic k­
er on the left door jamb. Exceeding pe r­
missib le we ight standa rds can cause the
vehicle to s lide and handle differently.
- Please obse rve info rmation on safe driv­
ing
c:;, page 93 .
Dr iving S afel y 99
A WARNING
Always make sure that the doors, all win­
dows a nd the front lid are secure ly closed
and locked to reduce the r is k of injury
when the vehicle is not be ing used .
- After closing the front lid, always make sure that it is p rope rly closed and locked .
- Never leave your veh icle unattended es ­
pecially with the front lid left open . A
child co uld craw l into the luggage com­
pa rtment and close the front lid becom­
ing tr apped and unable to ge t out. Being
trapped in a veh icle can lead to se rious
pe rsonal injury .
- Never let c hild ren play i n or aroun d the
veh icle .
- Never let p assenger s ride in the luggage
comp artment. Vehicle oc cupants mus t
always be prope rly restrained in one of
the vehicle's seating pos it ions .
(D Tips
The t ire press ure mu st cor respond to t he
l oad. The t ire p ress ure is shown on the tire
pressure label. The tire pressure labe l is lo ­
cated on the d river's side B-pi llar . The t ire
pressure label lists the recommended cold
tire inflation pressures for the vehicle at i ts maximum capac ity we ight and the tires
that we re on your vehicle at the t ime it
was manufactured. For recommended tire
p ressures fo r no rma l load cond it ions,
please see chapter
c:;, page 193.
Reporting Safety
Defects
Applicable to U.S.A.
If you belie ve that your vehi cle
has a d efe ct which could cau se
a crash or could caus e injur y or
d eath, you should immediat ely
inform th e National High way
Tr affi c Safet y Administration
•
•
