292 Tires and wheels
TPMS malfunction indicato r is combined with
the low tire pressure telltale . When the sys
tem detects a malfunct ion, the te lltale will
flash for approximately one minute and then
remain continuously illuminated. This se
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminat
ed, the system may not be able to detect or
signal low t ire pressure as intended. TPMS
malfunctions may occur for a variety of rea
sons, includ ing the installat ion of replace
ment or alt ernate tires or wheels on the vehi
cle that prevent the TPMS from functioning
properly. Always check the TPMS malfunct ion
tellta le after replacing one or more tires or
wheels on your vehicle to ensure that the re p lacement or a lternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 254 D isplay: underinflat ion wa rning
Using the ABS sensors, the tire pressure moni
toring system compares the tire tread circum
ference and vibration characteristics of the in
dividual tires. If the pressure decreases in one
or more tires, this is indicated in the instr u
ment cluster with a
[D] warning symbol and a
message ¢
fig. 254. The driver message in the
display goes out after S seconds. The driver
message can be displayed again by pressing
the
! CHECK I button . If only one tire is affect
ed, the display will indicate its position . The tire pressure
monitoring must be reset via
MMI each time the pressures are adjusted (e.
g. when switching between partial and full
load pressure) or after changing or replacing a
tire on your vehicle¢
page 293. The TPMS in
dicator on ly monitors the tire pressure that
you have prev iously stored . You can find the
re commended t ire pressures for your vehicle
on the label on driver's s ide B-pillar
¢page 277.
Tire tread circumference and vibration charac
teristics can change and cause a tire pressure
warning if:
- the t ire pressure in one or more tires is too
low,
- the t ire has structural damage,
- the t ire pressure was changed, wheels rotat-
ed or replaced but the TPMS was not reset
¢page 293.
Warning symbols
[D] Loss of pressure in at least one tire¢.&. .
Check the tire or tires and replace or repa ir if
necessary. The
[I] indicator light in the instru
ment cluster also illuminates
¢page 14.
Check/correct the pressures of all four tires
and reset TPMS via MMI.
@m (T ire Pressure Mon itor ing System) Tire
pressure: System malfunction!.
If ffiim appears afte r switching the ignition on
or whi le dr iving and the
[D] indicator light in
the instrument cluster blinks for approx i
mately one minute and then stays on, there is
a system malfunct ion .
Attempt to store the correct tire pressure
¢
page 293. If the indicator light does not
turn off or if it turns on shortly thereafter, im
med iate ly drive your vehicle to a n author ized
Audi dealer or authorized repair facility to
have the malfunction corrected.
.&_ WARNING
- If the tire pressure indicato r appears in
th e ins trum ent cluster display, one or
more of your tires is significantly under

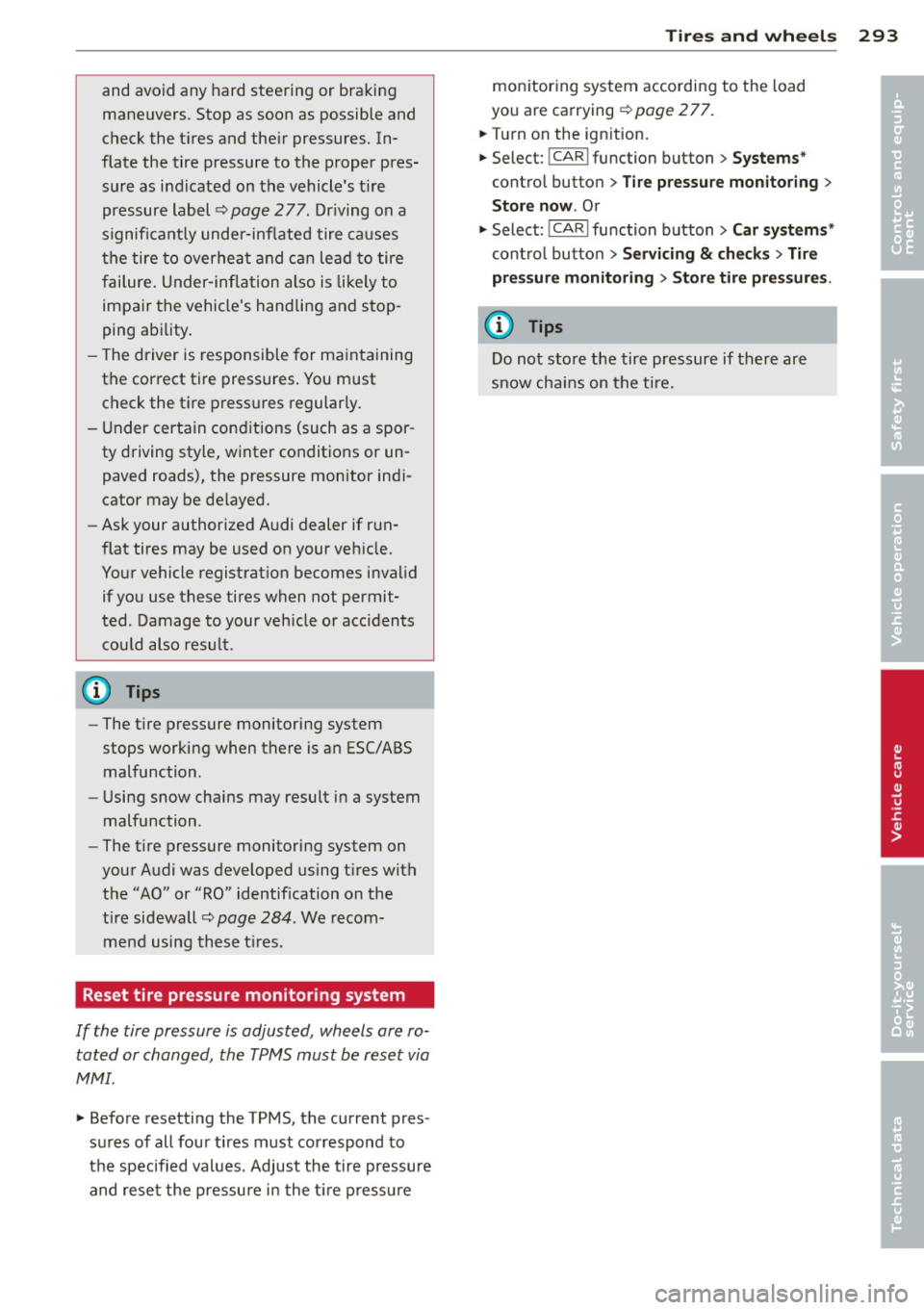

inflated . Reduce your speed immediately ..,_
and avoid any hard steering or braking
maneuvers. Stop as soon as possible and
check the tires and their pressures. In·
flate the tire pressure to the proper pres
sure as indicated on the vehicle's tire
pressure label ¢
page 2 77. Driving on a
significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also is likely to
impair the vehicle's handling and stop
ping ability.
- The driver is responsible for maintaining
the correct tire pressures. You must
check the tire pressures regularly.
- Under certain conditions (such as a spor
ty driving style, winter conditions or un
paved roads), the pressure monitor indi
cator may be delayed.
- Ask your authorized Audi dealer if run
flat tires may be used on your vehicle.
Your vehicle registration becomes invalid
if you use these tires when not permit
ted. Damage to your vehicle or accidents could also result.
@ Tips
- The tire pressure monitoring system
stops working when there is an ESC/ABS
malfunction.
- Using snow chains may result in a system
malfunction.
- The tire pressure monitoring system on
your Audi was developed using tires with
the "AO" or "RO" identification on the
tire sidewall¢
page 284. We recom
mend using these tires.
Reset tire pressure monitoring system
If the tire pressure is adjusted, wheels are ro tated or changed, the TPMS must be reset via
MMI.
.,. Before resetting the TPMS, the current pres
sures of all four tires must correspond to
the specified values. Adjust the tire pressure and reset the pressure in the tire pressure
Tires and wheels 293
monitoring system according to the load
you are carrying
¢ page 277.
.,. Turn on the ignition.
.,. Select:
!CAR I function button > Systems*
control button > Tire pressure monitoring >
Store now. Or
.,. Select:
!CAR I function button> Car systems*
control button > Servicing & checks > Tire
pressure monitoring
> Store tire pressures .
@ Tips
Do not store the tire pressure if there are
snow chains on the tire.
•
•
