Displaying the vehicle level
The current vehicle level is shown with seg­
ments filled out in the segment display @. If
only the bottom segment is filled out, the ve­
hicle is at highway level. If all segments are
filled out, the vehicle is at high level 2 and has
the greatest amount of ground clearance pos­
sible.
While the vehicle is being raised or lowered,
the target level is indicated by an arrow @
¢
fig. 188 or a white border @¢ fig. 189. The
arrow/border disappears again when the vehi­
cle is at the target level.
Jacking mode when changing a flat tire
Applies to vehicles: with Adaptive Air Suspension
This mode must be activated in the MMI be­
fore raising the vehicle with a jack or on a ve­
hicle lift.
.,. Select: ICARI function button> !SETUP I func­
tion button >
Jacking mode. Or
.,. Select:
I CARI function button > Car systems*
control button > Servicing & checks> Air
susp.: tire change.
The vehicle jack mode must be activated be­
fore changing a wheel so that the automatic
control processes for the air suspension do not make lifting with the vehicle jack more dif­
ficult.
The check lamp
II in the instrument cluster
display illuminates in vehicle jack mode.
0) Tips
The vehicle jack mode is switched off auto­
matically at speeds above 9 mph (15 km/
h).
Towing a trailer
Appl ies to vehicles: with towing hitch and Adaptive Air
Suspension
Automatic lowering is not desirable when
towing a trailer.
.,. Select: ICAR I function button> !SETUP I func­
tion button >
Towing mode. Or
Adaptive Air Suspension 159
.,. Select: !CAR I function button > Car systems*
control button > Vehicle settings > Air
susp.: towing.
As long as towing mode is activated, a vehicle
with a trailer appears in the
adaptive air sus­
pension
main menu.
Level Adjustment when towing a trailer
- Before hitching up the trailer and before ad­
justing the tongue weight at the trailer, the
automatic or comfort mode
must be select­
ed so that the vehicle can be at normal level
¢page 157, MMI settings.
-If driving in dynamic mode is desired, this
mode
must be selected before hitching up
the trailer and before adjusting the tongue
weight. However, note that your vehicle is lowered and ground clearance is reduced.
- If you have to drive under difficult road con­
ditions, you can select offroad or lift mode,
after hitching up the trailer or after adjust­
ing the tongue weight.
- If the vehicle is at
normal level, and you se­
lect offroad mode while traveling at speeds
higher than 22 mph (35 km/h), the vehicle
will not be raised. Offroad mode will appear as the active mode in the MMI Display.
- If the vehicle is in offroad mode at
high level
1 ,
it automatically lowers to normal level
when the vehicle is traveling at speeds ex­
ceeding approximately 31 mph (SO km/h) .
The vehicle is automatically raised to
high
level 1
again when the traveling speed falls
below approximately 25 mph (40 km/h).
Restrictions when operating with a trailer
When operating with a trailer, the lift mode
can only be selected up to about 12 mph (20
km/h). Lift mode is automatically canceled
again when a speed of about 25 mph (40 km/
h) is exceeded.
If the vehicle is in automatic, comfort, offroad
or lift mode before the trailer towing mode is
activated, the dynamic mode cannot be acti­
vated .
If the vehicle is in dynamic mode before tow-
ing operation is activated, it can be driven in
IJI,-

160 Adapti ve Air Su spen sion
this mode. If the suspension is switched from
this mode to another mode, dynamic mode
cannot be re-selected .
(D Tips
-For vehicles with a factory installed tow ­
ing hitch or a trailer hitch that was in­
stalled later accord ing to factory specifi­
cations, the system recognizes "Trailer
tow ing mode" and activates this specia l
mode automatically, as soon as the elec­
trical connection on the trailer socket is
connected. The mode ceases a utomat i­
ca lly when the elect rical connection to
t h e trai ler socket is d isconnected.
- If the tra iler towing mode has been acti­
vated, the vehicle will not drop to the
l ow or highway level.
Cargo mode
Applies to vehicles: with Adapt ive Air Suspe nsio n
The rear of the vehicle can be lowered to
make it easier to load.
Fig. 190 Luggage compa rtment detail: Cargo mode
sw itch
Using switch for activating c argo mode
.. Close all vehicle doors .
.. Open the trunk lid .
.,. Press the lower pa rt of the switch @
<=> fig. 190. The rea r of the vehicle is low ­
ered.
.,. Press the uppe r part o f the switch @. T he
rear of the vehicle is raised again.
Activating cargo mode in the MMI*
.. Select: ICAR I funct io n button> !SETUP I func­
t ion button >
Lower for loading .
In cargo mode, the rear ax le is lowered by 2 .2
inches (S5 mm), compared to the normal lev ­
el.
While the veh icle is in ca rgo mode, the seg­
ments do not appear as filled in the segment
display.
Cargo mode i s automatic ally c an ce le d again
when a different mode is selected in the MM I
Display, or when a speed of about 3 mph (5
km/ h) has been exceeded.
If the system is tempora rily unavailable due
to, for instance, an empty compressed air
tank, the
Lower for loading * function appears
greyed out in the MMI Display. As soon as the
system is available again, the funct ion can
once more be selected in the disp lay.
While the vehicle is being lowered, the indica­
tor light @~
fig. 190 on the switch in the
l uggage compartment flashes. When the car ­
go leve l has been reached, the indicator light
comes on and remains on as long as the vehi­
cle is in cargo mode. When the vehicle is
r aised agai n, the indicator light flashes again.
(D Note
M ake sure before canceling cargo mode
that there is sufficient clearance above the
vehicle and around the trunk lid, if open.
(D Tips
- The vehicle w ill not be lowered if one of
the vehicle doors is open, or if the com­
pressed air tank is empty. The indicator
light on the switch flashes three times.
- Whe n the compressed air tank is empty,
it will refill when you drive at speeds
over 25 mph (40 km/ h). The vehicle can
be lowered to cargo level whe n the com­
pres sed air tan k is adequately filled.
- If the vehicle is i n lift or off road mode
when you act ivate cargo mode, the vehi­
cle will fi rst drop down to no rma l level.

Reprogramming the buttons
"' Switch on the ignition (do not start the en­
gine).
"'To reprogram an individual button, press
and hold the button until the LED@starts
to flash quickly (after about ten seconds).
Release the button immediately. The Home­
Link module will now remain in learning
mode for 5 minutes.
"'Continue with step 5 .
@ Tips
- The required distance between the hand
transmitter and the Homelink module in
the bumper ¢
fig. 192 depends on the
system that you are programming .
- Depending on the model of the garage
door opener, you may need to release the
button on the remote and press it again
when programming. When program­
ming a new device, keep the button
pressed for at least 15 seconds before
trying again with the transmitter in a dif­
ferent position. Watch out for the emer­
gency flasher during that time.
Programming the rolling code
App lies to vehicles: with Home link
Additionally, a rolling code programming for
the Homelink universal remo te control is re­
quired for some systems.
Identifying the rolling code
"'Press the previously programmed Homelink
button again and hold it down .
"' Look at the LE D @ ¢
page 161, fig. 191 . If
the LED blinks quickly, the features, such as
the garage door opener, are equipped wi th
the rolling code .
"'Program the rolling code as follows:
Activating the garage door opener motor
unit "'Locate the setting button on the garage
door opener motor unit . The exact location
and color of the button may vary depending
on the garage door opener manufacturer .
Homelink 163
"' Press the setting button on the garage door
opener motor unit (usually this will activate
a "setting light display" on the motor unit).
Now you will have about 30 seconds time to
perform the Homelink button programming
on the controls .
Programming on the controls
"'Press the Home link button that was already
programmed and hold for two seconds.
"'To end rolling code programming, press and
hold the Homelink button for two seconds
again.
"'The Homelink button may need to be press­
ed a third time to end the adjustment proce­
dure for some garage door openers .
After the controls have been programmed, the
garage door opener should recognize the HomeLink signal and operate when the Home­
Link button is pressed. Now you may program
the other buttons as needed.
@ Tips
- Programming the rolling code can be
performed quicker and more easily with
the help of a second person.
- If difficulties should arise when pro­
gramming the rolling code, consult the
operating instructions for the garage
door opener or other devices for possible
solutions.

186 Airbag sys tem
as def ined in the electronic control unit
Q page 194, PASSENGER AIR BAG OFF light.
A lways remember, a ch ild safety seat or infant
carrier insta lled on the front sea t may be
struck and knocked o ut o f position by the rap ­
id ly inflating passeng er's airbag in a frontal
coll is ion . T he airbag cou ld greatly reduce the
effec tiveness of the child restraint and even
serious ly injure the child during inflat ion.
F or this reason, and because the back seat is
the safest p lace for children - when properly
restra ined acco rd ing to their age and si ze - we
s trongly recommend that children always sit
in the back seat
Q page 204, Child Safety .
A WARNING
A child in a rearward-facing child safety
s e at insta lled on the front passenger seat
w ill be seriously injured and can be k illed if
t he fr ont a irbag inflates - even with an Ad­
vanced Airbag System.
- T he i nflating a irbag will hit the child
safety seat or infant carrier wit h great
f orce and w ill smash the ch ild safety sea t
and child against the backrest , center
armrest, door or roof.
- Always insta ll rear -facing child sa fety
seats on the rear seat.
- If you mus t install a rearward facing
child safety seat on the front passenger
seat because of exceptional circ umstan­
ces and the
PASSENG ER AIR BAG OFF
light does not come on and stay on , im­
med iately install the rea r-facing child
safety seat in a rear seating position and
hav e the a irbag system inspected by you r
authori zed Aud i dealer.
- Forward-fac ing ch ild safety seats instal­
led on the front passenger's seat may i n­
terfere wi th the deployment of the air­
b ag and cau se serious person al injury to
the ch ild .
A WARNING
If, in exceptional c ircumstances, you must
install a forward-facing child restra int on
the front passenger's seat: -
Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and s ide a irbag .
- Never put the forward-facing child re­
straint up against or very near the instru­ ment panel.
- Always move the passenger seat into its
rearmost pos ition in the seat's fore a nd
aft ad justment range, as fa r away from
the airbag as possible b efore installing
the forwa rd-fa cing ch ild restra int. The
b ackrest mus t be a djusted to a n up right
position.
- Make s ure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays o n all the
t ime wheneve r the ignition is switched
on.
A WARNING -ra----
To reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG OFF
light will be displayed whenever a child re­
straint is installed on the front passenger
seat and the ignition is sw itched on.
- If the
PASSENGER AIR BAG OFF light
does not stay on, perform the checks de­
scribed
Q page 194, Monitoring the Ad­
vanced Airbag System .
-Take t he chi ld restraint off the front pas­
senger seat and install it prope rly at one
of the rear seat positions if t he
PASSEN ­
GER AIR BAG OFF
li ght does not stay on.
- Have the airbag system inspected by
your author ized Audi deal er immed iate­
ly .
- Always carefu lly follow instr uctions from
chi ld restraint manufacture rs when in­
st all ing c hild restra ints .
A WARNING
If, in exce ptiona l circumstances, you m ust
i nsta ll a forward or rearw ard-fa cing child
r estra int on the front passenger's seat :
- Imp roper ins tallation o f child restra ints
can reduce their effec tiveness or even

196 Airbag sys te m
- accessory seat covers or cushions or other
things that may cause an incorrect reading
or impress ion on the weight-sens ing mat
under the upholstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not been left in
the safety belt latch for the front passenger
seat.
In addition to the
PA SSENGER AIR B AG OFF
light in the center of the instrument panel,
the message
PASS ENGER AIR B AG O FF or
PASS ENGER AIR B AG O N will briefly appear
in the instrument cluster display . T his is to in­
form the driver of the current front passenger
a irbag status .
Important safety instructions on
monitoring the Advanced Airbag System
_&. WARNING
An airbag system that is not functioning
prope rly cannot provide supplemental pro­
tect ion in a frontal crash.
- If the airbag indicator light
c::> page 16
comes when the vehicle is be ing used,
have the system inspected immediately
by you r authorized Aud i dea ler.
It is pos­
sible that the airbag will inflate when it
is not supposed to, or w ill not inflate
when it should .
_&. WARNING
If the front airbag inflates, a child witho ut
a child restraint, or in a rearward-facing
child safety seat, or in a forward-facing
child restraint that has not been properly
installed will be seriously injured and can
be killed .
- Even though your veh icle is equipped
with an Advanced Airbag System, make certain that all children, especially 12
years and younger, a lways ride on the
back seat properly restrained for their
age and size.
- Always install forwa rd or rear-facing
child safety seats on the rear seat -even
with an Advanced Airbag System. -
If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional c ircumstan­
ces and the
PA SS ENGER AIR BA G OFF
light does not appear and stay on, imme­
diate ly install the rear-facing child safety
seat in a rear seat ing pos ition and have
the airbag system inspected by your au­
thorized A udi dealer.
- A tight tether or other strap on a rear­ ward-facing child restraint attached to the front passenger seat can p ut too
m uch pressure on the weight-sensing
mat in the seat and register more weight
than is actually on the seat. The heavier
weight registered can make the system
work as though an adult were on the seat
and deploy the Advanced Airbag when it
must be suppressed causing ser ious or
even fata l injury to the ch ild.
- If, in exceptional circumstances, you
must install a forward-fac ing ch ild re­
straint on the front passenger seat, al ­
ways move the seat into its rearmos t po­
sition in the seat's fore and aft adjust­
ment range, as far away from the airbag
as possible. The backrest must be adjust­
ed to an upright position. Make sure that
the
PASSEN GER AIR BAG OFF light
comes on and stays on all the time when­
ever the ignit ion is switched on .
_&. WARNING
r-
- If the PASSENGER AIR BAG OFF light
does not go out when an adult is sitting
on the front passenger seat after taking
the steps described above, make sure the
adu lt is properly seated and restra ined at
one of the rea r seat ing pos itions.
- Have the airbag system inspected by
your author ized Audi dealer befo re trans­
port ing anyone on the front passenger
seat.
('D Tips
If t he weight-sensing mat in the front pas­
senger seat de tects an empty seat, the
front airbag on the passenger side wi ll be
jll,,

Replacing wh eels/ tire s
Vehicles w ith all-wheel drive must a lways
have tires of the same size. Also avoid tires
with different tread depths. For details see
page ¢
page 284, New tires and replacing
tires and wheels .
.&_ WARNING
Always adjust your driving to road and traf­
fic conditions . Do not let the extra safety
afforded by all-wheel dr ive tempt you into
tak ing extra risks.
-Although the all-wheel dr ive is very ef­
fective, always remember that braking
capacity is limited by t ire traction . You
sho uld therefore not dr ive at excessive
speeds on icy or s lippery road surfaces.
- On wet road su rfaces, be careful not to
dr ive too fast because t he front wheels
cou ld beg in to s lide on top of the wa ter
(aquaplaning). If this sho uld occ ur, you
w ill have no warning from a sudden in­
crease in engine speed as with a front­
whee l drive vehicle. A lways drive at
speeds wh ich are suited to the road con­
ditions -risk of c rash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimizes the
availability of electrical energy for starting
the engine.
I f a vehicle w it h a conventional energy system
i s not driven for a long pe riod of time, the bat­
tery is disch arged by idling c urrent cons umers
(e .g. immobilizer) . In ce rtain c ircumstances it
can result in there being insufficient energy
ava ilab le to start the engine .
I n tell igen t energy management in your vehi ­
cle hand les the d istribution of electrical ener ­
gy . Starting abi lity is marked ly imp roved and
the life of the battery is extended.
Int ellig ent technolog y 229
Basica lly, energy management consis ts of
batte ry diagnosi s, idling cur rent manage­
ment
and dynamic energy management.
Battery diagnosis
B attery diagnosis continuously de termines
the state of the battery . Sensors determine
batte ry voltage, battery current and battery
temperature . This determines the current
state of charge and the power of the battery.
Idling current management
Id lin g cur ren t man agement reduces energy
consumption while the vehi cle is standing.
With the ig nition switched off, it controls the
energy supply to the various electrical compo­ nents. Data from battery diagnos is is cons id­
ered.
Depend ing on the battery's state of cha rge,
individual cons umers are gradually turned off
to prevent excessive discharge of the battery
and thus maintain starting capability.
Dynamic energy manag ement
While the vehicle is being driven, dynamic en ­
ergy management distrib utes the energy ge n­
erated according to the needs of the individ u­
al components. It regulates consumption, so
that more electrical energy is not being used
than is be ing generated and ensures an opti­
mal state of charge for the battery .
(D Tips
-But even e nergy management cannot
negate the limits of physics. Consider
t hat the powe r and l ife of a bat tery are
l imited.
- If start ing ability is threatened, you are
informed by a warning ¢
page 230,
Driver notification in the instrument
cluster display.
•
•

230 Intellig ent technol ogy
What you should know
The highest priority is given to maintaining
starting capability.
The battery is severely taxed in short-distance
driving, in city traffic and during the cold time
of year. Abundant electr ical energy is re­
qu ired, but only a little is generated. It is also
cr itical if the e ngine is not running and elect ri­
cal components a re turned on. In th is in­
stance energy is being consumed but none is being generated .
I t is in precisely these situations that you w ill
notice energy management actively regulat­
ing the distrib ution of energy.
Vehicle stand s for an ext ende d period
If you do not drive your vehicle over a period
of several days or weeks, electrical compo­
nents are gradually cut back o r switched off .
This reduces energy cons umption and main­
tains starting capab ility
over a longer period.
Take into consideration that when you un lock
your ve hicle, some convenience functions,
such as the interior ligh ts or the power seat
ad justmen t, may not be available. The con­
venience functions will be available again
when you turn on the ignition and start the
engine.
With the engine turned off
I f you listen to the radio, for example, with
the eng ine turned off or use other MM I func­
tions, the battery is being discharged .
I f sta rting capability is jeopa rdized due to en­
e rgy consumpt ion, the follow ing warning ap­
pears in the MMI disp lay:
Ple ase s tart engin e, otherwi se system will
s wit ch off in 3 minute s.
The warning ind icates that the system will be
turned off automatically after 3 m inutes .
If
you wish to cont inue us ing the functions, you
have to start the engine.
With the eng in e runnin g
Although e lectrical energy is gene rated when
the vehicle is being driven, the battery can be­
come discharged. This happens mostly when
little energy is being generated and a great
deal consumed and the battery's state of
charge is not optimal.
To bring the energy balance back into equili­ brium, consumers which req uire especially
large amounts of energy are temporar ily cut
back or sw itched off. Heat ing systems in par­
t icular require a great deal of energy. If you
notice, for example, that the heated seats* or
the heated rear window are not heating, they
have been tempora rily cut back or switched
off . These systems w ill be available again as
soon as t he energy balance has been restored.
You w ill also notice that engine id le speed has
been increased slightly . T h is is normal and not
a cause for con cern. By inc reas ing engine id le
speed the additional energy required is gener­
ated and the battery is charged.
Driver notification in the instrument
cluster display
If battery power drops into the range where it
can limit the ability of the engine to start, this
is shown in the instrument cluster display
with the fo llow ing driver message:
(•) low batte ry charge: bat tery w ill be
ch arg ed whil e dri ving
This notificat ion reminds you that the starting
capability of the engine may be lim ited. As
soon as you start dr iv ing again, the battery
will be recharged and the not ificat io n will go
out .
Driver notific ation app ear s a nd goe s out
again
If this driver notification appears after the ig­
nition is turned on or wh ile driving and it goes
out again after a while, the battery has been
adequately recharged. .,.

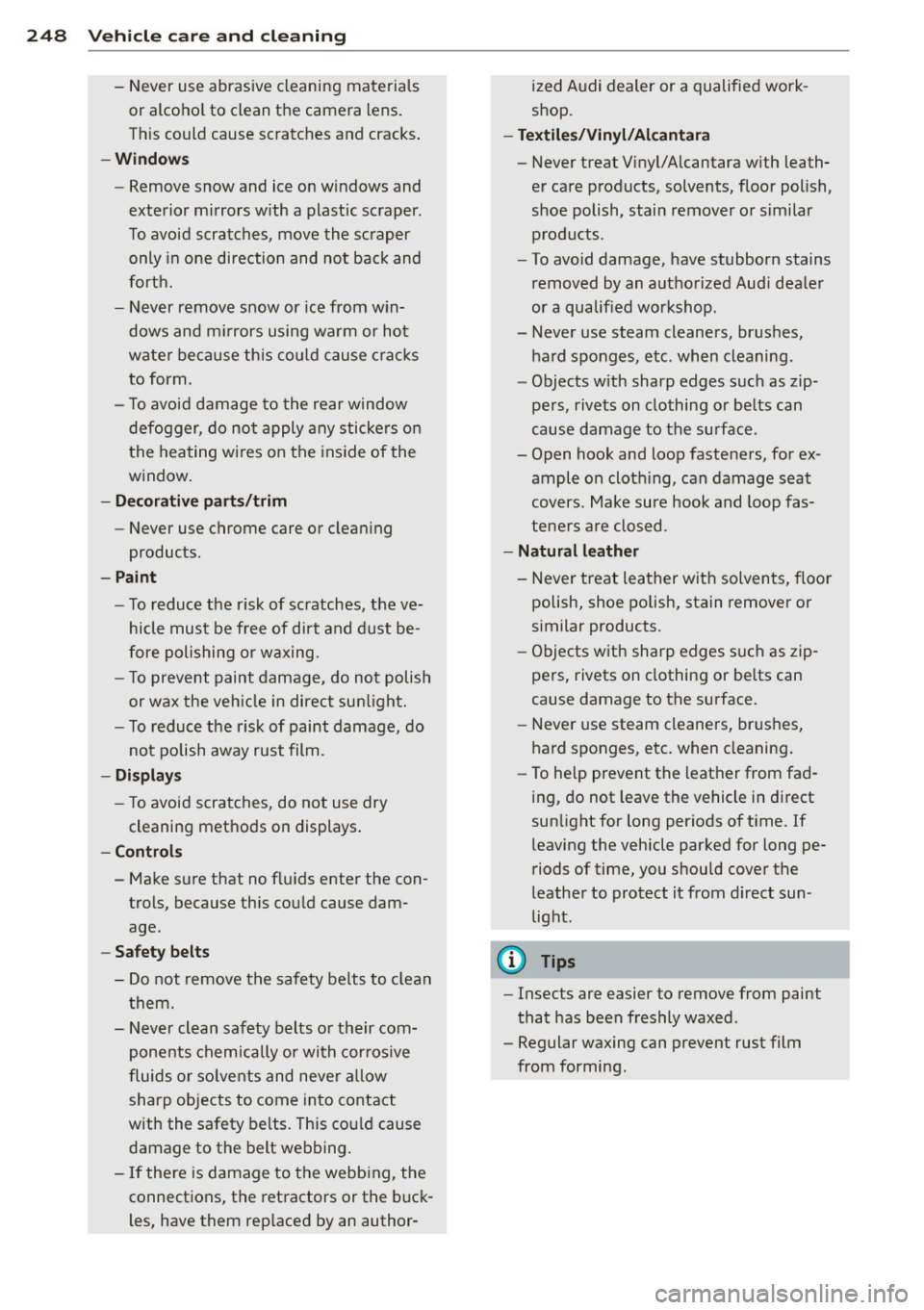

248 Vehicle care and cleaning
- Never use abrasive cleaning materials
or alcohol to clean the camera lens.
Th is could cause scratches and cracks.
-Windows
- Remove snow and ice on windows and
exterior mirrors with a plastic scraper.
To avoid scratches, move the scraper only in one direction and not back and
forth.
- Never remove snow or ice from win­
dows and mirrors using warm or hot
water because this could cause cracks
to form.
- To avoid damage to the rear window
defogger, do not apply any stickers on
the heating wires on the inside of the
window.
- Decorative parts/trim
- Never use chrome care or cleaning
products.
- Paint
-To reduce the risk of scratches, the ve-
hicle must be free of dirt and dust be­
fore polishing or waxing.
- To prevent paint damage, do not polish
or wax the vehicle in direct sunlight.
- To reduce the risk of paint damage, do
not polish away rust film .
-Displays
- To avoid scratches, do not use dry
cleaning methods on displays.
- Controls
- Make sure that no fluids enter the con-
trols, because this could cause dam­
age.
-Safety belts
- Do not remove the safety belts to clean
them.
- Never clean safety belts or their com­
ponents chemically or with corrosive
fluids or solvents and never allow sharp objects to come into contact
with the safety belts. This could cause damage to the belt webbing.
- If there is damage to the webbing, the connections, the retractors or the buck­
les, have them replaced by an author- ized Audi dealer or a qualified work­
shop.
- Textiles/Vinyl/Alcantara
- Never treat Vinyl/ Alcantara with leath-
er care products, solvents, floor polish,
shoe polish, stain remover or similar products.
- To avoid damage, have stubborn stains
removed by an authorized Audi dealer
or a qualified workshop.
- Never use steam cleaners, brushes, hard sponges, etc. when cleaning.
- Objects with sharp edges such as zip­
pers, rivets on clothing or belts can
cause damage to the surface.
- Open hook and loop fasteners, for ex­ ample on clothing, can damage seat
covers. Make sure hook and loop fas­
teners are closed.
- Natural leather
- Never treat leather with solvents, floor
polish, shoe polish, stain remover or
similar products.
- Objects with sharp edges such as zip­ pers, rivets on clothing or belts can
cause damage to the surface.
- Never use steam cleaners, brushes,
hard sponges, etc. when cleaning.
- To help prevent the leather from fad­
ing, do not leave the vehicle in direct
sunlight for long periods of time. If leaving the vehicle parked for long pe­
riods of time, you should cover the
leather to protect it from direct sun­
light.
(D Tips
- Insects are easier to remove from paint
that has been freshly waxed.
- Regular waxing can prevent rust film
from forming.
