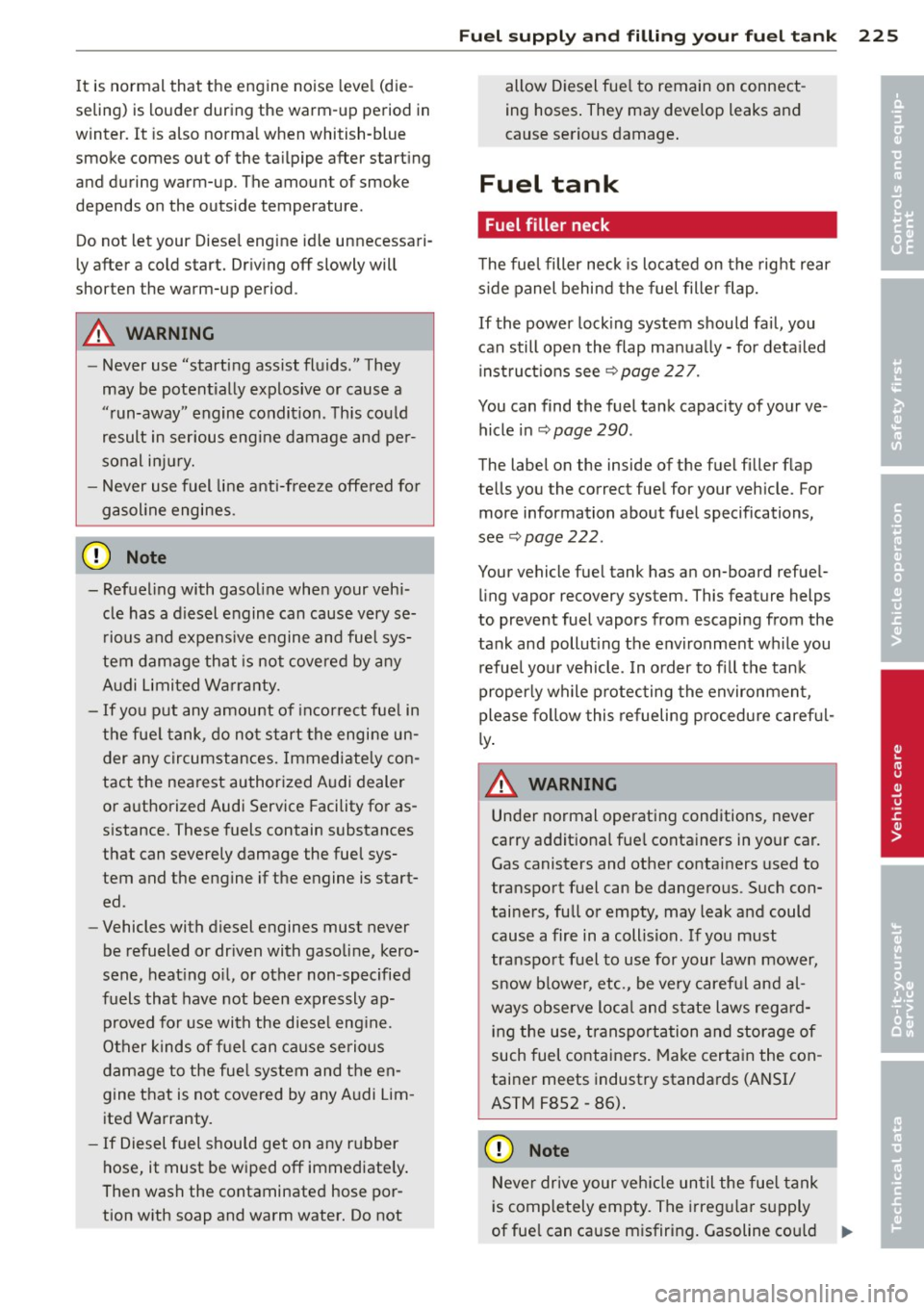

It is normal that the engine noise leve l (die­
seling) is louder during the warm-up period in
winter.
It i s also norma l when whitish-blue
smoke comes out of the tailpipe after starting
and during warm-up . The amount of smoke
depends on the outside temperature.
Do not let your Diese l engine id le unnecessari­
ly after a cold start. Driving off slowly will
shorten the warm-up period .
A WARNING
-Never use "starting assist fluids ." They
may be potent ially explosive or cause a
"run-away" engine condition. This cou ld
result in serious engine damage and per­
sonal injury.
- Never use fuel line anti-freeze offered for
gasoline engines .
(D Note
- Refueling with gasoline when your vehi­
cle has a d iesel engine can cause very se­
rious and expens ive engine and fuel sys­
tem damage that is not covered by any
A udi Limited Warranty.
- If you put any amount of incorrect fue l in
the fue l tank, do not start the engine un­
der any circumstances. Immediately con­
tact the nearest authorized Audi dealer
or authorized Audi Service Facility for as­
sistance. These fuels contain substances
that can severely damage the fuel sys­
tem and the engine if the engine is start­
ed .
- Vehicles with diesel engines must never
be refueled or dr iven with gasoline, kero­
sene, heat ing o il, or other non-specified
fuels that have not been expressly ap­ proved for use with the diese l eng ine.
Other kinds of fuel can cause se rious
damage to the fue l system and the en­
gine that is not covered by any Audi Lim ­
ited Warranty.
- If Diesel fuel shou ld get on any rubber
hose, it must be wiped off immediate ly.
Then wash the contaminated hose por­
tion with soap and warm water. Do not
-
Fu el su ppl y and fi lling yo ur fu el t an k 225
allow Diesel fue l to remain on connect­
ing hoses . They may deve lop leaks and
cause serious damage .
Fuel tank
Fuel filler neck
The fue l filler neck is located on the right rear
s ide panel behind the fuel filler flap.
If the power lock ing system should fa il, you
can still open the flap manually - for detailed
instruct ions see
¢ page 22 7.
You can find the fuel tank capacity of your ve ­
hicle in
~ page 290 .
The label on the inside of the fuel filler flap
tells you the correc t fuel for your vehicle. For
more information about fuel specifications,
see ~
page 222.
Your vehicle fue l tank has an on-board refuel­
ling vapor recovery system. This feature helps
to prevent fuel vapors from escaping from the
tank and pollut ing the environment wh ile you
refue l your vehicle . In order to fi ll the tank
properly while protecting the environmen t,
please fo llow this refueling p rocedure caref ul­
ly .
A WARNING
-
Under normal operating conditions, never
carry additional fue l containers in your car.
Gas canisters and other containers used to
transport fuel can be dangerous. Such con­
tainers, full or empty, may leak and could
cause a fire in a collision. If you must
transport fuel to use for your lawn mower,
snow blower, etc., be very careful and al­
ways observe loca l and state laws regard­
ing the use, transportation and storage of
such fuel containers. Make certain the con ­
tainer meets industry standards (ANSI/
ASTM F852 - 86).
{[) Note
Never drive your veh icle until the fuel tank
is completely empty. The irregu lar supply
of fue l can cause misfiring. Gasoline cou ld
ll-
•
•

226 Fuel suppl y and filli ng your fu el t ank
enter the exhaust system and damage the
catalytic converter.
Refuelling
Fig. 190 Righ t rear ve hicle si de: Opening t he fuel filler
fl ap
Fig . 191 Fu el filler fla p w ith attached fuel cap
When activating the central locking, the fuel
filler flap is automatically unlocked or locked.
Refuel the vehicle with the ign ition turned
off .
Tak ing th e fu el cap off
• Press the Left side of the fue l filler flap to
open it ¢
fig. 190 -arrow-.
.. Unscrew fuel cap counter-clockwise and
hang it on the fuel filler flap ¢
fig. 191.
.. Check the Label on the inside of the fuel fill­
er flap to determine if the vehicle must be
fueled with gasoline or diesel fuel.
Ref uelling pr ocedu re
.. Insert the fue l no zzle from the gasoline
pump into the fuel filler neck as far as it will
go .
.. Select a medium refuelling rate so that the
nozzle switches off automatically when the
tan k is full .
Putting the fu el cap b ack o n
• After f illing your tank, twist the fuel cap
clockwise as far as it will go .
.. Close the fue l filler flap.
T o avoid fuel spill ing o r evaporating from the
fuel tank always close fuel cap p roperly and
completely . An improperly closed fuel filler
cap may a lso ca use the
MIL Lamp ¢ page 26
to come on (on ly vehicles with gasoline en­
gine).
A WARNING
-Improper refueling or handling of fuel can
cause fire, explosion and severe burns .
- Fuel is highly flammable and can cause
severe bu rns and other injur ies.
- Failure to shut the engine off while refu­
eling and/or to insert the pump nozzle
fully into the fuel filler neck could cause
fuel to spray out of filler neck or to over­
flow. Fue l spray and overflowing fuel can
cause a fire .
- Never use a cellular telephone while re­
fue ling. The electromagnet ic rad iat ion
can cause spa rks that can ignite f uel va­
pors and cause a fire .
- Never get back into your vehicle whi le re­
fue ling.
If in exceptional circ umstances
you must get back in your vehicle while
refueling, make certain that you close
the door and touch metal to discharge
static e lectricity before touching the fill­
er nozzle again . Static e lectr icity can
cause sparks that can ignite fuel vapors
released du ring refueling .
- Never smoke or have an open flame any­
where in or near your vehicle when refu­ eling or filling a portable fuel conta iner.
- For your safety, we strongly recommend
that you do not travel with a portable
fuel conta iner in your vehicle . The con­
tainer, fu ll o r empty may leak and could
cause a fire, especially i n a c rash.
- If , under exceptional c ircumstances, you
must transport a portab le fuel conta iner,
p lease observe the following: .,.

-Never f ill a portable fuel container
while it is anywhere in or on the vehicle
(for example, in the luggage compart­
ment, or on the trunk). Static electrici­
ty can bu ild up while filling and can ig­
nite fuel vapors causing a fire .
- Always place a portable fuel container on the ground before filling.
- Always keep the filler nozzle complete­
ly inside the portable container before
and during filling.
- If fill ing a portable container made of
metal, the filler nozzle must always be
in contact with the container. This will
help prevent static electricity from dis­
charging and cause a fire.
- Never spill fuel inside the vehicle or
luggage compartment. Fuel vapors are
h ig hly flammable.
- Always observe local and state/provin­
cial laws regarding the use, storage
and transportation of fuel containers.
- Make certain the fuel container meets
industry standards (ANSI/ ASTM
F852-86).
(D Note
If any fuel has spilled onto the car, it
should be removed immediate ly to prevent
damage to the paint.
@ For the sake of the environment
As soon as the correctly operated nozzle
switches off automatically for the first
time, the tank is full. Do not try to add
more fue l because fuel may spill out. In
addition, the expansion space in the fuel
tank will be fi lled -causing the fue l to
overflow when it becomes warm and pol­
lute the environment.
@ Tips
-Running your engine while refuelling
may cause vapors to escape or even
cause fuel to spill out of the tank. This
would then shut off the fuel nozzle be­
fore the tank is full.
Fuel su ppl y and filling your fuel ta nk 22 7
-Do not refuel your vehicle with the igni ­
tion turned on . The fuel gauge may oth­
erwise not indicate the correct fuel level
after refuelling.
- Diesel vehicles* are equipped with a die­
sel misfueling protector. It allows the
vehicle to be fueled only with a diesel
fuel pump nozzle. A worn or damaged nozzle or a nozzle that is too small may
not be able to open the diesel misfueling
protector. If this is the case, try tu rning
the nozzle before insert ing it in the fuel
filler neck, use a different fuel pump or
see your authorized Audi dea ler
or au­
thorized repair facility for assistance.
- The fuel filler flap of your vehicle is not
locked when you lock the vehicle from
the inside.
Unlocking the fuel filler flap by hand
You can open the fuel filler flap by hand if the
power locking system should fail.
Fig. 192 Luggage compartme nt: Eme rge ncy opening
of fuel filler f lap
The emergency opening mechanism is located
behind the right side trim panel in the lug­
gage compartment.
.,. Open the r ight side trim panel.
• Loosen the st rap from its bracket and pull
on it¢
fig. 192. Now you can open the fuel
filler flap as usual.

228 Fuel supply and filling your fuel tank
Selective catalytic
reduction
General information
Applies to vehicles: wit h diese l en gi ne
On vehicles with selective catalytic reduction,
an urea solution (Ad Blue) is injected into the
exhaust system before a nitrogen oxide cata­
lytic converter to reduce nitrogen emissions.
The Ad Blue is stored in a separate tank in the
vehicle . The Ad Blue usage accounts for ap­
proximately 0.5% to 1.2% of the diesel fuel
that is used.
You must refill the Ad Blue or have it refilled
by your authorized Audi dealer or qualified
workshop as soon as the AdBlue refill mes­ sage appears in the instrument cluster
c;,page229.
A WARNING
Failure to heed Ad Blue refill information in
the instrument cluster can prevent the ve­
hicle from being started and driven. If the
vehicle cannot be driven and an emergency
arises, persona l inju ry can occur.
- Always have the Ad Blue tank refilled well
before the tank ru ns dry.
@ Tips
-The instrument cluster display indicates
the distance remaining that can be driv­
en
c;, poge 228. If the Ad Blue tank is
completely empty, the engine will not
start again after the ignition is switched
off.
- AdBlue is required by law to operate this
vehicle.
Indicator in the instrument cluster
display
Applies to veh icles: w ith diesel en gine
The display indicates if the Ad Blue level is low
or if it was filled incorrectly.
Fig. 193 Ins trumen t cluster : in d icato r in the d isp lay
AdBlue level low
You w ill be informed if the Ad Blue in the tank
drops below a certain level.
Ad Blue l;) 1500 m i (2400 km) Refill
AdBlue. See owner's manual
This indicator appears when there is only
enough Ad Blue left to drive the distance indi­
cated in the driver information system. Please
add AdBl ue.
AdBlue l;; 600 mi (1000 km) Refill
AdBlue! No restart in 600 miles (1000 km)!
See owner 's manual
This indicator appears when there is only
enough Ad Blue left to drive the distance indi­
cated in the driver information system. Please
add Ad Blue. Otherwise the engine will not
sta rt again if you stop it once the distance in­
dicated has been driven .
Refill Ad Blue! No
restart! See owner's manual
This message appears when the Ad Blue tank
is empty. Please add Ad Blue. Otherwise you
will not be able to start the engine again once
you stop it.
When the minimum Ad Blue level has been reached, you must add Ad Blue
c;, page 229.

f-i Filling incorrectly
If the Ad Blue tank was filled with a diffe rent
f luid than Ad Blue and the system detects that
it is i ncorrect, a message wi ll appear.
Ad Blue -I' 600 mi (1000 km) Ad Blue :
Fault! No re start in 600 miles (1000 km)!
See owne r's manual
This message appea rs when it is only possib le
to drive the dist ance indicated in the dr iver in­
form ation system. Drive to the neares t qua li­
fied workshop to have the mal function re ­
pa ired. Otherwise the engine wi ll not start
again if you stop it once the distance indicated
has been driven.
AdBlue: Sy stem
fault. No restart ! See owner's manual
This message appea rs if the sys tem de te cts i t
was fil le d in cor re ctl y. Drive immed iate ly to
t he nearest qualified workshop to have t he
malfunct ion repaired . Otherwise you will not
be ab le to start the engine aga in once you
stop it.
Filling AdBlue
Ap plies to vehicles : wit h diesel e ngi ne
A special refill bottle must be used to fill the
AdBlue.
Fi g. 194 Right rea r ve hicle s ide: re m ov ing the Ad B lu e
cap
Fu el suppl y and filli ng your fuel t ank 229
Fig . 195 Ad B lue filler tube: inse rting th e refill bottle
The Ad Blue filler tube is located near the d ie­
sel filler tube . Always add 1 ga llon (3.8 liters)
of Ad B lue (two bott les). This is the minim um
amount required to e nsur e the system de tects
t he re fill ing and to star t the engine . The A d Bl­
u e tank capaci ty is approx imately 6 g allons
(23 lite rs) .
Opening the filler tube and adding
Ad Blue
Req uirement: The request to add Ad Bl ue must
appear in the instrument cluster display.
.,. Switch t he ignitio n off.
.,. Open the tank cove r
c::> page 226 .
.,. Tur n the cap co unterclockwise wi th t he lug
w rench from the vehicle too l kit to remove it
c::>fig . 194 .
... Remove the cap from the refill bottle.
... Posit ion the refill bottle o n the filler tube
and turn the bottle clockwise until it stops
turn ing
(D c::> fig. 195 .
.,. Press ligh tly aga ins t the bottom of the bot­
t le @ to empty i t. Continue press ing the
bo ttom of the bottle unt il it i s empty or un­
t il flui d stops flow ing in to the tank .
... Tu rn the bot tle to the left w ithout pressing
on the bottom.
Closing the filler tube
.,. Tur n the c ap clockwise on the fille r tub e
w it h t he l ug wrench un til you hear it ti gh ten
comp letely .
... Close the tank cover .
After filling
The vehicle must be d riven. The system may
ta ke u p to two m inu tes to detect t hat t he
Ad Bl ue has been f illed . .,..

230 Fuel supply and filling your fuel tank
• If there was no Ad Blue left in the tank and a
range of
O mi (0 km) was displayed in the
instrument cluster, switch the ignition on
for about 15 seconds before starting the en­ gine.
A WARNING
Ad Blue can irr itate the skin, eyes and res­
piratory system. If there is contact with
the fluid, flush immediately with p lenty of
water. Consult a physician if necessary.
0 Note
- Only use Ad Blue that conforms to the
standard ISO 2224 1-1. Do not mix any
additives with the Ad Blue and do not di­
lute it with water .
- AdBlue is not a diesel additive . Do not
add it to the diesel tank. If Ad Blue is
mixed w ith diesel fuel, it can lead to
damage to the engine and the Ad Blue
tank system. The Limited New Vehicle
Warranty does not cover such damage.
-Ad Blue attacks surfaces such as painted
vehicle components, plastic and carpet .
Remove the fluid as quickly as possible
with a damp cloth and plenty of cold wa­
ter. If the Ad Blue has already crystal­
li zed, use warm water and a sponge .
AdBlue res idue that is not removed will
crystallize and can damage the affected
surface.
- Do not store the refill bottle in the vehi­
cle. If it leaks, the escap ing Ad Blue could
damage the vehicle inter ior.
- Do not allow Ad Blue to come into con­
tact with clothing. If there is contact
with the fluid, flush immediately with
plenty of water.
@ Tips
-You can obtain refill bottles from any au­
thorized Audi dealer or other qualified
workshop.
- Follow the Ad Blue manufacturer's in­
str uctions for usage and storage.
.

Checking and filling Engine hood
Releasing the engine hood
The engine hood is released from inside the
vehicle .
Fig. 196 Dr iver's side footwell: engin e hood release
lever
"' Open the driver's door .
"' Pull the release lever on the left under the
instrument panel
i=> fig. 196 in the d irection
of the arrow .
The hood pops up slightly under spring pres­
sure.
Opening the engine hood
F ig . 197 Release lever under the engine hood
Before opening the engine hood, make sure
that the windshield wipers are flat against the
windshie ld. Otherwise, they could damage the
paint on the hood.
"' Pull up on the release under the hood
r::!> fig . 197 . This releases the catch.
"' Open the hood all the way
i=> .&,.
Checkin g and fillin g 231
A WARNING
Hot engine coolant can burn you.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the eng ine
compartment . Wait unt il no steam or
coolant can be seen or heard before care­
fu lly opening the hood.
Closing the engine hood
"' Pull the hood down until the pressure from
the struts is reduced.
"' Let the hood
drop down and latch in p lace.
Do not try to push it shut; it may fail to en­
gage
c;, .&, .
A WARNING
--
A hood that is not completely latched
could fly up and block your view while dr iv­
ing.
- When you close the engine hood, check it
to make sure the safety catch has proper­
ly engaged. The hood should be flush
with the surround ing vehicle body parts.
- If you notice while driv ing that the hood
is not secured properly, stop at once and
close it .
Working in the engine compartment
Be especially careful whenever you work in
the engine compartment.
Whenever yo u must pe rform any w ork in the
e n g ine com pa rt ment, for e xample ch ecki ng
and filling different fluids, th ere is a risk of
injury , burn s and accid ent s. T o pr eve nt per­
so nal injury alwa ys obs erve the foll owing
WARNINGS . The en gine c ompa rtment of an y
vehicl e is a hazardou s are a
c;, Lh,.
A WARNING ~
To help avoid injury, be fo re you check any­
thing under the hood:
- Turn off the engine.
- Remove the ignition key.

232 Checking and filling
-Apply the parking brake.
- Move selector lever of automatic trans- mission to P (Park).
- Always let the engine cool down. Hot components will burn skin on contact.
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coolant escaping from the engine
compartment. Wait until no steam or
coolant can be seen or heard before care­
fully opening the hood.
- Keep children away from the engine com­ partment.
- Never spill fluids on hot engine compo­
nents. They can cause a fire.
- Never touch the radiator fan. The auxili­
ary electric fan is temperature controlled
and can switch on suddenly.
- Never open the coolant reservoir cap
when the engine is still warm. The cool­
ant system is pressurized and hot cool­ ant could spray out .
- Protect your face, hands and arm from
steam or hot engine coolant by placing a
thick rag over the cap when you open the
coolant reservoir .
- Do not remove the engine cover under
any circumstances. This increases the
risk of burns.
- If work on the fuel system or the electri­
cal system is necessary:
- Always disconnect the battery.
- Never smoke or work near heaters or
open flames. Fluids in the engine com­
partment could start a fire.
- Keep an approved fire extinguisher im­
mediately available.
- To avoid electrical shock and personal in­
jury while the engine is running or being
started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repair
with the engine running: -
First, fully apply the parking brake,
move selector lever of automatic trans­
mission to P (Park).
- Always use extreme caution to prevent
clothing, jewelry, or long hair from get­
ting caught in the radiator fan, V-belts
or other moving parts, or from contact­ ing hot parts. Tie back hair before
starting, and do not wear clothing that
will hang or droop into the engine.
- Minimize exposure to emission and
chemical hazards
c:> &, .
&_ WARNING
California Proposition 65 Warning:
- Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth de­
fects and reproductive harm. In addition,
certain fluids contained in vehicles and
certain products of component wear con­
tain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
- Battery posts, terminals and related ac­
cessories contain lead and lead com­
pounds, chemicals known to the State of
California to cause cancer and reproduc­
tive harms. Wash hands after handling.
(D Note
When adding fluids, always make sure that
they are poured into the proper container
or filler opening, otherwise serious dam­
age to vehicle systems will occur.
@ For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If
you see spots from oil or other vehicle flu­
ids, have your vehicle inspected by an au­
thorized Audi dealer.
