2014 Alfa Romeo 4C remote control

IMPORTANT
1) The electronic components insidethe key may be damaged if the
key is subjected to sharp knocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
THE KEYSKEY WITHOUT REMOTE
CONTROL
Operation
The metal insert A fig. 5 operates:
❒the ignition switch;
❒ the door lock.
KEY WITH REMOTE
CONTROL
Operation
(for versions/markets, where provided)
The metal insert A fig. 6 operates:
❒ the ignition switch;
❒ the door lock.
Press button B to open/close the metal
insert.
1)
Door unlocking
Briefly press button
: unlocking of
doors, timed switching on of internal
roof light and double flashing of
direction indicators (for versions/
markets, where provided).
The doors are unlocked automatically if
the fuel cut-off system intervenes.
If when locking the doors, one or more
doors are not closed correctly, the
LED flashes quickly together with the
direction indicators.
Door locking
Briefly press button: locking of
doors, switching off of internal roof light
and single flashing of direction
indicators (for versions/markets, where
provided).
5
A0L0005
6
A0L0006
11
24-9-2013 11:49 Pagina 11

If one or more door are open, the doors
will not be locked. This is indicated by
a rapid flashing of the direction
indicators (for versions/markets, where
provided). The doors will be locked if
the tailgate is open however.
When a speed of more than 20 km/h is
reached, the doors will be locked
automatically if this specific function
was set.
When the doors are locked from
outside the car (using the remote
control), LED A fig. 7 will switch on for a
few seconds and then start flashing
(deterrent function).
When the doors are locked from inside
the car (by pressing the
button
on the dashboard) the LED will remain
on constantly. REQUESTING
ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8
remote controls. Should a new remote
control be necessary, go to the
dedicated Alfa Romeo Dealership,
taking an ID document and the car
ownership documents.
REPLACING THE
BATTERY IN THE KEY
WITH REMOTE CONTROL
Procedure
❒
press button A fig. 8 and move the
metal insert B to opening position;
turn screw C to
using a fine
bit screwdriver;
❒ remove battery compartment D and
replace battery E, respecting the
polarity; reinsert compartment D in
the key and secure it by turning
screw C to
.
1)
WARNING
1) Press button B fig. 6 only with the
key away from your body,
especially your eyes and from
objects which could get damaged
(e.g. your clothes). Do not leave
the key unattended, to prevent
people, especially children, from
inadvertently pressing the button.
7
A0L0007
8
A0L0008
12
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 12

IMPORTANT
1) Used batteries may be harmful tothe environment if not disposed of
correctly. They must be disposed
of as specified by law in the
special containers or taken to the
dedicated Alfa Romeo Dealership,
which will take care of their
disposal.
ALARM(for versions/markets, where provided)
Operation
The alarm activates in the following
cases:
❒wrongful opening of one of the doors
or the tailgate (perimeter protection);
❒ wrongful operation of the ignition
switch (key turned to MAR-ON);
❒ cutting of the battery leads;
❒ movement inside the passenger
compartment (volumetric protection);
❒ anomalous lifting/tilting of the car.
Operation of the alarm is indicated by
an acoustic and visual signal (flashing of
the direction indicators for several
seconds). The alarm activation modes
may vary according to the market.
There is a maximum number of
acoustic/visual cycles. When this is
reached the system returns to normal
operation.
IMPORTANT The engine locking
function is guaranteed by the Alfa
Romeo CODE, which is automatically
activated when the key is extracted
from the ignition switch.
IMPORTANT The alarm is adapted to
meet requirements in various countries. Activation
With the doors and tailgate closed and
the ignition key either turned to STOP
or removed, point the key with remote
control towards the car then press
and release the
button.
For versions/markets, where provided,
the system emits an acoustic signal
and activates door locking.
A self-diagnosis stage lasting
approximately 30 seconds precedes
the activation of the alarm: during this,
the LED flashes on the dashboard at
a frequency of about one flash per
second.
After the self-diagnosis stage, the LED
flashes at a lower frequency (one flash
every 3 seconds approx.).
If, after the alarm is switched on, a
second acoustic signal is emitted
and/or a visual signal via the LED on
the dashboard, wait about 4 seconds
and switch off the alarm by pressing the
button, check that the doors and
tailgate are closed correctly and then
reactivate the system by pressing
the
button.
If the alarm emits an acoustic signal
even when the doors and tailgate are
closed correctly, a system malfunction
has occurred: in this case, contact a
dedicated Alfa Romeo Dealership.
13
24-9-2013 11:49 Pagina 13

Deactivation
Press the
button.
The following operations are performed
(for versions/markets, where provided):
❒ two brief flashes of the direction
indicators;
❒ unlocking of the doors.
IMPORTANT If the central door locking
system is released using the metal
insert of the key, the alarm is not
disabled.
IMPORTANT In the event of accidental
activation of the alarm, or in any case to
interrupt the acoustic and visual signal
cycle when activated, it is possible
to press thebutton or turn the
ignition key to MAR-ON for at least 5
seconds, after which the system will
deactivate.
Disabling
To completely disable the alarm (e.g.
during a lengthy period of car inactivity),
lock the car by turning the metal insert
of the key in the door lock.
IMPORTANT If the batteries of the key
with remote control run out or there is a
fault in the system, the alarm can be
switched off by inserting the key in the
ignition switch and turning it to
MAR-ON. Volumetric/anti-lift
protection
To ensure the correct operation of the
protection, completely close the side
windows.
To disable the volumetric protection,
turn the ignition key from STOP to
MAR-ON twice in a row, then activate
the alarm within 15 seconds, pressing
the
button on the remote control.
When the function is deactivated, this is
indicated by the LED on the dashboard
flashing for several seconds.
To disable the anti-lift protection as well,
the ignition key must be turned from
STOP to MAR-ON three times in a row,
followed by activating the alarm within
15 seconds, pressing the
button
on the remote control.
When the function is deactivated, this is
indicated by the LED on the dashboard
flashing for several seconds.
Any disabling of the volumetric/anti-lift
protection must be repeated each
time the instrument panel is switched
off.
IGNITION SWITCHOperation
The key can be turned to three different
positions fig. 9:
❒ STOP: engine off, key can be
removed, steering column locked.
Some electrical devices (e.g. radio,
central door locking system, alarm,
etc.) are still available;
❒ MAR-ON: driving position. All
electrical devices are available;
❒ AVV: engine starting.
The ignition switch is fitted with a safety
system that requires the ignition key
to be turned back to STOP if the engine
does not start, before the starting
operation can be repeated.
2) 3)
9
A0L0010
14
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 14

DOORSCENTRAL DOOR
LOCKING/UNLOCKING
Locking doors from the
outside
With the doors closed, press thebutton on the key or turn the metal
insert (located inside the key) in the
door lock.
LED A fig. 38 on the
button on the
dashboard will switch on to indicate
that the doors have locked.
Door locking is carried out with all
doors shut, irrespective of the tailgate
open/closed status. Unlocking doors from
the outside
Press the
button on the key or turn
the metal insert (located inside the key)
in the driver side door lock.
Locking/unlocking doors
from the inside
Press thebutton. The button has
an LED that indicates whether the
doors are locked or unlocked.
LED on: doors locked. Pressing the
button again centrally unlocks
all doors and switches off the LED.
LED off: doors unlocked. Pressing thebutton again centrally locks all
the doors. The doors will be locked only
if all the doors are properly shut.
Once the doors have been locked via
the remote control or the key pawl,
it will no longer be possible to unlock
them by pressing the
button.
In the absence of electrical power
supply (blown fuse, battery
disconnected, etc.) it is still possible to
lock the doors manually. EMERGENCY DOOR
LOCKING DEVICE
Passenger side door
The passenger side door has a device
to lock it when there is no current.
To lock it, place the metal insert of the
ignition key in housing A fig. 39 and
turn it clockwise.
To restore the starting condition of the
door locks (only if battery charge
restored), proceed as follows:
❒
press the
button on the remote
control;
or
❒ press thedoor locking/unlocking
button on the dashboard;
or
38
A0L0007
39
A0L0036
36
GETTING TO KNOW YOUR CAR
24-9-2013 11:49 Pagina 36

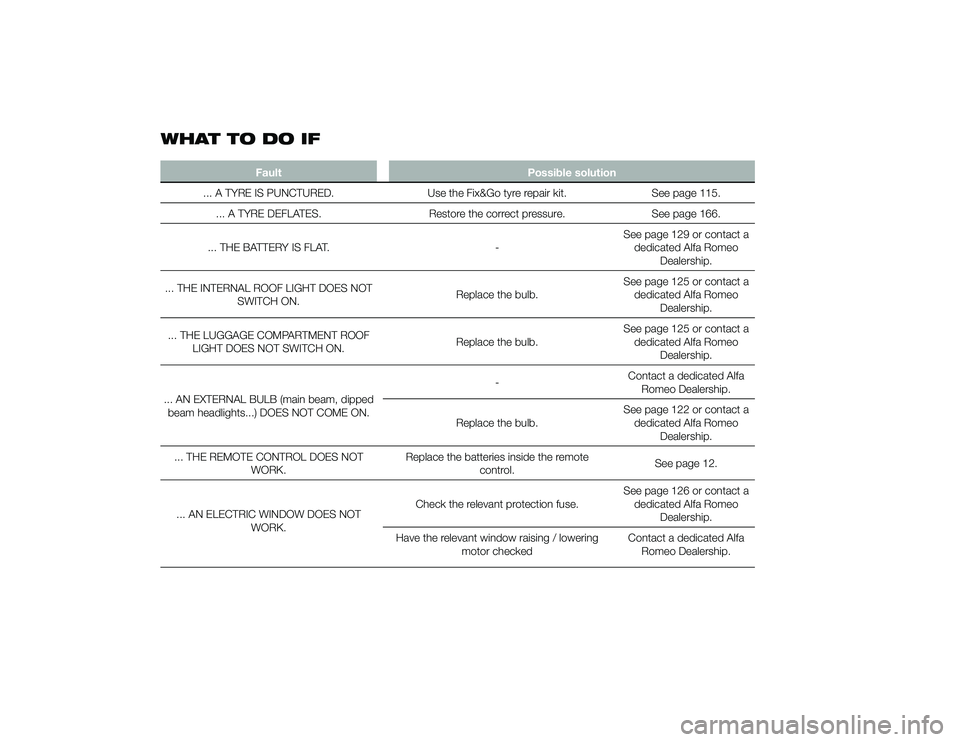

WHAT TO DO IF
FaultPossible solution
... A TYRE IS PUNCTURED. Use the Fix&Go tyre repair kit.See page 115.
... A TYRE DEFLATES. Restore the correct pressure. See page 166.
... THE BATTERY IS FLAT. -See page 129 or contact a
dedicated Alfa Romeo Dealership.
... THE INTERNAL ROOF LIGHT DOES NOT SWITCH ON. Replace the bulb.See page 125 or contact a
dedicated Alfa Romeo Dealership.
... THE LUGGAGE COMPARTMENT ROOF LIGHT DOES NOT SWITCH ON. Replace the bulb.See page 125 or contact a
dedicated Alfa Romeo Dealership.
... AN EXTERNAL BULB (main beam, dipped beam headlights...) DOES NOT COME ON. -
Contact a dedicated Alfa
Romeo Dealership.
Replace the bulb. See page 122 or contact a
dedicated Alfa Romeo Dealership.
... THE REMOTE CONTROL DOES NOT WORK. Replace the batteries inside the remote
control. See page 12.
... AN ELECTRIC WINDOW DOES NOT WORK. Check the relevant protection fuse.
See page 126 or contact a
dedicated Alfa Romeo Dealership.
Have the relevant window raising / lowering motor checked Contact a dedicated Alfa
Romeo Dealership.
24-9-2013 11:50 Pagina 177

– speedometer ............................. 62Parking ......................................... 103
– Handbrake ................................ 103
Parking lights ................................. 27
Parking sensors ............................. 50
Passenger side front airbag ............ 98
Performance .................................. 168
Plugs (type) .................................... 157
Power socket ................................. 34
Pre-Fill system (RAB - Ready Alert Brake) .................................. 44
Pretensioners ................................. 92 – Load limiters.............................. 93
Protecting the environment ............ 57Radio system................................ 49
Radio transmitters and mobile phones......................................... 50
Raising the car ............................... 129
Rear direction indicators................. 123
Rear fog light.................................. 32
Rear fog light/reversing light ........... 124
Rear view mirrors ........................... 18 – Internal mirror ............................ 18
Rear window washer – rear window washer fluid level ... 141
Refuelling ....................................... 170
Refuelling the car ........................... 56
Rev counter ................................... 62
Rim Protector................................. 164 Roof light
– bulb replacement ...................... 125
Roof lights...................................... 31 – Front roof light ........................... 31
Saving fuel .................................... 109
SBR system (Seat Belt Reminder) .................................... 92
Scheduled Servicing Plan ............... 135
Screen wiper/washer ..................... 28 – “Smart washing” function .......... 29
Seat belts....................................... 90 – Use ........................................... 90
Seats ............................................. 15
Setup menu ............................... 62-63
Side air diffusers............................. 19
Side lights/brake lights ................... 123
Side lights/daytime running lights (DRL)
– bulb replacement ...................... 122
Side lights/dipped headlights ......... 27
Snow tyres ..................................... 111
Speedometer ................................. 62
Speedometer (speed indicator) ...... 62
Starting the engine ......................... 102
Starting the engine ......................... 114 – Bump starting ........................... 114
– Jump starting ............................ 114
Steering ......................................... 162
Steering lock .................................. 15
Steering wheel ............................... 17 Storage compartments .................. 33
Sun visors ...................................... 35
Suspension .................................... 161
Symbols......................................... 10
Technical data .............................. 154
The keys ........................................ 11 – Key without remote control........ 11
– Key with remote control............. 11
Third brake lights – bulb replacement ...................... 124
Towing the car ............................... 130 – Attaching the tow hook ............. 130
TPMS (Tyre Pressure Monitoring System)........................................ 53
Transmission .................................. 159
TRIP button.................................... 69
Trip Computer ................................ 68
Tyres – Fix&Go automatic (kit) ............... 115
– inflation pressures ..................... 166
– reading the tyre code ................ 163
– Rim Protector tyres ................... 164
– snow tyres................................. 165
– tyres provided ........................... 165
Tyres - maintenance ....................... 147Using the transmission.................. 104W
arning lights and messages ....... 71
Weights.......................................... 169
Wheel rims
INDEX
