2014 Acura TL spare wheel

If you have a f lat tire, the low tire
pressure/TPMS indicator and tire
monitor indicator will come on.
Replace the indicated f lat tire with
thecompactsparetire(seepage).
After the flat tire is replaced with the
spare tire, the low tire pressure/
TPMS indicator stays on while
driving. Af ter several miles
(kilometers) driving, this indicator
begins to f lash, then stays on again.
You will also see a ‘‘CHECK TPMS
SYSTEM’’ message on the multi-
inf ormation display. This is normal;
the system cannot monitor the spare
tire pressure. Manually check the
spare tire pressure to be sure it is
correct.
This indicator and the warning
message on the multi-inf ormation
display will go of f , af ter several miles
(kilometers) driving, when the spare tire is replaced with the specified
regular tire equipped with the tire
pressure monitor sensor.
Never use a puncture-repairing agent
in a f lat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
If the low tire pressure/TPMS
indicator and the low tire position on
the low tire pressure monitor do not
go out af ter inf lating the tires to the
specified values, have your dealer
check the system as soon as possible. Each wheel (except the compact
sparetirewheel)isequippedwitha
tire pressure sensor. You must use
TPMS specif ic wheels. It is
recommended that you always have
your tires serviced by your dealer or
qualif ied technician.
This device complies with the
appropriate requirements or the
required standards. See page f or
more inf ormation.
583 628
Changing a T ire with T PMS
Tire Pressure Monitoring System (TPMS)
518
12/07/20 11:37:12 31TK4640_523

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Check the air pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:Replace the tire when you can see
the tread wear indicator bars. The
replacement tire should be the same
sizeanddesign,mountedonthe
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving. Do not mount snow chains on the
compact spare tire.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
After the flat tire is replaced with
the spare tire, the low tire
pressure/TPMS indicator stays on.
Af ter several miles (kilometers)
driving with the spare, this
indicator begins to f lash, then
stays on again. You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display (see page ).
517
Compact Spare Tire
582
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
12/07/20 11:45:07 31TK4640_587

Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
Take the tool case out of the spare
tire.
Unscrew the wing bolt and take
the spare tire out of its well.
Take the jack out of the tool kit
case. Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Place blocks in front and back of
the wheel diagonally opposite the
tire you are changing.
7. 8.
6. 4.
5. 9.
Changing a Flat Tire
584
WHEEL NUT WRENCH
EXTENSION JACK WHEEL NUT
WRENCH
JACKING POINTS
12/07/20 11:45:23 31TK4640_589

CONT INUED

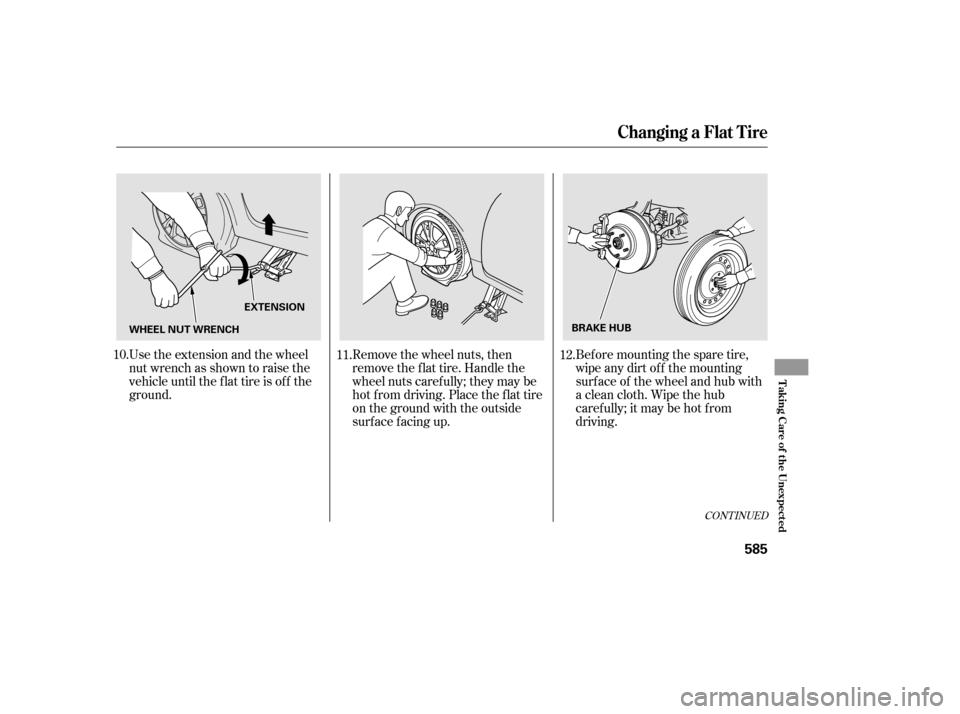

Bef ore mounting the spare tire,
wipe any dirt of f the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
10.
11. 12.
Changing a Flat Tire
T aking Care of t he Unexpect ed
585
BRAKE HUB
WHEEL NUT WRENCH EXTENSION
12/07/20 11:45:30 31TK4640_590

Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
Remove the center cap before
storing the f lat tire in the trunk
well.
Lower the vehicle to the ground,
and remove the jack.
Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
13.
14. 15.
16.
Changing a Flat Tire
586
94 lbf·ft (127 N·m , 13 kgf·m)
12/07/20 11:45:36 31TK4640_591

Store the center cap in the trunk.
Make sure it does not get
scratched or damaged. Store the jack and tools in the tool
kit case. Place the tool kit case in
the f lat tire.
To remove the spacer cone,
squeeze the tabs on the wing bolt
to disengage it f rom the center of
the spacer cone, then pull the bolt
downward.
To install the wing bolt to the
spacer cone, reverse this
procedure.
Securetheflattirebyscrewing
the wing bolt back into its hole.
Place the flat tire face down in the
spare tire well.
Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt.
Lower the trunk f loor, then close
the trunk lid.
Your vehicle’s original tire has a
tire pressure monitoring system
sensor. To replace a tire, ref er to
(see
page ).
17.
18.
19.20.
21.
22.
518
Changing a Flat Tire
Changing a T ire with T PMS
T aking Care of t he Unexpect ed
587
SPACER CONE
TAB
SPACER CONE For compact
spare tireFor normal
tire
WING BOLT
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
12/07/20 11:45:47 31TK4640_592

To use the towing hook:Remove the cover f rom the f ront
bumper using your f ingers, or pry
it of f using a cloth and a f lat-tip
screwdriver to prevent scratches.
If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see page ).
When you need to release the
steering lock while your vehicle’s
battery is dead, do this:
Follow the proper jump starting
procedures, Step 1 through Step 5,
to apply the power to your vehicle
(see pages and ).
Follow the jump starting
procedures, Step 8 and Step 9, and
the instructions to disconnect the
jumpercable(seepage ).The
steering will remain unlocked even
if the battery is dead.
Failure to comply means the steering
lockmaybedamaged. Press the ENGINE START/STOP
button to set the power mode to
ACCESSORY (see page ) and
verif y the steering lock is released.
Remove the towing hook and
wheel nut wrench f rom the tool
case in the spare tire (see page).
For very short distances, such as
f reeing the vehicle, you can use the
detachable towing hook that mounts
on the anchor in the f ront bumper. If you slip the clutch f or a long time
while trying to get unstuck, you may
overheat and damage the
transmission. Use a tow service to
prevent transmission damage.
1.
2.
1.
2.
3.
591 592
184
592 607
584
CONT INUED
On models with keyless access systemIf Your Vehicle Gets Stuck
Emergency Towing, If Your Vehicle Gets Stuck
T aking Care of t he Unexpect ed
609
12/07/20 11:48:32 31TK4640_614
