2014.5 VAUXHALL ZAFIRA Owner's Manual

Vehicle care159

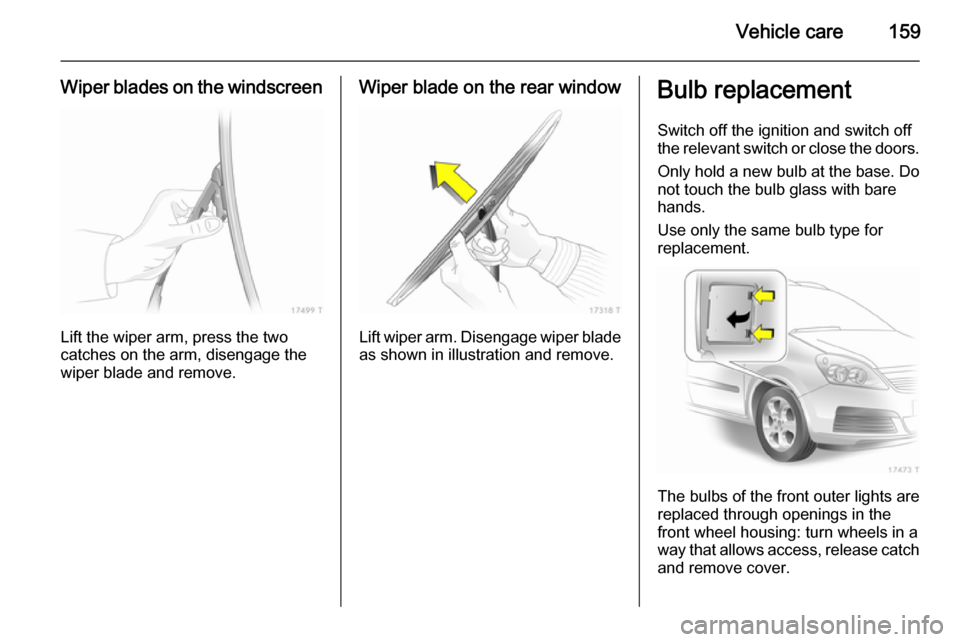

Wiper blades on the windscreen
Lift the wiper arm, press the two
catches on the arm, disengage the
wiper blade and remove.
Wiper blade on the rear window
Lift wiper arm. Disengage wiper blade as shown in illustration and remove.
Bulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base. Do not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
The bulbs of the front outer lights are
replaced through openings in the front wheel housing: turn wheels in a
way that allows access, release catch
and remove cover.

160Vehicle care
To replace bulbs on the right side of
the engine compartment, detach the
air hose from the air filter. On the left
side, detach the plug to the fuse box.
Halogen headlights
Headlights have separate systems forhigh beam 1 (inner bulbs) and low
beam 2 (outer bulbs).
Low beam 1. Replace bulbs through the opening in the wheel housing.
2. Remove protective cover 2.
3. Rotate bulb holder anti-clockwise
to disengage. Withdraw the bulb
holder from the reflector.
4. Detach bulb from bulb holder and renew the bulb.
5. Insert the bulb holder, engaging the two lugs into the reflector androtate clockwise to secure.
6. Rotate bulb carrier to right as far as it will go.
7. Install protective cover.
8. Close the opening in the wheel housing with the cover.
High beam 1. Access to the bulbs is through the
engine compartment.

Vehicle care161
2. Remove protective cover 1.
3. Detach wiring plug from bulb.
4. Disengage spring clip from retainer by pressing forward and
then swing downwards.
5. Withdraw bulb from reflector housing.
6. When installing the new bulb, insert lugs in the reflector
recesses and engage the spring
clip.
7. Install the wiring plug onto bulb. 8. Install protective cover.
Side lights 1. Access to the bulbs is through the
engine compartment.2. Remove protective cover 1.
3. Withdraw parking light bulb holder
from reflector.

162Vehicle care
4. Remove bulb from socket andrenew bulb.
5. Insert holder in reflector. Install the headlamp protective cover.
Front turn signal 1. Replace bulbs through the opening in the wheel housing.
2. Remove protective cover.
3. Rotate bulb holder anti-clockwiseto disengage.
4. Push bulb into socket slightly, rotate anti-clockwise, remove and
renew bulb.
5. Insert bulb holder in reflector, rotate clockwise to engage.
6. Install protective cover.
7. Close the opening in the wheel housing with the cover.
Xenon headlights9 Danger
Xenon headlights work under
extremely high electrical voltage.
Do not touch. Except for the turn
signal bulbs, bulbs should be
replaced by a workshop.
Front turn signal
1. Access to the bulbs is through the
engine compartment.
2. Rotate bulb holder anti-clockwise to disengage.

Vehicle care163
3. Push bulb into socket slightly,rotate anti-clockwise, remove and
renew bulb.
4. Insert bulb holder in reflector, rotate clockwise to engage.
Fog lights
Have bulbs replaced by a workshop.
Tail lights
To change the bulbs on the right side,
open the side cover: push locking
tabs forwards and remove cover.
Remove insert with tyre repair kit.
To change the bulbs on the left side, take off the retainer of the load
compartment cover and open the side cover: push locking tabs forwards andremove cover.

164Vehicle care
1. Compress wiring plug and pullfrom bulb holder.
2. Unscrew two plastic securing nuts
from the inside by hand.
3. Remove tail light assembly.
4. Disengage locking tabs and remove bulb holder.
5. Push bulb into socket slightly,rotate anti-clockwise, remove and
renew bulb.
Tail light/brake light ( 1)
Turn signal light ( 2)
Rear fog light, may be only on one side ( 3)
Reverse light ( 4)
6. Engage bulb holder into the tail light assembly. Connect wiring
plug. Install tail light assembly in
body and tighten securing nuts.
On the right side, fit the insert with
tyre repair kit. Engage side cover.
On the left side engage retainer of the load compartment cover.
7. After bulb replacement, check the
tail lights for proper functionality:
switch on the ignition, operate the brake, switch on the sidelights.
Side turn signal lights
Have bulbs replaced by a workshop.

Vehicle care165Number plate light
1. Insert screwdriver in bulbhousing, press to the side and
release spring.
2. Remove bulb housing downwards, taking care not to pull
on the cable.
3. Lift flap and disconnect wiring plug from bulb holder.
4. Rotate bulb holder anti-clockwise to disengage.
5. Remove bulb from holder and renew bulb.
6. Insert bulb holder in bulb housing and rotate clockwise.
7. Connect wiring plug to bulb holder.
8. Insert and engage bulb housing.
Interior lights
Front courtesy light, reading
lights
1. Disengage lens, press it downward slightly and remove at
a downward angle.
2. Remove bulb and renew.
3. Engage lens.
Rear courtesy light and reading
lights
Have bulbs replaced by a workshop.

166Vehicle care
Glovebox light, foot well light
1. Prise the lamp out with ascrewdriver.
2.Press bulb slightly towards spring
clip and remove.
3. Insert new bulb.
4. Install lamp.
Instrument panel
illumination
Have bulbs replaced by a workshop.Electrical system
Fuses
Data on the replacement fuse must
match the data on the defective fuse.
The vehicle has two fuse boxes: one
behind a cover on the left side of the
load compartment and one in the front
left of the engine compartment.
Store spare fuses in the load
compartment fuse box version B.
Open the cover 3 170.
Before replacing a fuse, turn off the
respective switch and the ignition.
