2014.5 PEUGEOT 4008 tow

185
F Push the repeater towards the rear to disengage it.
F D isconnect the repeater connector.
F

C
hange the repeater unit.
to

reassemble, carry out these operations in reverse order.
Contact a P
e

uge
Ot
dealer or a qualified workshop to obtain replacement repeaters.

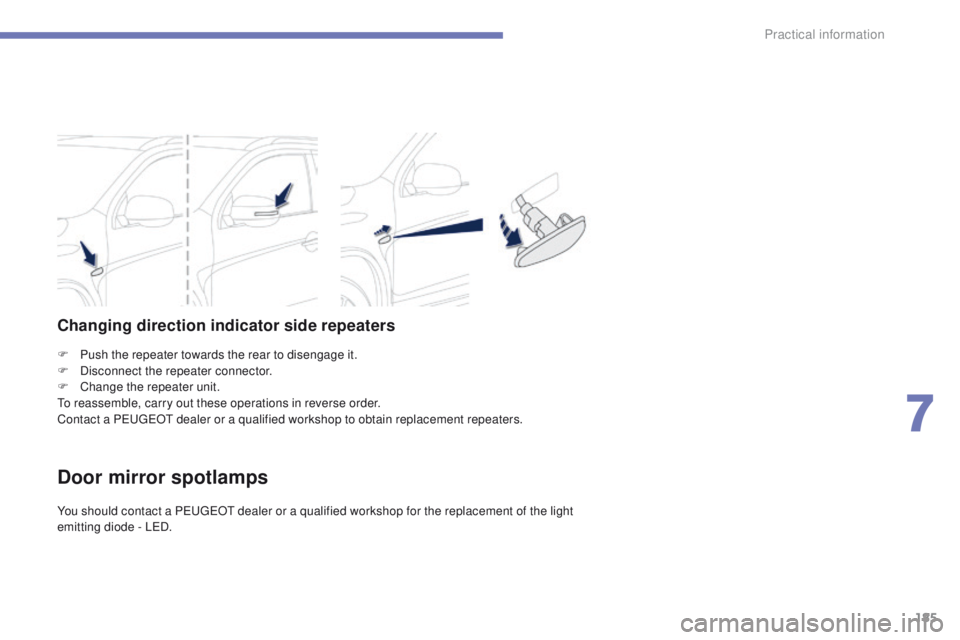

Changing direction indicator side repeaters
Door mirror spotlamps
You should contact a Pe ugeOt dealer or a qualified workshop for the replacement of the light
emitting diode - LeD .
7
Practical information

186
1. Third brake lamp (LEDs).
2. Number plate lamps (W5W-5W).
3.

R
ear foglamp (W21W-21W) or reversing
lamp ( W16W- 16W )*.
4.

R
eversing lamp (W16W-16W).
5.
D

irection indicators (WY21W-21W).
6.

S
idelamps (P21-5W).
7.

S
idelamps / brake lamps (W21-5W).

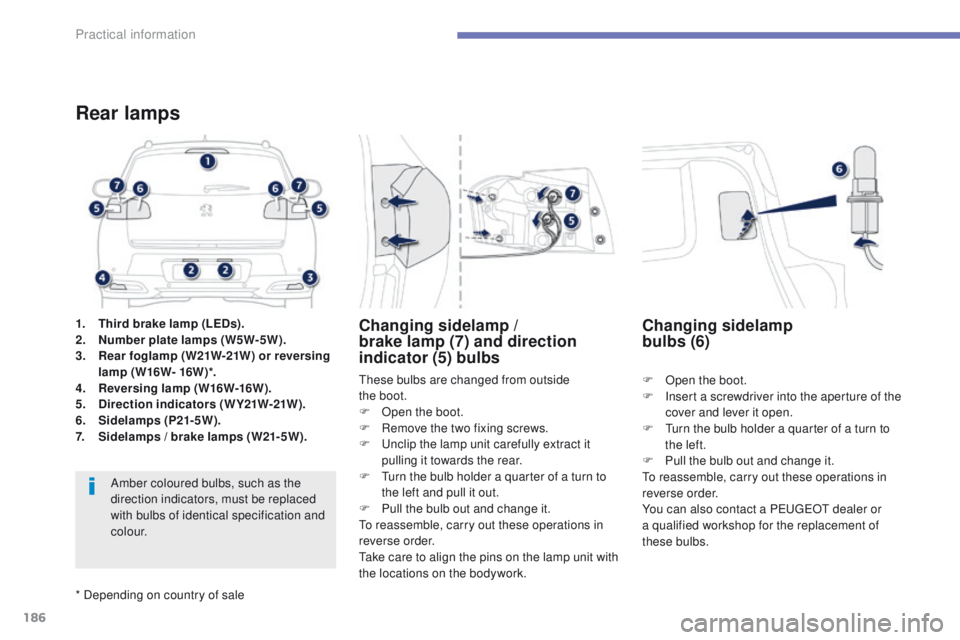

Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
c o l o u r.
th
ese bulbs are changed from outside
the

boot.
F
O
pen the boot.
F
R
emove the two fixing screws.
F u
n
clip the lamp unit carefully extract it
pulling it towards the rear.
F tu rn the bulb holder a quarter of a turn to
the left and pull it out.
F

P
ull the bulb out and change it.
to r

eassemble, carry out these operations in
reverse order.
ta

ke care to align the pins on the lamp unit with
the locations on the bodywork.
Changing sidelamp /
brake lamp (7) and direction
indicator (5) bulbs
F Open the boot.
F
I nsert a screwdriver into the aperture of the
cover and lever it open.
F
t
u
rn the bulb holder a quarter of a turn to
the left.
F

P
ull the bulb out and change it.
to r

eassemble, carry out these operations in
reverse order.
You can also contact a P
e

uge
Ot
dealer or
a qualified workshop for the replacement of
these


bulbs.
Changing sidelamp
bulbs (6)
* Depending on country of sale
Practical information

189
Dashboard fuses
the fuses are located in the lower dashboard
behind the glove box.
Access to the fuses
F Open the glove box.
F P ush the two opening guides towards the
middle to by-pass the first catch.
F

H
old the glove box lid and tilt it downwards. Fuse N°
Rating Functions
1* 30 ACabin fan.
2 15 ABrake lamps, third brake lamp.
3 10 ARear foglamp.
4 30 AWindscreen wiper, screenwash.
6 20 ACentral locking, electric door mirrors.
7 15 AAudio equipment, telematics, u
S
B unit, Bluetooth system.
8 7. 5 ARemote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
9 15 AInstrument panel and cabin lighting.
10 15 AHazard warning lamps
11 15 ARear wiper.
12 7. 5 AInstrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.
13 15 ACigarette lighter, accessory socket.
15 20 A
ele

ctric blind.
16 10 ADoor mirrors, audio equipment.
7
Practical information

197
Removing a front or rear
wiper blade
F Raise the corresponding wiper arm.
F R emove the wiper blade, sliding it towards
the outside.
Changing a wiper
blade
Fitting a front or rear wiper
blade
F At the front, check the size of the wiper blade as the shorter blade is fitted on the
right-hand side of the vehicle.
F

P
ut the corresponding new wiper blade in
place and fix it.
F

F
old down the wiper arm carefully.
Automatic power cut-off to accessories
After the engine has stopped, when the
ignition switch is in the "ACC" position
(or the vehicle in "ACC" mode) you
can still use functions such as the audio
equipment, windscreen wipers, dipped beam
headlamps,
courtesy lamps, etc. for about
thirty


minutes.Cutting off
Once the thirty minutes have expired, the
power supply to the accessories will be
automatically cut off.
Restoring power
the power supply will be restored the next time
the ignition is switched on.
7
Practical information

198
Recovering the vehicle
Recovery of your
vehicle
2 wheel drive (2WD) versions: towing
with the wheels on the ground
F Put the gear lever into neutral (position N for the CVt gearbox).
F
u
n
lock the steering by by turning the
ignition switch to the " ON" position (or
to " ON " mode for vehicle fitted with the
"Keyless
e
n
try and Starting" system).
F

R
elease the parking brake.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and travel slowly for a short
distance only.
General recommendations
Observe the legislation in force in
your country.
en

sure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
th

e driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
-

v
ehicle broken down on a motor way
or fast road,
-

4 w
heel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towing
bar available...
to

wing with the wheels on the ground
is only possible on 2 wheel drive (2WD)
versions.
F

F
it the towing bar to the towing eye on the
chassis, located under the front bumper.
Practical information

199
Vehicles fitted with the 4 wheel drive
system must always be recovered on a
flatbed.Never have the vehicle towed with the
four wheels on the ground, this could
damage the transmission.
th

e vehicle must not be towed with
the front or rear wheels on the ground
evenif it is in front "2WD" (2 wheel
d r i ve)


m o d e.
4 wheel drive (4WD) versions: recovery on a flatbed
7
Practical information

200
Towing another vehicle
F On the rear bumper, remove the cover by pulling at the bottom using the jack
handle


1. F
S crew in the towing eye 2 fully using the
wheelbrace 3 .
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and travel slowly for a short
distance only.Access to the tooling
the towing eye and the tools are stored under
the boot floor.
to g

ain access to them:
F

o
pen the boot,
F

l
ift and remove the boot floor,
F

t
ake the towing eye and the tools required.
List of tools
1.
J

ack handle.
2.


t
o
wing eye.
3.


Wheelbrace.
Practical information

201

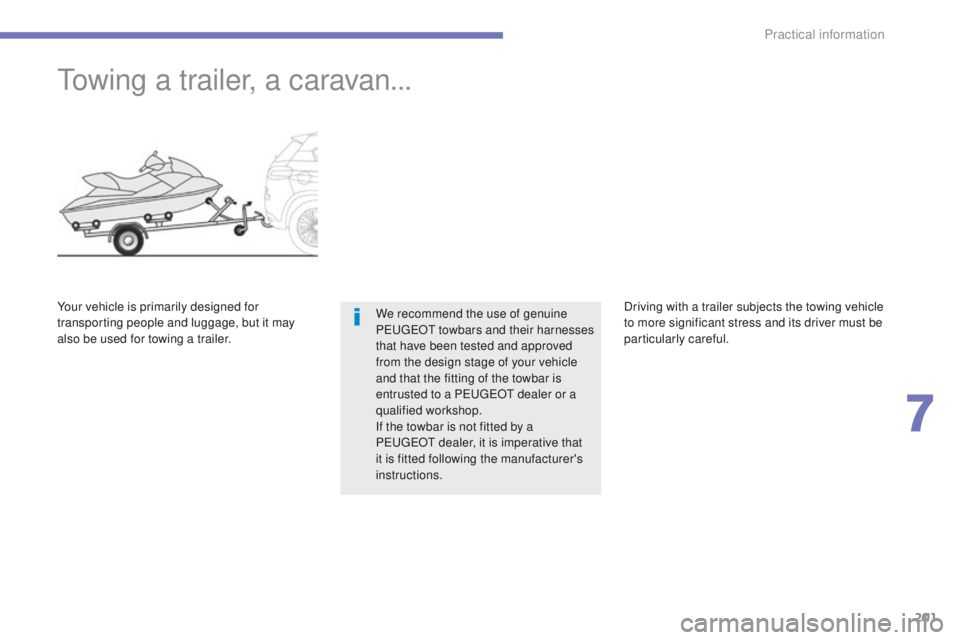

towing a trailer, a caravan...
We recommend the use of genuine
PeugeOt towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle
and that the fitting of the towbar is
entrusted to a P
e

uge
Ot
dealer or a
qualified workshop.
If the towbar is not fitted by a
P
e

uge
Ot
dealer, it is imperative that
it is fitted following the manufacturer's
instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
Driving with a trailer subjects the towing vehicle
to more significant stress and its driver must be
particularly careful.
7
Practical information
