Driving advice
Distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding


it.
Air density decreases with altitude, thus
reducing engine performance. Above
1
000 metres, the maximum towing load must
be reduced by 10
% of the gt
W a
nd so on for
every 1
000 metres of altitude.
Refer to the "
te

chnical Data" section for details
of the weights and towing loads which apply to
your vehicle.
Side wind
F take into account the increased sensitivity to side wind.
Cooling
towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F
t
o l
ower the engine speed, reduce your
speed.
th

e maximum towing load on a long slope
depends on the gradient and the outside
temperature.
In all cases, pay attention to the coolant
temperature.
F

I
f this message is displayed, stop your
vehicle as soon as it is safe to do so.
Braking
towing a trailer increases the braking distance.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the lighting and signalling on the t r a i l e r.
If the message flashes slowly, wait for the
engine to cool before topping up the level,
if


necessary.
If the message flashes rapidly, contact a
P
e

uge
Ot

dealer or a qualified workshop
without delay.
Practical information

203
Fitting roof bars
the transverse roof bars are fitted to the longitudinal bars at the 8 fixing points masked by covers.using a small screwdriver, remove the 8 covers on the inner faces of the longitudinal bars.
th

e transverse bars are fitted directly to the roof of the vehicle, at the 4 anchorage points masked
by covers.
Slide the covers towards the front of the vehicle to remove them.
Retain the protective covers.
After removing the roof bars, the protective covers should be refitted:
F

i
nsert the fixing tongues into the apertures then slide the covers towards the rear of the vehicle.
th
e body sill finishers should not be
used as a step when fitting roof bars.
us
e accessories recommended by
P
e
uge
Ot
and follow the accessory
manufacturer's fitting instructions.
Maximum authorised weight on the roof
bars, for a loading height not exceeding
40 cm (except bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars and the fixings on the roof.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.
For reasons of safety and to avoid damaging the roof, it is essential to use transverse bars that are
approved for your vehicle.
Vehicles fitted with longitudinal bars
Vehicles not fitted with longitudinal bars
7
Practical information

204
Accessories
A wide range of accessories and genuine parts is available from the PeugeOt dealer network.th
ese accessories and parts are all suitable for your vehicle and benefit from Pe ugeOt' s recommendation and warranty.
"Comfort":
front and rear parking sensors, smoker's
kit, coat hanger on head restraint, insulated
module, aluminium footrest, reading lamp,
portable scented air freshener, air deflectors,
sun blinds...
"Transports solutions":
towbar with quickly detachable ball, roof bars,
boot liner, boot spacers, bicycle carrier for roof
bars, ski carrier, canoe carrier, rigid roof boxes,
flexible roof boxes, boot net...
"St yle":
16 inch alloy wheels, 18 inch alloy wheels,
chromed door handle shells, chromed mirror
shells, brushed aluminium interior trim kit, gloss
black interior trim kit, parking brake lever trim,
aluminium gear knob...
"Security and safety":
anti-intrusion alarm, warning triangle, high
visibility vest, breathalyser, first aid kit, snow
chains, anti-slip covers, wheel security bolts,
child seats, fire extinguisher, foglamp kit,
dog guard, stolen vehicle tracking system,
accessories for pets (seat belts, seat and boot
protectors, cage)...
"Protection":
mat*, boot carpet, side protective mouldings,
door sill protectors, boot sill protector, vehicle
cover, front and rear bumper protective
mouldings...
Conversion kits
You can obtain an "enterprise" kit to convert a
trade vehicle to a private car and vice-versa. If a towbar and its harness is fitted
outside the P
e

uge
Ot
dealer network,
this must be done in line with the
manufacturer's instructions.
* to p revent any risk of jamming of the
pedals:
-

e
nsure that the mat is positioned and
secured correctly,
-

n
ever fit one mat on top of another.
Practical information

206
PeugeOt & t O tA L,
A PARtNeRSHIP tO DeL IVe R
Be

tte R

P
e
RFORMANC
e
!
Innovation, the key to success
the tOtAL Research and Development and
Pe
ugeOt teams work together to develop high
quality lubricants that meet the requirements
of P
e

uge
Ot
vehicles. For you, this is the
assurance that the performance of your engine
is optimised while also ensuring its durability.
th

e 208 HYbrid F
e
demonstrates the ability of
P
e

uge
Ot
and
tOtA
L to develop innovative
technologies and provide other ways of moving
towards the future.
208 HYbrid FE, a technology demonstrator with exceptional characteristics:
1.9 l/100 km (148.7 mpg) and 0 to 100 km/h (0 to 62 mph) in 8 seconds.
Reduced exhaust emissions,
a true reality
tOtAL lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is important
to observe the servicing recommendations
made by P
e

uge
Ot
to assure correct operation.
RECOMMENDS

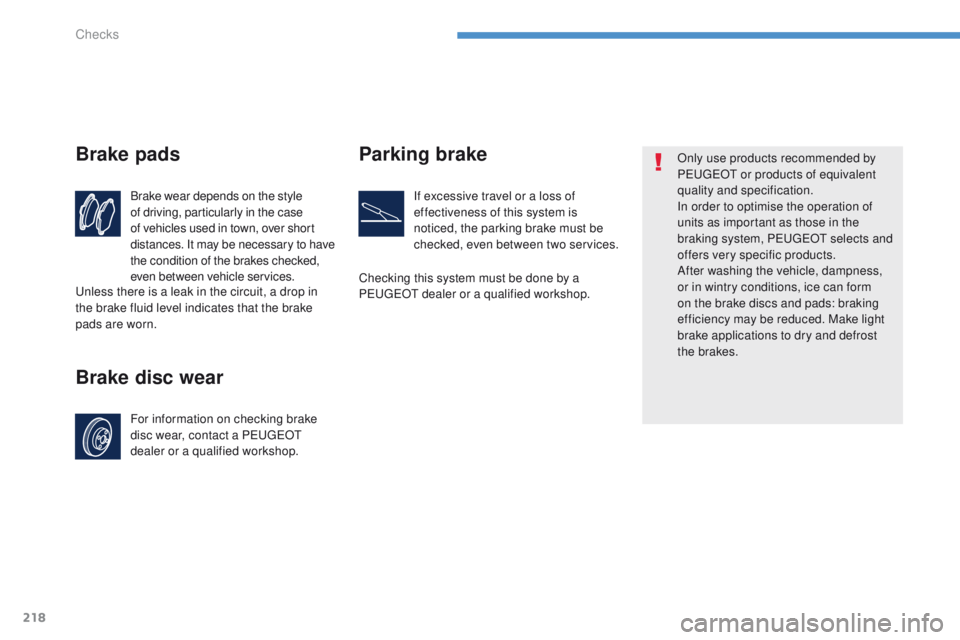

Checks

218
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake pads
For information on checking brake
disc wear, contact a PeugeOt
dealer or a qualified workshop.
Brake disc wear Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Only use products recommended by
P
e

uge
Ot
or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, P
e

uge
Ot
selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Checking this system must be done by a
P
e

uge
Ot
dealer or a qualified workshop.
un

less there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Checks

220
Petrol weights and towed loads (kg)
the values for maximum towed weights type
approved according to the sales zone (see the
tables on the following pages).
th
e exact values are given in your vehicle's
registration document as well as on the
manufacturer's plate.
th

ey are also mentioned in sales brochures.
For more details, contact a P
e

uge
Ot
dealer
or a qualified workshop.th e kerb weight is equal to the unladen
weight + driver (75 kg).th e gtW a nd towed load values indicated are
valid up to a maximum altitude of 1 000 metres;
the towed load mentioned must be reduced
by 10 % for each additional 1 000 metres of
altitude.
th

e speed of a towing vehicle must not exceed
60 mph (100 km/h) (comply with the legislation
in force in your country).
High ambient temperatures may result in a
reduction in the per formance of the vehicle to
protect the engine; if the ambient temperature
is above 37 °C, limit the towed load.
th

e weight of the braked trailer can be
increased, within the
gt
W l
imit, if the
gV

W of the towing vehicle is reduced
by an equal amount. Please note that
towing using a lightly loaded towing
vehicle may have an adverse effect
on its road holding.
technical data

221
PETROL ENGINES1.6 litre 115
Gearboxes Manual (5-speed)
Model codes: BU... NKZ0

NKZ0/S
Transmission mode 2WD
-
u
n
laden weight 1 310
-

K
erb weight 1 385
-
g
r
oss vehicle weight
(
g
V
W) 1 870
-
g
r
oss vehicle weight (
gV
W)
when towing 1 925
-
g
r
oss train weight (
g
t
W
)
o

n a 12% gradient 3 025
-

B
raked trailer (within gt
W l
imit)
o

n a 10% or 12% gradient 1 10 0
-


u
nb
raked trailer 685
-
R

ecommended nose weight 55
For zones: Europe, Turkey, French overseas dominions and territories.
9
Technical data

222
For: Russia, Ukraine, Morocco, Argentina, Chile, French overseas dominions and territories (2.0 litre 150 engine).
PETROL ENGINES1.6 litre 1152.0 litre 150
Gearboxes Manual
(5 - speed) Manual (5-speed)
CVT (6- speed)
Model codes: BU... NKZ7AFZ7AFZM AFZHAFZP
Transmission mode 2WD2WD 4WD2WD 4WD
-
u
n
laden weight 1 3151 355 1 4201 385 1 450
-

K
erb weight 1 3901 4301 4951 460 1 525
-
g
r
oss vehicle weight
(
g
V
W) 1 870
1 9701 9701 9701 970
-
g
r
oss vehicle weight
(
gV

W) when towing 1 925
2 035 2 0352 0352 035
-
g
r
oss train weight (
g
t
W
)
o

n a 12% gradient 3 025
3 335 3 3353 3353 335
-

B
raked trailer (within gt
W l
imit)
o

n a 10% or 12% gradient 1 10 0
1 300 1 3001 3001 300
-


u
nb
raked trailer 68571574 5725 750
-
R

ecommended nose weight 5565656565
