10 Specifications
Specifications
10

351
PositionDimensionin (mm)
GTrack, front62.5 (1588)A
62.1 (1578)B
HTrack, rear62.4 (1585)A
62 (1575)B
ILoad width, floor44.5 (1130)
JWidth73.3 (1861)
73.9 (1876)
C
KWidth incl. door mirrors (folded out)82.9 (2106)
LWidth incl. door mirrors (folded in)75.1 (1907)
AWith 16" wheelsBWith 17" wheelsCModels with the optional keyless drive
Weights
CategoryUSACanada
Gross vehicle weight6-cyl. FWDA: 4820 lbs
6-cyl. turbo AWD
B: 5020 lbs
6-cyl. FWDA: 2190 kg
6-cyl. turbo AWD
B: 2280 kg
Capacity weight6-cyl. FWD: 905 lbs
6-cyl. Turbo AWD: 890 lbs6-cyl. FWD: 410 kg
6-cyl. turbo AWD: 400 kg

10 Specifications
Specifications
10
352

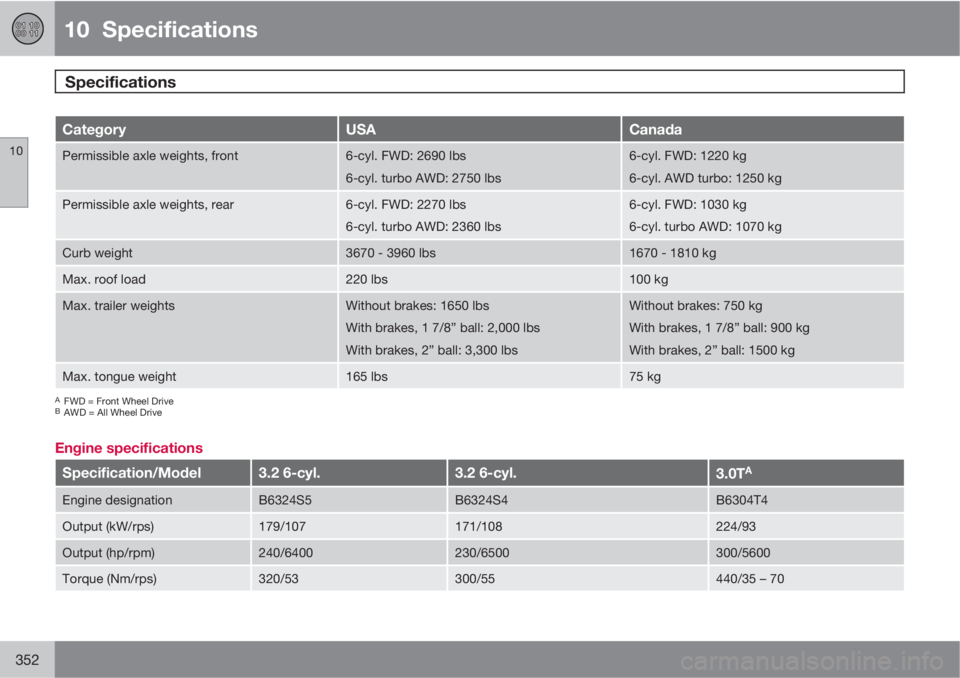

CategoryUSACanada
Permissible axle weights, front6-cyl. FWD: 2690 lbs
6-cyl. turbo AWD: 2750 lbs6-cyl. FWD: 1220 kg
6-cyl. AWD turbo: 1250 kg
Permissible axle weights, rear6-cyl. FWD: 2270 lbs
6-cyl. turbo AWD: 2360 lbs6-cyl. FWD: 1030 kg
6-cyl. turbo AWD: 1070 kg
Curb weight3670 - 3960 lbs1670 - 1810 kg
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel DriveBAWD = All Wheel Drive
Engine specifications
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Engine designationB6324S5B6324S4B6304T4
Output (kW/rps)179/107171/108224/93
Output (hp/rpm)240/6400230/6500300/5600
Torque (Nm/rps)320/53300/55440/35 – 70

10 Specifications
Specifications
10

353
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Torque (ft. lbs./rpm)236/3200221/3300325/2100 – 4200
No. of cylinders666
Bore (in/mm)3.3/843.3/843.23/82
Stroke (in/mm)3.78/963.78/963.67/93.2
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
AThis engine may not be available on all markets
Oil specifications
Engine oil must meet the minimum
ACEA A5/B5. Lower quality oils may not offer
the same fuel economy, engine performance,
or engine protection.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will providegood fuel economy and engine protection. See
the viscosity chart.
Viscosity chart
Extreme engine operationSAE 0W-30 oil meeting ACEA A5/B5 require-
ments is recommended for driving in areas with
sustained low temperatures.

10 Specifications
Specifications
10
354
Oil volume
Engine modelVolume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4+
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS
M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters)
4.7 US qts (4.5 liters
B)
Use a washer antifreeze recom-
mended by Volvo, mixed with
water.
Fuel tank volume3.0T/3.2 6 cyl.18.5 US gallons (70 liters)
AUnder normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.BModels without headlight washers

10 Specifications
Specifications
10

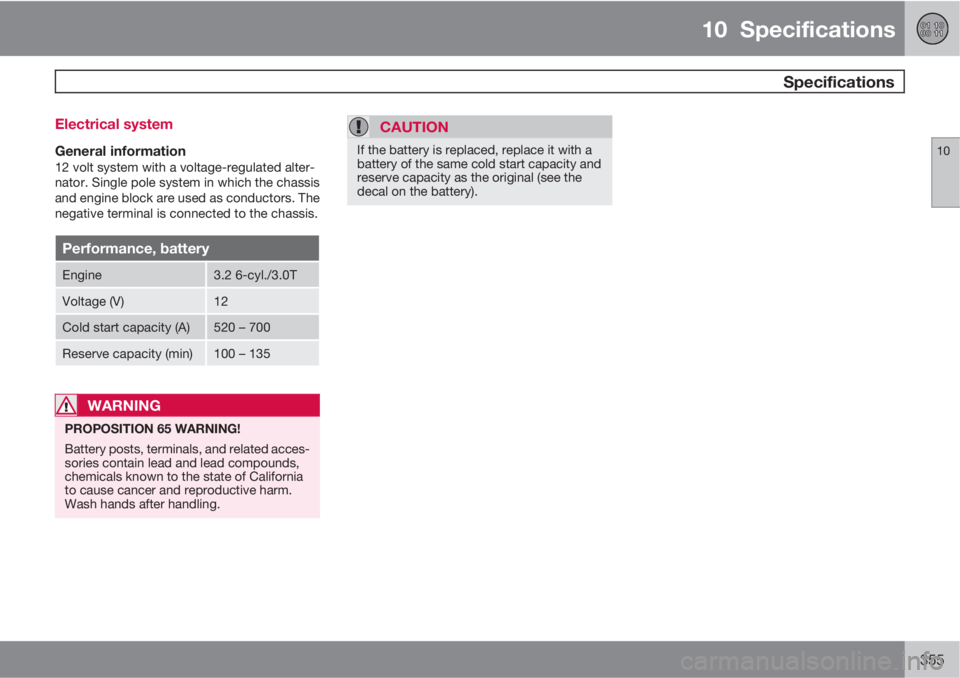

355 Electrical system
General information12 volt system with a voltage-regulated alter-
nator. Single pole system in which the chassis
and engine block are used as conductors. The
negative terminal is connected to the chassis.
Performance, battery
Engine3.2 6-cyl./3.0T
Voltage (V)12
Cold start capacity (A)520 – 700
Reserve capacity (min)100 – 135
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a
battery of the same cold start capacity and
reserve capacity as the original (see the
decal on the battery).

10 Specifications
Overview of information and warning symbols
10
356* Option/accessory, for more information, see Introduction.
Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their meaning and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to
indicate a problem related to safety and/or
drivability. A message will also appear in the
main instruments panel's display.
Information symbol
The information symbol lights up and a
text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.
Symbols in the main instrument panel
Warning symbols
SymbolDescriptionP.
no.
Low oil pressure78
A
Parking brake78
SRS airbags78
Seat belt reminder79
Generator not charg-
ing79
A
Fault in the brake sys-
tem79
Warning symbol79
ACanadian models
Indicator symbols
SymbolDescriptionP.
no.
Fault in the Active
Bending Light
(ABL)*system77
A
Malfunction indicator
light77
A
Anti-lock brake sys-
tem (ABS)77
Rear fog light on77
Stability system
(DSTC), Trailer Stabil-
ity Assist*77
Tire pressure monitor-
ing sensor (TPMS)77
Low fuel level77
Information symbol,
see text in information
display78

10 Specifications
Overview of information and warning symbols
10

* Option/accessory, for more information, see Introduction.357
SymbolDescriptionP.
no.
High beam indicator76
Left turn signal indica-
tor76
Right turn signal indi-
cator76
ACanadian models
Other information symbols
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *136,
143
Adaptive Cruise Con-
trol *136,
143
Adaptive Cruise Con-
trol *, Distance Alert*136,
143,
145
Adaptive Cruise Con-
trol *, Distance Alert*136,
143,
145
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *136,
143
Adaptive Cruise Con-
trol *, Distance Alert*136,
143,
145
Adaptive Cruise Con-
trol *, Distance Alert*136,
143,
145
Adaptive Cruise Con-
trol*136,
143
Radar sensor*140
Camera*
Laser sensor*158
Collision Warning with
Full Auto-brake and
Pedestrian Detection*160
SymbolDescriptionP.
no.
Driver Alert System*162
Active Bending Lights
(ABL)*94
Fuel filler door (arrow
indicates it is on right
side of vehicle)76
Rain sensor*99
Driver Alert System*163
Driver Alert System*,
Lane Departure Warn-
ing*165
Driver Alert System*,
Lane Departure Warn-
ing*165
Adaptive Cruise Con-
trol *136,
143

10 Specifications
Overview of information and warning symbols
10
358* Option/accessory, for more information, see Introduction.
Information symbols in the center
console display
SymbolDescriptionP.
no.
Audio files231
CD folder231
Video files231
Bluetooth-connected
cell phone240
BluetoothTM hands-
free240
HD radio223
Park Assist*168
Information symbols in the ceiling
console
SymbolDescriptionP.
no.
Seat belt reminder19
Occupant Weight
Sensor26
