2013 VOLVO S80 Owner´s Manual

06 Infotainment
Rear Seat Entertainment (RSE)*
06

* Option/accessory, for more information, see Introduction.255
Switching off the rear screensBoth of rear screens can be switched off from
the front center control panel. This function can
be activated under RSE settings
Display
off as explained in points 2-4 in the section
"Selecting a source for the rear screens from
the front center control panel" on page 254.
Press one of the remote control's number keys
(0 - 9) to switch the screens on again. The
screens will also be switched on when the igni-
tion is switched on.
Disabling the remote control (front)The IR transceiver for the front screen can be
switched off, which means that the remote
control cannot be used on the front screen.
This function can be activated under RSE
settings
Disable remote control (front) as
explained in points 2-4 in the section "Select-
ing a source for the rear screens from the front
center control panel" on page 254.
Rear screen settings2
When watching a video file, a pop-up menu can
be displayed by pressing
on the remote
control. The content of this menu will vary,
depending on the what is being played/viewed.
Day/Night modeThe screens can be set for three different light-
ing conditions: Auto, Day or Night.
Press
on the remote control and change
the setting under Day/Night mode on the
screen. See also page 257 for additional infor-
mation about the RSE menus.
Image settingsScreen settings can be made for brightness,
contrast, tint and color.
Press
on the remote control and change
the setting under Image settings on the
screen. See also page 257 for additional infor-
mation about the RSE menus.
Screen aspect ratio
Three screen aspect ratios can be set: Normal,Zoom 1 and Zoom 2.
Normal: The image on the screen is presented
at the normal aspect ratio (usually 4:3 or 16:9).
Zoom 1: Full-screen image, but parts of the
image will not be viewable.
Zoom 2: Full-screen image, but the aspect
ratio will be slightly distorted.
Unless otherwise indicated, the aspect ratio
will be
Normal.
Press
on the remote control and change
the setting under Aspect ratio on the screen.
See also page 257 for additional information
about the RSE menus.
Source menuThe content of each source's pop-up menu will
vary, depending on what is being played/
viewed, for example:
CD/DVD data menu orUSB menu. See also page 257 for additional
information about the RSE menus.
DVD menu3
If a DVD video is being viewed, this selection
will appear in the pop-up menu. See also page
257 for additional information about the RSE
menus.
2Applies only when watching video files.3Applies only to video DVDs.

06 Infotainment
Rear Seat Entertainment (RSE)*
06
256* Option/accessory, for more information, see Introduction.
Rear screen menu settings
See also page 257 for additional information
about the RSE menus.
Random4
See page 231 for additional information.
Repeat folder5
See page 232 for additional information.
DivXŸŸ Video On DemandThe media player can be registered to play
DivX VOD files from home-burned discs or
USB. The registration code can be found by
pressing the MY CAR button, and going to
Settings
InformationDivX® VOD
code. Go to www.divx.com/vod for additional
information.
USB hubA USB hub can be connected to the USB
socket (see page 235 for additional informa-
tion).
Music, video and radio
Listening to musicMusic from disc tracks/audio files can be
played through the media player's USB/AUX
sockets or from streaming audio files coming
from a Bluetooth
Ÿ-connected cell phone.
For more information about the media player,
see page 232, see page 234 for information
about the AUX/USB sockets and see page
237 for information about Bluetooth
Ÿ media.
1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward a screen's IR trans-
ceiver and press
one or more times
to come to the desired source (
Disc, USB,AUX, etc.), release the button and wait
several seconds for your selection to be
accepted.
3. Insert a CD in the infotainment system's
media player, or connect an external
device to the vehicle's USB/AUX sockets
or via Bluetooth
Ÿ.
Playback and navigating in playlistsNavigate using the remote control's scroll
wheel (see the illustration on page 260) to
select the desired playlist or folder structure.
Use
to confirm the choice of a sub-folder
or to begin playing the selected track/audio file.
Tracks/audio files can also be played by press-
ing
on the remote control and change
tracks/audio files by pressing
/.
Stop playback by pressing
.
See page 232 for more information about the
media player.
Watching a videoVideo tracks/files can be viewed via the vehi-
cle's media player or the USB socket.
For more information about the media player,
see page 232 or page 234 for information about
the USB socket.
1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2.
Use the remote control's
button to
select a screen (L: left rear screen, F: front
screen, or R: right rear screen). Point the
remote control toward a screen's IR trans-
ceiver and press
one or more times
4Applies to CD audio, CDs/DVDs, USB and iPodŸ.5Applies to audio/video files on home-burned discs/USB only.

06 Infotainment
Rear Seat Entertainment (RSE)*
06

* Option/accessory, for more information, see Introduction.257
to select the desired source (Disc or USB),
release the button and wait several sec-
onds for your selection to be accepted.
3. Insert a DVD in the infotainment system's
media player, or connect an external
device to the vehicle's USB socket.
Playback and navigation
Play a video track/video file by pressing
on the remote control and change tracks/video
files by pressing
/. Stop playback
by pressing
. See page231 for more infor-
mation about playback and navigation on
video DVDs and page 232 for information
about playing video files.
Fast forward/reverse
Press and hold the / buttons to fast
forward/reverse. Fast forward/reverse can be
done at several speeds for video files by briefly
pressing these buttons to increase the speed.
Fast forward/reverse is done at one speed for
audio files. Stop fast forward/reverse by press-
ing
, or the / buttons.
Listening to the radioYou can also listen to the infotainment sys-
tem's radio through the RSE system.1. Switch on the cordless headphones, select
CH.A for the left screen or CH.B for the
right screen.
2. Point the remote control toward a screen's
IR transceiver and press
one or more
times to come to the desired source (
AM,FM1, SAT1*, etc.), release the button and
wait several seconds for your selection to
be accepted.
3. Select a station using one of the preset
buttons (0 - 9) on the remote control or
press
/ to search for the next/
previous available station.
See page 221 for more information about the
radio.
RSE menus
IntroductionSettings in the RSE menus can be made from
the front center console control panel or by
using the remote control in the rear seat. A
source for one of the rear screens can be acti-
vated from the front center control panel and
certain settings for the rear screens can also be
made from this panel.
RSE front screen menus
To access this menu, begin by selecting RSEunder MEDIA by pressing this button on the
front center console (or by using the remote
control or the steering wheel keypad). Continue
by pressing OK/MENU to access the menu.
Turn TUNE to the desired selection and con-
firm by pressing OK/MENU.
Settings can be made for the left or right rear
screen separately or for both screens (
Left
RSE screen menu, Right RSE screen
menu and Both RSE screen menus):
Power off/Power on
RADIO
MEDIA
RSE settings
Mute
Display off
Disable remote control (front)
Reset all RSE settings

06 Infotainment
Rear Seat Entertainment (RSE)*
06
258* Option/accessory, for more information, see Introduction.
RSE pop-up menu6
Press on the remote control while a video
file is playing to display the pop-up menu. Use
the scroll wheel and the buttons on the remote
to make menu selections. See page 260 for
detailed information about the remote control.
Screen aspect ration
Image settings
Day/Night mode
Source menu
7
DVD disc menu8
RSE rear screen menus
Press on the remote control when a
source (e.g.,
Disc) has been selected to access
the RSE-menus for the rear screens.
Use the scroll wheel and the buttons on the
remote to make menu selections. See page
260 for detailed information about the remote
control.
RADIO
The menus for AM, FM1, FM2, SAT1* andSAT2* are:
Day/Night mode
Display off
Reset all RSE settings
MEDIA
RSE CD Audio menuDisc menu
Random
Day/Night mode
Display off
Reset all CD settings
RSE CD/DVD Data menuDisc menu
Random
Repeat folder
DivX® VOD code
Day/Night mode
Display offReset all CD/DVD settings
RSE DVD Video menuDVD Video Menu
DVD disc menu
Subtitles
Audio tracks
Advanced settings
Day/Night mode
Display off
Reset all DVD settings
RSE USB menuUSB menu
Random
Repeat folder
DivX® VOD code
Select USB device
Day/Night mode
Display off
Reset all USB settings
6Applies only when a video file is playing.7The content of the menu will vary according to what is being played, for example CD/DVD data menu or USB menu.8Applies to DVD videos only

06 Infotainment
Rear Seat Entertainment (RSE)*
06
* Option/accessory, for more information, see Introduction.259
RSE AUX menuAUX menu
AUX input volume
Day/Night mode
Display off
Reset all AUX settings
RSE A/V-AUX menuA/V AUX menu
A/V AUX input volume
Day/Night mode
Display off
Reset all A/V-AUX settings
RSE iPod menuiPod menu
Random
Day/Night mode
Display off
Reset all iPod settings
RSE BluetoothŸŸ menuBluetooth menu
Random
Day/Night modeDisplay off
Reset all Bluetooth settings

06 Infotainment
Remote control*
06

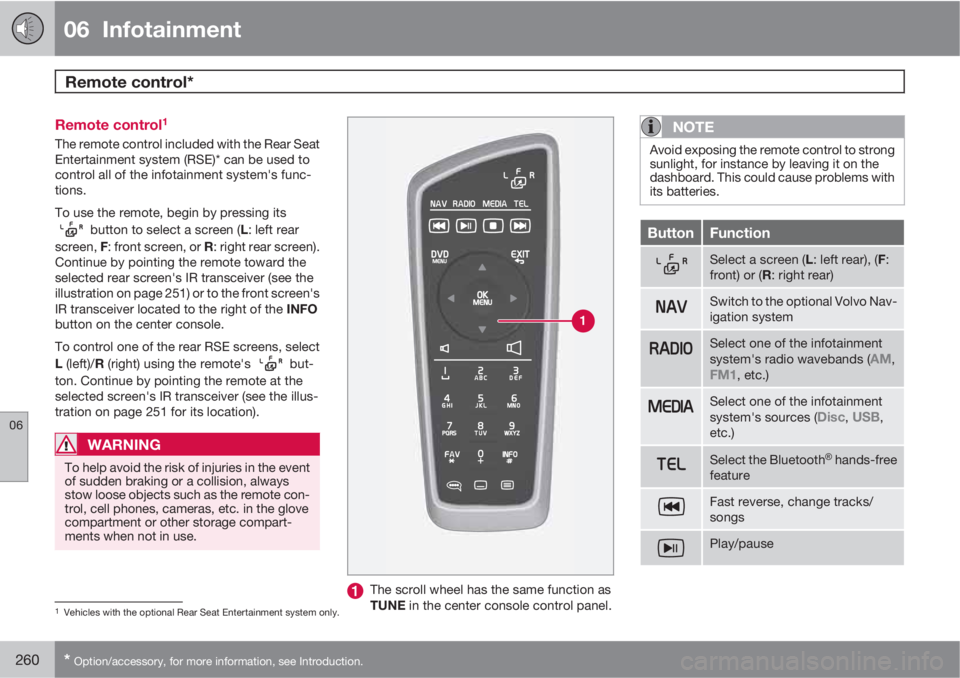

260* Option/accessory, for more information, see Introduction.
Remote control1
The remote control included with the Rear Seat
Entertainment system (RSE)* can be used to
control all of the infotainment system's func-
tions.
To use the remote, begin by pressing its
button to select a screen (L: left rear
screen, F: front screen, or R: right rear screen).
Continue by pointing the remote toward the
selected rear screen's IR transceiver (see the
illustration on page 251) or to the front screen's
IR transceiver located to the right of the INFO
button on the center console.
To control one of the rear RSE screens, select
L (left)/R (right) using the remote's
but-
ton. Continue by pointing the remote at the
selected screen's IR transceiver (see the illus-
tration on page 251 for its location).
WARNING
To help avoid the risk of injuries in the event
of sudden braking or a collision, always
stow loose objects such as the remote con-
trol, cell phones, cameras, etc. in the glove
compartment or other storage compart-
ments when not in use.
The scroll wheel has the same function as
TUNE in the center console control panel.
NOTE
Avoid exposing the remote control to strong
sunlight, for instance by leaving it on the
dashboard. This could cause problems with
its batteries.
ButtonFunction
Select a screen (L: left rear), (F:
front) or (R: right rear)
Switch to the optional Volvo Nav-
igation system
Select one of the infotainment
system's radio wavebands (AM,FM1, etc.)
Select one of the infotainment
system's sources (Disc, USB,
etc.)
Select the BluetoothŸ hands-free
feature
Fast reverse, change tracks/
songs
Play/pause
1Vehicles with the optional Rear Seat Entertainment system only.

06 Infotainment
Remote control*
06
* Option/accessory, for more information, see Introduction.261
ButtonFunction
Stop
Fast forward, change tracks/
songs
DVD menu
Go back one step in a menu, can-
cel a function or delete entered
characters
Navigate up/down
Navigate right/left
Confirm a selection or go to the
current source's main menu
Reduce volume
Increase volume
0-9Use to select preset channels or
enter characters
ButtonFunction
One-button access to frequently
used functions (which must be
programmed into the button, see
page 216
Information about the current
film, song, etc., or to display
information not currently shown
on the screen
Select language for audio tracks
Subtitles, select subtitle lan-
guage
Not in use
Replacing batteriesThe remote control runs on four AA/LR6 bat-
teries.
NOTE
The batteries' normal service life ranges
from 1-4 years, depending on how often the
remote is used. If the remote is not working
properly, try replacing the four AA/LR6 bat-
teries.
It is advisable to have extra batteries on long
trips.
1. Press down on the battery cover and slide
it in the direction indicated in the illustra-
tion.
2. Remove the old batteries and insert new
ones in the directions indicated by the
symbols in the battery holder.
3. Slide the cover back into place.
Worn out batteries should be disposed of in an
environmentally responsible manner.

262
Driving recommendations..................................................................... 264
Refueling............................................................................................... 267
Loading................................................................................................. 272
Towing a trailer...................................................................................... 275
Emergency towing................................................................................ 278
