2013 VOLKSWAGEN TIGUAN engine

Preparations for working in the engine compartment

WARNING
The engine compartment of any motor vehicle is a potentially dangerous area and can cause
serious personal injury.
x Always use extreme caution when doing any work in the engine compartment. Always
follow commonly accepted safety practices and use common sense. Never risk personal
injury.
x Never perform any work in the engine compartment unless you know exactly how to carry
out the job and have the correct technical information and the correct tools.
x If you are uncertain about what to do, have the work performed by an authorized
Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified
workshop. Serious personal injury may result from improperly performed work.
x We strongly recommend that you always have HID - High Intensity Discharge (Xenon)
lights and H7/H15 bulbs replaced by a qualified technician. Serious personal injury may result
from improperly performed work.
x Never open or close the engine hood if steam or coolant is escaping. Hot steam or coolant
can cause serious burns. Always wait until you no longer see or hear steam or coolant
escaping from the engine.
x Always let the engine cool down completely before carefully opening the hood.
x Hot parts of the engine and the exhaust system will burn skin on contact.
x When the engine has cooled down and you are ready to open the hood:
– Firmly apply the parking brake and shift the transmission into Park (P) (automatic) or
Neutral (manual only).
– Take the vehicle key out of the ignition.
– On vehicles with Keyless Access, make sure that the remote control vehicle key is out
of range of the vehicle and that the vehicle cannot be started by depressing the starter
button.
– Always keep children and others away from the engine compartment and never leave
them unsupervised.
x The engine coolant system is under pressure when the engine is hot. Never unscrew the
coolant expansion tank cap when the engine is hot. Hot coolant can spray out and cause
severe burns and other serious injuries.
– Turn the cap slowly and very carefully in a counterclockwise direction while applying
light downward pressure on the top of the cap.
– Always protect your face, hands, and arms from hot escaping coolant or steam by
covering the cap with a large, thick rag.
x Never spill fluids on the engine or exhaust system when refilling. Spilling fluids onto hot
parts of the engine or exhaust system can cause a fire.
WARNING
High voltage systems in the engine compartment can cause electrical shocks or even
electrocution, severe burns, other serious injuries, and even death!
x Never short-circuit the electrical system. Be especially careful when using jumper cables.
The vehicle's battery could explode!
x To reduce the risk of electrical shock and personal injury while the engine is running or
being started:
– Never touch ignition cables. Never touch other components of the high voltage
electronic ignition system.
– Never touch the wiring of the HID - High Intensity Discharge (Xenon) headlights.

WARNING
Moving parts in the engine compartment can cause serious personal injury on contact.
x Never reach into the area around or touch the radiator fan. Contact with the blades can
cause serious personal injury. Always remember that the radiator fan is temperature-
controlled and can come on suddenly even when the engine has been switched off for a while
and the key has been removed from the ignition.
x If you have to perform a check or repair when the engine is running, there are more risks
from the rotating parts, such as the drive belts, alternator, radiator fan, etc., and from the
high-voltage ignition system. Always use extreme care.
– Always make sure that jewelry, loose clothing and long hair do not get caught in
rotating engine parts. Before starting any work remove your jewelry, take off your necktie,
tie back and cover your hair, and do not wear clothing that can hang down and get caught
in moving engine parts.
– Always use extreme caution if the accelerator pedal has to be depressed to perform a
check. The vehicle will start to move even if the electronic parking brake is on.
x Never leave any objects in the engine compartment, for example cleaning rags and tools.
Objects left behind can cause malfunctions, engine damage, and even fires.
WARNING
Operating fluids and some materials in the engine compartment can catch fire easily, causing
burns and other serious personal injuries!
x Do not smoke.
x Never work next to open flames or sparks.
x Never pour or spill operating fluids or other flammable liquids on the engine. These fluids
can ignite on hot engine parts and cause injuries.
x If work on the fuel system or the electrical system is necessary:
– Always disconnect the 12 Volt vehicle battery. Make sure the vehicle is unlocked when
you disconnect the battery, or the alarm will go off. Never touch the electrical wiring of the
ignition system.
– Never work near heaters, water heaters, or other open flames.
x Always have a functional, approved fire extinguisher nearby.
NOTICE
When changing or topping off fluids, make sure that you pour the fluids into the correct
reservoirs. Adding the wrong type of operating fluids will cause serious malfunctions and
engine damage.
Fluid leaks are harmful to the environment. Regularly check the ground underneath your vehicle
for this reason. If you find spots of oil or other fluids, have your vehicle checked by your authorized
Volkswagen dealer or authorized Volkswagen Service Facility. Dispose of leaked operating fluids
properly.
Warning light

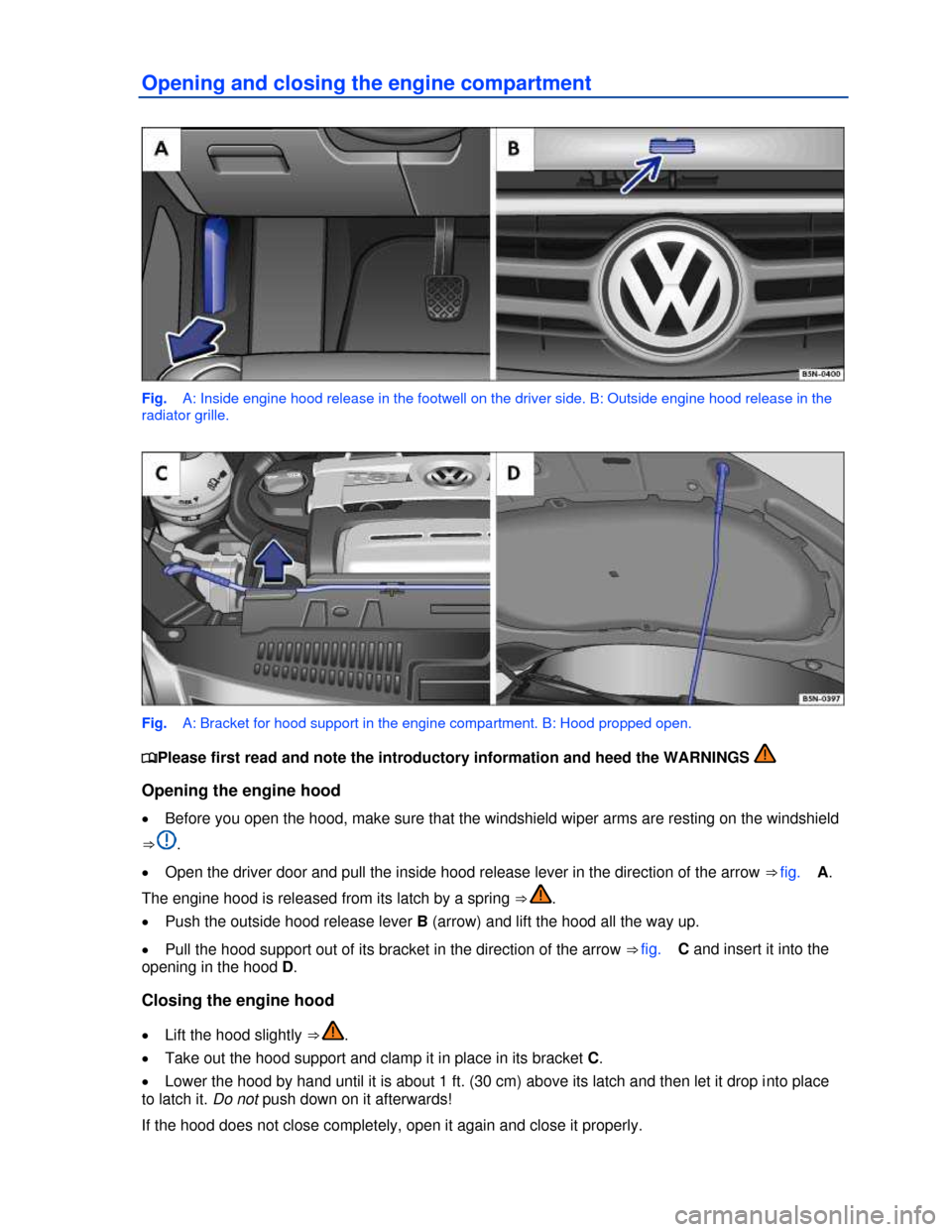

Opening and closing the engine compartment

Fig. A: Inside engine hood release in the footwell on the driver side. B: Outside engine hood release in the
radiator grille.

Fig. A: Bracket for hood support in the engine compartment. B: Hood propped open.

When the hood is properly closed, you can see that it fits flush with the other body parts. The indicator
light in the instrument cluster will go out
WARNING
If the hood is not closed properly, it could fly up and block your view while you are driving.
This can lead to a crash and serious personal injuries.
x After closing the engine hood, check that the hood release lever is properly latched into
the hood latch. The engine hood must be flush with the surrounding auto body parts.
x If you ever notice that the hood latch is not properly secured when the vehicle is moving,
stop at once and close it.
x Never let anyone get in the way of the hood when closing it.
NOTICE
x Make sure the windshield wiper arms are resting on the windshield before you open the
hood. Otherwise, the windshield wipers and the hood may be damaged.
x Always put the windshield wiper arms down against the windshield before driving the
vehicle.
NOTICE
Before opening or closing the engine hood, make sure there is enough room to do so, for
example when the vehicle is in a garage.

Engine oil

Your engine was factory-filled with a high-quality, “synthetic” all-season engine oil that meets strict
Volkswagen oil quality standards and has a viscosity grade of SAE 5W-40 or SAE 5W-30. You can
use this oil for normal driving in all temperatures.
If you need to add oil between oil changes, use only a high quality oil that expressly complies with the
Volkswagen oil quality standard specified for your vehicle's engine:

Engines Engine oil specification
All gasoline engines
VW 00,
VW 00,
VW 00

At the time this Manual was printed, the engine oils available in the U.S. that meet these Volkswagen
standards are “synthetic” oils. This does not mean, however, that any “synthetic” engine oil will meet
Volkswagen standards. Always use an approved oil that expressly complies with the Volkswagen oil
quality standard that applies to your vehicle's engine.
General recommendations:
If “synthetic” oil that meets the applicable Volkswagen oil quality standard with viscosity grade SAE
5W-40 or SAE 5W-30 is not available in your area, be sure to use a viscosity grade suitable for the
climate, season, and operating conditions that exist where the vehicle is used. Make sure the oil meets
the quality standard
Engine oils are constantly being improved. Authorized Volkswagen dealers and authorized
Volkswagen Service Facilities are always up-to-date regarding new developments and changes.
Volkswagen therefore recommends that you have the engine oil changed by an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility.
NOTICE
x If you need to add oil and there is none available that meets the Volkswagen oil quality
standard your engine requires, you may add a total of no more than 1/2 quart (0.5 liter) of a
high-quality “synthetic” oil that meets ACEA A3 specifications and has a viscosity grade of
SAE 5W-40 or SAE 5W-30.
x Use only a high quality engine oil that expressly complies with the Volkswagen oil quality
standard specified for your vehicle's engine. Using any other oil can cause serious engine
damage that will not be covered by any Volkswagen Limited Warranty.
x Do not mix any lubricants or other additives into the engine oil. Doing so can cause engine
damage! Damage caused by these kinds of additives are not covered by any Volkswagen
Limited Warranty.
Engine oil capacities

Engine oil consumption
