2013 VOLKSWAGEN GOLF fog light

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror
(2) Front windshield
(3) Front windshield wipers
(4) Engine hood
(5) Engine hood release
(6) Headlights
(7) Headlight washers (if applicable)
(8) Fog lights/static cornering lights (if applicable) ,
(9) Front license plate bracket
(10) Threaded hole for the front towing eye (behind cover)

Lights
up Possible cause Proper response

One or more driving lights not working or
Adaptive Front Lighting System (AFS)
malfunction.
Replace burned out bulb 303, or
If all light bulbs are OK, visit an authorized
Volkswagen dealer or authorized
Volkswagen Service Facility.

Fog lights switched on (indicator light on
the headlight switch or the instrument
cluster).





Left or right turn signal.
The indicator light blinks twice as fast if a
turn signal is not working on the vehicle or
the trailer.
Check the turn signals on the vehicle and
the trailer.
' Daytime running lights (DRL) on.
$2,
 High beams switched on or headlight
flashers in use.

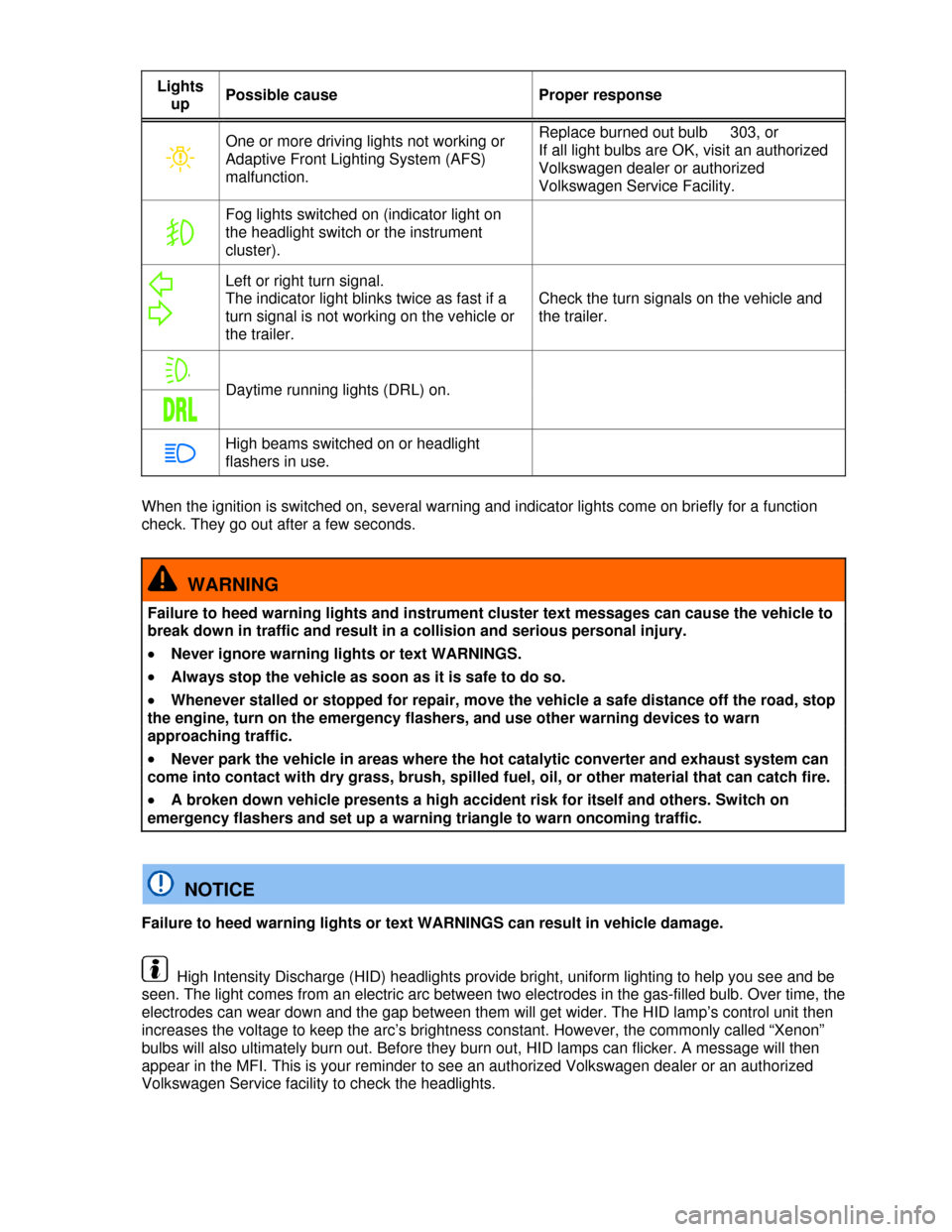

When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.
WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to
break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
x Whenever stalled or stopped for repair, move the vehicle a safe distance off the road, stop
the engine, turn on the emergency flashers, and use other warning devices to warn
approaching traffic.
x Never park the vehicle in areas where the hot catalytic converter and exhaust system can
come into contact with dry grass, brush, spilled fuel, oil, or other material that can catch fire.
x A broken down vehicle presents a high accident risk for itself and others. Switch on
emergency flashers and set up a warning triangle to warn oncoming traffic.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
High Intensity Discharge (HID) headlights provide bright, uniform lighting to help you see and be
seen. The light comes from an electric arc between two electrodes in the gas-filled bulb. Over time, the
electrodes can wear down and the gap between them will get wider. The HID lamp’s control unit then
increases the voltage to keep the arc’s brightness constant. However, the commonly called “Xenon”
bulbs will also ultimately burn out. Before they burn out, HID lamps can flicker. A message will then
appear in the MFI. This is your reminder to see an authorized Volkswagen dealer or an authorized
Volkswagen Service facility to check the headlights.

High beams can only be switched on when the low beams are on.
Switching lights on and off

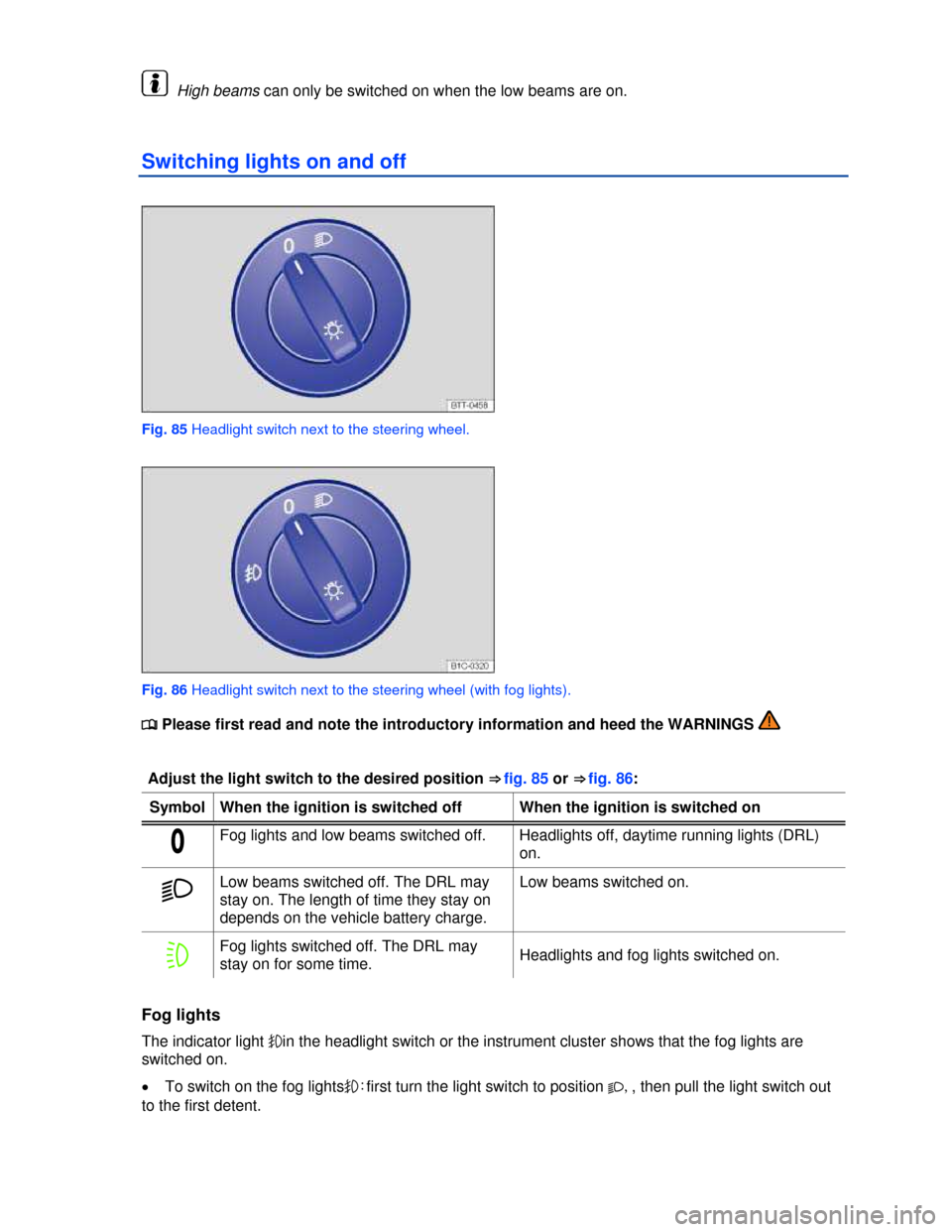

Fig. 85 Headlight switch next to the steering wheel.

Fig. 86 Headlight switch next to the steering wheel (with fog lights).

x To switch off the fog lights, push the switch back in from the first detent. To then turn off the
headlights, turn the switch to position O.
Acoustic warning when lights are not switched off
In the following situation, a warning chime will sound if you take the key out of the ignition and open
the driver door. This is to remind you that lights are still on.
x Light switch in position .
WARNING
Daytime running lights are not bright enough to let you see ahead or be seen by others when
it is dark.
x Always switch on the low-beam headlights at dusk or when it is dark and whenever the
weather is bad or visibility is poor.
x Never use the daytime running lights to see where you are going. They are not bright
enough and will not let you see far enough ahead for safety, especially at dusk or when it is
dark. Always switch on the low-beam headlights at dusk or when it is dark.
x The taillights do not come on with the daytime running lights. Unless the taillights are on,
a vehicle cannot be seen by others in bad weather, at dusk, or when it is dark.
In cool or humid weather, the insides of the headlights, the taillights, and turn signals can
temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.
Applicable only in the United States
Lights and vision features

Static cornering lights
Your vehicle may have fog lights under the front bumper, which on some models are also static
cornering lights. On some models the static cornering lights may be integrated in the headlights. At
speeds below about 25 mph (40 km/h), the light on one side of the vehicle will come on automatically
when you turn a corner. If you turn to the right, the right fog light comes on; turn left and the left fog
light comes on. The light dims and goes out when the steering wheel is straightened out again.
When you move the selector lever to Reverse (R), the static cornering lights on both sides of the
vehicle may come on so that you can see the area around the vehicle better when backing up.
The static cornering lights work only when the headlights are on. The static cornering lights do not
come on when the headlight switch is in the O position or when the fog lights themselves have been
switched on 100.
Adaptive Front Lighting System (AFS)
The Adaptive Front Lighting System works only with the low beams switched on and only at speeds
above about 6 mph (10 km/h). The swivel-mounted lamps automatically improve road illumination
during cornering.
On vehicles equipped with the Adaptive Front Lighting System, the feature is switched on and off via
the Assistants menu in the instrument cluster display
WARNING
Crashes and other accidents can happen when you cannot see the road ahead and when you
cannot be seen by other motorists.
x Never use daytime running lights (DRL) to see where you are going. DRL are not bright
enough to light up the roadway and be seen by other motorists. You will not be able to see far
enough ahead for safety, especially at dusk or when it is dark. Always switch on the low-
beam headlights at dusk or when it is dark.
x The taillights do not come on when the daytime running lights are switched on. A vehicle
without taillights on cannot be seen by others in bad weather, at dusk, or when it is dark.
In cool or humid weather, the insides of the headlights, the taillights, and turn signals can
temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.
Applicable only in Canada
Lights and vision features

when you turn a corner. If you turn to the right, the right fog light comes on; turn left and the left fog
light comes on. The light dims and goes out when the steering wheel is straightened out again.
When you move the selector lever to Reverse (R), the static cornering lights on both sides of the
vehicle may come on so that you can see the area around the vehicle better when backing up.
The static cornering lights work only when the headlights are on. The static cornering lights do not
come on when the headlight switch is in the O position or when the fog lights themselves have been
switched on
Adaptive Front Lighting System (AFS)
The Adaptive Front Lighting System works only with the low beams switched on and only at speeds
above about 6 mph (10 km/h). The swivel-mounted lamps automatically improve road illumination
during cornering.
On vehicles equipped with the Adaptive Front Lighting System, the feature is switched on and off via
the Assistants menu in the instrument cluster display
WARNING
Crashes and other accidents can happen when you cannot see the road ahead and when you
cannot be seen by other motorists.
x Never use daytime running lights (DRL) to see where you are going. DRL are not bright
enough to light up the roadway and be seen by other motorists. You will not be able to see far
enough ahead for safety, especially at dusk or when it is dark. Always switch on the low-
beam headlights at dusk or when it is dark.
x The taillights do not come on when the daytime running lights are switched on. A vehicle
without taillights on cannot be seen by others in bad weather, at dusk, or when it is dark.
In cool or humid weather, the insides of the headlights, the taillights, and turn signals can
temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.
Instrument panel lighting and headlight range adjustment

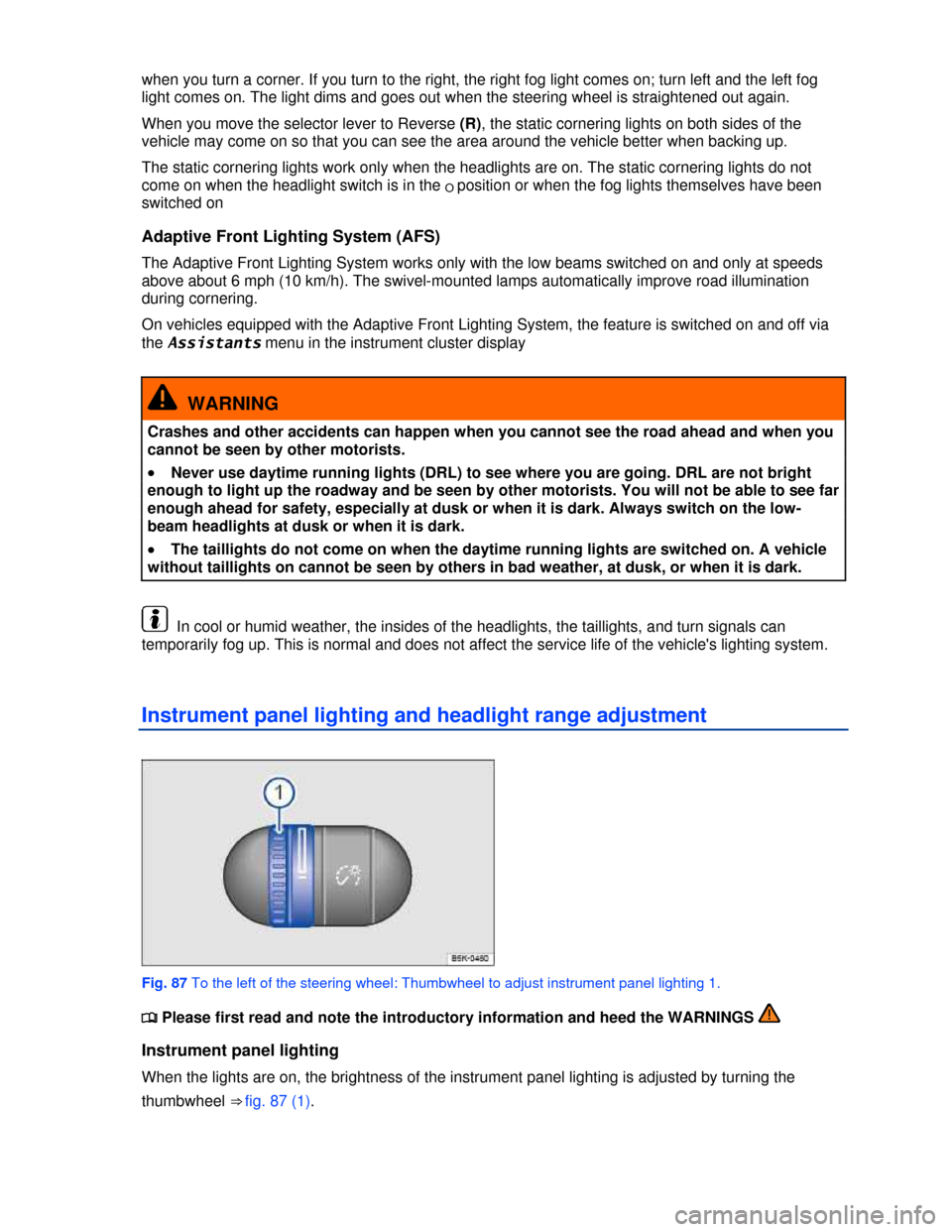

Fig. 87 To the left of the steering wheel: Thumbwheel to adjust instrument panel lighting 1.
