505 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5
Vehicles with third seats
Spare tir e
Jack handle
Jack
Wheel nut wrench
Towing eyelet

506 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5
Taking out the jack (vehicles without the third seat)
Open the front deck board.
Remove the jack.

5
507 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5
Taking out the spare tire (vehicles without the third seat)
Open the rear deck board.
Vehicles with a standard spare tire
Vehicles with a compact spare tire
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook

508 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5Remove the cover.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
Vehicles with a standard spare tire

5
509 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5Vehicles with a compact spare tire
Taking out the jack and spare tire (vehicles with the third seat)
Make sure that the third seat is in the most upright position.
Open the deck board.
Be careful of the deck board
unexpectedly falling forward.
Take out the jack.
Tighten
Loosen

510 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5Remove the auxiliary box.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
The spare tire cannot be taken
out while the third seat is folded
down.

5
511 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64550E_EURO5
Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
Slightly loosen the wheel nuts
(one turn).
Flat tireWheel chock positions
FrontLeft-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

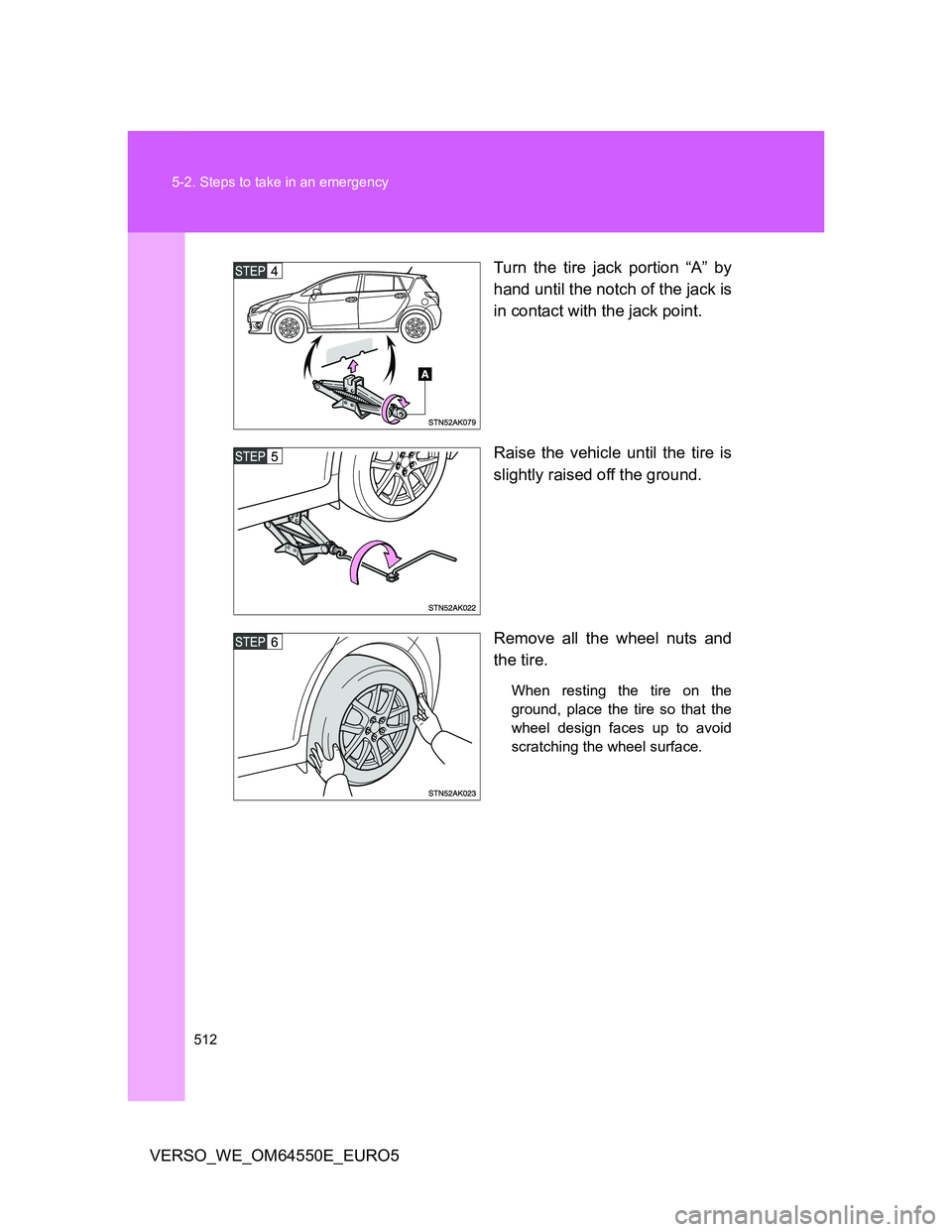

512 5-2. Steps to take in an emergency
VERSO_WE_OM64550E_EURO5Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
