2013 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

385
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
3-4. Using the storage features
List of storage features
CAUTION
■Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Bottle holders
Auxiliary boxes
Glove boxes
Cup holders
Console box

386 3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
Glove boxesUpper glove box Push the button.
Lower glove box Push the button.
■Glove box light (lower glove box only)
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed when not in use. In the event of sudden braking
or sudden swerving, an accident may occur due to an occupant being struck
by the open glove box or the items stored inside.
Glove boxes

387
3-4. Using the
storage features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Console box
Pull up the lever to release the
lock.
Lift the console box lid to
open.
CAUTION
■While driving
Keep the console box closed when not is use. In the event of sudden brak-
ing or sudden swerving, an accident may occur due to an occupant being
struck by the open console box or the items stored inside.
Console box

388 3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
Cup holdersFront (type A) Lift the lid.
Front (type B)
Rear (if equipped) Pull down the armrest.
ITO35P113
Cup holders

389
3-4. Using the
storage features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury. If possible, cover hot
drinks to prevent burns.
■ When not in use
Keep the cup holders closed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
Cup holders

390 3-4. Using the storage features
PRIUS PHV_OM_OM47787U_(U)
Bottle holders
ITO35P121
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than pet bottles in the bottle holders.
Other items may be thrown out of the holders in the event of sudden braking,
sudden swerving or an accident and cause injury.
NOTICE
■Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

391
3-4. Using the
storage features
PRIUS PHV_OM_OM47787U_(U)
3
Interior features
Auxiliary boxes
Ty p e A
Ty p e B Push the lid.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Do not leave the overhead console open.
Items may fall out and cause injury.
■ Maximum storage weight
Do not place any object heavier than 0.4 lb. (200 g) in it. The console may
be opened and cause injury.
Auxiliary boxes

392
PRIUS PHV_OM_OM47787U_(U)
3-5. Other interior features

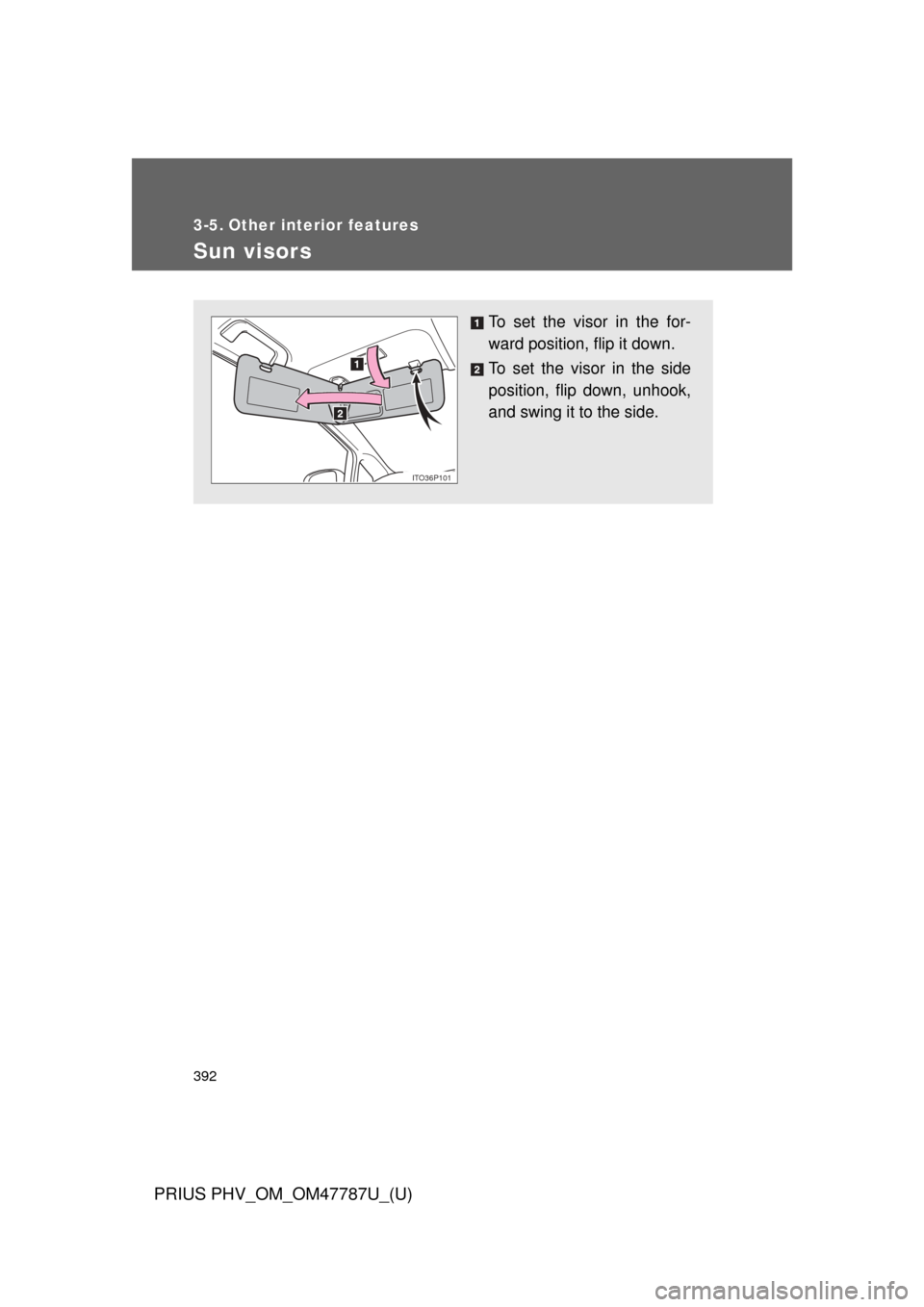

Sun visors
To set the visor in the for-
ward position, flip it down.
To set the visor in the side
position, flip down, unhook,
and swing it to the side.
ITO36P101
