2013 TOYOTA PRIUS PLUG-IN HYBRID ignition

1
2
3
4
5
6
7
3
PRIUS PHV_OM_OM47787U_(U)
1-9. Safety informationCorrect driving posture........ 182
SRS airbags ........................ 184
Front passenger occupant classification system ......... 198
Child restraint systems........ 204
Installing child restraints...... 209
2-1. Driving procedures Driving the vehicle............... 224
Power (ignition) switch ........ 238
Hybrid transmission ............ 245
Turn signal lever ................. 254
Parking brake ...................... 255
Horn .................................... 256
2-2. Instrument cluster Gauges and meters ............ 257
Indicators and warning lights ................................. 262
Multi-information display ..... 266
Head-up display .................. 285 2-3. Operating the lights and
windshield wipers
Headlight switch ................. 292
Fog light switch................... 298
Windshield wipers and washer.............................. 300
Rear window wiper and washer.............................. 304
Headlight cleaner switch .... 307
2-4. Using other driving systems Cruise control ..................... 308
Dynamic radar cruise control .............................. 312
Driving assist systems ........ 328
Hill-start assist control ........ 333
PCS (Pre-Collision System) ............................ 335
2-5. Driving information Cargo and luggage ............. 343
Vehicle load limits............... 348
Winter driving tips ............... 349
Trailer towing ...................... 354
Dinghy towing ..................... 355
2When driving

18
PRIUS PHV_OM_OM47787U_(U)

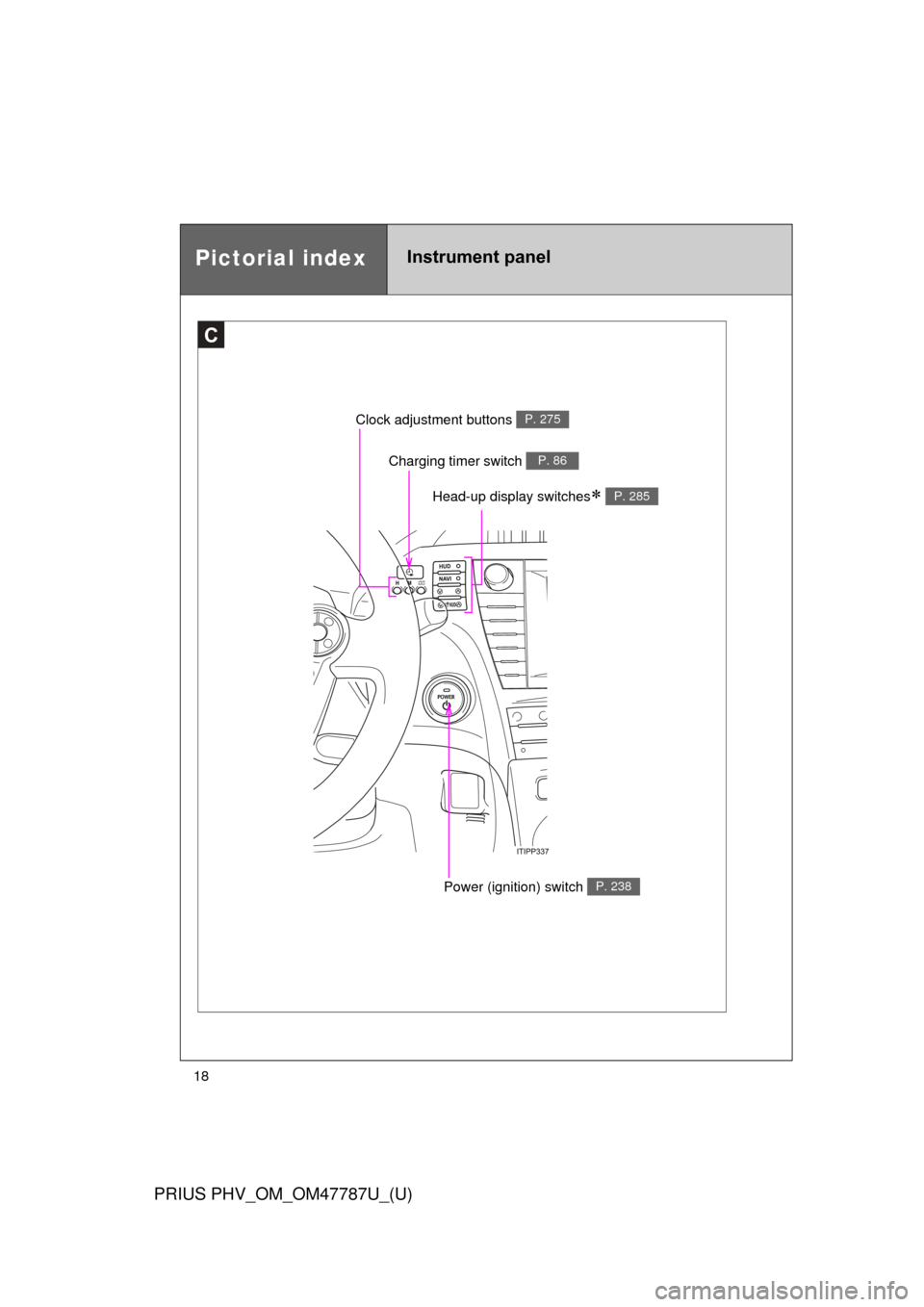

C
Clock adjustment buttons P. 275
Charging timer switch P. 86
Power (ignition) switch P. 238
Pictorial indexInstrument panel
Head-up display switches P. 285

177
1-7. Refueling
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■
When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel filler door, touch an
unpainted metal surface to discharge any st atic electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out of the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck
● Stop filling the tank after the fuel nozzle automatically clicks off
● Do not top off the fuel tank
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

When driving2
223
PRIUS PHV_OM_OM47787U_(U)
2-1. Driving proceduresDriving the vehicle............ 224
Power (ignition) switch ..... 238
Hybrid transmission ......... 245
Turn signal lever .............. 254
Parking brake ................... 255
Horn ................................. 256
2-2. Instrument cluster Gauges and meters ......... 257
Indicators and warning lights .............................. 262
Multi-information display............................ 266
Head-up display ............... 285 2-3. Operating the lights and
windshield wipers
Headlight switch ............... 292
Fog light switch ................ 298
Windshield wipers and washer ........................... 300
Rear window wiper and washer ........................... 304
Headlight cleaner switch ............................. 307
2-4. Using other driving systems Cruise control ................... 308
Dynamic radar cruise control ............................ 312
Driving assist systems ..... 328
Hill-start assist control ...... 333
PCS (Pre-Collision System) .......................... 335
2-5. Driving information Cargo and luggage .......... 343
Vehicle load limits ............ 348
Winter driving tips ............ 349
Trailer towing ................... 354
Dinghy towing .................. 355

238
2-1. Driving procedures
PRIUS PHV_OM_OM47787U_(U)
Power (ignition) switch
Performing the following operations when carrying the electronic
key on your person starts the hybr id system or changes “POWER”
switch modes.
■ Starting the hybrid system
Check that the charging cable is disconnected. (
P. 9 1 )
Check that the parking brake is set.
Firmly depress the brake pedal.
Check that the “POWER” switch indicator turns green. If the indi-
cator does not turn green, the hybrid system cannot be started.
When the shift position is N, the hybrid system cannot start. Shift
the shift position to P when starting the hybrid system. ( P. 248)
Press the “POWER” switch.
The hybrid system can be
started from any “POWER”
switch mode.
Continue depressing the brake
pedal until the hybrid system is
completely started.
STEP 1
STEP 2
STEP 3
STEP 4

617
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47787U_(U)
Cooling system
Ignition system
Capacity
Gasoline
engine7.6 qt. (7.2 L, 6.3 Imp.qt.)
Power
control
unit
2.2 qt. (2.1 L, 1.8 Imp.qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make DENSO SC20HR11
Gap 0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

672 Alphabetical index
PRIUS PHV_OM_OM47787U_(U)
EngineAccessory mode.................... 240
Compartment ........................459
Hood......................................442
How to start the hybrid system ................................238
Identification number ............. 611
If the hybrid system will not start .....................................588
Ignition switch........................238
Overheating...........................600
“POWER” switch ...................238
Engine coolant Capacity ................................617
Checking ............................... 464
Preparing and checking before winter ....................... 349
Engine/power control
unit coolant Capacity ................................617
Checking ............................... 464
Preparing and checking before winter ....................... 349
Engine oil Capacity ................................614
Checking ............................... 460
Preparing and checking before winter ....................... 349
Enhanced VSC .........................328
EPS ............................................ 328
EV driving ratio indicator ........ 271
EV driving range ................58, 268
Event data recorder ...................25
EV/HV mode selection switch .......................................37 Floor mats ................................ 401
Fluid
Brake..................................... 619
Washer.................................. 469
Fog lights Replacing light bulbs ............. 507
Switch ................................... 298
Wattage................................. 620
Foot lights ................................ 382
Front fog lights
Replacing light bulbs ............. 507
Switch ................................... 298
Wattage................................. 620
Front passenger occupant classification system ............ 198
Front passenger’s seat belt reminder light ........................ 537
Front seats
Adjustment ............................ 146
Front side marker light Replacing light bulbs ............. 507
Wattage................................. 620
Front turn signal lights Replacing light bulbs ............. 507
Switch ................................... 254
Wattage................................. 620
Fuel Capacity ................................ 613
Fuel gauge ............................ 257
Information ............................ 621
Refueling ............................... 174
Type ...................................... 621
Fuel door .................................. 174
Fuel filler door .......................... 174
Fuses ........................................ 495F

673
Alphabetical index
PRIUS PHV_OM_OM47787U_(U)
Garage door opener ................ 407
Gauges ..................................... 257
Glove boxes ............................. 386
Hands-free system
(for cellular phone)
*
Hazard lights Switch ................................... 524
Head restraints Adjustment .......................... 152
Headlight cleaner .................... 307
Headlights
Cleaner ................................. 307
Replacing light bulbs ............ 507
Switch ................................... 292
Wattage ................................ 620
Heaters
Automatic air conditioning system................................ 358
Seat heaters ......................... 397
Side mirrors .......................... 375
Hill-start assist control ........... 333
Hood ......................................... 442
Hooks Cargo.................................... 403
Horn .......................................... 256
Hybrid system Emergency shut off system .... 45
Energy monitor/consumption screen ............. 52
High voltage components ....... 44
Hybrid System Indicator ....... 268
Ignition switch ....................... 238
Monthly fuel consumption record ................................... 64
“POWER” switch .................. 238 I/M test.......................................438
Identification
Engine ...................................612
Vehicle ..................................611
Ignition switch ..........................238
Illuminated entry system .........382
Immobilizer system..................179
Indicator lights .........................262
Initialization Items to initialize....................647
Inside rear view mirror ............166
Instrument panel light control ....................................260
Interior lights Interior lights..................383, 384
Switch............................383, 384
Wattage .................................620
Jack Positioning a floor jack ..........445
Vehicle-equipped jack ...........448
Jack handle ..............................448
Keyless entry............................132
Keys Electronic key ........................105
If the electronic key does not
operate properly..................591
If you lose your keys .............590
Key number ...........................105
Keyless entry.........................132
Keys ......................................105
Mechanical key .....................105
“POWER” switch ...................238
Wireless remote
control key ..........................132
Knee airbag ..............................184
G
H
I
J
K
*: Refer to “Display Audio System Owner’s Manual” or “Navigation System Owner’s Manual”.
