Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-tened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a nontrivial crash situa-
tion occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.

26
PRIUS PHV_OM_OM47787U_(U)
●Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained
• In response to an official request by the police, a court of law or a govern- ment agency
• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing information about the specific vehicle or vehicle owner
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.

27
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

28
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■Hybrid battery (traction battery)
Never resell, hand over or modify the hybrid battery (traction battery). To pre-
vent accidents, hybrid batteries (traction batteries) that have been removed
from a disposed vehicle are collected through Toyota dealers. Do not dis-
pose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting in
death or serious injury:
• The hybrid battery (traction battery) may be illegally disposed of or
dumped, and someone may touch a high voltage part, resulting in an
electric shock.
• The hybrid battery (traction battery) is intended to be used exclusively with your hybrid vehicle. If the hybrid battery (traction battery) is used
outside of your vehicle or modified in any way, accidents such as electric
shock, heat generation, smoke generation, an explosion and electrolyte
leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident is
extremely high because the person receiving the vehicle may not be aware
of these dangers.
■ Disposal of the hybrid battery (traction battery)
If your vehicle is disposed of without the hybrid battery (traction battery) hav-
ing been removed, there is a danger of serious electric shock if high voltage
parts, cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery (traction battery) must be disposed
of by your Toyota dealer or a qualified service shop. If the hybrid battery
(traction battery) is not disposed of properly, it may cause electric shock that
can result in death or serious injury.

29
PRIUS PHV_OM_OM47787U_(U)

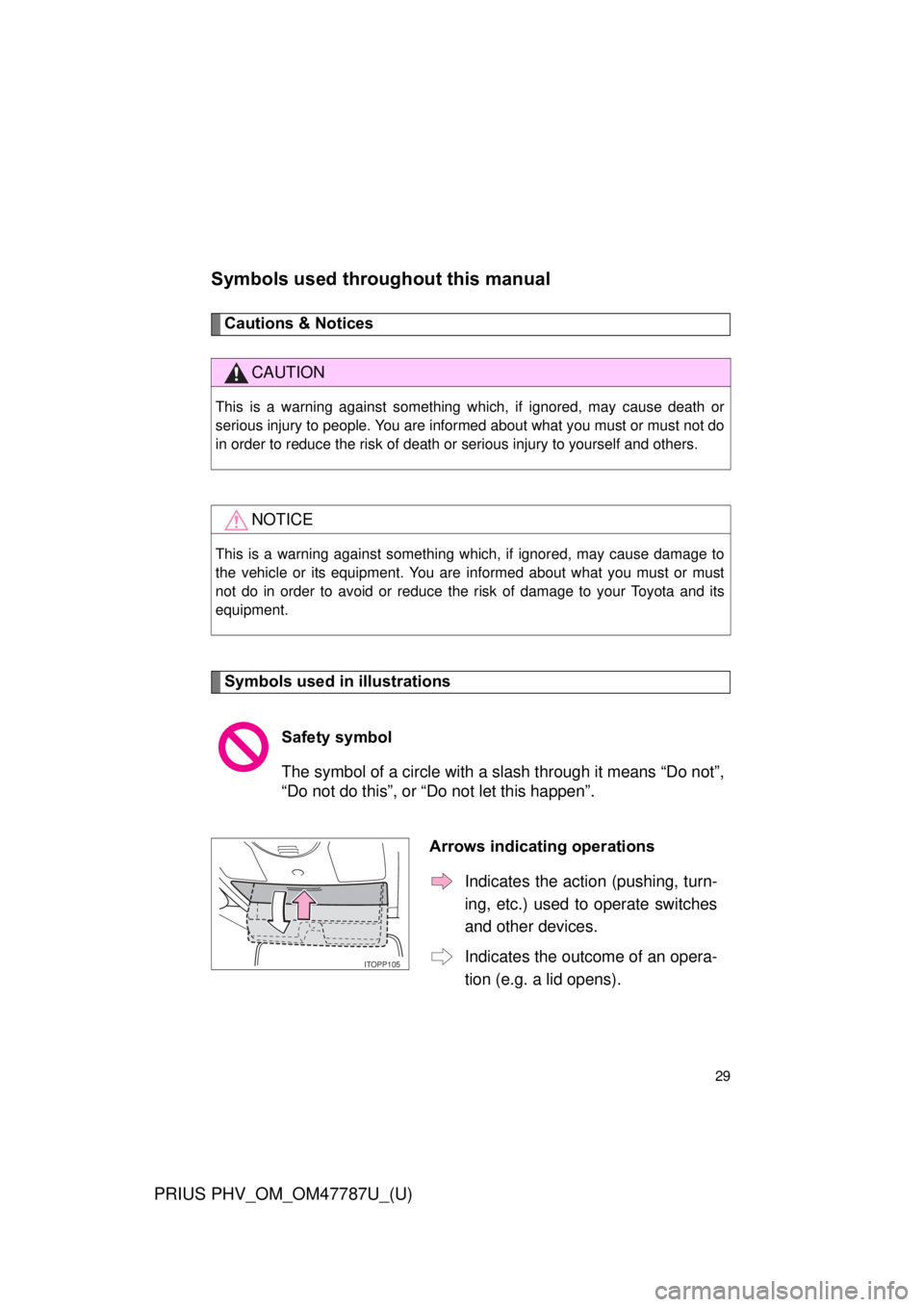

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operationsIndicates the action (pushing, turn-
ing, etc.) used to operate switches
and other devices.
Indicates the outcome of an opera-
tion (e.g. a lid opens).
ITOPP105

30
PRIUS PHV_OM_OM47787U_(U)
1-1. Plug-in hybrid systemPlug-in hybrid system features ............................ 32
Plug-in hybrid system precautions ...................... 44
Energy monitor/ consumption screen ......... 52
Plug-in hybrid vehicle driving tips ........................ 67
Plug-in Hybrid Applications ..................... 70

Before driving1
31
PRIUS PHV_OM_OM47787U_(U)
1-2. ChargingCharging equipment........... 73
Power sources that can be used ................................. 77
How to charge .................... 80
When normal charging cannot be carried out ....... 98
Inspecting the charging cable .............................. 103
1-3. Key information Keys ................................. 105
1-4. Opening, closing and locking the doors
Smart key system (with entry function) ....... 108
Smart key system (without entry
function) ......................... 126
Wireless remote control ... 132
Side doors ........................ 134
Back door ......................... 140 1-5. Adjustable components
(seats, mirrors, steering
wheel)
Front seats ....................... 146
Rear seats........................ 149
Head restraints................. 152
Seat belts ......................... 156
Steering wheel ................. 165
Inside rear view mirror ..... 166
Outside rear view mirrors ............................ 169
1-6. Opening and closing the windows
Power windows ................ 171
1-7. Refueling Opening the fuel tank cap ................................. 174
1-8. Theft deterrent system Immobilizer system .......... 179
1-9. Safety information Correct driving posture..... 182
SRS airbags ..................... 184
Front passenger occupant classification system ...... 198
Child restraint systems..... 204
Installing child restraints... 209

32
PRIUS PHV_OM_OM47787U_(U)
1-1. Plug-in hybrid system

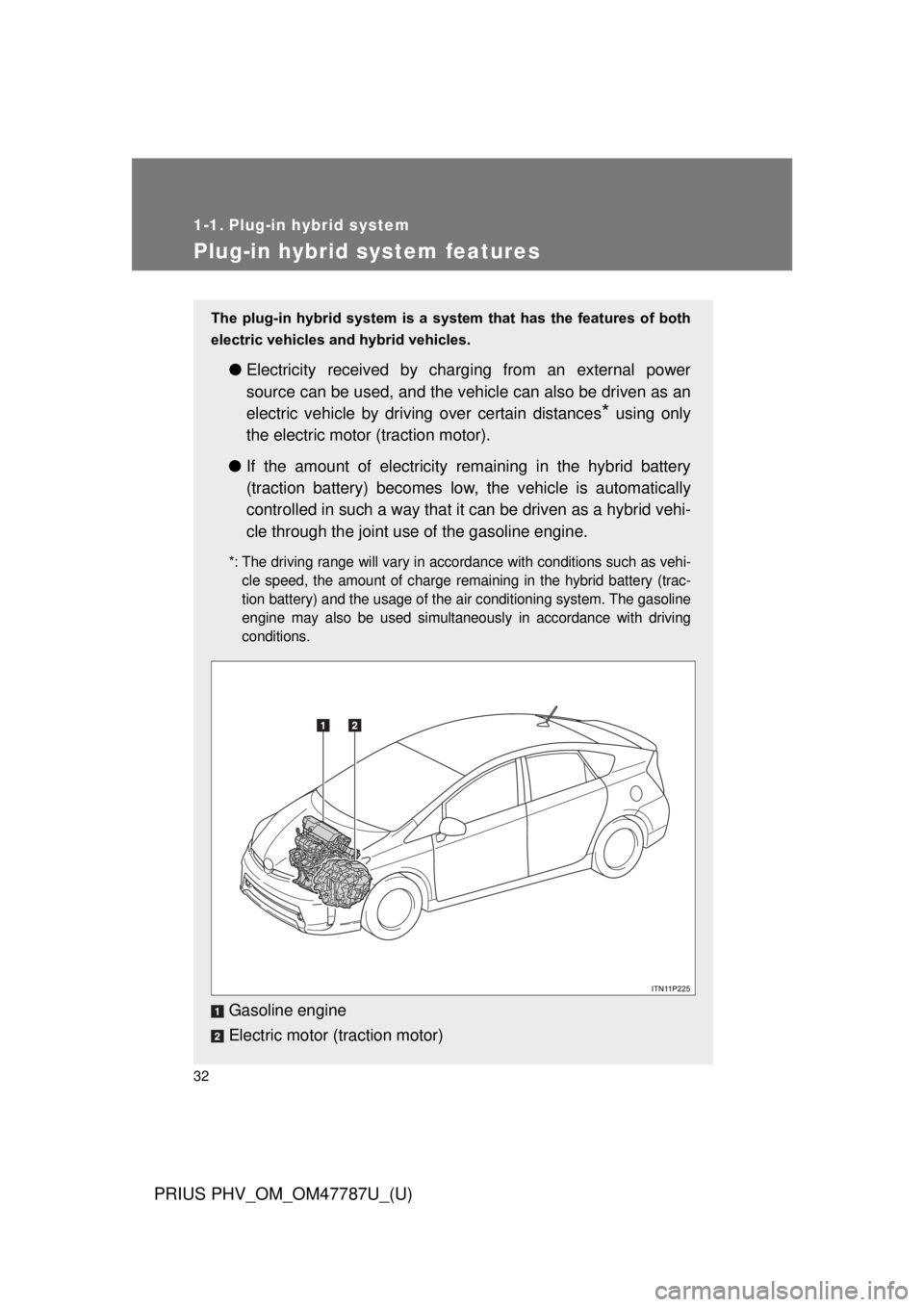

Plug-in hybrid system features
The plug-in hybrid system is a system that has the features of both
electric vehicles and hybrid vehicles.
●Electricity received by charging from an external power
source can be used, and the v ehicle can also be driven as an
electric vehicle by driv ing over certain distances
* using only
the electric motor (traction motor).
● If the amount of electricity remaining in the hybrid battery
(traction battery) becomes low, the vehicle is automatically
controlled in such a way that it can be driven as a hybrid vehi-
cle through the joint use of the gasoline engine.
*: The driving range will vary in accord ance with conditions such as vehi-
cle speed, the amount of charge remaining in the hybrid battery (trac-
tion battery) and the usage of the air conditioning system. The gasoline
engine may also be used simultaneously in accordance with driving
conditions.
Gasoline engine
Electric motor (traction motor)
