2013 TOYOTA PRIUS PHV Owners Manual

217
1-9. Safety information
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
Non-foldable type outside seats
Remove the head restraint.
Center seat Adjust the head restraint to the
upmost position.

218 1-9. Safety information
PRIUS PHV_OM_OM47787U_(U)
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Outside only: Do the following.
Foldable type Adjust the head restraint to the
downmost position.
Non-foldable type Install the head restraint.
STEP 2
STEP 3

219
1-9. Safety information
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
■
Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (P. 158)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

220 1-9. Safety information
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■When installing a child restraint system
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer. ●
Only put a forward-facing child restraint
system on the front seat when unavoid-
able.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible even if the “AIR BAG OFF” indica-
tor light is illuminated. Failure to do so
may result in death or serious injury if
the airbags deploy (inflate).

221
1-9. Safety information
1
Before driving
PRIUS PHV_OM_OM47787U_(U)
CAUTION
■
Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■ To correctly attach a child r estraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of a sudden braking, sudden swerve or accident.

222 1-9. Safety information
PRIUS PHV_OM_OM47787U_(U)

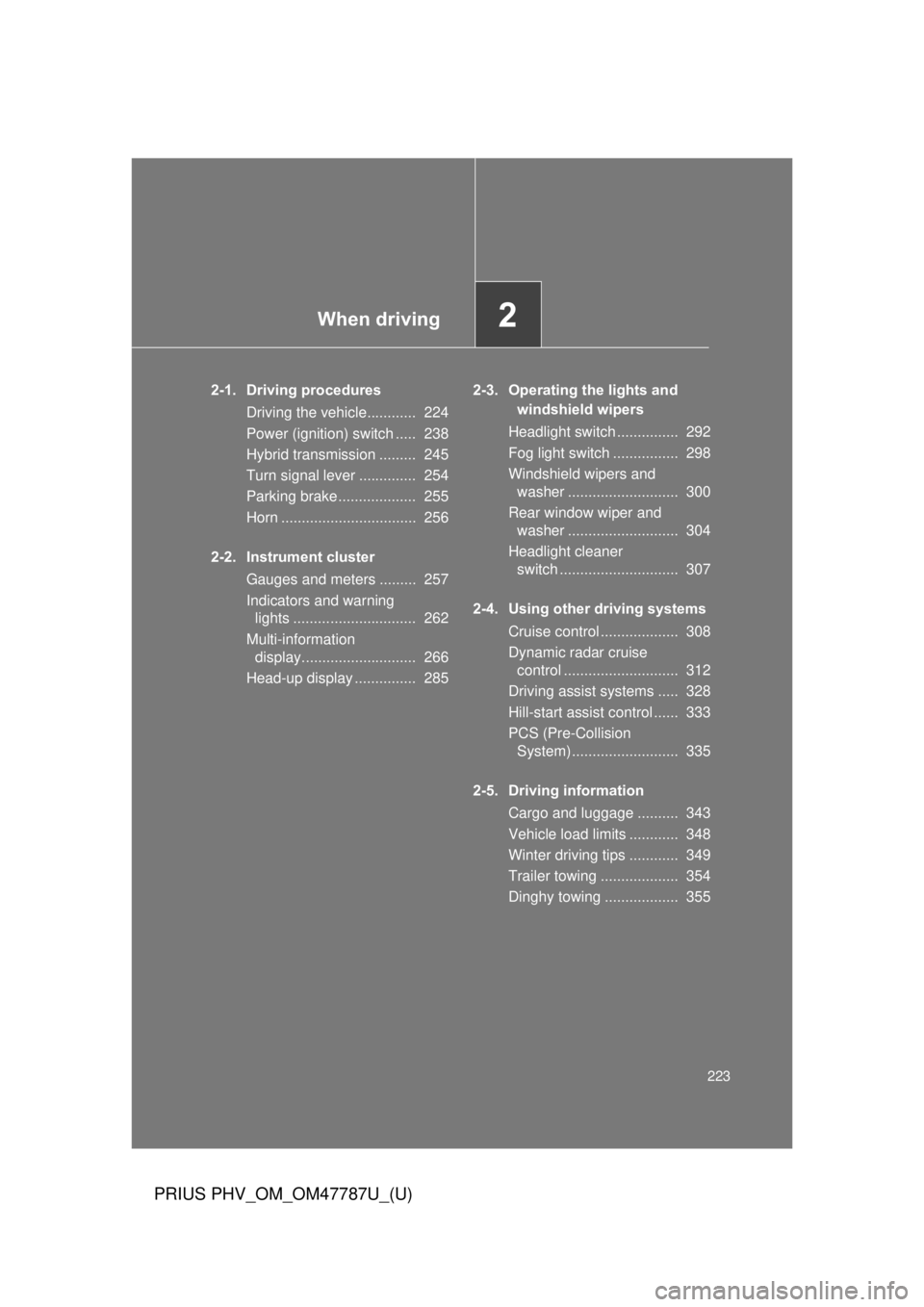

When driving2
223
PRIUS PHV_OM_OM47787U_(U)
2-1. Driving proceduresDriving the vehicle............ 224
Power (ignition) switch ..... 238
Hybrid transmission ......... 245
Turn signal lever .............. 254
Parking brake ................... 255
Horn ................................. 256
2-2. Instrument cluster Gauges and meters ......... 257
Indicators and warning lights .............................. 262
Multi-information display............................ 266
Head-up display ............... 285 2-3. Operating the lights and
windshield wipers
Headlight switch ............... 292
Fog light switch ................ 298
Windshield wipers and washer ........................... 300
Rear window wiper and washer ........................... 304
Headlight cleaner switch ............................. 307
2-4. Using other driving systems Cruise control ................... 308
Dynamic radar cruise control ............................ 312
Driving assist systems ..... 328
Hill-start assist control ...... 333
PCS (Pre-Collision System) .......................... 335
2-5. Driving information Cargo and luggage .......... 343
Vehicle load limits ............ 348
Winter driving tips ............ 349
Trailer towing ................... 354
Dinghy towing .................. 355

224
PRIUS PHV_OM_OM47787U_(U)

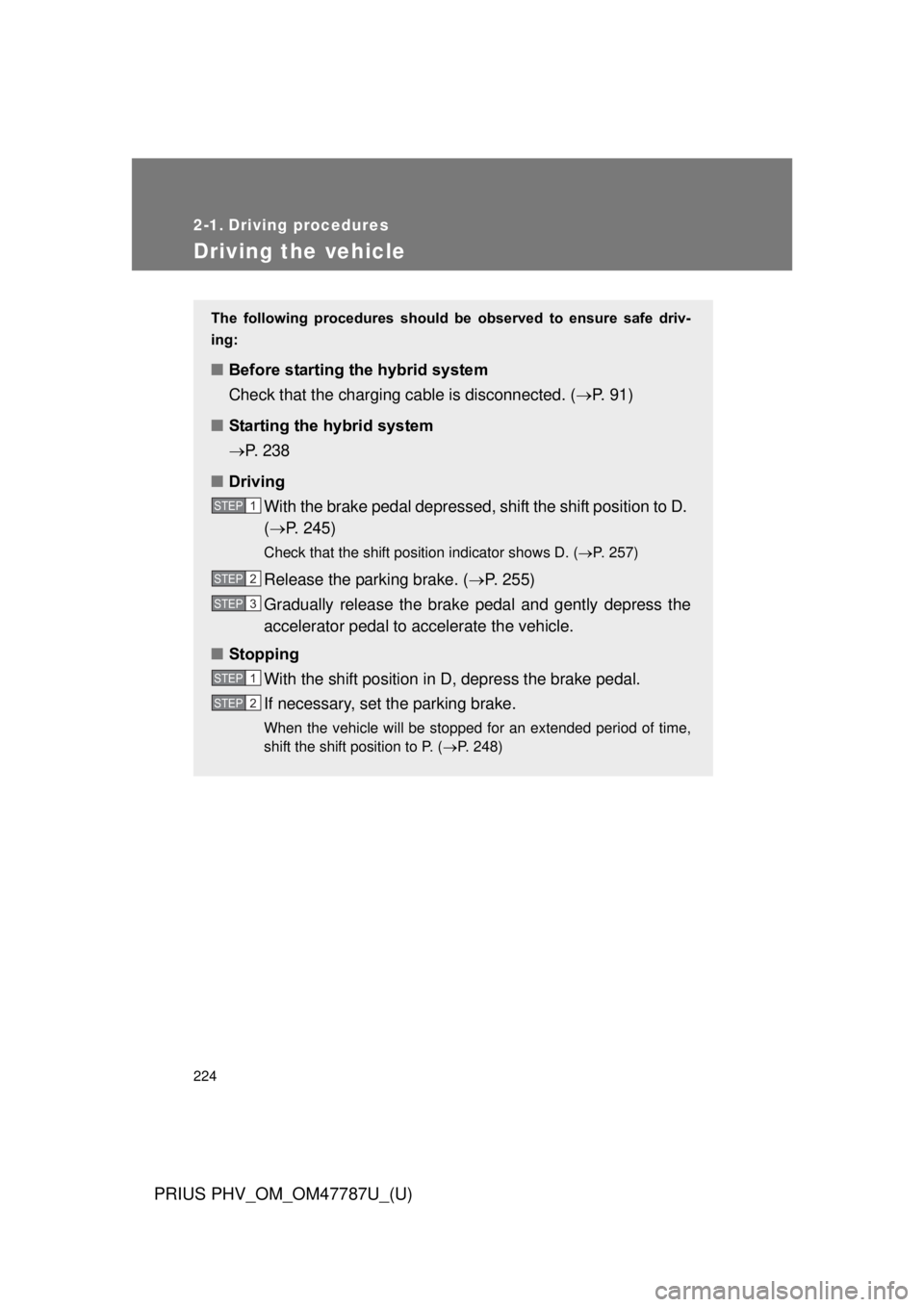

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
■ Before starting the hybrid system
Check that the charging cable is disconnected. (P. 91)
■ Starting the hybrid system
P. 238
■ Driving
With the brake pedal depressed, shift the shift position to D.
( P. 245)
Check that the shift position indicator shows D. ( P. 257)
Release the parking brake. (P. 255)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
■ Stopping
With the shift position in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle will be stopped for an extended period of time,
shift the shift position to P. ( P. 248)
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
