When trouble arises
489
5-2. Steps to take in an emergency
CAUTION
■
If the hybrid system has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the hybrid system.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
Vehicles with a smart key sys-
tem: To stop the hybrid sys-
tem, press and hold the
“POWER” switch for 2 consec-
utive seconds or more, or
press it briefly 3 times or more
in succession.
Stop the vehicle in a safe place by the road.STEP4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP5

490 5-2. Steps to take in an emergency

Vehicle specifications6

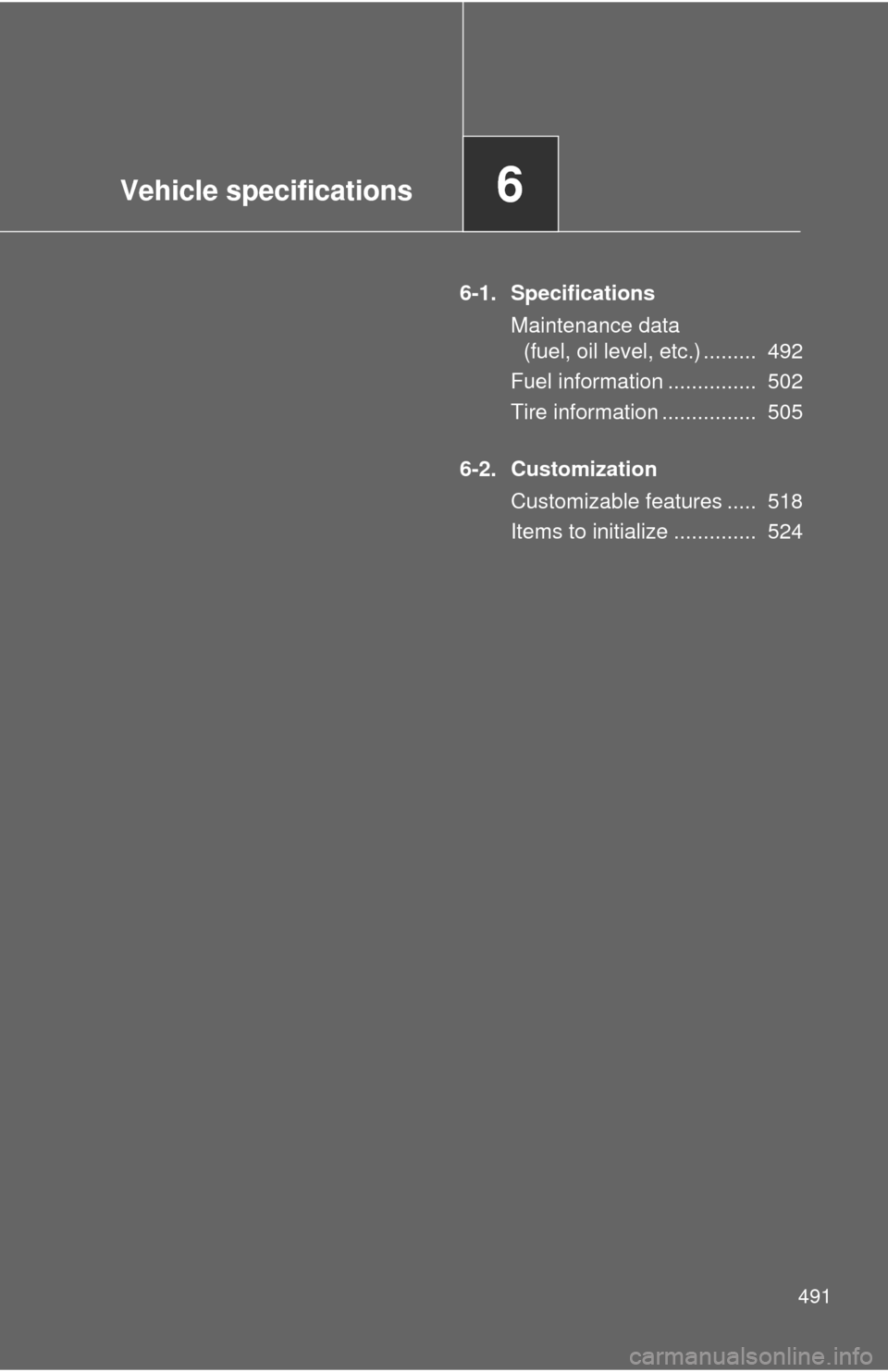

491
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 492
Fuel information ............... 502
Tire information ................ 505
6-2. Customization Customizable features ..... 518
Items to initialize .............. 524

492
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*1: Unladen vehicles
*2: P175/65R15 tires
*3: P195/50R16 tires
Overall length157.3 in. (3995 mm)
Overall width66.7 in. (1695 mm)
Overall height*1
Without moon roof
56.9 in. (1445 mm)
With moon roof 57.7 in. (1465 mm)
Wheelbase 100.4 in. (2550 mm)
Tread
Front58.3 in. (1480 mm)*2
57.5 in. (1460 mm)*3
Rear58.1 in. (1475 mm)*2
57.1 in. (1450 mm)*3
Vehicle capacity weight
(Occupants + luggage) 845 lb. (380 kg)

493
6-1. Specifications
6
Vehicle specifications
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the front passenger’s seat.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.

494 6-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Fuel
Electric motor (Traction motor)
Model1NZ-FXE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95  3.33 in. (75.0  84.7 mm)
Displacement 91.3 cu.in. (1497 cm3)
Valve clearance
(engine cold) Intake: 0.006  0.010 in. (0.15  0.25 mm)
Exhaust: 0.010  0.014 in. (0.25  0.35 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference) 9.5 gal. (36 L, 7.9 Imp. gal.)
Type
Permanent magnet synchronous motor
Maximum output 45 kW
Maximum torque 125 ft•lbf (169 N•m, 17.2 kgf•m)

495
6-1. Specifications
6
Vehicle specifications
Hybrid battery (Traction battery)
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more
than 5 minutes, and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
TypeNickel-metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 20 modules
Overall voltage 144 V
Oil capacity (Drain and
refill reference*)
Without filter
With filter 3.6 qt. (3.4 L, 3.0 Imp. qt.)
3.9 qt. (3.7 L, 3.3 Imp. qt.)
Outside temperature

496 6-1. Specifications
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allowscold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Capacity Gasoline engine
Power control unit 5.6 qt. (5.3 L, 4.7 Imp. qt.)
1.7 qt. (1.6 L, 1.4 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life
hybrid organic acid technology
Do not use plain water alone.
