4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn and secure the bulb. Install
the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
with the directions reversed.
■ Parking lights
Unplug the connector while
pushing the lock release.
STEP6
STEP5STEP7STEP5STEP7STEP2
STEP1

418 4-3. Do-it-yourself maintenance
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.

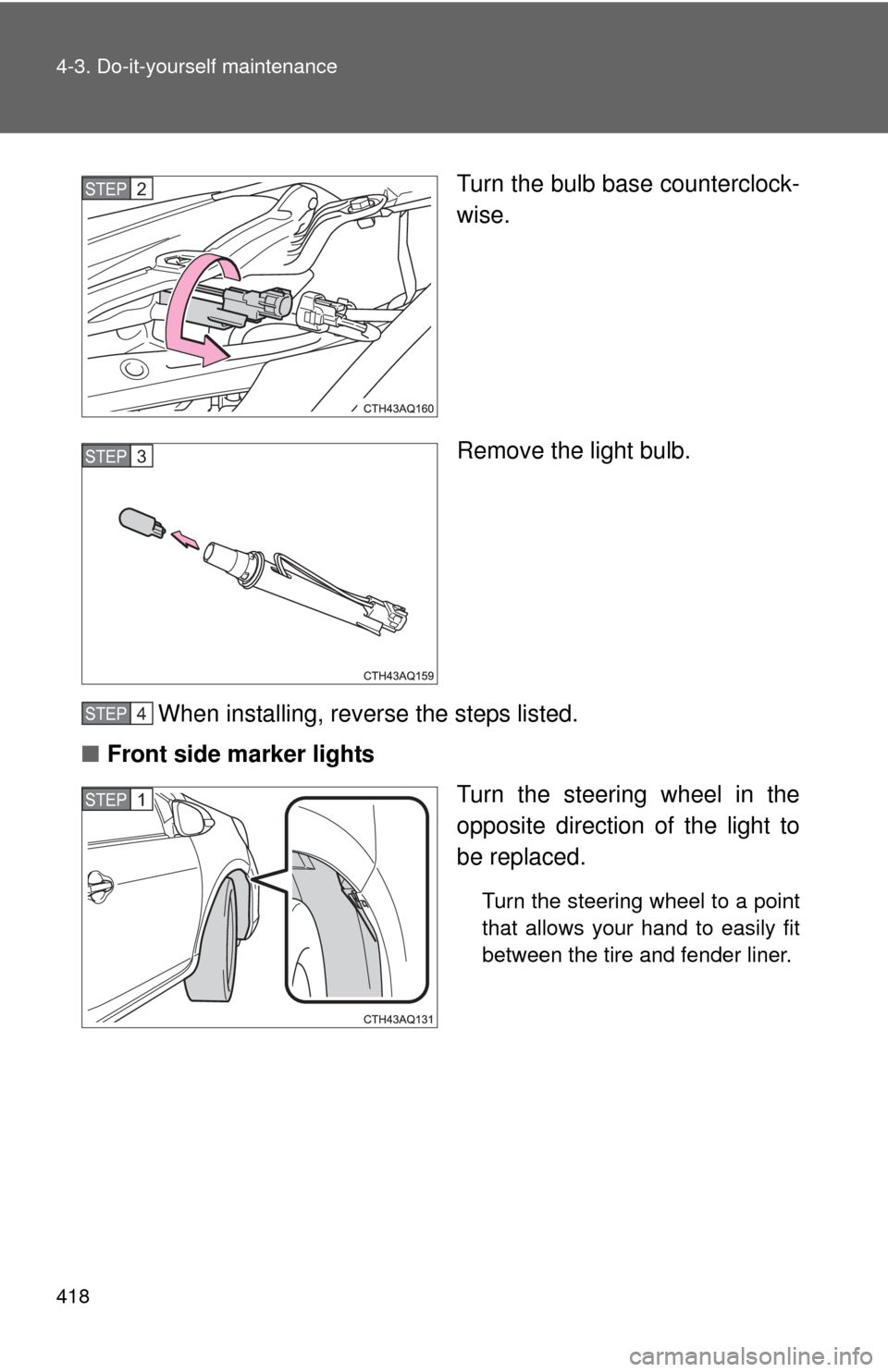

■ Front side marker lights
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
STEP2
STEP3
STEP4
STEP1

419
4-3. Do-it-yourself maintenance
4
Maintenance and care

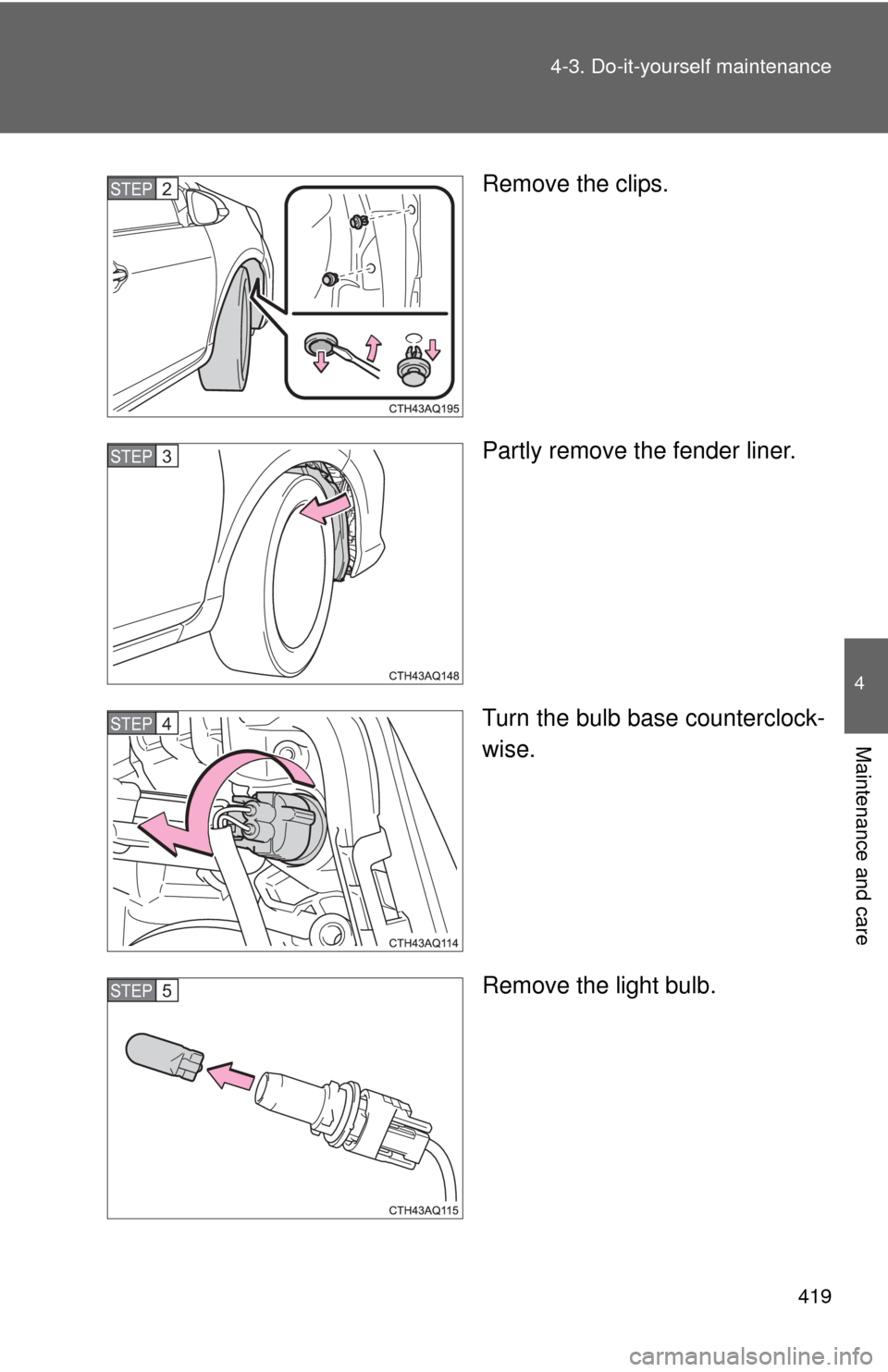

Remove the clips.
Partly remove the fender liner.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP2
STEP3
STEP4
STEP5

420 4-3. Do-it-yourself maintenance
When installing the light bulb and bulb base, reverse the steps
listed.
Installing the clips.
■ Front turn signal lights
Partly remove the fender liner as described in and of “Front fog lights”. ( P. 415)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.STEP6
STEP7
STEP1STEP1
STEP2
STEP2
STEP3
STEP4

421
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Rear turn signal lights, tail a nd rear side marker lights, and
back-up lights
Open the back door and remove
the bolts. Pull the lamp assembly
straight back to disengage the
clip and 2 pins.
Where the clip attaches
Pin
Turn the bulb base counterclock-
wise. Rear turn signal light
Tail and rear side marker light
Back-up light
STEP1
STEP2

422 4-3. Do-it-yourself maintenance
Remove the light bulb.Rear turn signal light
Tail and rear side marker light
Back-up light
When installing, reverse the steps listed.
■ License plate light
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and pry off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the tip of the screwdriver
with tape.
Remove the light bulb.
When installing, reverse the steps listed.
STEP3
STEP4
STEP1
STEP2
STEP3

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Side turn signal lights
● Stop lights
● High mounted stoplight
■LED light bulbs
The stop lights and high mounted stoplight consist of a number of LEDs. If
any of the LEDs burn out, take your vehi cle to your Toyota dealer to have the
light replaced.
■ Condensation build-up on th e inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.

424 4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
