2013 TOYOTA LAND CRUISER start stop button

217 2-4. Using other driving systems
2
When driving
LC200_OM_OM60F57U_(U)

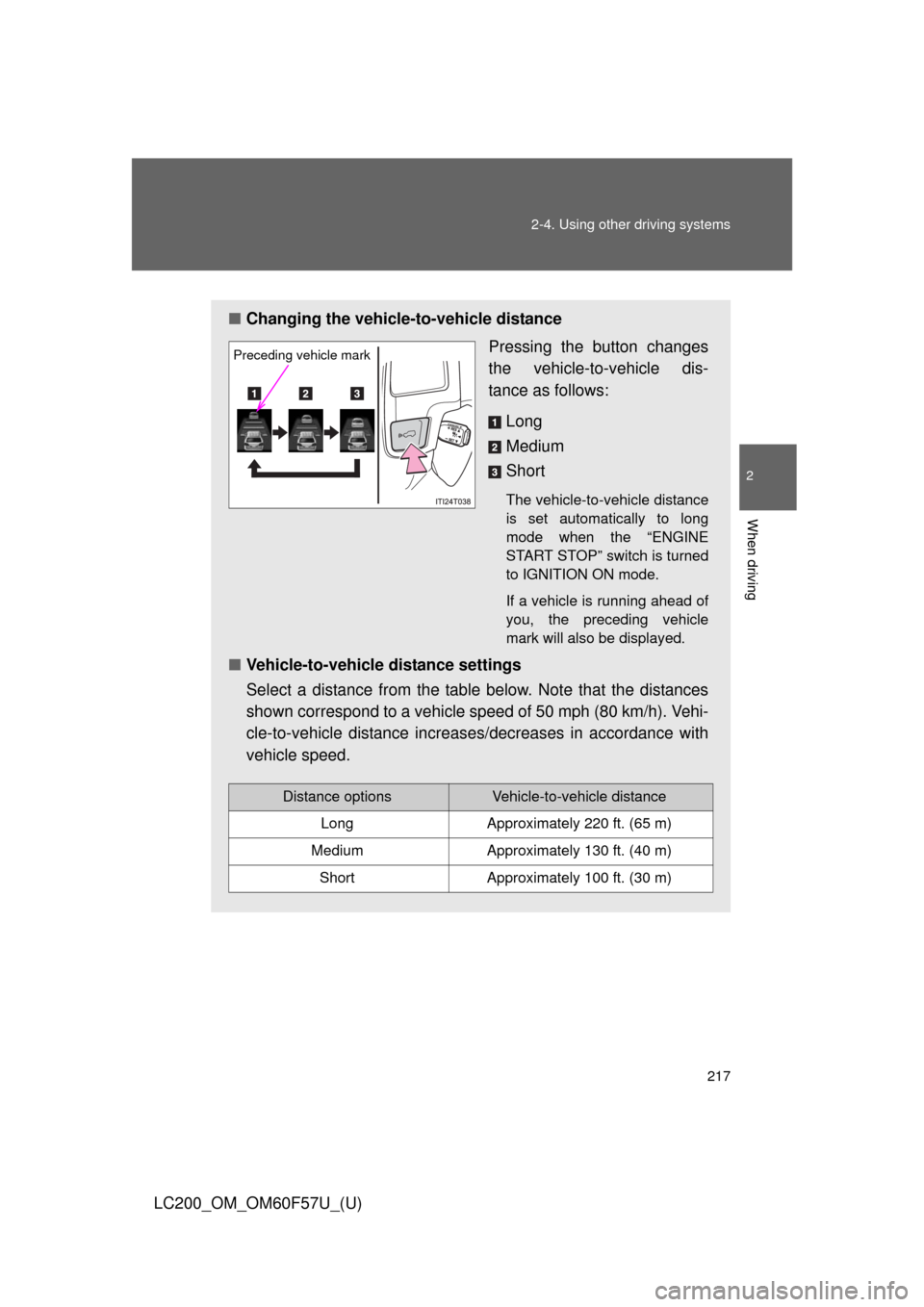

■Changing the vehicle-to-vehicle distance
Pressing the button changes
the vehicle-to-vehicle dis-
tance as follows:
Long
Medium
Short
The vehicle-to-vehicle distance
is set automatically to long
mode when the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
If a vehicle is running ahead of
you, the preceding vehicle
mark will also be displayed.
■Vehicle-to-vehicle distance settings
Select a distance from the table below. Note that the distances
shown correspond to a vehicle speed of 50 mph (80 km/h). Vehi-
cle-to-vehicle distance increases/decreases in accordance with
vehicle speed.
Preceding vehicle mark
Distance optionsVehicle-to-vehicle distance
LongApproximately 220 ft. (65 m)
MediumApproximately 130 ft. (40 m)
ShortApproximately 100 ft. (30 m)

221 2-4. Using other driving systems
2
When driving
LC200_OM_OM60F57U_(U)
Selecting conventional constant speed control mode
Constant speed control mode differs from vehicle-to-vehicle distance
control mode. When constant speed control mode is selected, your
vehicle will maintain a set speed regardless of whether or not there
are other vehicles in the lane ahead.
Press the “ON-OFF” button to activate the cruise control.
Press the button again to deactivate the cruise control.
Switch to constant speed control mode. (Push the lever forward
and hold for approximately one second.)
Cruise control indicator will come on.
When in constant speed control mode, to return to vehicle-to-vehicle dis-
tance control mode, push the lever forward again and hold for approxi-
mately 1 second.
After the desired speed has been set, it is not possible to return to vehicle-
to-vehicle distance control mode.
If the “ENGINE START STOP” switch is turned off and then turned to
IGNITION ON mode again, the vehicle will automatically return to vehicle-
to-vehicle distance control mode.
Adjusting the speed setting:
P. 216
Canceling and resuming the speed setting:
P. 218

479
3-7. Other interior features
3
Interior features
LC200_OM_OM60F57U_(U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
■When the battery is disconnected
The time display will automatically be set to 1:00.
With navigation system
Refer to “Navigation System Owner’s Manual”.
Without navigation system
The clock can be adjusted by pressing the buttons.
Adjust hours.
Adjust minutes.
Round the nearest hour.
*
*
:e.g. 1:00 to 1:291:00
1:30 to 1:592:00
2
1
3

519 4-2. Maintenance
4
Maintenance and care
LC200_OM_OM60F57U_(U)
■Reset the maintenance data
After the required maintenance is performed according to the maintenance
schedule, please reset the maintenance data.
To reset the data, follow the procedures described below:
Switch the display to the trip meter A when the engine is running.
(P. 180)
Turn the “ENGINE START STOP” switch OFF.
While pressing the trip meter reset button, set the “ENGINE START
STOP” switch to IGNITION ON mode (but do not start the engine
because otherwise the reset mode will be canceled). Continue to
press and hold the button until the multi-information display indi-
cates that the reset is complete.
■Allow inspection and repairs to be performed by a Toyota dealer
●Toyota technicians are well-trained specialists and are kept up to date
with the latest service information. They are well informed about the
operations of all systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly
take care of it.
CAUTION
■Warning in handling of battery, oils, fuels, and fluids
●Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. (P. 539)
STEP1
STEP2
STEP3

5
When trouble arises
649
5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)

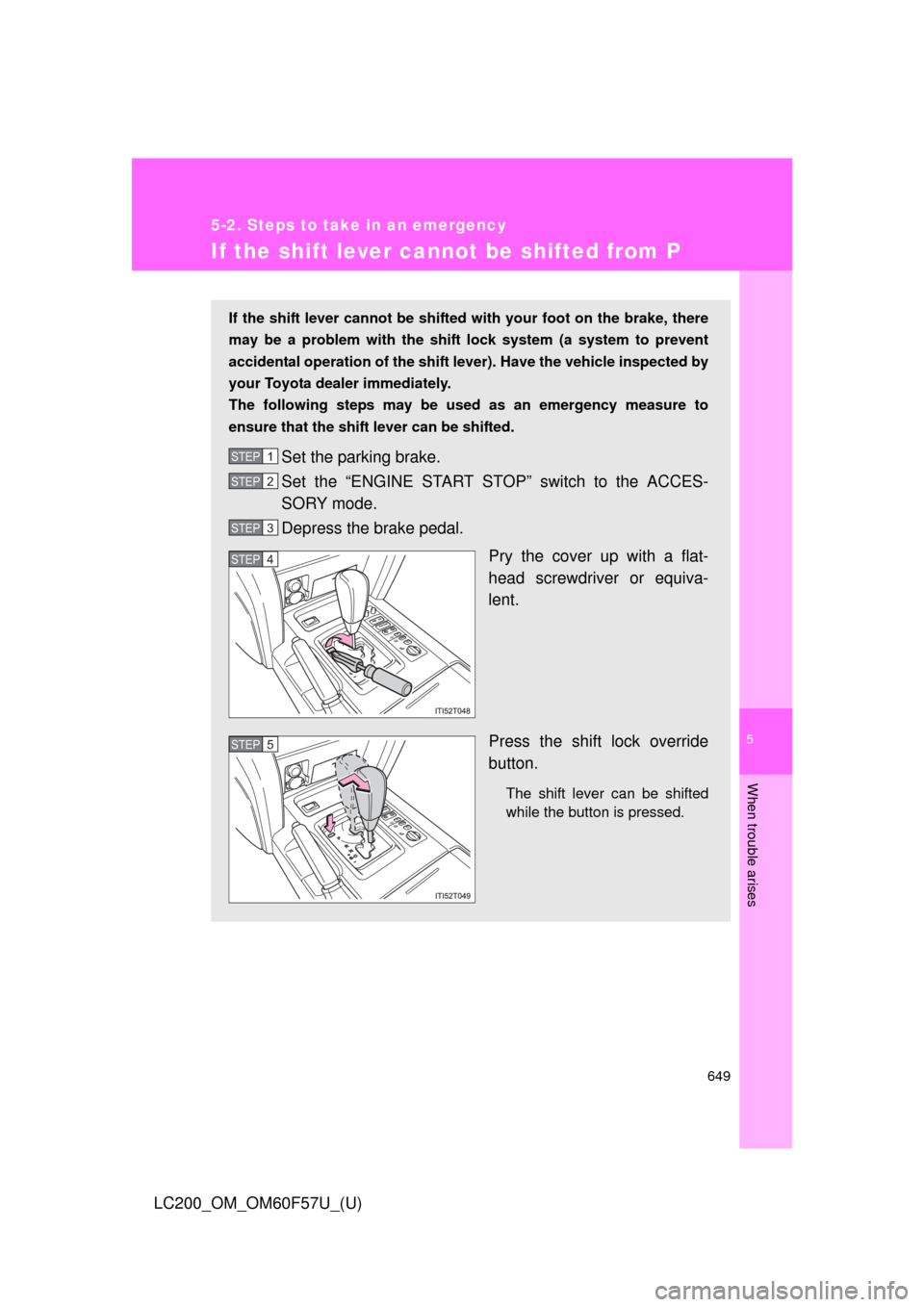

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Set the “ENGINE START STOP” switch to the ACCES-
SORY mode.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
P
R
N
+
-S-D
STEP4
P
R
N
+
-S-D
STEP5

715 Alphabetical index
LC200_OM_OM60F57U_(U)
Side airbags ............................. 113
Side marker lights
Replacing light bulbs ............ 581
Switch ................................... 196
Wattage ................................ 675
Side mirror
Adjusting and folding .............. 90
Mirror position memory........... 68
Smart key system
Entry function ......................... 32
Starting the engine ............... 166
“SOS” button ........................... 504
Spare tire
Inflation pressure .................. 553
Storage location ................... 633
Spark plug................................ 671
Specifications .......................... 666
Speedometer ........................... 179
Steering
Column lock release ............. 168
Fluid...................................... 538
Steering wheel
Adjustment ............................. 86
Audio switches ..................... 398
Heated steering wheel.......... 487
Steering wheel position
memory ................................ 68
Stop lights ............................... 594
Storage feature ........................ 466
Storage precautions ............... 302
Stuck
If your vehicle becomes
stuck................................... 661
Sun visors ................................ 477
Sunshade
Roof ........................................ 98Switch
DISP switch ...........................190
ECT switch ............................172
Driving mode select switch....172
Emergency flasher switch .....598
Engine switch ........................166
Fog light switch .....................201
Hazard light switch ................598
Heated steering wheel
switch ..................................487
Ignition switch........................166
Light switches........................196
Power door lock switch ...........46
Power window switch ..............93
Rear window wiper and
washer switch .....................208
VIEW switch ..........................257
Window lock switch .................93
Wipers and washer
switch ..........................202, 208
Tachometer
Tachometer ...........................179
Tail lights
Switch....................................196
Talk switch
*.............................429
Telephone switch
*...................429
Theft deterrent system
Alarm .....................................107
Engine immobilizer system ...105
Tire inflation pressure .............553
Tie-down hooks........................495
Tire information
Glossary ................................685
Size .......................................682
Tire identification number ......681
Uniform tire quality grading ...683
T
*: For vehicles with a navigation system,
refer to the “Navigation System Owner’s Manual”.*: For vehicles with a navigation system,
refer to the “Navigation System Owner’s Manual”.
