LC200_OM_OM60F57U_(U)
2-1. Driving procedures
Driving the vehicle............... 154
Engine (ignition) switch ....... 166
Automatic transmission ....... 171
Turn signal lever ................. 176
Parking brake ...................... 177
Horn .................................... 178
2-2. Instrument cluster
Gauges and meters ............ 179
Indicators and
warning lights .................... 184
Multi-information display ..... 189
2-3. Operating the lights
and wipers
Headlight switch .................. 196
Fog light switch ................... 201
Windshield wipers
and washer ....................... 202
Rear window wiper
and washer ....................... 208
Headlight cleaner switch ..... 2092-4. Using other driving systems
Cruise control ..................... 210
Dynamic radar
cruise control .................... 214
Intuitive parking assist ........ 229
Four-wheel drive system .... 240
Crawl Control
(with Turn Assist
function) ........................... 245
Multi-terrain Select ............. 251
Multi-terrain Monitor ........... 257
Driving assist systems ........ 282
Pre-Collision System .......... 290
2-5. Driving information
Off-road precautions........... 297
Cargo and luggage ............. 302
Vehicle load limits............... 309
Winter driving tips ............... 310
Trailer towing ...................... 315
Dinghy towing ..................... 333
2When driving

17
LC200_OM_OM60F57U_(U)
B
Talk switch* P. 429
Telephone switches* P. 429
Cruise control switch P. 210, 214
DISP switch P. 190
: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Audio remote controls
(steering switches)
P. 398
Horn P. 178
Vehicles with a dynamic
radar cruise control:
Vehicle-to-vehicle distance button P. 214

23
LC200_OM_OM60F57U_(U)
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
●Cruise control system
●Dynamic radar cruise control system
●Anti-lock brake system
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.

When driving2
153
LC200_OM_OM60F57U_(U)

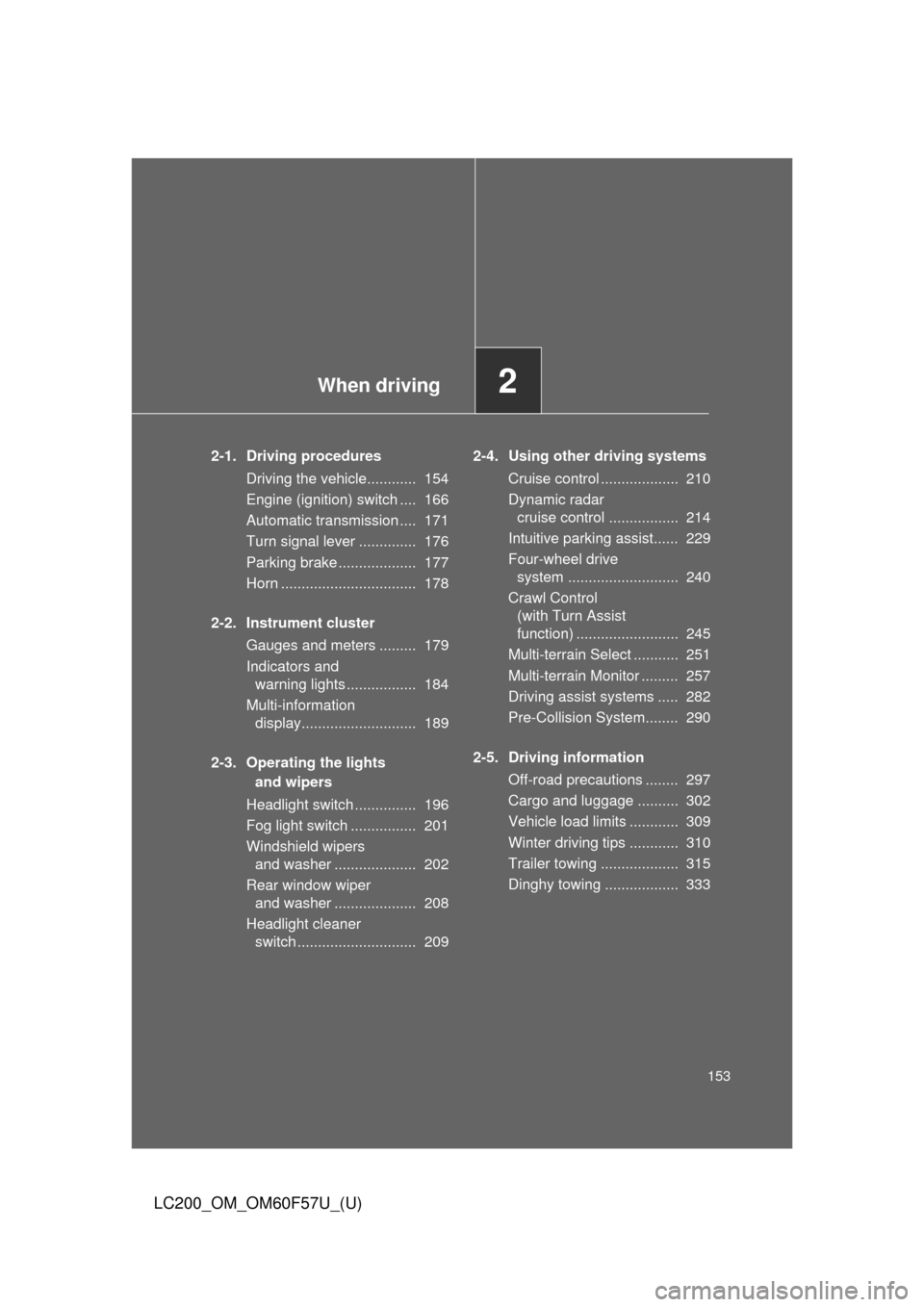

2-1. Driving procedures
Driving the vehicle............ 154
Engine (ignition) switch .... 166
Automatic transmission .... 171
Turn signal lever .............. 176
Parking brake ................... 177
Horn ................................. 178
2-2. Instrument cluster
Gauges and meters ......... 179
Indicators and
warning lights ................. 184
Multi-information
display............................ 189
2-3. Operating the lights
and wipers
Headlight switch ............... 196
Fog light switch ................ 201
Windshield wipers
and washer .................... 202
Rear window wiper
and washer .................... 208
Headlight cleaner
switch ............................. 2092-4. Using other driving systems
Cruise control ................... 210
Dynamic radar
cruise control ................. 214
Intuitive parking assist...... 229
Four-wheel drive
system ........................... 240
Crawl Control
(with Turn Assist
function) ......................... 245
Multi-terrain Select ........... 251
Multi-terrain Monitor ......... 257
Driving assist systems ..... 282
Pre-Collision System........ 290
2-5. Driving information
Off-road precautions ........ 297
Cargo and luggage .......... 302
Vehicle load limits ............ 309
Winter driving tips ............ 310
Trailer towing ................... 315
Dinghy towing .................. 333

174 2-1. Driving procedures
LC200_OM_OM60F57U_(U)■Shift ranges and their functions
●Automatically selecting gears between 1 and 6 according to
vehicle speed and driving conditions. But, the gear is limited
according to selected shift range.
●You can choose from 6 levels of engine braking force.
●A lower shift range will provide greater engine braking force than
a higher shift range, and the engine revolutions will also
increase.
■“S” mode
●When the shift range is “5” or lower, holding the shift lever toward “+” sets
the shift range to “6”.
●To prevent excessive engine speed, a function was adopted that auto-
matically selects a higher shift range before the engine speed becomes
too high.
●To protect the automatic transmission, a function is adopted that auto-
matically selects a higher shift range when the fluid temperature is high.
■Downshifting restrictions warning buzzer (in the “S” mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (The warning buzzer will
sound twice.)
■When driving with the cruise control or radar cruise control activated
Even when performing the following actions with the intent of enabling
engine braking, engine braking will not activate because cruise control or
radar cruise control will not be canceled.
●While driving in “S” mode, downshifting to “5” or “4”. (P. 210, 214)
●When switching the driving mode to power mode while driving in “D”
position. (P. 172)

186 2-2. Instrument cluster
LC200_OM_OM60F57U_(U)

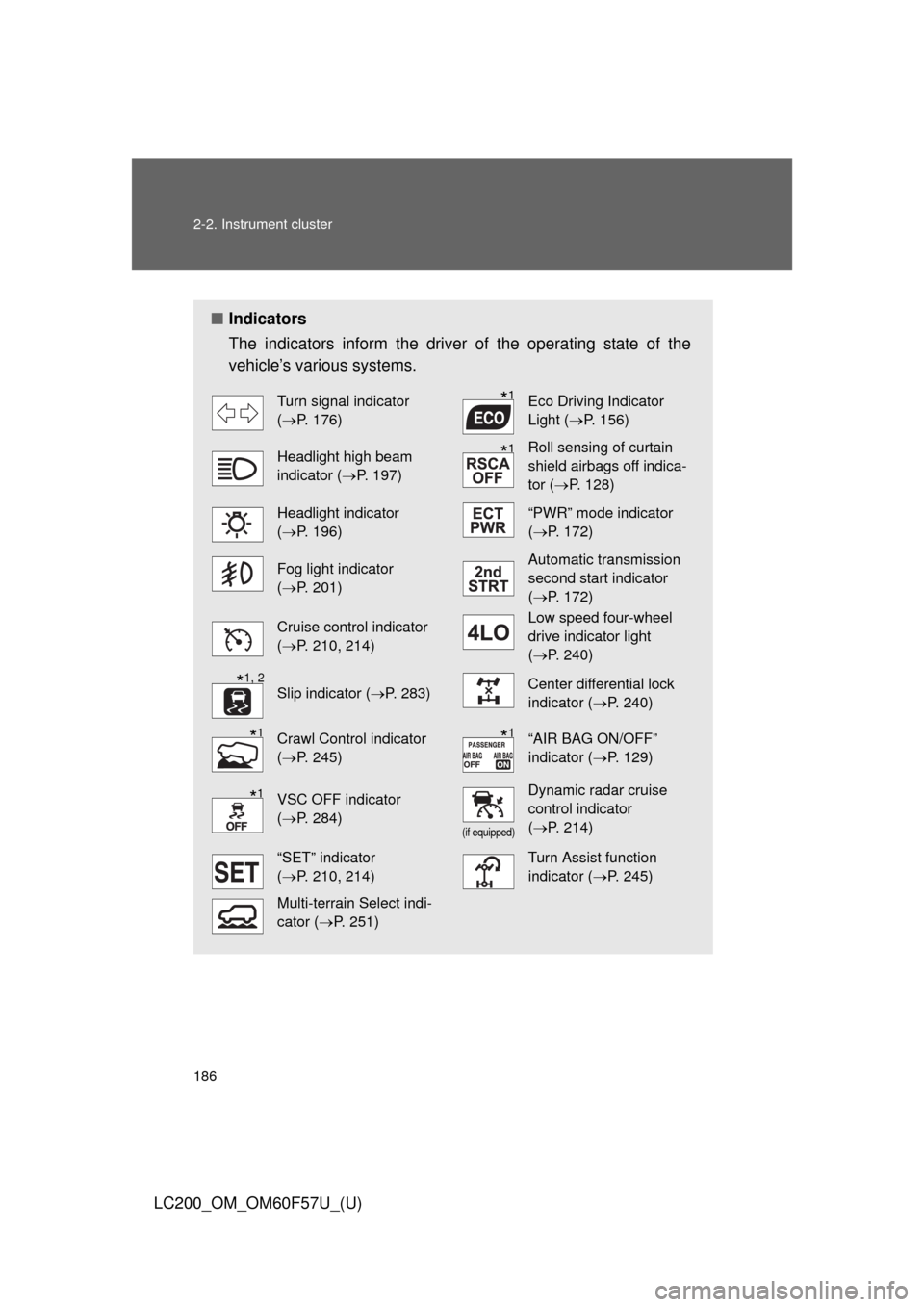

■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 176)Eco Driving Indicator
Light (P. 156)
Headlight high beam
indicator (P. 197)Roll sensing of curtain
shield airbags off indica-
tor (P. 128)
Headlight indicator
(P. 196)“PWR” mode indicator
(P. 172)
Fog light indicator
(P. 201) Automatic transmission
second start indicator
(P. 172)
Cruise control indicator
(P. 210, 214)Low speed four-wheel
drive indicator light
(P. 240)
Slip indicator (P. 283)Center differential lock
indicator (P. 240)
Crawl Control indicator
(P. 245) “AIR BAG ON/OFF”
indicator (P. 129)
VSC OFF indicator
(P. 284)
(if equipped)
Dynamic radar cruise
control indicator
(P. 214)
“SET” indicator
(P. 210, 214)Turn Assist function
indicator (P. 245)
Multi-terrain Select indi-
cator (P. 251)
*1
*1
*1, 2
*1*1
*1

189
2-2. Instrument cluster
2
When driving
LC200_OM_OM60F57U_(U)
Multi-information display
The multi-information display presents the driver with a variety of
driving-related data.
●Trip information (P. 190)
Displays driving range, fuel consumption and other cruising related
information.
●Speedometer (P. 190)
●Turn-by-turn navigation (vehicles with a navigation system)
(P. 190)
●Front tire angle (P. 190)
●Tire inflation pressure (P. 190)
●Intuitive parking assist -sensor display (P. 229)
Automatically displayed when using toyota parking assist-sensor.
●Dynamic radar cruise control display (if equipped) (P. 214)
Automatically displayed when using dynamic radar cruise control.

210
LC200_OM_OM60F57U_(U)
2-4. Using other driving systems

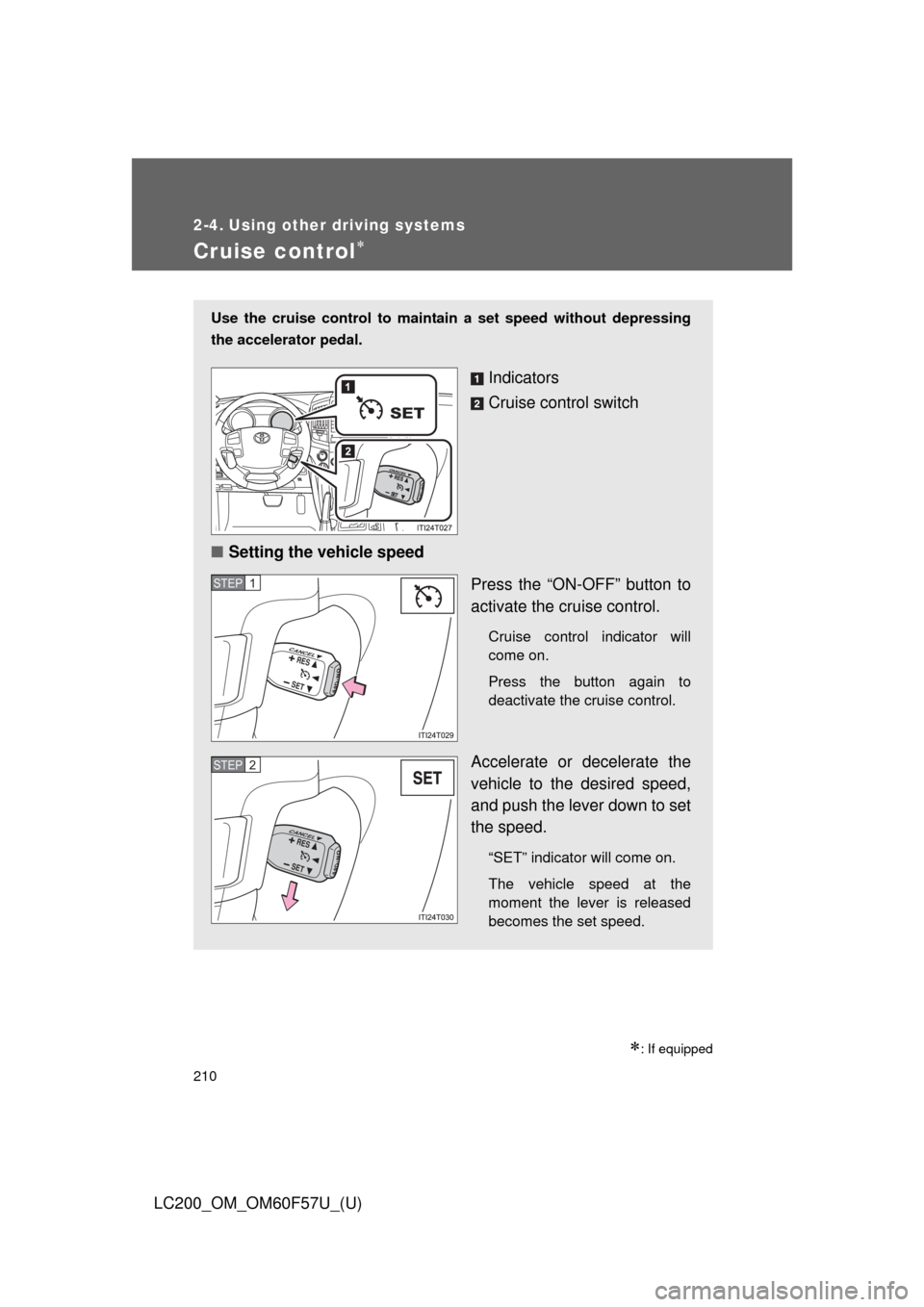

Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
RES
SET
CANCE
L
STEP1
RES
SET
CANCE
L
STEP2
