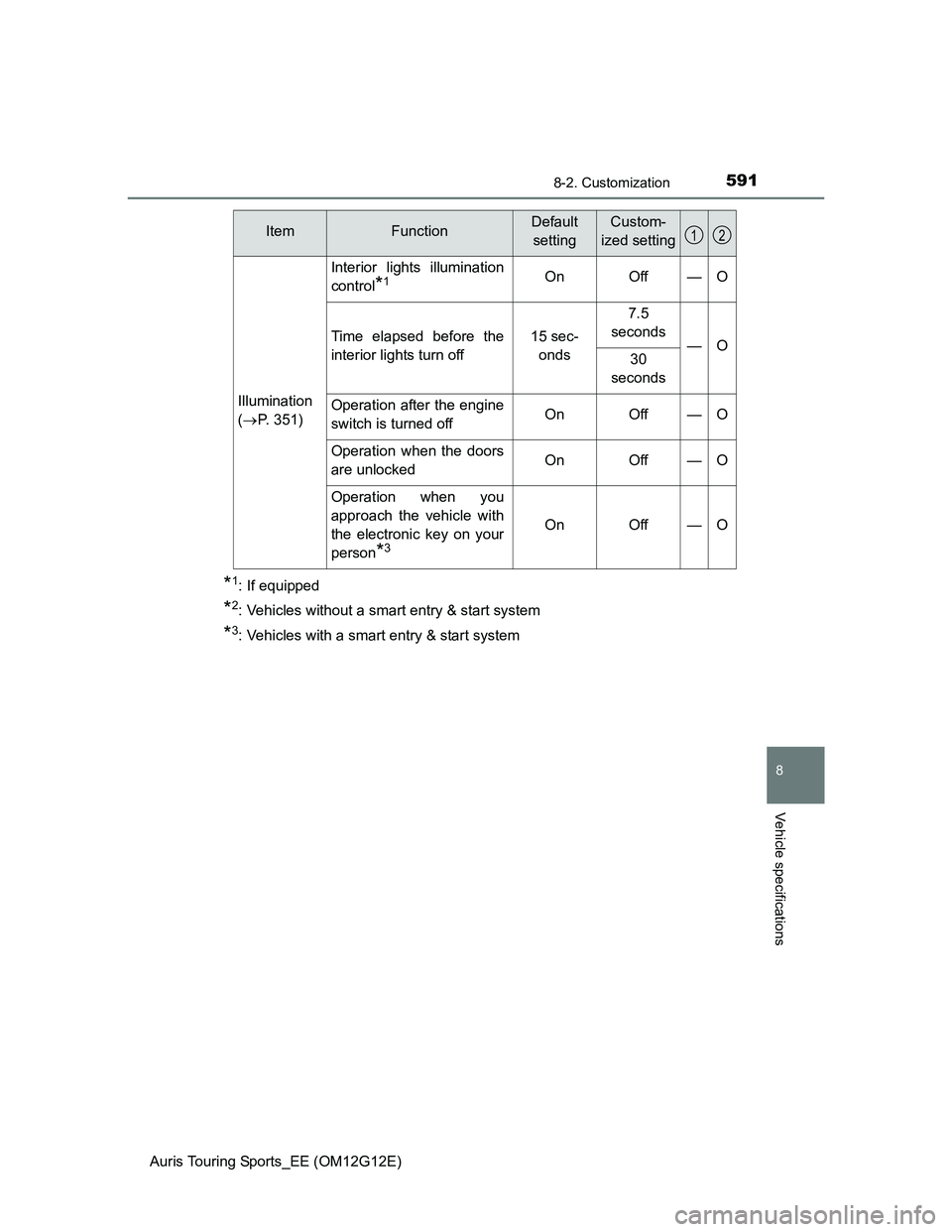

5918-2. Customization
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
*1: If equipped
*2: Vehicles without a smart entry & start system
*3: Vehicles with a smart entry & start system
Illumination
(P. 351)
Interior lights illumination
control
*1OnOff—O
Time elapsed before the
interior lights turn off15 sec-
onds
7.5
seconds
—O30
seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors
are unlockedOnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*3
OnOff—O
ItemFunctionDefault
settingCustom-
ized setting12

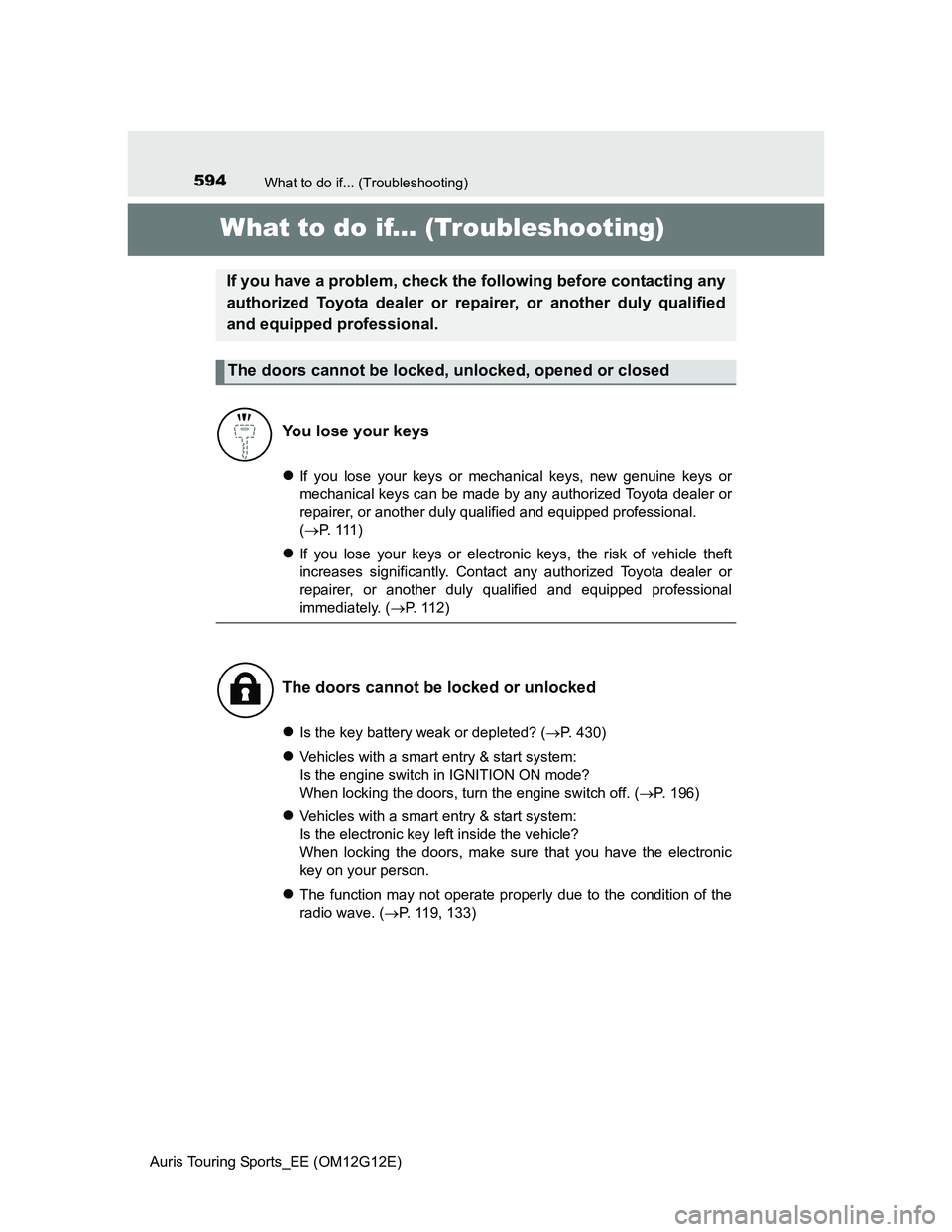

594
Auris Touring Sports_EE (OM12G12E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
If you lose your keys or mechanical keys, new genuine keys or
mechanical keys can be made by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
(P. 111 )
If you lose your keys or electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately. (P. 112)
Is the key battery weak or depleted? (P. 430)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 196)
Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic
key on your person.
The function may not operate properly due to the condition of the
radio wave. (P. 119, 133)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

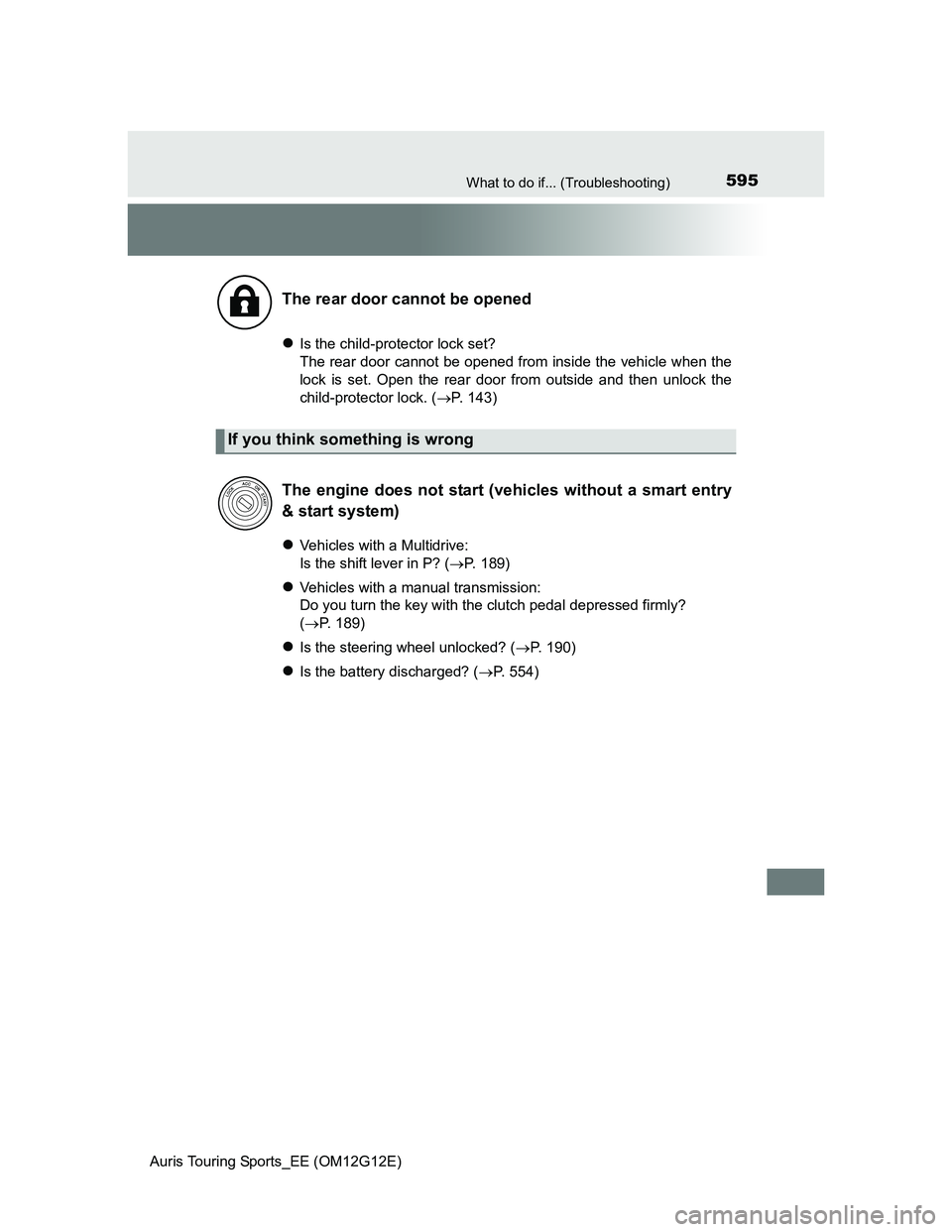

595What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the
lock is set. Open the rear door from outside and then unlock the
child-protector lock. (P. 143)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 189)
Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly?
(P. 189)
Is the steering wheel unlocked? (P. 190)
Is the battery discharged? (P. 554)
The rear door cannot be opened
If you think something is wrong
The engine does not start (vehicles without a smart entry
& start system)

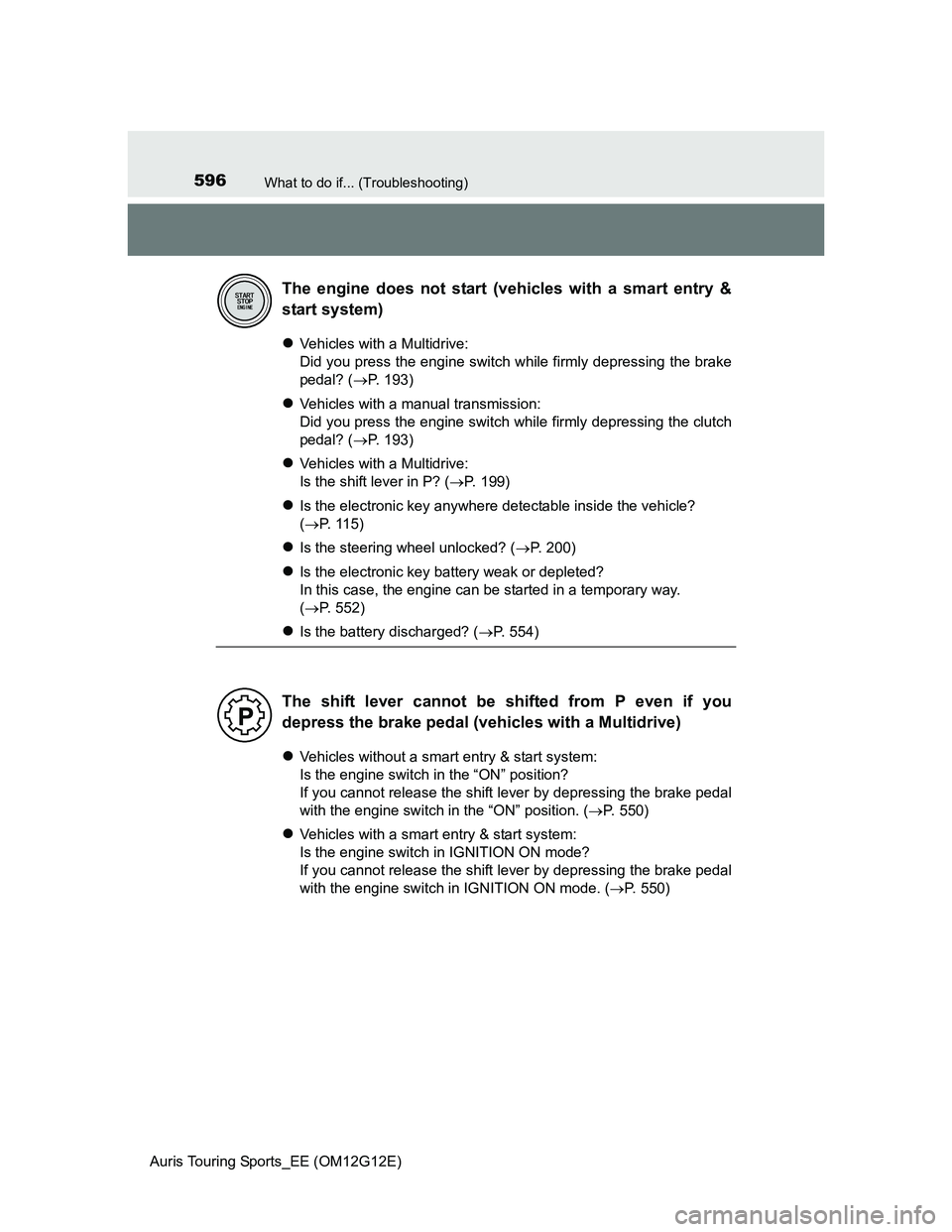

596What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Vehicles with a Multidrive:
Did you press the engine switch while firmly depressing the brake
pedal? (P. 193)
Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch
pedal? (P. 193)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 199)
Is the electronic key anywhere detectable inside the vehicle?
(P. 115)
Is the steering wheel unlocked? (P. 200)
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
(P. 552)
Is the battery discharged? (P. 554)
Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in the “ON” position. (P. 550)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in IGNITION ON mode. (P. 550)
The engine does not start (vehicles with a smart entry &
start system)
The shift lever cannot be shifted from P even if you
depress the brake pedal (vehicles with a Multidrive)

597What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 191)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 199)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 161)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running)
for a period of time. (P. 199)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically (vehicles
with a smart entry & start system)

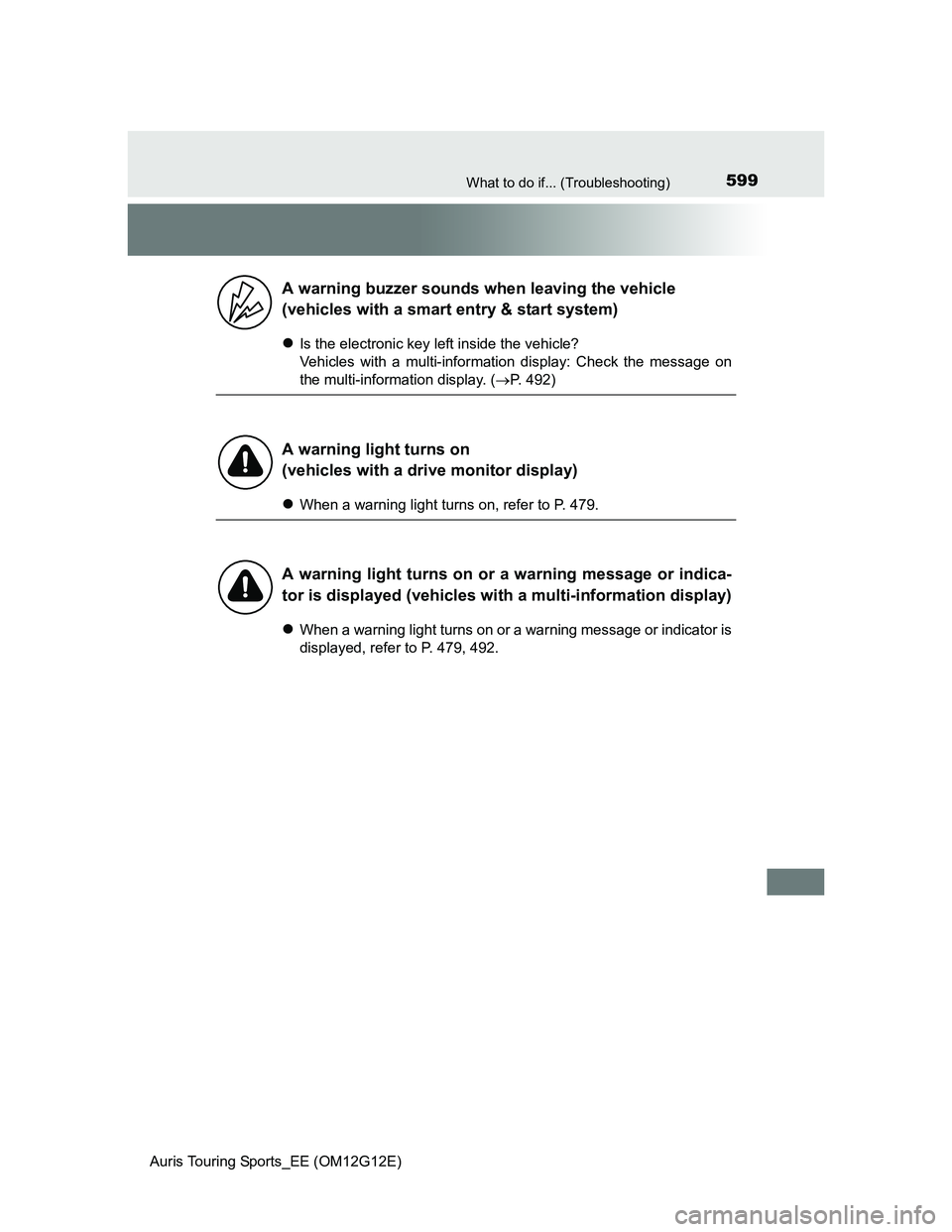

599What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 492)
When a warning light turns on, refer to P. 479.
When a warning light turns on or a warning message or indicator is
displayed, refer to P. 479, 492.
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)
A warning light turns on or a warning message or indica-
tor is displayed (vehicles with a multi-information display)

602Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Back door ................................ 144
Back-up lights
Replacing light bulb............... 450
Wattage................................. 585
Battery ...................................... 416
Battery checking ................... 416
If the vehicle has discharged
battery................................. 554
Preparing and checking
before winter ....................... 279
Warning light ................. 480, 493
Bluetooth
®
Audio system*
Hands-free system*
(for cellular phone)
Bottle holders........................... 357
Brake
Emergency brake signal ....... 270
Fluid ...................................... 582
Parking brake ........................ 212
Warning light ......................... 479
Brake assist.............................. 270
Break-in tips ............................ 169
Brightness control
Meter light control ............. 93, 98Care................................... 388, 392
Aluminum wheels.................. 389
Exterior ................................. 388
Interior................................... 392
Seat belts .............................. 393
Cargo hooks............................. 361
CD player .................................. 318
Chains....................................... 281
Child restraint system ............... 51
Baby seats, definition.............. 51
Baby seats, installation ........... 61
Child seats, definition.............. 51
Child seats, installation ........... 61
Installing CRS with ISOFIX
rigid anchors ......................... 65
Installing CRS with
seat belts .............................. 61
Installing CRS with top strap... 66
Junior seats, definition ............ 51
Junior seats, installation ......... 63
Child safety ................................ 50
Airbag precautions .................. 40
Battery precautions ............... 560
Child restraint system ............. 51
How your child should wear
the seat belt .......................... 35
Installing child restraints ......... 60
Panoramic roof shade
precautions ......................... 386
Power window lock switch .... 161
Power window precautions ... 164
Rear door child-protectors .... 143
Removed electronic key
battery precautions ............. 432
Seat belt precautions .............. 37
Seat heater precautions........ 381
BC

604Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Eco Driving Indicator............... 106
Electric Power Steering
(EPS) ....................................... 270
Function ................................ 270
Warning light ......................... 481
Electronic key .......................... 110
Battery-saving function ......... 118
If the electronic key does not
operate properly ................. 551
Replacing the battery ............ 430
Emergency, in case of
If a warning buzzer
sounds ................................ 479
If a warning light turns on ...... 479
If a warning message is
displayed ............................ 492
If the battery is discharged .... 554
If the electronic key does
not operate properly ........... 551
If the engine will not start ...... 548
If the shift lever cannot be
shifted from P ..................... 550
If you have a flat tire...... 512, 524
If you run out of fuel and
the engine stalls.................. 564
If you think something is
wrong .................................. 477
If your vehicle becomes
stuck ................................... 565
If your vehicle has to be
stopped in an emergency ... 469
If your vehicle needs to be
towed .................................. 471
If your vehicle
overheats ............................ 561Emergency brake signal ......... 270
Emergency flashers ................ 468
Emergency tire puncture
repair kit ................................. 524
Engine....................................... 572
Accessory mode ................... 196
Compartment ........................ 405
Engine switch................ 189, 193
Hood ..................................... 401
How to start the
engine......................... 189, 193
Identification number ............ 571
If the engine will not start ...... 548
Ignition switch
(engine switch) ........... 189, 193
Overheating .......................... 561
Engine coolant ......................... 414
Capacity ................................ 579
Checking ............................... 414
Preparing and checking
before winter....................... 279
E
