641-1. For safe use
Auris Touring Sports_EE (OM12G12E)
Push the buckle release button
and fully retract the seat belt.
Removing a child restraint installed with a seat belt

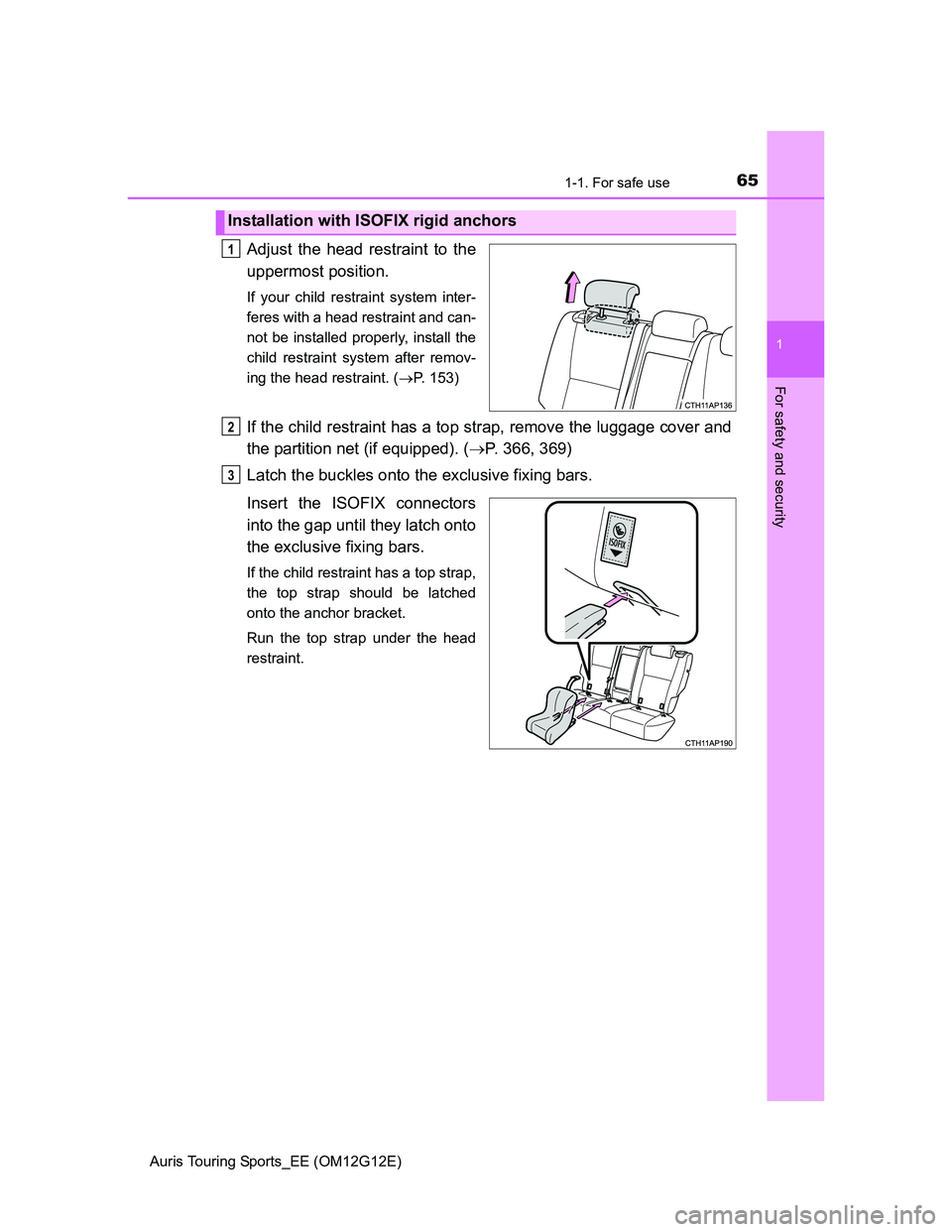

651-1. For safe use
1
For safety and security
Auris Touring Sports_EE (OM12G12E)
Adjust the head restraint to the
uppermost position.
If your child restraint system inter-
feres with a head restraint and can-
not be installed properly, install the
child restraint system after remov-
ing the head restraint. (P. 153)
If the child restraint has a top strap, remove the luggage cover and
the partition net (if equipped). (P. 366, 369)
Latch the buckles onto the exclusive fixing bars.
Insert the ISOFIX connectors
into the gap until they latch onto
the exclusive fixing bars.
If the child restraint has a top strap,
the top strap should be latched
onto the anchor bracket.
Run the top strap under the head
restraint.
Installation with ISOFIX rigid anchors
1
2
3

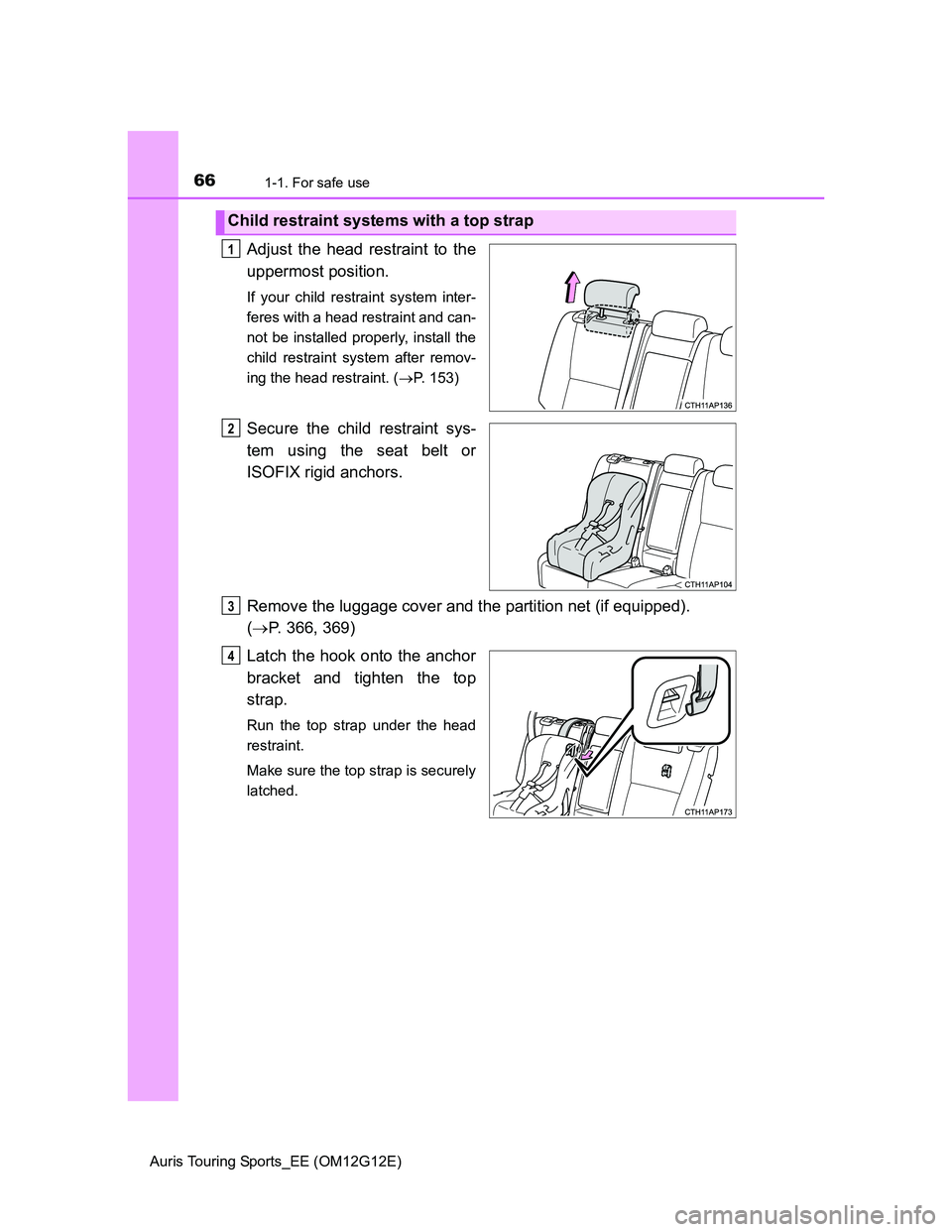

661-1. For safe use
Auris Touring Sports_EE (OM12G12E)
Adjust the head restraint to the
uppermost position.
If your child restraint system inter-
feres with a head restraint and can-
not be installed properly, install the
child restraint system after remov-
ing the head restraint. (P. 153)
Secure the child restraint sys-
tem using the seat belt or
ISOFIX rigid anchors.
Remove the luggage cover and the partition net (if equipped).
(P. 366, 369)
Latch the hook onto the anchor
bracket and tighten the top
strap.
Run the top strap under the head
restraint.
Make sure the top strap is securely
latched.
Child restraint systems with a top strap
1
2
3
4

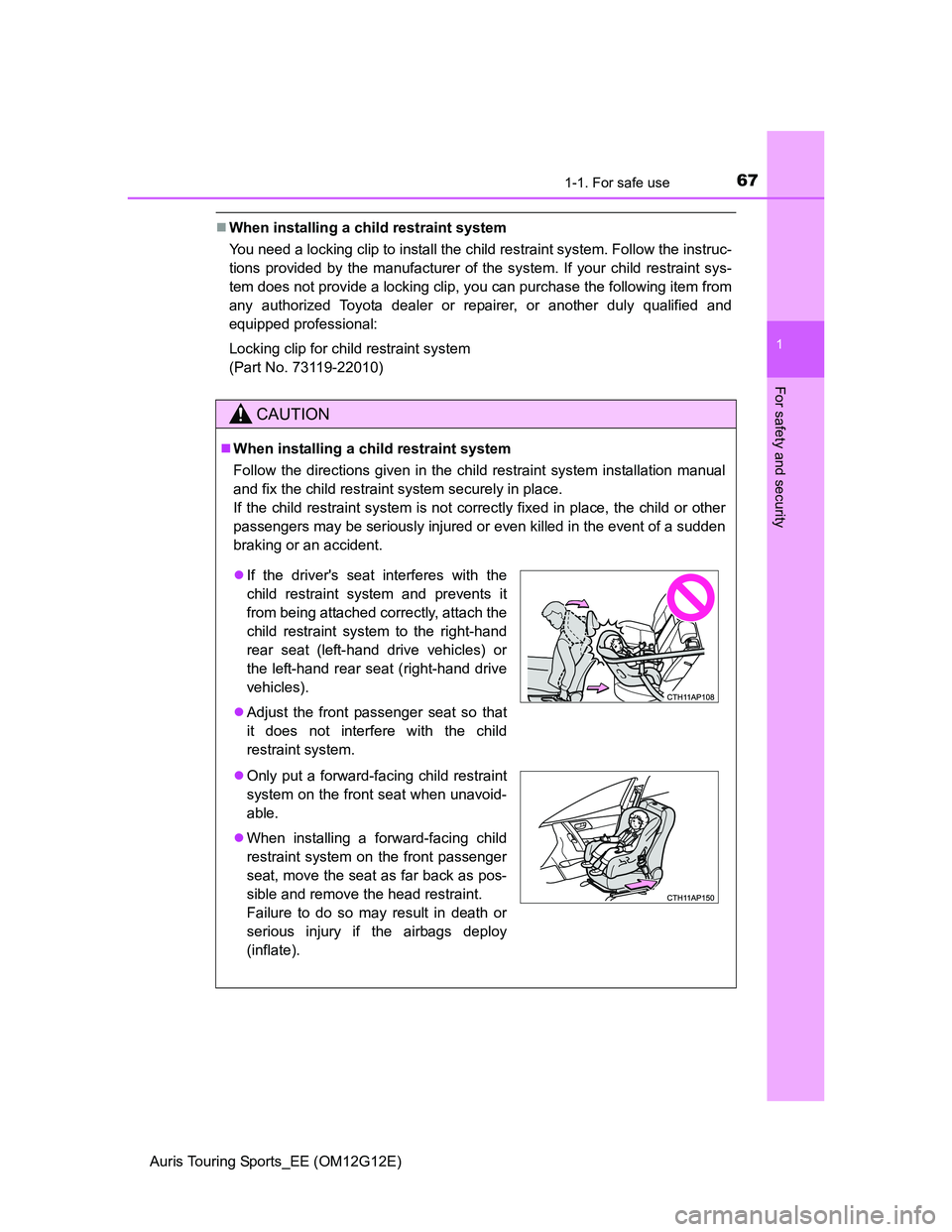

671-1. For safe use
1
For safety and security
Auris Touring Sports_EE (OM12G12E)
When installing a child restraint system
You need a locking clip to install the child restraint system. Follow the instruc-
tions provided by the manufacturer of the system. If your child restraint sys-
tem does not provide a locking clip, you can purchase the following item from
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)
CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.
If the driver's seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
Only put a forward-facing child restraint
system on the front seat when unavoid-
able.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible and remove the head restraint.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).

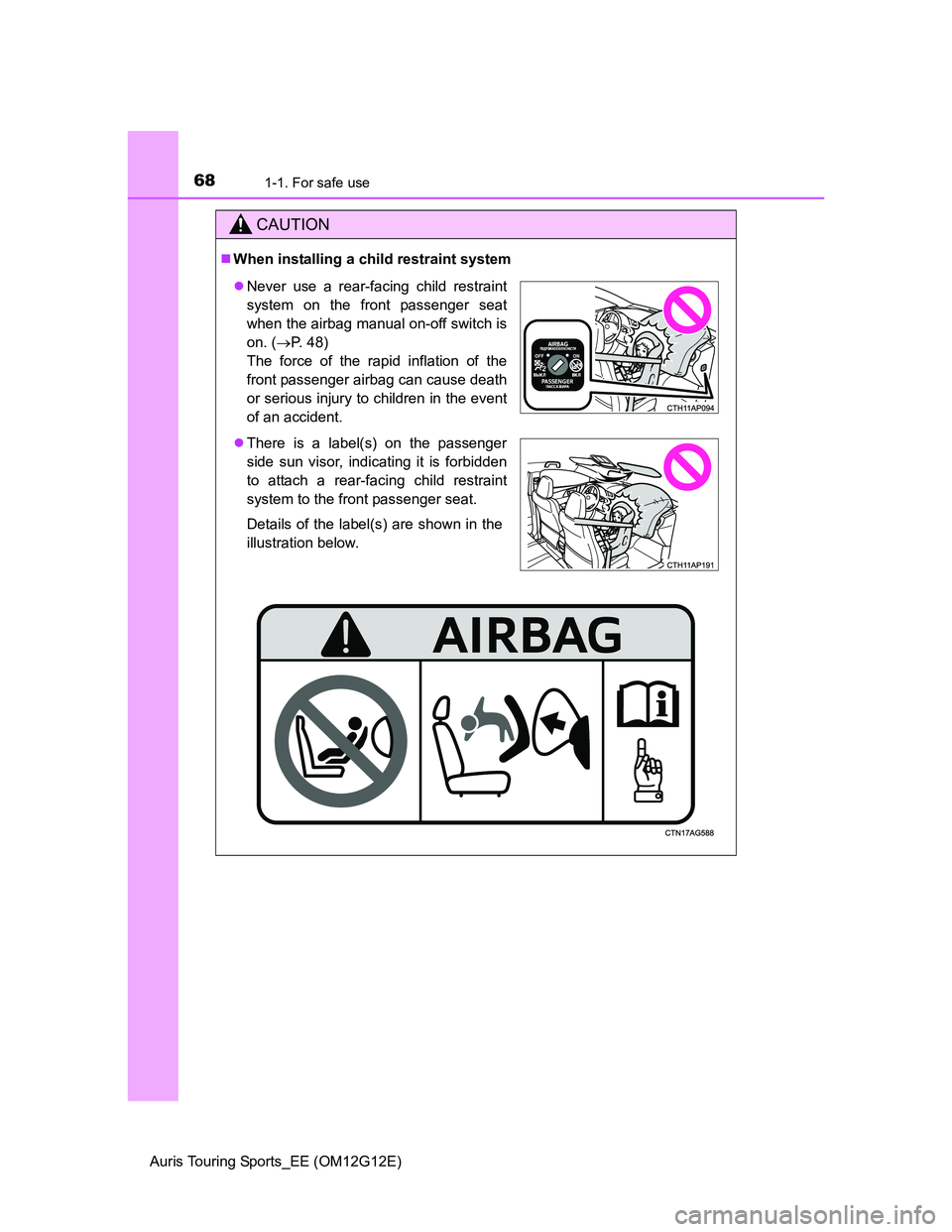

681-1. For safe use
Auris Touring Sports_EE (OM12G12E)
CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 48)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

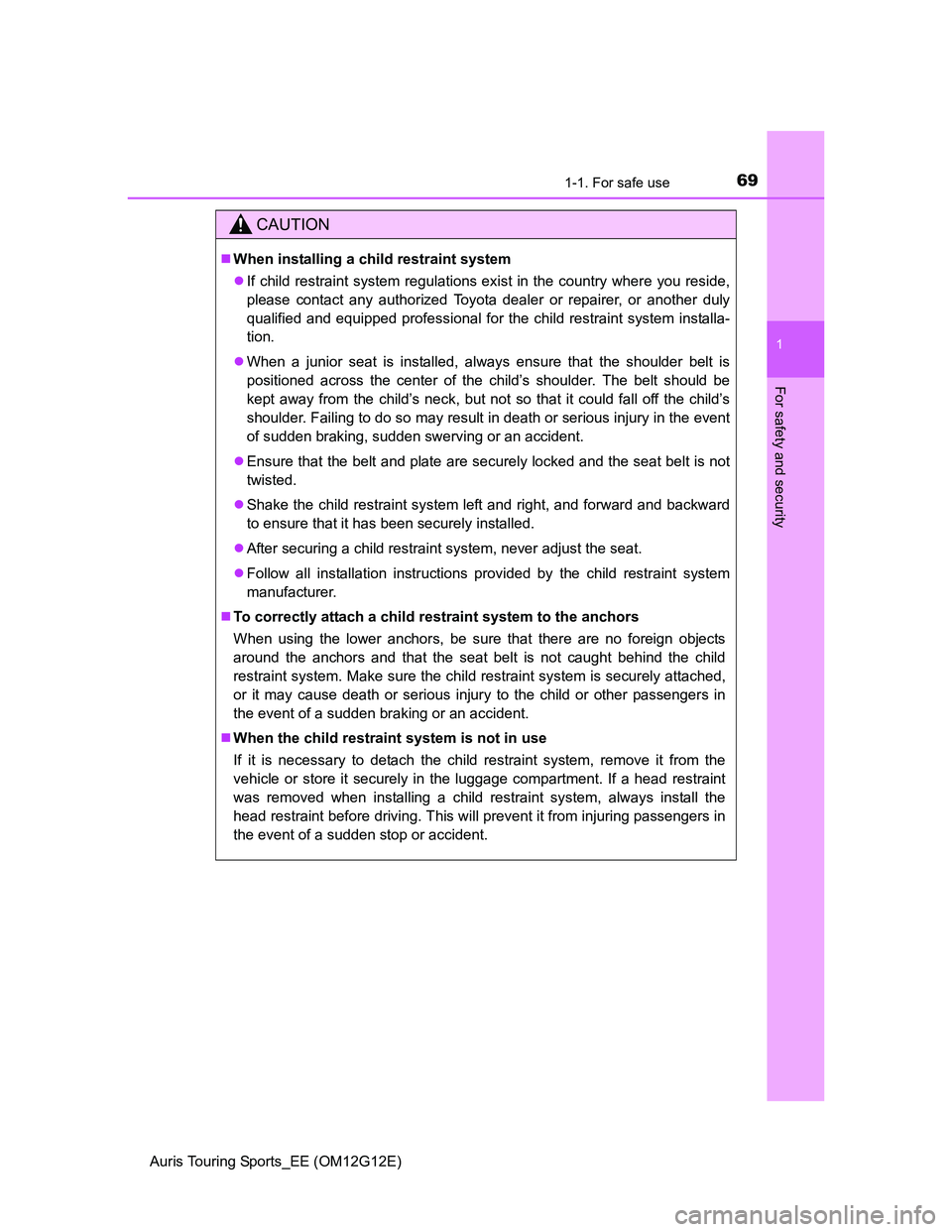

691-1. For safe use
1
For safety and security
Auris Touring Sports_EE (OM12G12E)
CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
After securing a child restraint system, never adjust the seat.
Follow all installation instructions provided by the child restraint system
manufacturer.
To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking or an accident.
When the child restraint system is not in use
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers in
the event of a sudden stop or accident.

602Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Back door ................................ 144
Back-up lights
Replacing light bulb............... 450
Wattage................................. 585
Battery ...................................... 416
Battery checking ................... 416
If the vehicle has discharged
battery................................. 554
Preparing and checking
before winter ....................... 279
Warning light ................. 480, 493
Bluetooth
®
Audio system*
Hands-free system*
(for cellular phone)
Bottle holders........................... 357
Brake
Emergency brake signal ....... 270
Fluid ...................................... 582
Parking brake ........................ 212
Warning light ......................... 479
Brake assist.............................. 270
Break-in tips ............................ 169
Brightness control
Meter light control ............. 93, 98Care................................... 388, 392
Aluminum wheels.................. 389
Exterior ................................. 388
Interior................................... 392
Seat belts .............................. 393
Cargo hooks............................. 361
CD player .................................. 318
Chains....................................... 281
Child restraint system ............... 51
Baby seats, definition.............. 51
Baby seats, installation ........... 61
Child seats, definition.............. 51
Child seats, installation ........... 61
Installing CRS with ISOFIX
rigid anchors ......................... 65
Installing CRS with
seat belts .............................. 61
Installing CRS with top strap... 66
Junior seats, definition ............ 51
Junior seats, installation ......... 63
Child safety ................................ 50
Airbag precautions .................. 40
Battery precautions ............... 560
Child restraint system ............. 51
How your child should wear
the seat belt .......................... 35
Installing child restraints ......... 60
Panoramic roof shade
precautions ......................... 386
Power window lock switch .... 161
Power window precautions ... 164
Rear door child-protectors .... 143
Removed electronic key
battery precautions ............. 432
Seat belt precautions .............. 37
Seat heater precautions........ 381
BC

610Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Radiator .................................... 415
Radio ......................................... 314
Radio Data System (RDS) ....... 315
Rear fog light............................ 224
Replacing light bulb............... 450
Switch ................................... 224
Wattage................................. 585
Rear personal lights ................ 353
Rear seat
Folding down......................... 150
Rear turn signal lights ............. 211
Replacing light bulbs ............. 450
Turn signal lever ................... 211
Wattage................................. 585
Rear view mirror
Inside rear view mirror .......... 156
Outside rear view mirrors ...... 158
Rear view monitor system*
Rear window defogger ............ 308
Rear window wiper .................. 230
Refueling .................................. 232
Capacity ................................ 574
Fuel types ............................. 574
Opening the fuel tank cap ..... 234
Replacing
Electronic key battery............ 430
Fuses .................................... 433
Light bulbs............................. 450
Tires ...................................... 512
Wireless remote control
battery................................. 430
Reset the maintenance data ... 412
Roof rails .................................. 178Seat belt reminder light........... 483
Seat belts.................................... 34
Adjusting the seat belt ............ 35
Child restraint system
installation ............................ 61
Cleaning and maintaining
the seat belt ........................ 393
Emergency Locking Retractor
(ELR) .................................... 35
How to wear your seat belt ..... 32
How your child should wear
the seat belt .......................... 35
Pregnant women, proper
seat belt use ......................... 36
Reminder light and buzzer .... 483
Seat belt pretensioners ........... 35
SRS warning light ................. 481
Seat heaters ............................. 380
Seats ......................................... 148
Adjustment ............................ 148
Adjustment precautions ........ 149
Child seats/child restraint
system installation ................ 60
Cleaning................................ 392
Head restraints ..................... 153
Properly sitting in the seat ...... 32
Seat heaters ......................... 380
RS
