2013 TOYOTA AURIS TOURING SPORTS charging

4386-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
10ICS/ALT-S5 ACharging system
11EFI-MAIN
25 A*1Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2, fuel pump
20 A*2
12HORN10 AHorn
13D/C CUT30 ADOME, ECU-B NO.1, RADIO
14AM27.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, IG2, Stop & Start system
15ECU-B NO.35 AElectric power steering
16ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, outside rear
view mirrors, gauge and meters
17SPARE30 ASpare fuse
18HTR50 AAir conditioning system
19ABS NO.150 AABS, VSC
20DEF30 ARear window defogger, outside rear view
mirror defoggers
21RDI40 AElectric cooling fan
22ABS NO.230 AABS, VSC
23DRL10 ADaytime running lights
24RADIO20 AAudio system
25DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
26ECU-B NO.110 A
Wireless remote control, main body ECU,
smart entry & start system, clock, VSC,
power door lock system
27SPARE20 ASpare fuse
28EFI NO.210 AMultiport fuel injection system/sequential
multiport fuel injection system
29EFI NO.110 A
Multiport fuel injection system/sequential
multiport fuel injection system, Stop &
Start system
FuseAmpereCircuit

4416-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system, audio
system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
headlight cleaner, audio system, AFS,
panoramic roof shade, windshield
washer
26HTR-IG7.5 AAir conditioning system, rear window
defogger, Stop & Start system
27ECU-IG NO.47.5 A
Main body ECU, front passenger seat
belt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
FuseAmpereCircuit

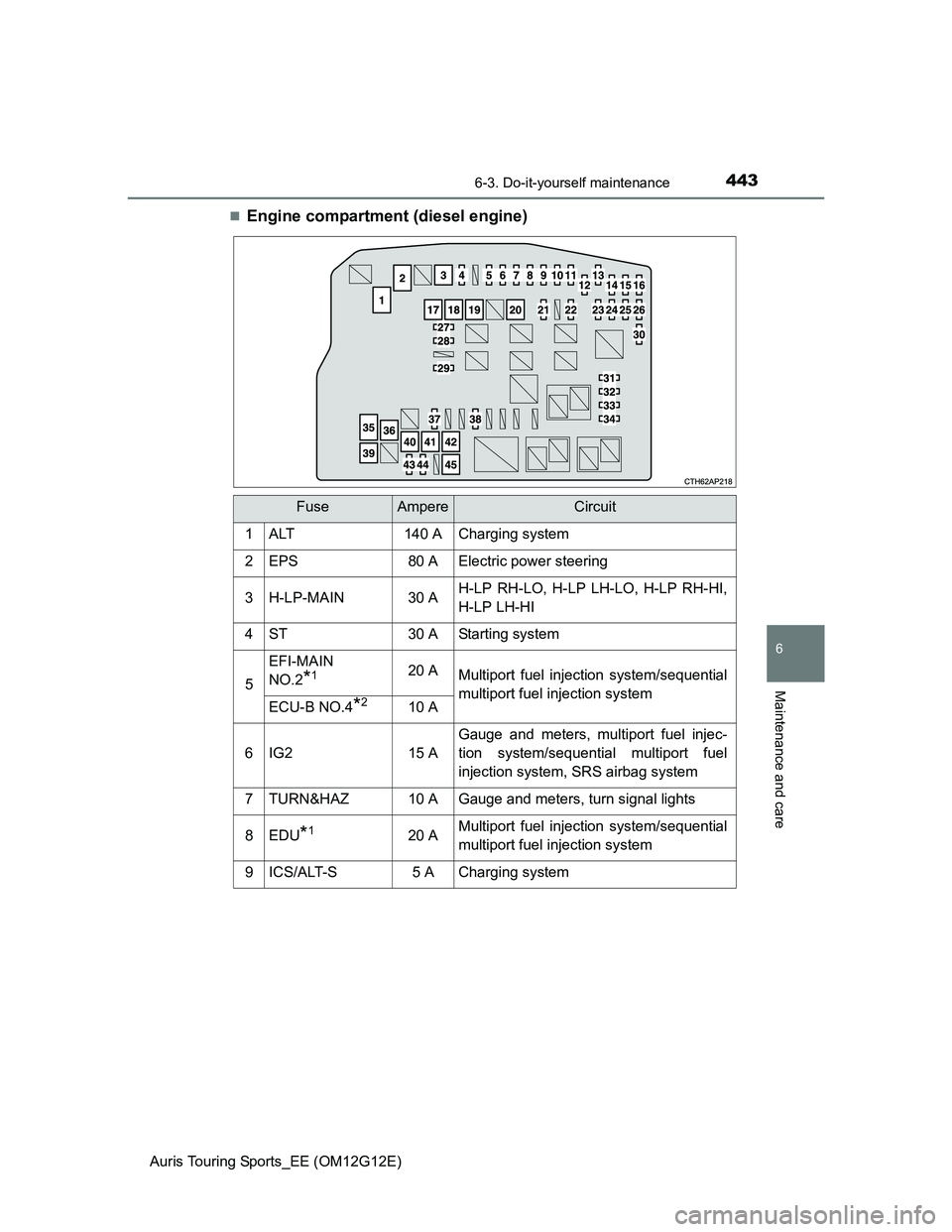

4436-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
Engine compartment (diesel engine)
FuseAmpereCircuit
1ALT140 ACharging system
2EPS80 AElectric power steering
3H-LP-MAIN30 AH-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
4ST30 AStarting system
5
EFI-MAIN
NO.2
*120 AMultiport fuel injection system/sequential
multiport fuel injection system
ECU-B NO.4*210 A
6IG215 A
Gauge and meters, multiport fuel injec-
tion system/sequential multiport fuel
injection system, SRS airbag system
7TURN&HAZ10 AGauge and meters, turn signal lights
8EDU*120 AMultiport fuel injection system/sequential
multiport fuel injection system
9ICS/ALT-S5 ACharging system

4476-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
panoramic roof shade, headlight cleaner,
audio system, AFS, windshield wipers
26HTR-IG7.5 A
Air conditioning system, rear window
defogger, power heater, Stop & Start sys-
tem
27ECU-IG NO.47.5 A
Front passenger seat belt reminder light,
airbag manual on-off system, outside
rear view mirrors, main body ECU,
Toyota parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
30S/HTR15 ASeat heaters
FuseAmpereCircuit

4807-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immedi-
ately.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning light (vehicles without a
multi-information display)
Indicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning light (vehicles without
a multi-information display)
Indicates that the engine oil pressure is too low.
andHigh engine coolant temperature warning light (vehicles
without a multi-information display)
Indicates that the engine is almost overheating. (P. 561)
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic Multidrive control system (if equipped)

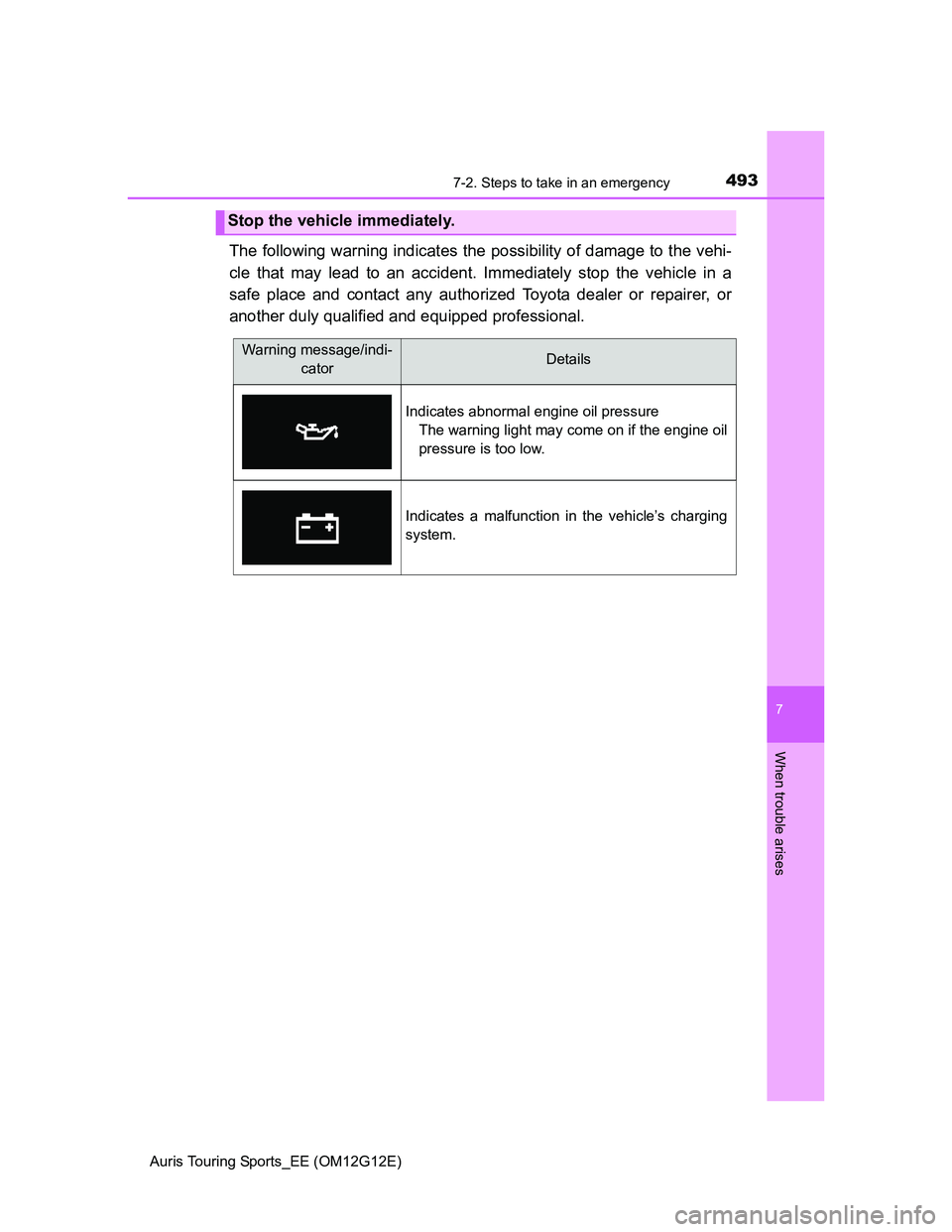

4937-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Stop the vehicle immediately.
Warning message/indi-
catorDetails
Indicates abnormal engine oil pressure
The warning light may come on if the engine oil
pressure is too low.
Indicates a malfunction in the vehicle’s charging
system.

5587-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
To prevent battery discharge
Turn off the headlights and the audio system while the engine is off.
Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
When the battery is removed or discharged (vehicles with an alarm)
Make sure that the key is not inside the vehicle when recharging or replacing
the battery. The key may be locked in the vehicle if the alarm is activated.
(P. 81)
Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
7

5597-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
When recharging or replacing the battery
Vehicles with a smart entry & start system: In some cases, it may not be
possible to unlock the doors using the smart entry & start system when the
battery is discharged. Use the wireless remote control or the mechanical
key to lock or unlock the doors.
The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
Vehicles with a smart entry & start system: The engine switch mode is mem-
orized by the vehicle. When the battery is reconnected, the system will
return to the mode it was in before the battery was discharged. Before dis-
connecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
CAUTION
Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
