2013 TOYOTA AURIS HYBRID belt

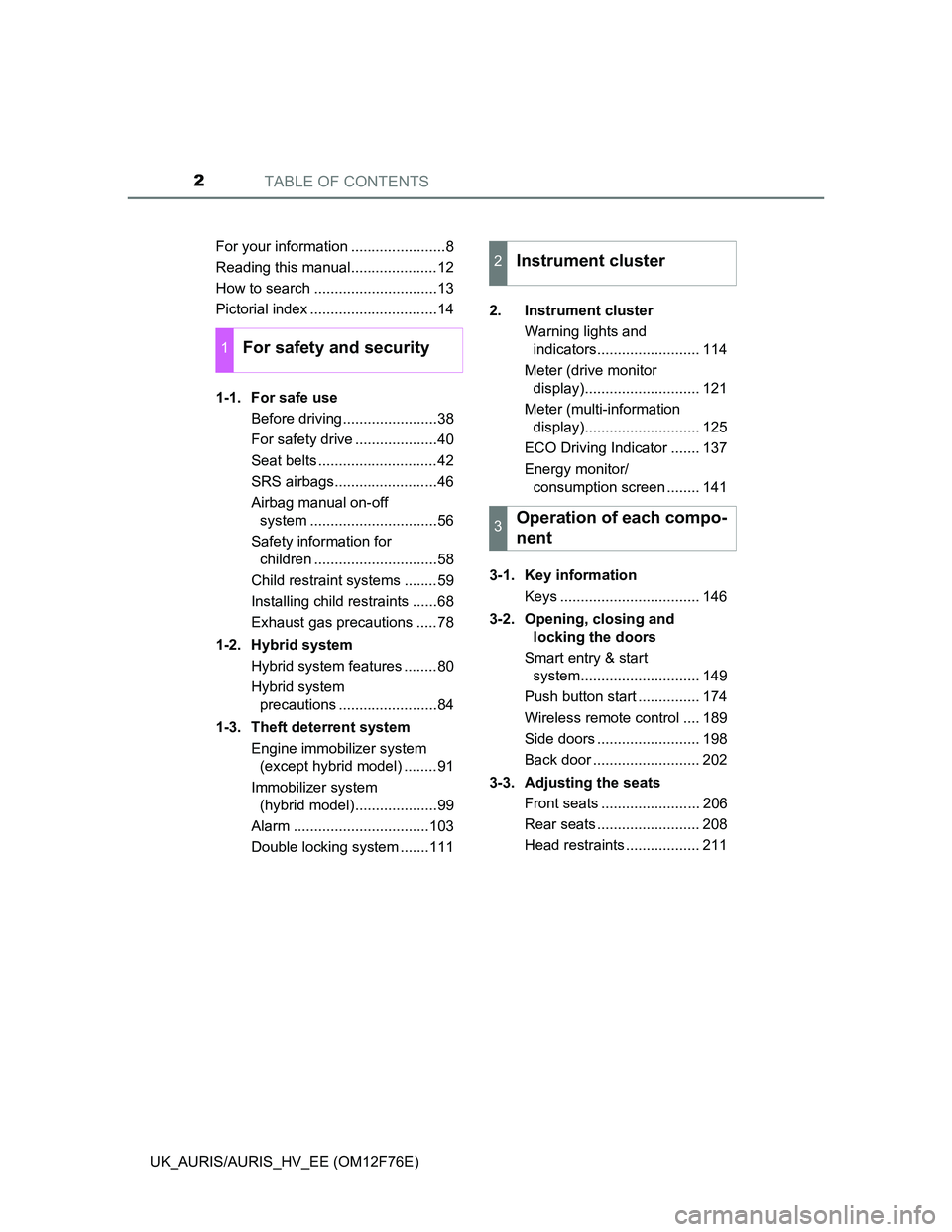

TABLE OF CONTENTS2
UK_AURIS/AURIS_HV_EE (OM12F76E)For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................38
For safety drive ....................40
Seat belts .............................42
SRS airbags.........................46
Airbag manual on-off
system ...............................56
Safety information for
children ..............................58
Child restraint systems ........59
Installing child restraints ......68
Exhaust gas precautions .....78
1-2. Hybrid system
Hybrid system features ........80
Hybrid system
precautions ........................84
1-3. Theft deterrent system
Engine immobilizer system
(except hybrid model) ........91
Immobilizer system
(hybrid model)....................99
Alarm .................................103
Double locking system .......1112. Instrument cluster
Warning lights and
indicators......................... 114
Meter (drive monitor
display)............................ 121
Meter (multi-information
display)............................ 125
ECO Driving Indicator ....... 137
Energy monitor/
consumption screen ........ 141
3-1. Key information
Keys .................................. 146
3-2. Opening, closing and
locking the doors
Smart entry & start
system............................. 149
Push button start ............... 174
Wireless remote control .... 189
Side doors ......................... 198
Back door .......................... 202
3-3. Adjusting the seats
Front seats ........................ 206
Rear seats ......................... 208
Head restraints .................. 211
1For safety and security
2Instrument cluster
3Operation of each compo-
nent

9

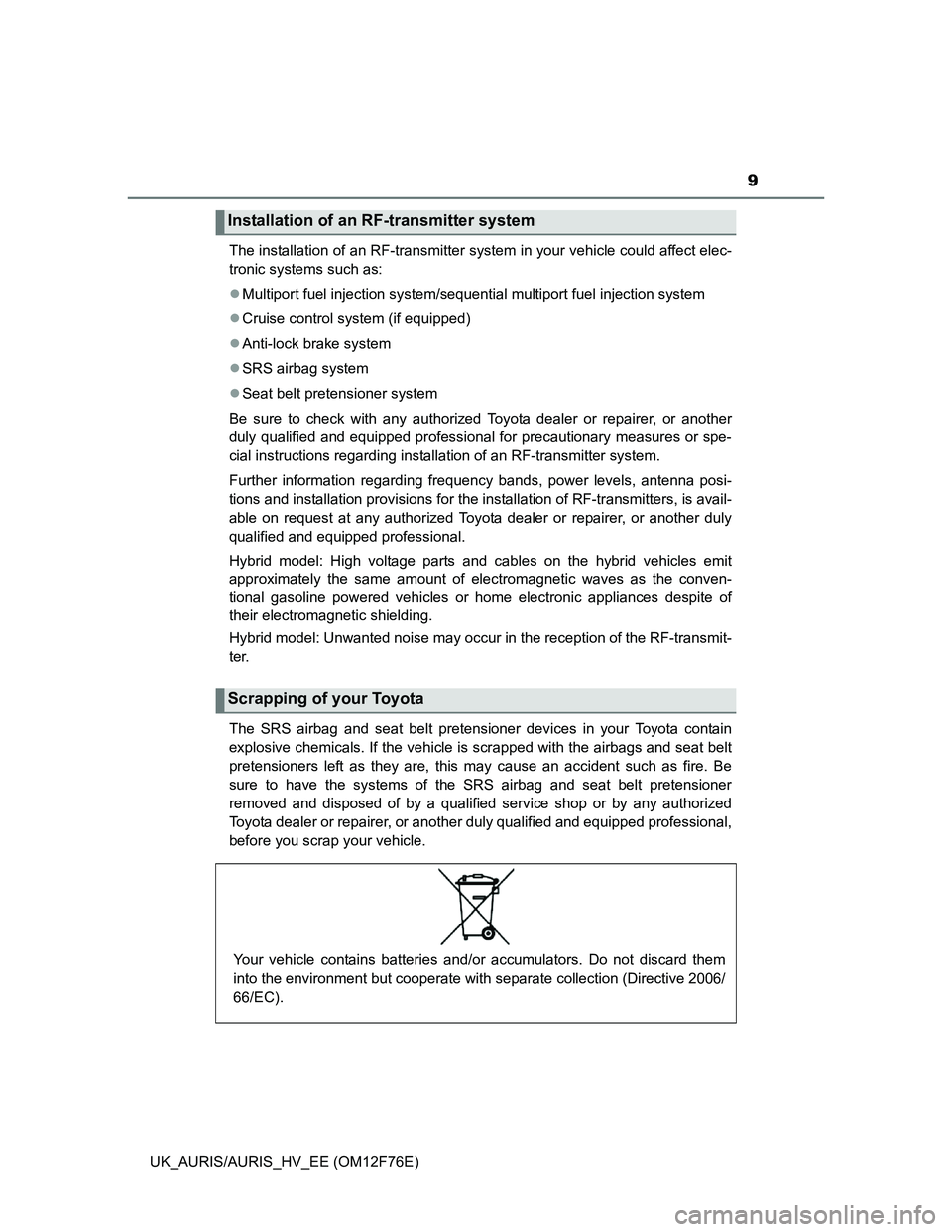

UK_AURIS/AURIS_HV_EE (OM12F76E)The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Cruise control system (if equipped)
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Hybrid model: High voltage parts and cables on the hybrid vehicles emit
approximately the same amount of electromagnetic waves as the conven-
tional gasoline powered vehicles or home electronic appliances despite of
their electromagnetic shielding.
Hybrid model: Unwanted noise may occur in the reception of the RF-transmit-
ter.
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional,
before you scrap your vehicle.
Installation of an RF-transmitter system
Scrapping of your Toyota
Your vehicle contains batteries and/or accumulators. Do not discard them
into the environment but cooperate with separate collection (Directive 2006/
66/EC).

24Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Interior (Left-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Rear seats
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
1
2
3
4
5
6
7
8
9

34Pictorial index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 458
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Rear seats
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
1
2
3
4
5
6
7
8
9

37
1For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)1-1. For safe use
Before driving....................... 38
For safety drive .................... 40
Seat belts ............................. 42
SRS airbags......................... 46
Airbag manual on-off
system ............................... 56
Safety information for
children .............................. 58
Child restraint systems ........ 59
Installing child restraints ...... 68
Exhaust gas precautions ..... 78
1-2. Hybrid system
Hybrid system features ....... 80
Hybrid system
precautions ....................... 84
1-3. Theft deterrent system
Engine immobilizer system
(except hybrid model) ........ 91
Immobilizer system
(hybrid model).................... 99
Alarm ................................. 103
Double locking system ....... 111

401-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12F76E)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 206)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 206)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. (P. 211)
Wear the seat belt correctly.
(P. 42)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 4 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 59)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts

411-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12F76E)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 214, 216)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

421-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12F76E)
Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
Position the lap belt as low as
possible over the hips.
Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
