3614-5. Using the driving support systems
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
NOTICE
When using the Simple-IPA
Check that the parking space is suitable. (Width of the space, if there are
any obstacles, road surface condition, etc.)
Simple-IPA will not operate properly if the vehicle at the front or back of the
parking space moves, or if an obstacle enters the parking space after the
sensors have detected the parking space. Always check the surrounding
area during parking assist operation.
The sensors may not be able to detect curbs. The vehicle may drive onto
the curb depending on the situation, such as if a vehicle at the front or
back of the parking space has driven on the curb.
Check the surrounding area to prevent the tires and wheels from being
damaged.
Except hybrid model: The vehicle may not be able to be parked at a target
parking space if the vehicle moves forward when the shift lever is in R or
reverses when the shift lever is in a position other than R, such as when
parking on a slope.
Hybrid model: The vehicle may not be able to be parked at a target parking
space if the vehicle moves forward when the shift position is in R or
reverses when the shift position is in a position other than R, such as when
parking on a slope.
When reversing, reverse the vehicle
slowly to prevent the front end of the
vehicle from hitting an obstacle in the
front of the vehicle.
When reversing, reverse the vehicle
slowly to prevent the front end of the
vehicle from hitting the vehicle parked in
front of the parking space.

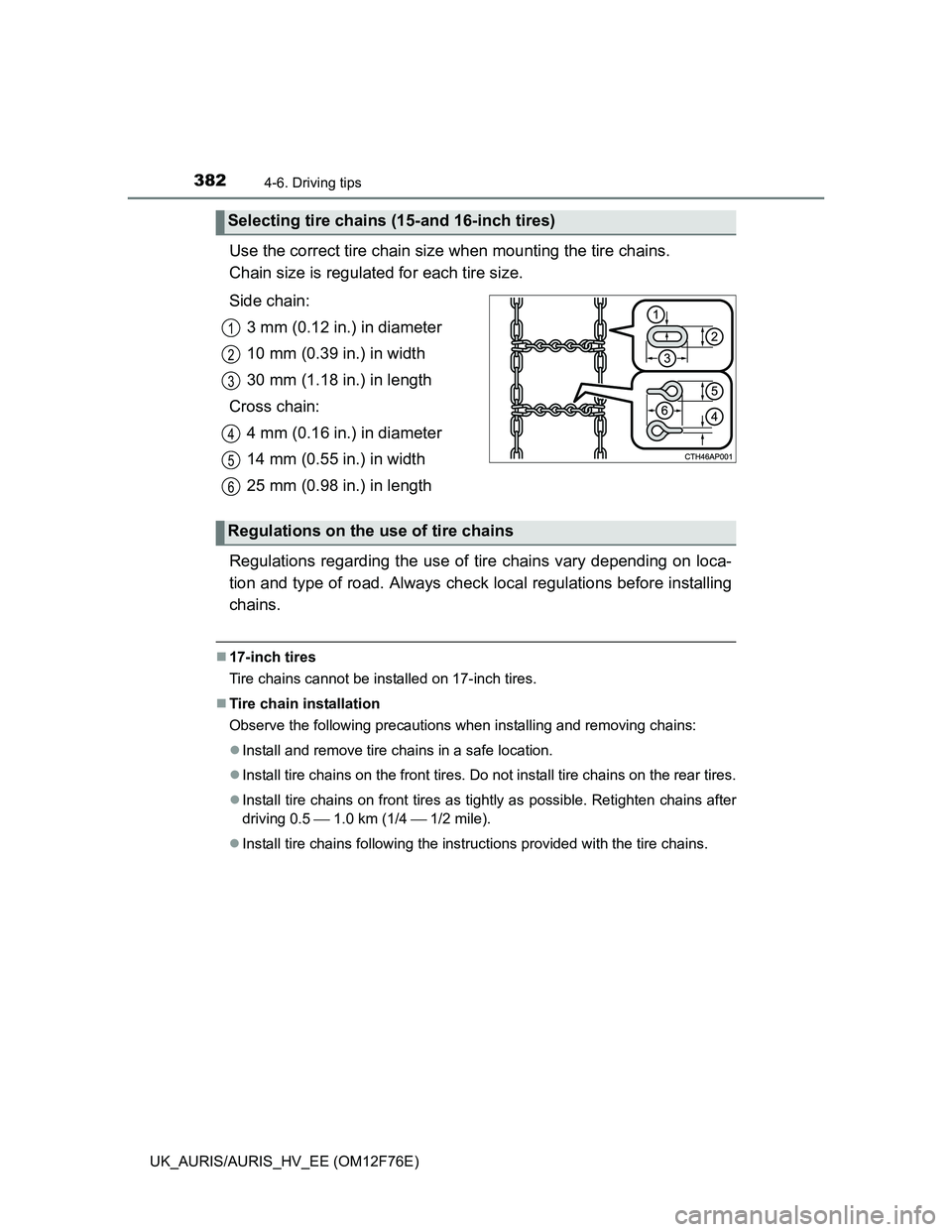

3824-6. Driving tips
UK_AURIS/AURIS_HV_EE (OM12F76E)
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain:
3 mm (0.12 in.) in diameter
10 mm (0.39 in.) in width
30 mm (1.18 in.) in length
Cross chain:
4 mm (0.16 in.) in diameter
14 mm (0.55 in.) in width
25 mm (0.98 in.) in length
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
17-inch tires
Tire chains cannot be installed on 17-inch tires.
Tire chain installation
Observe the following precautions when installing and removing chains:
Install and remove tire chains in a safe location.
Install tire chains on the front tires. Do not install tire chains on the rear tires.
Install tire chains on front tires as tightly as possible. Retighten chains after
driving 0.5  1.0 km (1/4  1/2 mile).
Install tire chains following the instructions provided with the tire chains.
Selecting tire chains (15-and 16-inch tires)
1
2
3
4
5
6
Regulations on the use of tire chains

5366-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12F76E)
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*.
Replacement wheels are available at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1600 km (1000 miles).
Be careful not to damage the aluminum wheels when using tire
chains.
Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.

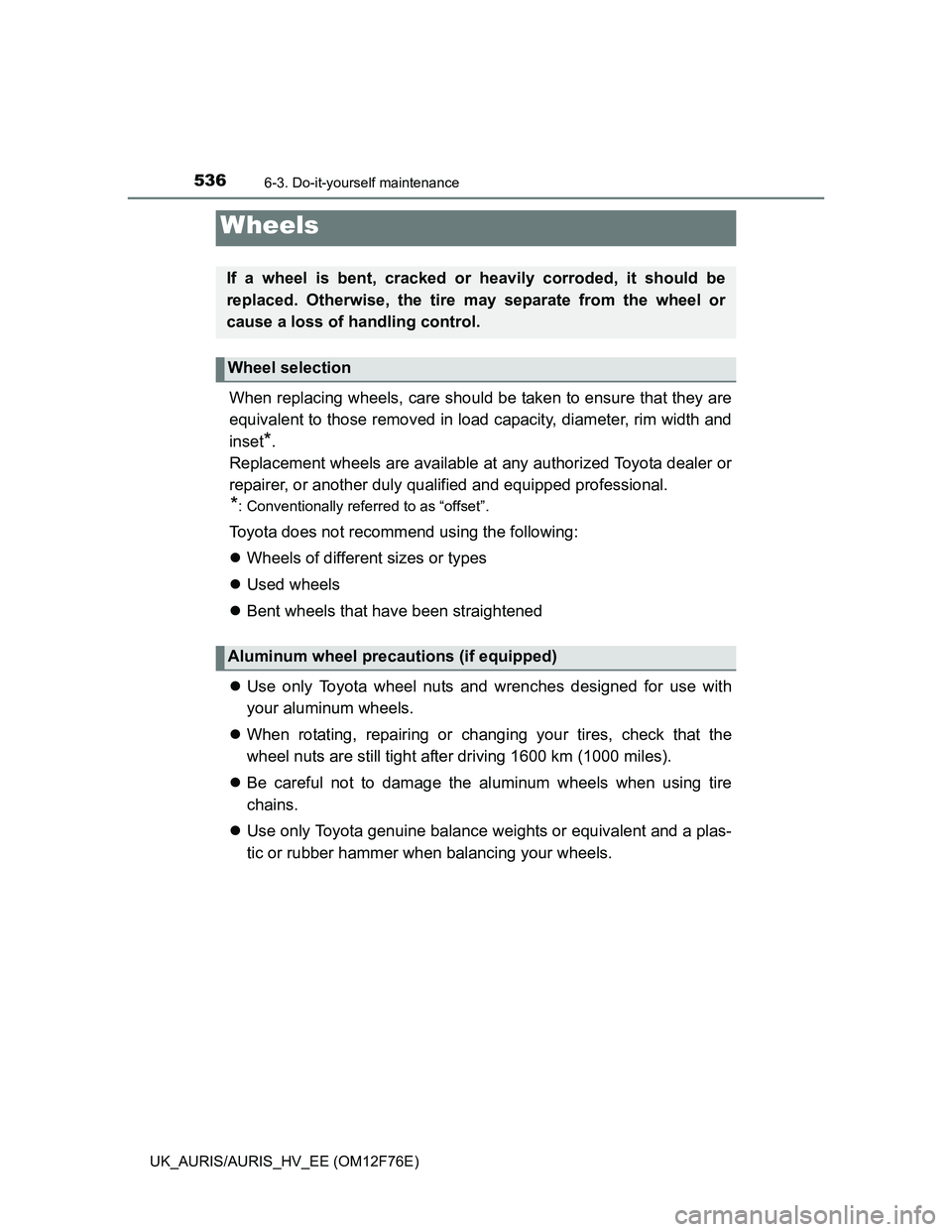

Wheels
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions (if equipped)

712
UK_AURIS/AURIS_HV_EE (OM12F76E)

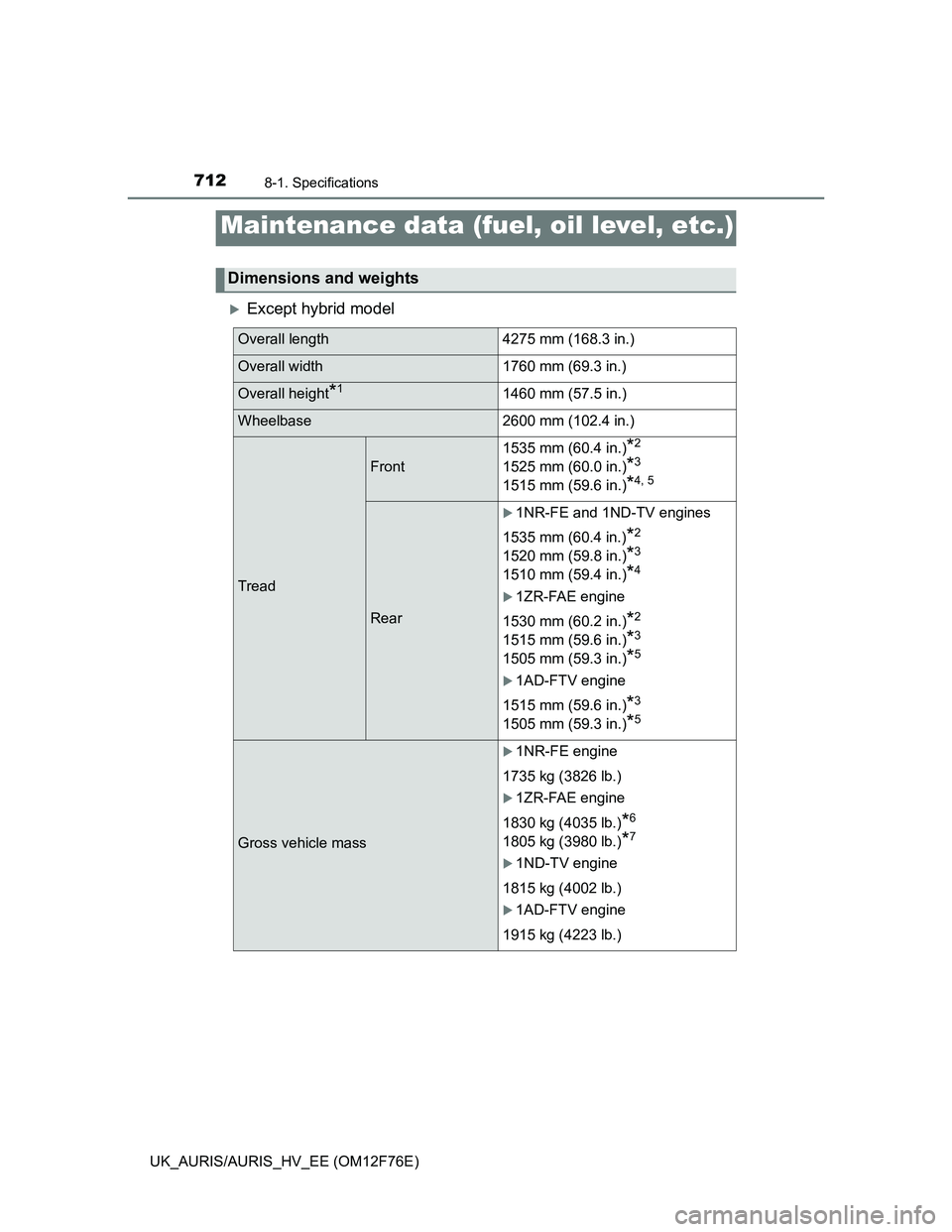

8-1. Specifications
Except hybrid model
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4275 mm (168.3 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4, 5
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*2
1520 mm (59.8 in.)*3
1510 mm (59.4 in.)*4
1ZR-FAE engine
1530 mm (60.2 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*5
1AD-FTV engine
1515 mm (59.6 in.)
*3
1505 mm (59.3 in.)*5
Gross vehicle mass
1NR-FE engine
1735 kg (3826 lb.)
1ZR-FAE engine
1830 kg (4035 lb.)
*6
1805 kg (3980 lb.)*7
1ND-TV engine
1815 kg (4002 lb.)
1AD-FTV engine
1915 kg (4223 lb.)

7148-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)

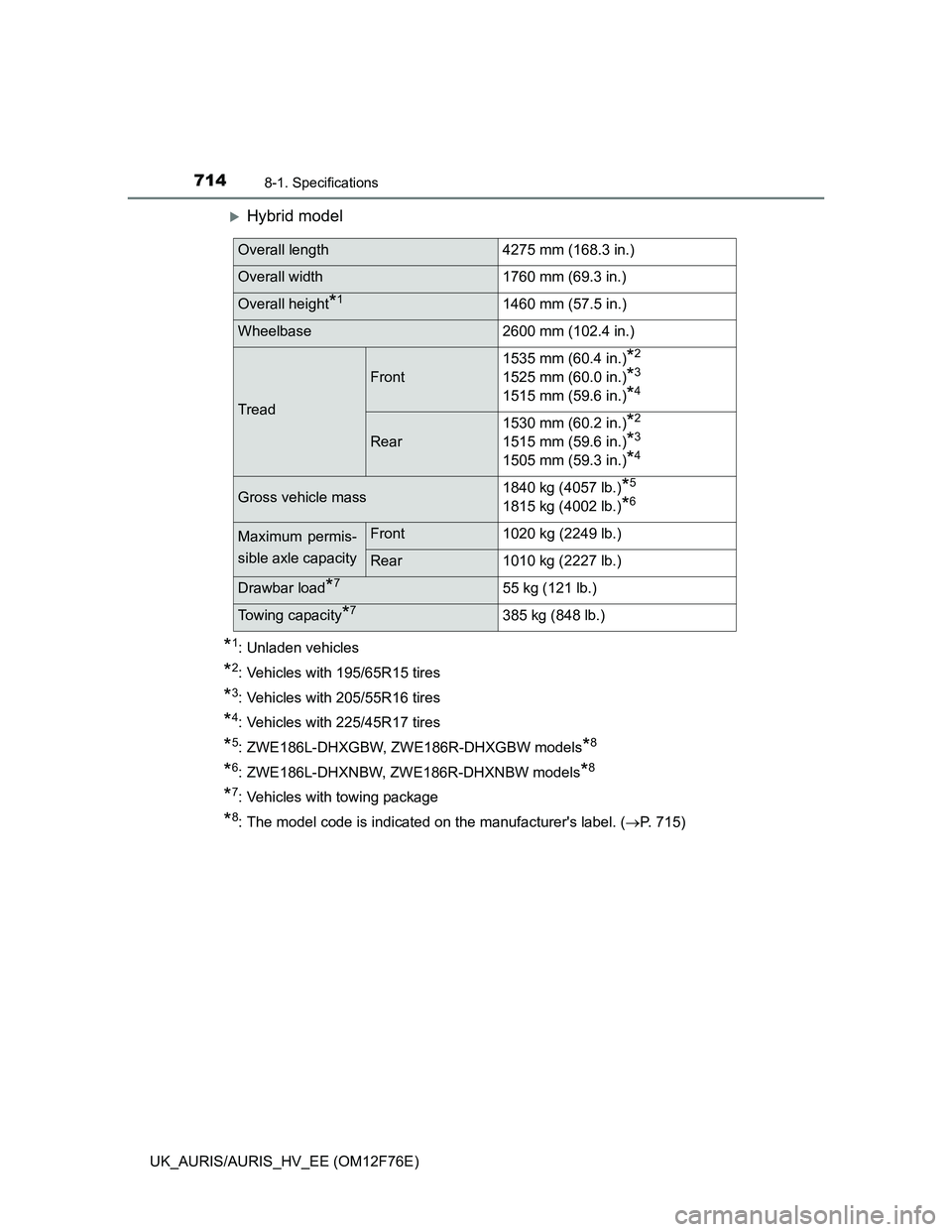

Hybrid model
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 225/45R17 tires
*5: ZWE186L-DHXGBW, ZWE186R-DHXGBW models*8
*6: ZWE186L-DHXNBW, ZWE186R-DHXNBW models*8
*7: Vehicles with towing package
*8: The model code is indicated on the manufacturer's label. (P. 715)
Overall length 4275 mm (168.3 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*2
1525 mm (60.0 in.)*3
1515 mm (59.6 in.)*4
Rear1530 mm (60.2 in.)
*2
1515 mm (59.6 in.)*3
1505 mm (59.3 in.)*4
Gross vehicle mass1840 kg (4057 lb.)*5
1815 kg (4002 lb.)*6
Maximum permis-
sible axle capacityFront 1020 kg (2249 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load*755 kg (121 lb.)
Towing capacity*7385 kg (848 lb.)
