2013 TOYOTA AURIS HYBRID engine

7178-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications

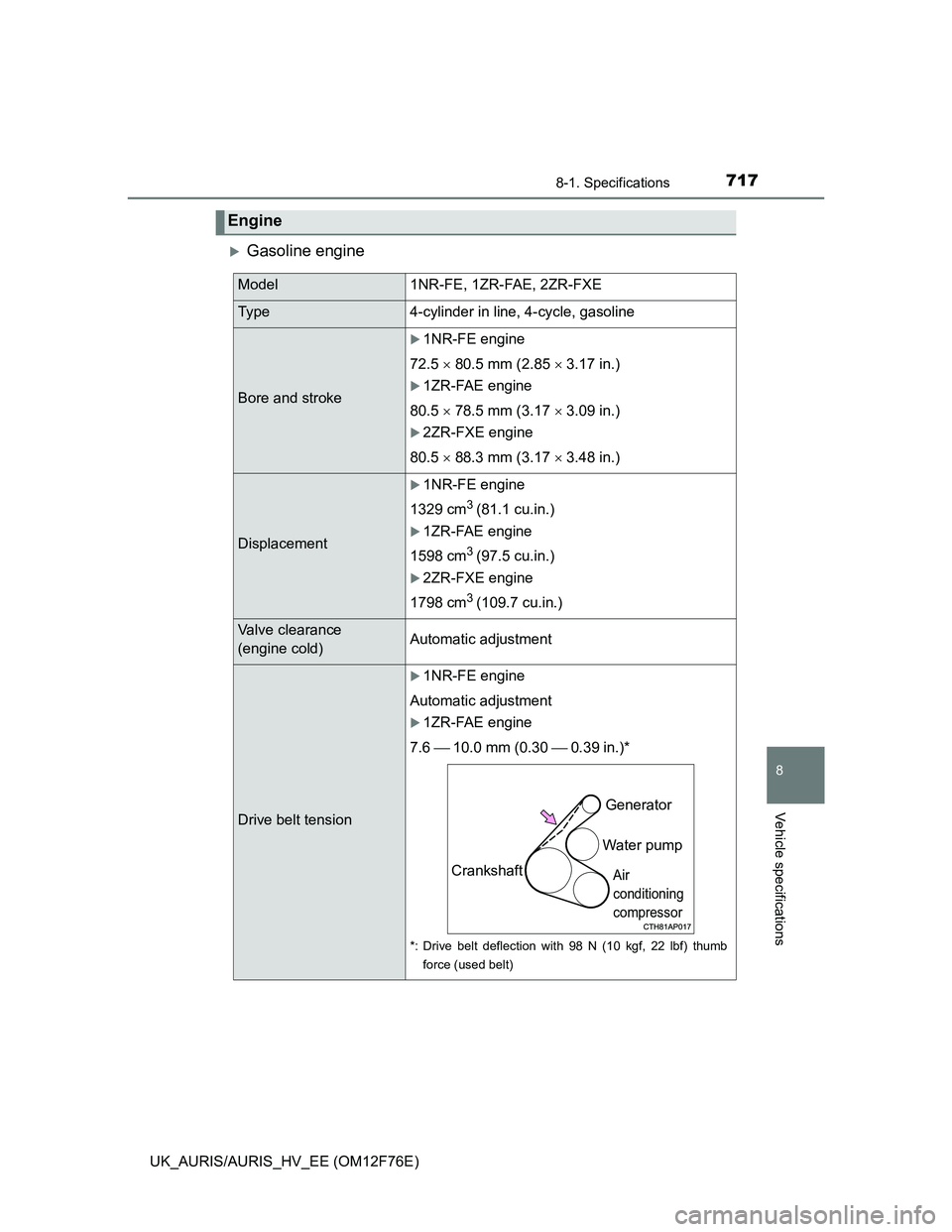

Gasoline engine
Engine
Model1NR-FE, 1ZR-FAE, 2ZR-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1NR-FE engine
72.5  80.5 mm (2.85  3.17 in.)
1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FXE engine
80.5  88.3 mm (3.17  3.48 in.)
Displacement
1NR-FE engine
1329 cm
3 (81.1 cu.in.)
1ZR-FAE engine
1598 cm
3 (97.5 cu.in.)
2ZR-FXE engine
1798 cm
3 (109.7 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
1NR-FE engine
Automatic adjustment
1ZR-FAE engine
7.6 10.0 mm (0.30 0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb
force (used belt)
Generator
Water pump
Air
conditioning
compressorCrankshaft

7188-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)

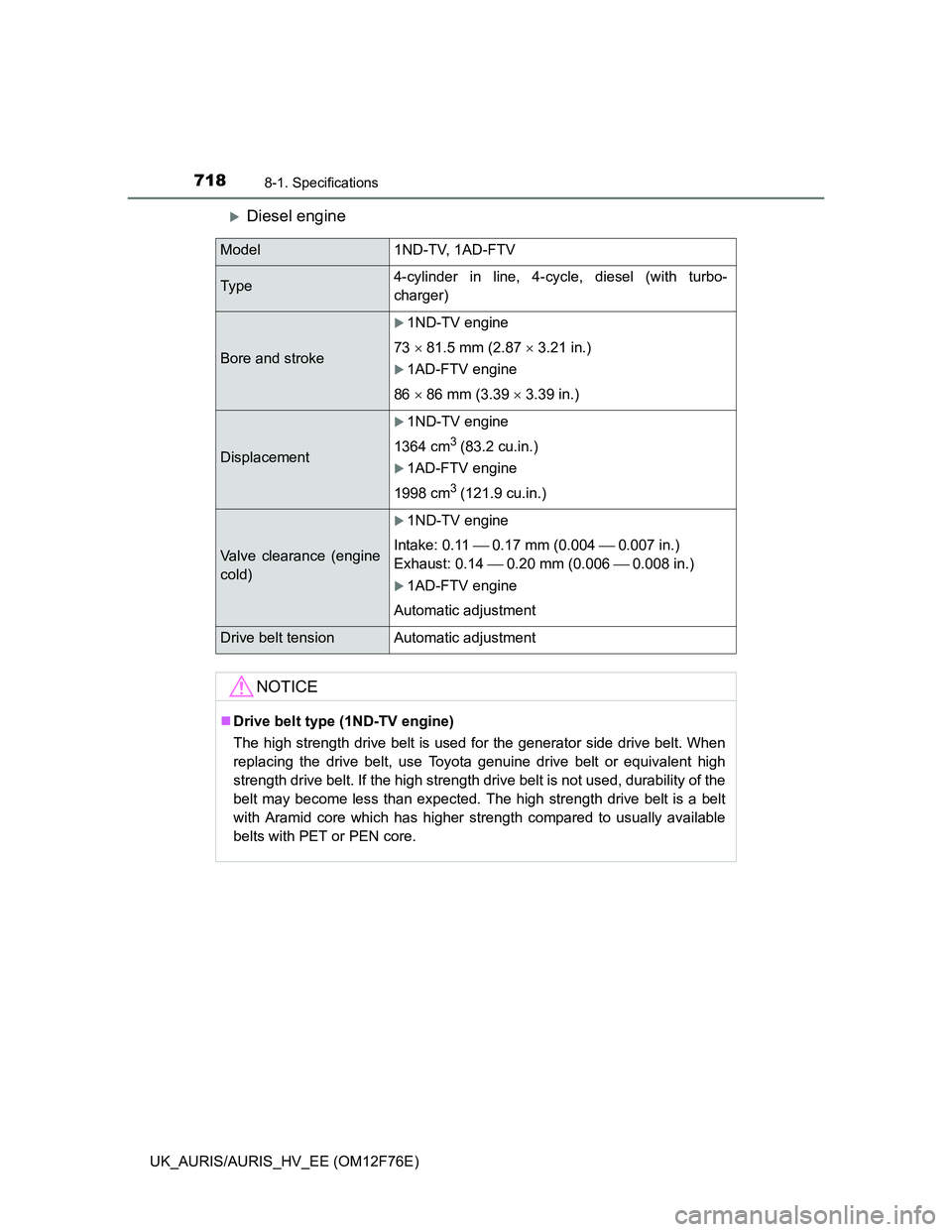

Diesel engine
Model 1ND-TV, 1AD-FTV
Ty p e4-cylinder in line, 4-cycle, diesel (with turbo-
charger)
Bore and stroke
1ND-TV engine
73  81.5 mm (2.87  3.21 in.)
1AD-FTV engine
86  86 mm (3.39  3.39 in.)
Displacement
1ND-TV engine
1364 cm
3 (83.2 cu.in.)
1AD-FTV engine
1998 cm
3 (121.9 cu.in.)
Valve clearance (engine
cold)
1ND-TV engine
Intake: 0.11 0.17 mm (0.004 0.007 in.)
Exhaust: 0.14 0.20 mm (0.006 0.008 in.)
1AD-FTV engine
Automatic adjustment
Drive belt tension Automatic adjustment
NOTICE
Drive belt type (1ND-TV engine)
The high strength drive belt is used for the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength drive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.

7198-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications
Gasoline engine
Diesel engine

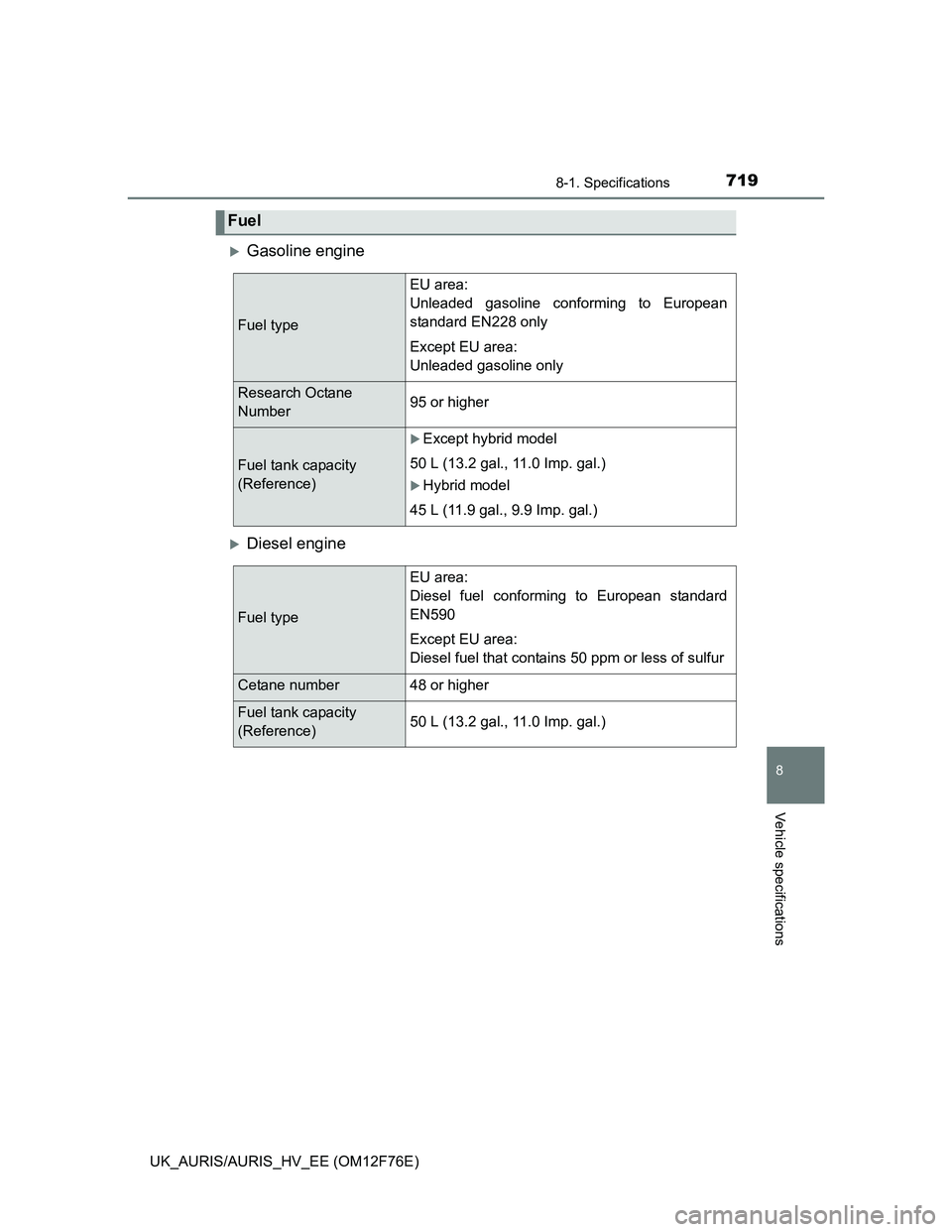

Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)
Except hybrid model
50 L (13.2 gal., 11.0 Imp. gal.)
Hybrid model
45 L (11.9 gal., 9.9 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)

7218-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine (except hybrid model) or
warm up the engine and turn off the hybrid system (hybrid model), wait
more than 5 minutes, and check the oil level on the dipstick.

Engine oil selection
Gasoline engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
1ZR-FAE and 2ZR-FXE engines
4.2 L (4.4 qt., 3.7 Imp. qt.)
1ND-TV engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
1AD-FTV engine
5.9 L (6.2 qt., 5.2 Imp. qt.)
Without filter1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
1ZR-FAE and 2ZR-FXE engines
3.9 L (4.1 qt., 3.4 Imp. qt.)
1ND-TV engine
3.5 L (3.7 qt., 3.1 Imp. qt.)
1AD-FTV engine
5.5 L (5.8 qt., 4.8 Imp. qt.)

7228-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)

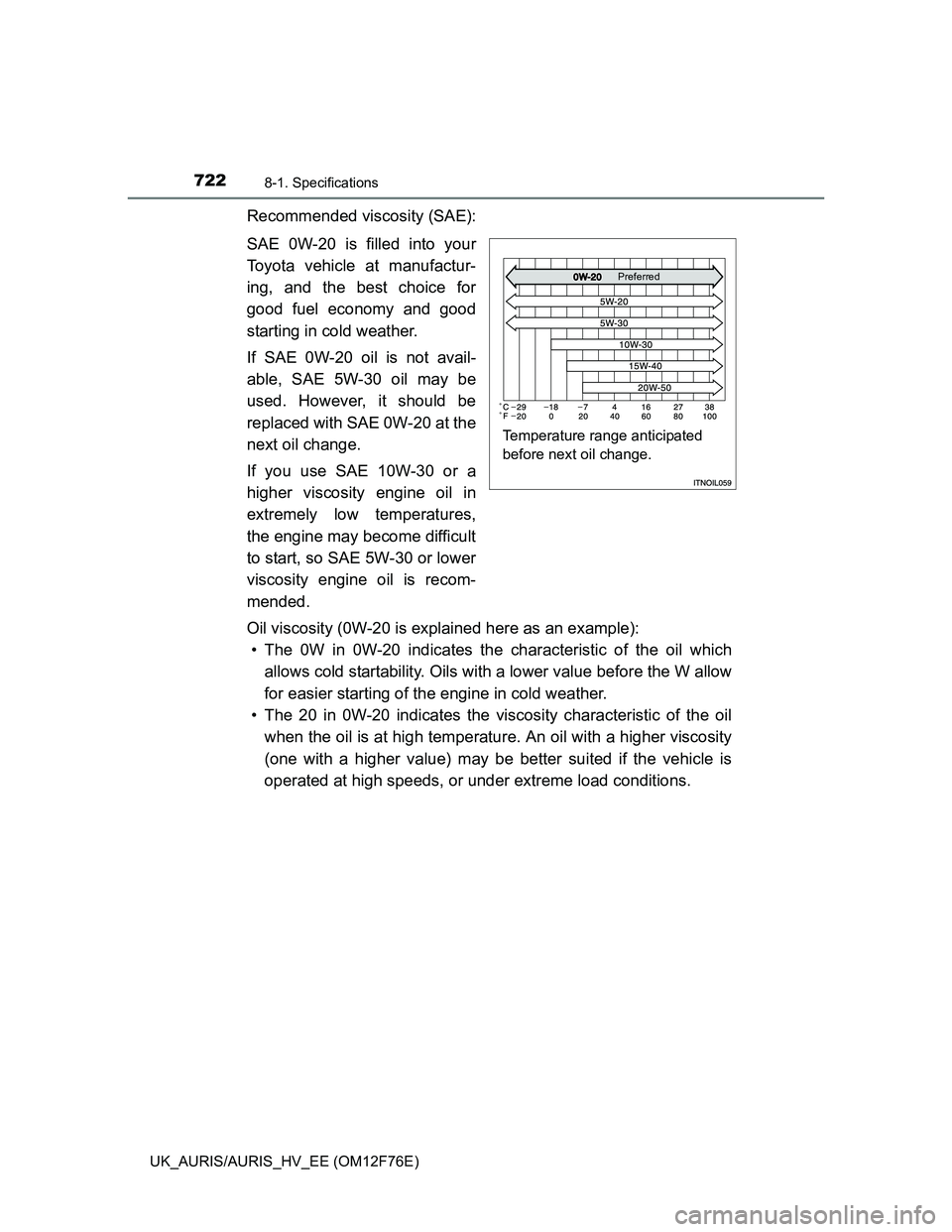

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 or lower
viscosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change.
Preferred

7248-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)

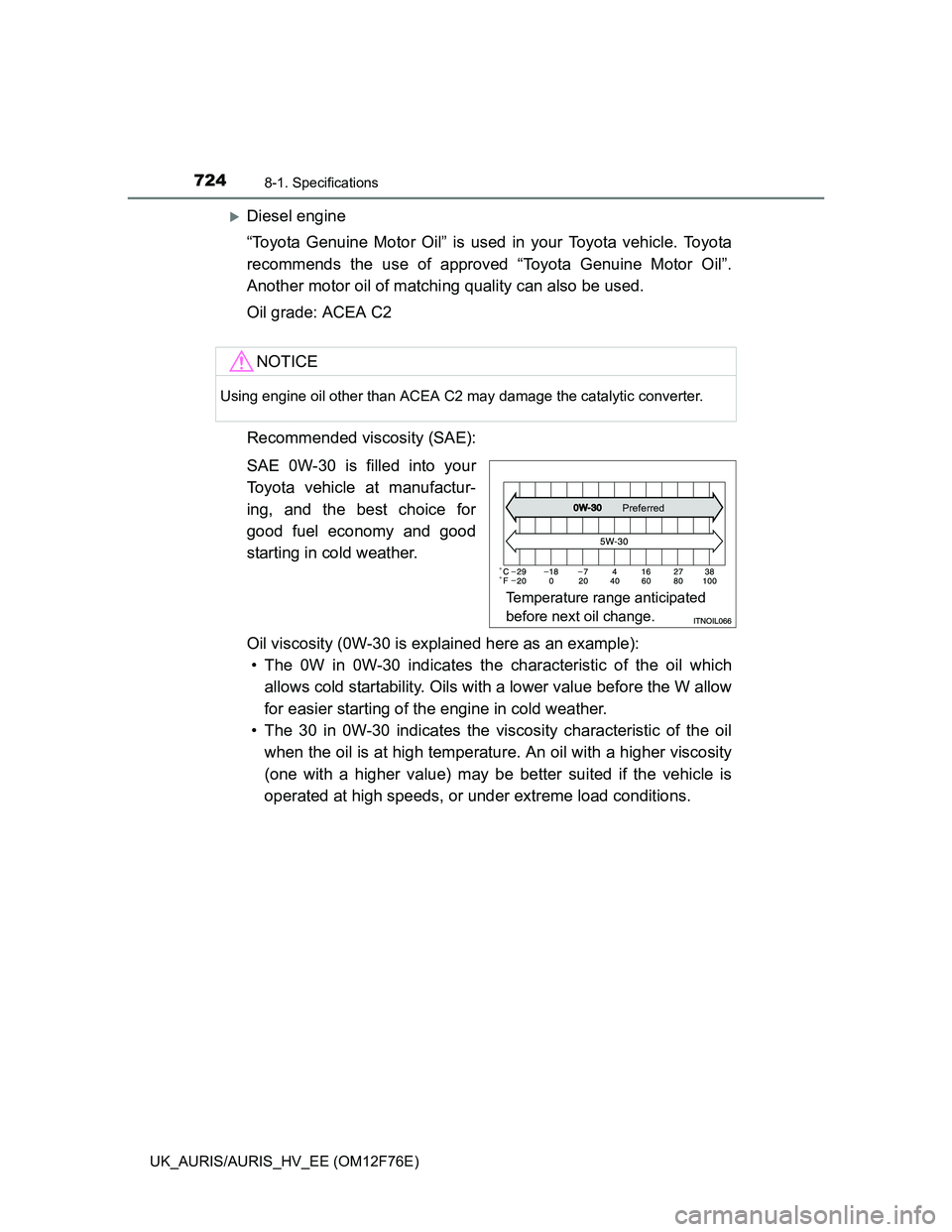

Diesel engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change.
Preferred

7258-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications
Except hybrid model
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
Vehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
Vehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
1AD-FTV engine
With power heater
7.8 L (8.2 qt., 6.9 Imp. qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.

7268-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
Hybrid model
Capacity (reference)
Gasoline engine
With an exhaust heat
recovery system
Without an exhaust heat
recovery system
Power control unit
7.0 L (7.4 qt., 6.2 Imp. qt.)
6.3 L (6.7 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (gasoline engine)
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
