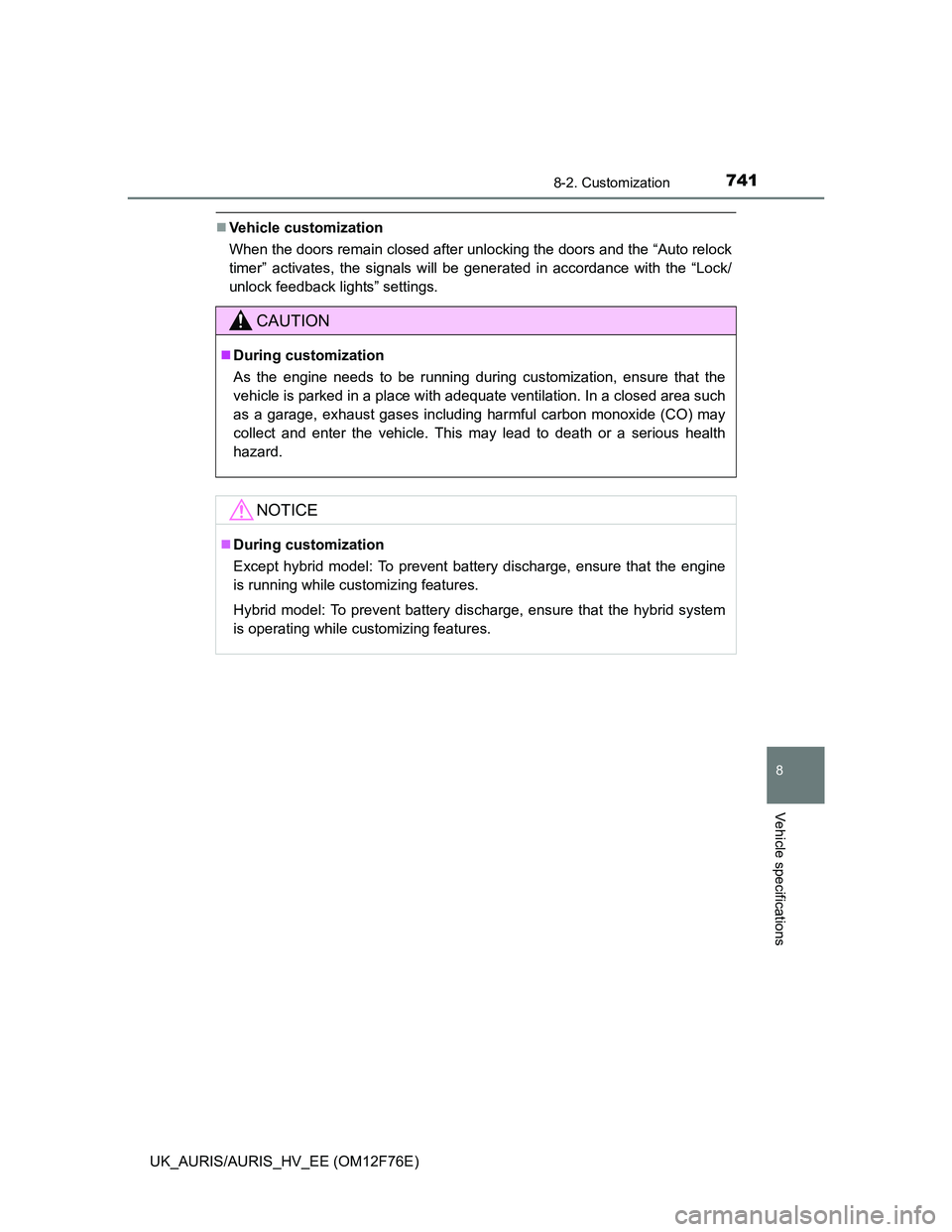

7418-2. Customization
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications
Vehicle customization
When the doors remain closed after unlocking the doors and the “Auto relock
timer” activates, the signals will be generated in accordance with the “Lock/
unlock feedback lights” settings.
CAUTION
During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
During customization
Except hybrid model: To prevent battery discharge, ensure that the engine
is running while customizing features.
Hybrid model: To prevent battery discharge, ensure that the hybrid system
is operating while customizing features.

744
UK_AURIS/AURIS_HV_EE (OM12F76E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
If you lose your keys or mechanical keys, new genuine keys or
mechanical keys can be made by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
(P. 147)
If you lose your keys or electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately. (P. 148)
Is the key battery weak or depleted? (P. 540)
Vehicles with a smart entry & start system (except hybrid model):
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 269)
Vehicles with smart entry & start system (hybrid model):
Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P. 278)
Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic
key on your person.
The function may not operate properly due to the condition of the
radio wave. (P. 156, 176, 190)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

745What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12F76E)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the
lock is set. Open the rear door from outside and then unlock the
child-protector lock. (P. 200)
Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly?
(P. 262)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 262)
Is the steering wheel unlocked? (P. 263)
Is the 12-volt battery discharged? (P. 688)
The rear door cannot be opened
If you think something is wrong
The engine does not start (vehicles without smart entry &
start system) (except hybrid model)

746What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12F76E)
Vehicles without a manual transmission:
Did you press the engine switch while firmly depressing the brake
pedal? (P. 266)
Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch
pedal? (P. 266)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 272)
Is the electronic key anywhere detectable inside the vehicle?
(P. 152)
Is the steering wheel unlocked? (P. 273)
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
(P. 685)
Is the 12-volt battery discharged? (P. 688)
Did you press the power switch while firmly depressing the brake
pedal? (P. 276)
Is the shift position in P? (P. 276)
Is the electronic key anywhere detectable inside the vehicle?
(P. 152)
Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
(P. 684)
Is the 12-volt battery discharged? (P. 695)
The engine does not start (vehicles with smart entry &
start system) (except hybrid model)
The hybrid system does not start (hybrid model)

747What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12F76E)
Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in the “ON” position. (P. 682)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in IGNITION ON mode. (P. 682)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 264)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 272)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 219)
The shift lever cannot be shifted from P even if you
depress the brake pedal (vehicles with a Multidrive)
The steering wheel cannot be turned after the engine is
stopped (except hybrid model)
The windows do not open or close by operating the power
window switches

748What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12F76E)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running)
for a period of time. (P. 272)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for
a period of time. (P. 279)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 602)
The brake system warning light (red indicator) is on
Is the parking brake released? (P. 306)
Depending on the situation, other types of warning buzzer may also
sound. (P. 597, 612)
The engine switch is turned off automatically (vehicles
with smart entry & start system) (except hybrid model)
The power switch is turned off automatically
(hybrid model)
A warning buzzer sounds during driving

749What to do if... (Troubleshooting)
UK_AURIS/AURIS_HV_EE (OM12F76E)

Did anyone inside the vehicle open a door or anything move inside
the vehicle
* during setting the alarm?
The sensor detects them and the alarm sounds. (P. 103)
*: If the vehicle is equipped with intrusion sensor.
Vehicles without a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system (except hybrid model):
To stop the alarm, turn the engine switch to IGNITION ON mode or
start the engine.
Hybrid model:
To stop the alarm, turn the power switch to ON mode or start the
hybrid system.
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 612)
When a warning light turns on, refer to P. 597.
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)

753Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Child-protectors ....................... 200
Cleaning............................ 486, 490
Aluminum wheels .................. 487
Exterior.................................. 486
Interior ................................... 490
Seat belts .............................. 491
Clock ......................................... 471
Coat hooks ............................... 481
Condenser ................................ 519
Console box ............................. 458
Cooling system ........................ 517
Engine overheating ............... 700
Hybrid system overheating ... 703
Cruise control
Cruise control ........................ 332
Cup holders .............................. 460
Curtain shield airbags ............... 46
Customizable features ............ 737Daytime running light
system .................................... 308
Deck board ............................... 463
Defogger
Outside rear view mirrors...... 410
Rear window ......................... 410
Dimensions .............................. 712
Display
Drive monitor display ............ 121
Multi-information display ....... 125
Trip information ............. 122, 129
Warning message ................ 612
Do-it-yourself maintenance .... 496
Door lock
Doors .................................... 198
Smart entry & start system ... 149
Wireless remote control ........ 189
Doors ........................................ 198
Back door.............................. 202
Door lock............................... 198
Door windows ....................... 219
Double locking system .......... 111
Open door warning buzzer ... 153
Open door warning
light ............................. 602, 615
Outside rear view mirrors...... 216
Rear door child-protector ...... 200
Double locking system ........... 111
DPF
Diesel Particulate Filter
system ................................ 376
Warning light ......................... 603
Warning message ................. 620
Driving ...................................... 224
Break-in tips .......................... 229
Correct posture ....................... 40
Hybrid vehicle driving tips ..... 378
Procedures ........................... 224
Winter drive tips .................... 380D
