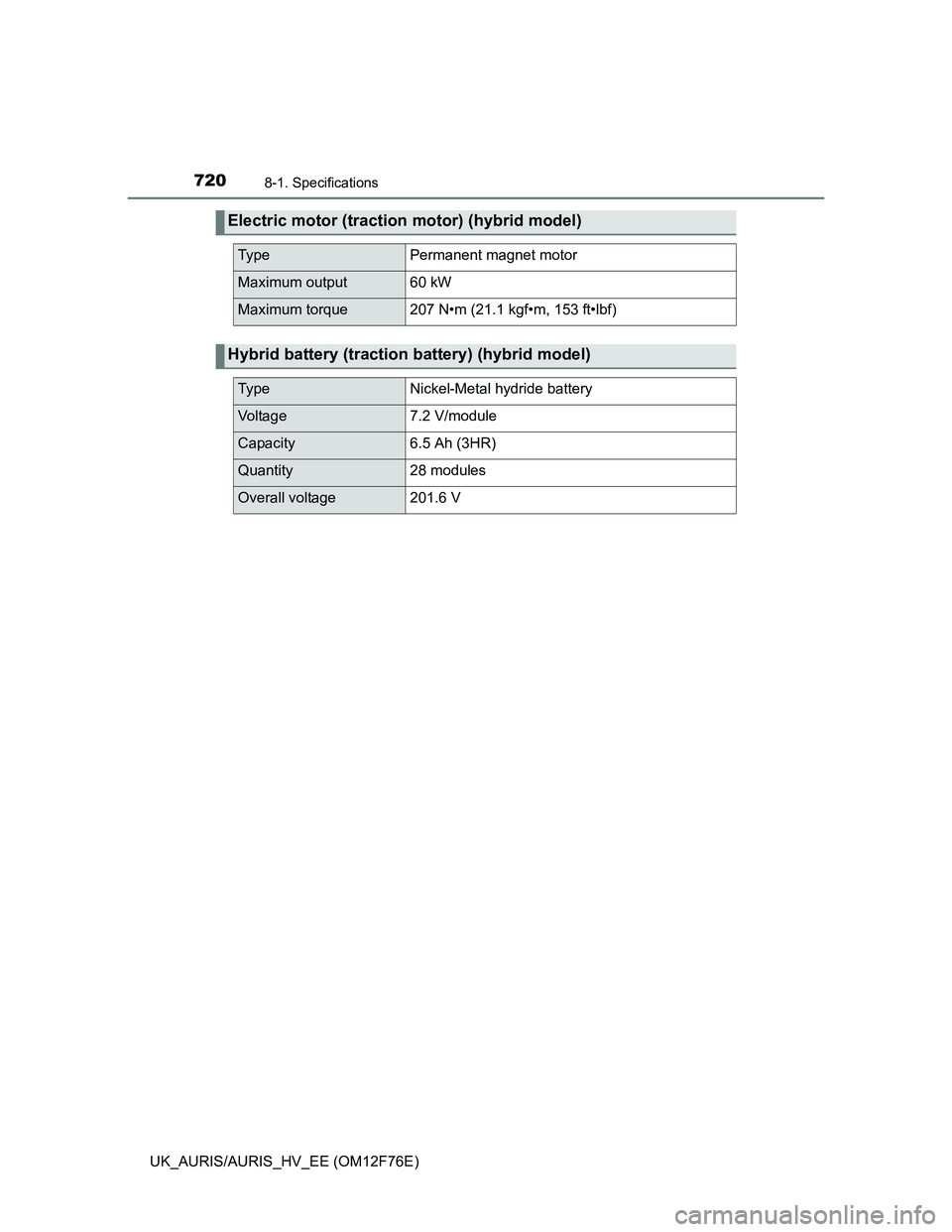

7208-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
Electric motor (traction motor) (hybrid model)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery) (hybrid model)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V

7278-1. Specifications
UK_AURIS/AURIS_HV_EE (OM12F76E)
8
Vehicle specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Electrical system
12-volt battery
Open voltage at 20C
(68F):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Multidrive
Fluid capacity*7.7 L (8.2 qt., 6.8 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
Manual transaxle
Gear oil capacity (Reference)
1AD-FTV engine
2.3 L (2.4 qt., 2.0 Imp. qt.)
Others
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmis-
sion Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications

761Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Radiator .................................... 519
Radio ......................................... 416
Rear fog light............................ 320
Replacing light bulb............... 567
Switch ................................... 320
Wattage................................. 734
Rear personal lights ................ 455
Rear seat
Folding down......................... 208
Rear turn signal lights ............. 305
Replacing light bulbs ............. 567
Turn signal lever ................... 305
Wattage................................. 734
Rear view mirror
Inside rear view mirror .......... 214
Outside rear view mirrors ...... 216
Rear view monitor system*
Rear window defogger ............ 410
Rear window wiper .................. 326
Refueling .................................. 328
Capacity ................................ 719
Fuel types ............................. 719
Opening the fuel tank cap ..... 330
Replacing
Electronic key battery............ 540
Fuses .................................... 543
Light bulbs............................. 567
Tires ...................................... 640
Wireless remote control
battery................................. 540
Reset the maintenance data ... 524
Road accident cautions ............ 88Seat belt reminder light........... 602
Seat belts.................................... 42
Adjusting the seat belt ............ 43
Child restraint system
installation ............................ 69
Cleaning and maintaining
the seat belt ........................ 491
Emergency Locking Retractor
(ELR) .................................... 43
How to wear your seat belt ..... 40
How your child should wear
the seat belt .......................... 43
Pregnant women, proper
seat belt use ......................... 44
Reminder light and buzzer .... 602
Seat belt pretensioners ........... 43
SRS warning light ................. 600
Seat heaters ............................. 477
Seats ......................................... 206
Adjustment ............................ 206
Adjustment precautions ........ 207
Child seats/child restraint
system installation ................ 68
Cleaning................................ 490
Head restraints ..................... 211
Properly sitting in the seat ...... 40
Seat heaters ......................... 477
RS
*: Refer to ““touch screen” Owner’s manual”

764Alphabetical index
UK_AURIS/AURIS_HV_EE (OM12F76E)
Tachometer ...................... 121, 125
Tail lights .................................. 308
Light switch ........................... 308
Replacing light bulbs ............. 580
Talk switch*
Telephone switches*
Theft deterrent system
Alarm..................................... 103
Double locking system .......... 111
Engine immobilizer system ..... 91
Intrusion sensor .................... 107
Tire inflation pressure ............. 534
Maintenance data ................. 730
Tires .......................................... 531
Chains ................................... 382
Checking ............................... 531
Emergency tire puncture
repair kit .............................. 653
If you have a flat tire...... 640, 653
Inflation pressure .................. 730
Replacing .............................. 640
Rotating tires ......................... 532
Size ....................................... 730
Snow tires ............................. 383
Spare tire .............................. 640
Tools ................................. 641, 654
Top strap .................................... 74Towing ...................................... 587
Emergency towing ................ 587
Towing capacity .................... 712
Towing eyelet........................ 589
Trailer towing ................ 242, 252
Toyota parking
assist-sensor ......................... 340
Function ................................ 340
Warning message ................. 613
Traction battery
(hybrid battery) ........................ 84
Traction Control (TRC) ............ 368
Traction motor
(electric motor) ........................ 80
Trailer towing .................. 242, 252
Transmission ... 284, 289, 294, 297
TRC (Traction Control) ............ 368
Trip information ............... 122, 129
Trip meters ....................... 122, 129
Turn signal lights..................... 305
Replacing light bulbs............. 567
Turn signal lever ................... 305
Wattage ................................ 734
T
