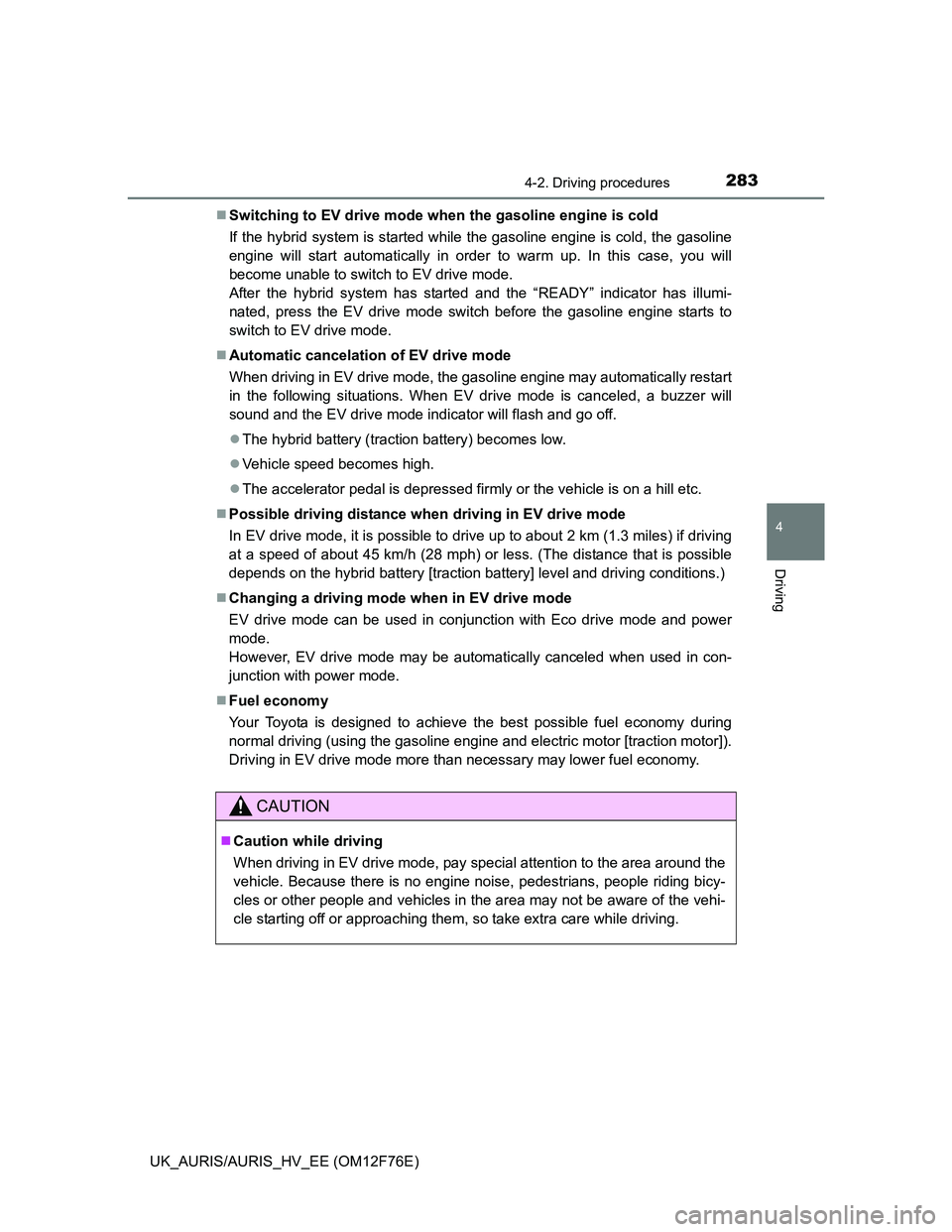

2013 TOYOTA AURIS HYBRID engine

2834-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is started while the gasoline engine is cold, the gasoline
engine will start automatically in order to warm up. In this case, you will
become unable to switch to EV drive mode.
After the hybrid system has started and the “READY” indicator has illumi-
nated, press the EV drive mode switch before the gasoline engine starts to
switch to EV drive mode.
Automatic cancelation of EV drive mode
When driving in EV drive mode, the gasoline engine may automatically restart
in the following situations. When EV drive mode is canceled, a buzzer will
sound and the EV drive mode indicator will flash and go off.
The hybrid battery (traction battery) becomes low.
Vehicle speed becomes high.
The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
Possible driving distance when driving in EV drive mode
In EV drive mode, it is possible to drive up to about 2 km (1.3 miles) if driving
at a speed of about 45 km/h (28 mph) or less. (The distance that is possible
depends on the hybrid battery [traction battery] level and driving conditions.)
Changing a driving mode when in EV drive mode
EV drive mode can be used in conjunction with Eco drive mode and power
mode.
However, EV drive mode may be automatically canceled when used in con-
junction with power mode.
Fuel economy
Your Toyota is designed to achieve the best possible fuel economy during
normal driving (using the gasoline engine and electric motor [traction motor]).
Driving in EV drive mode more than necessary may lower fuel economy.
CAUTION
Caution while driving
When driving in EV drive mode, pay special attention to the area around the
vehicle. Because there is no engine noise, pedestrians, people riding bicy-
cles or other people and vehicles in the area may not be aware of the vehi-
cle starting off or approaching them, so take extra care while driving.

2844-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
Vehicles without a smart entry & start system:
While the engine switch is in the “ON” position, depress the
brake pedal and move the shift lever.
Vehicles with a smart entry & start system:
While the engine switch is in IGNITION ON mode, depress
the brake pedal and move the shift lever.
When shifting the shift lever between P and D, make sure that the vehi-
cle is completely stopped.
Multidrive
: If equipped
Shifting the shift lever

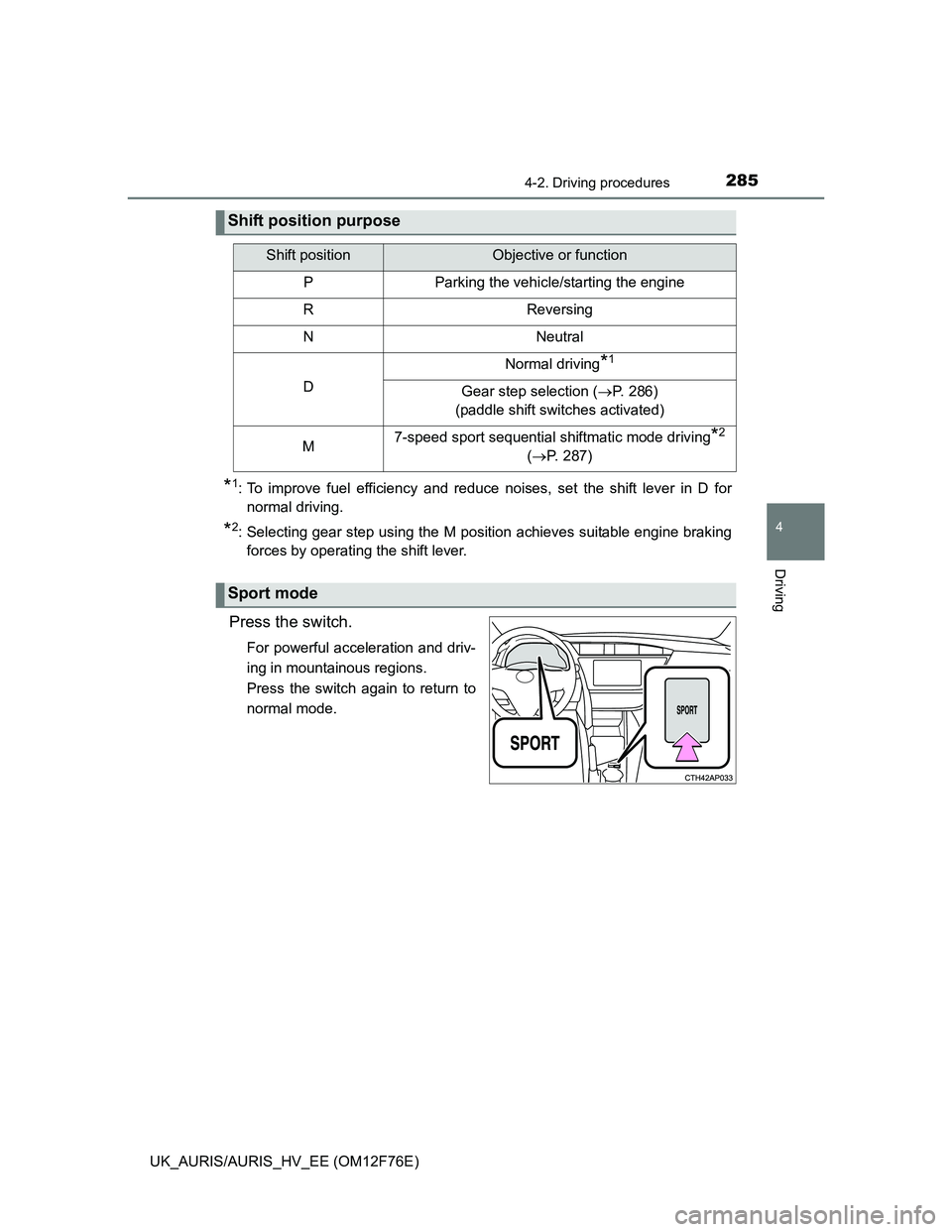

2854-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
*1: To improve fuel efficiency and reduce noises, set the shift lever in D for
normal driving.
*2: Selecting gear step using the M position achieves suitable engine braking
forces by operating the shift lever.
Press the switch.
For powerful acceleration and driv-
ing in mountainous regions.
Press the switch again to return to
normal mode.
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral
D
Normal driving*1
Gear step selection (P. 286)
(paddle shift switches activated)
M7-speed sport sequential shiftmatic mode driving*2
(P. 287)
Sport mode

2864-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
To drive in temporary gear steps selection mode, operate the “-” and
“+” paddle shift switches. The gear steps can then be selected by
operating the “-” and “+” paddle shift switches. By selecting gear step
using paddle shift switches, you can control engine braking forces.
Upshifting
Downshifting
The selected gear step, from D1 to
D7, will be displayed in the meter.
To return to normal D position driv-
ing, the “+” paddle shift switch must
be held down for a period of time.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
Temporarily engaged gear steps selection mode in the D posi-
tion (vehicles with a paddle shift switch)
*1*2
1
2

2874-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
To enter 7-speed sport sequential shiftmatic mode, shift the shift lever
to M. Gear steps can then be selected by operating the shift lever or
paddle shift switches (vehicles with a paddle shift switch), allowing
you to drive in the gear step of your choosing.
Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear step, from M1 to
M7, will be displayed in the meter.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
However, even when in the M position, the gear steps will be auto-
matically changed if the engine speed is too high, or too low.
Gear step functions
You can choose from 7 levels of engine braking force.
A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
If the 7-speed sport sequential shiftmatic mode indicator does not come
on even after shifting the shift lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately.
(In this situation, the transmission will operate in the same manner as when
the shift lever is in D.)
When the vehicle comes to a stop with the shift lever in the M position
The transmission will automatically downshift to M1 once the vehicle is
stopped.
After a stop, the vehicle will start off in M1.
When the vehicle is stopped, the transmission is set at M1.
Changing gear steps in the M position
*1*2
1
2

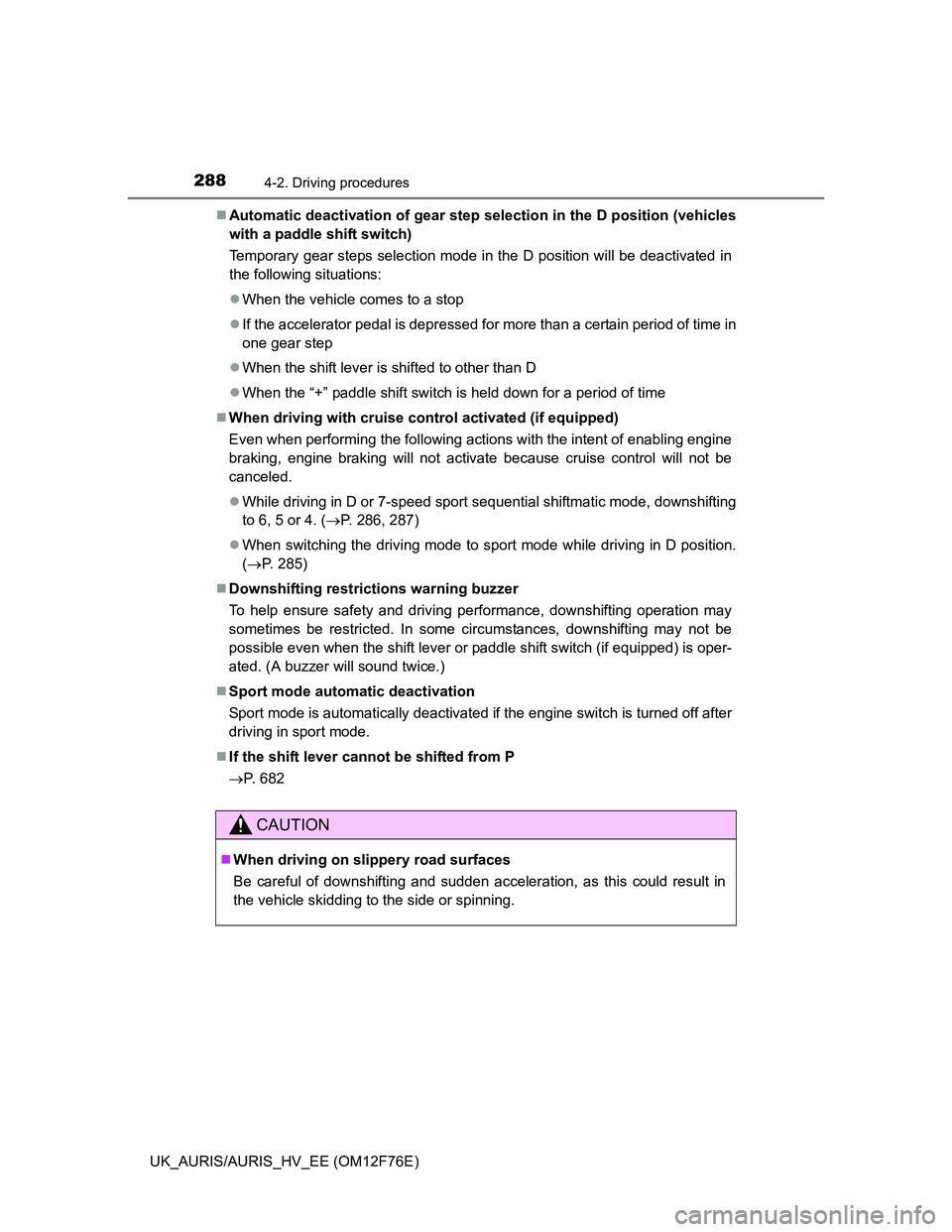

2884-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)Automatic deactivation of gear step selection in the D position (vehicles
with a paddle shift switch)
Temporary gear steps selection mode in the D position will be deactivated in
the following situations:
When the vehicle comes to a stop
If the accelerator pedal is depressed for more than a certain period of time in
one gear step
When the shift lever is shifted to other than D
When the “+” paddle shift switch is held down for a period of time
When driving with cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
While driving in D or 7-speed sport sequential shiftmatic mode, downshifting
to 6, 5 or 4. (P. 286, 287)
When switching the driving mode to sport mode while driving in D position.
(P. 285)
Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch (if equipped) is oper-
ated. (A buzzer will sound twice.)
Sport mode automatic deactivation
Sport mode is automatically deactivated if the engine switch is turned off after
driving in sport mode.
If the shift lever cannot be shifted from P
P. 682
CAUTION
When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in
the vehicle skidding to the side or spinning.

2894-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
Shifting the shift lever
Shift position uses
*1: The most appropriate gear position is automatically selected according to
operation of the accelerator pedal and vehicle speed.
*2: A gear position must be selected manually. However, the gear position
may automatically be changed down optimally according to vehicle speed.
Multi-mode Manual Transmission
: If equipped
Select a shift position appropriate for the driving conditions.
Shift positionFunction
RReversing
NNeutral or starting the engine
EEasy (E) mode driving*1
MManual (M) mode driving*2 (P. 290)

2914-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12F76E)
4
Driving
When the shift position is in E or Es, the paddle shift switches can be
used to select a gear position temporarily. When a gear position is
selected, the gear position will be displayed.
Upshifting
Downshifting
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
Gear Shift Indicator operates only
M mode.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
Changing gear positions in E or Es mode
*1*2
1
2
Gear Shift Indicator
*1*2
1
2
