2013 TOYOTA 4RUNNER fuse box

526
4-3. Do-it-yourself maintenance
4RUNNER_U
Engine compar tment
Washer fluid tank (P. 540)
Power steering fluid reservoir ( P. 535)
Engine oil level dipstick ( P. 528)
Engine coolant reservoir ( P. 531)
Engine oil filler cap ( P. 528)Brake fluid reservoir
( P. 533)
Fuse box ( P. 560)
Battery ( P. 537)
Condenser ( P. 532)
Radiator ( P. 532)
CTH43AS117

560
4-3. Do-it-yourself maintenance
4RUNNER_U

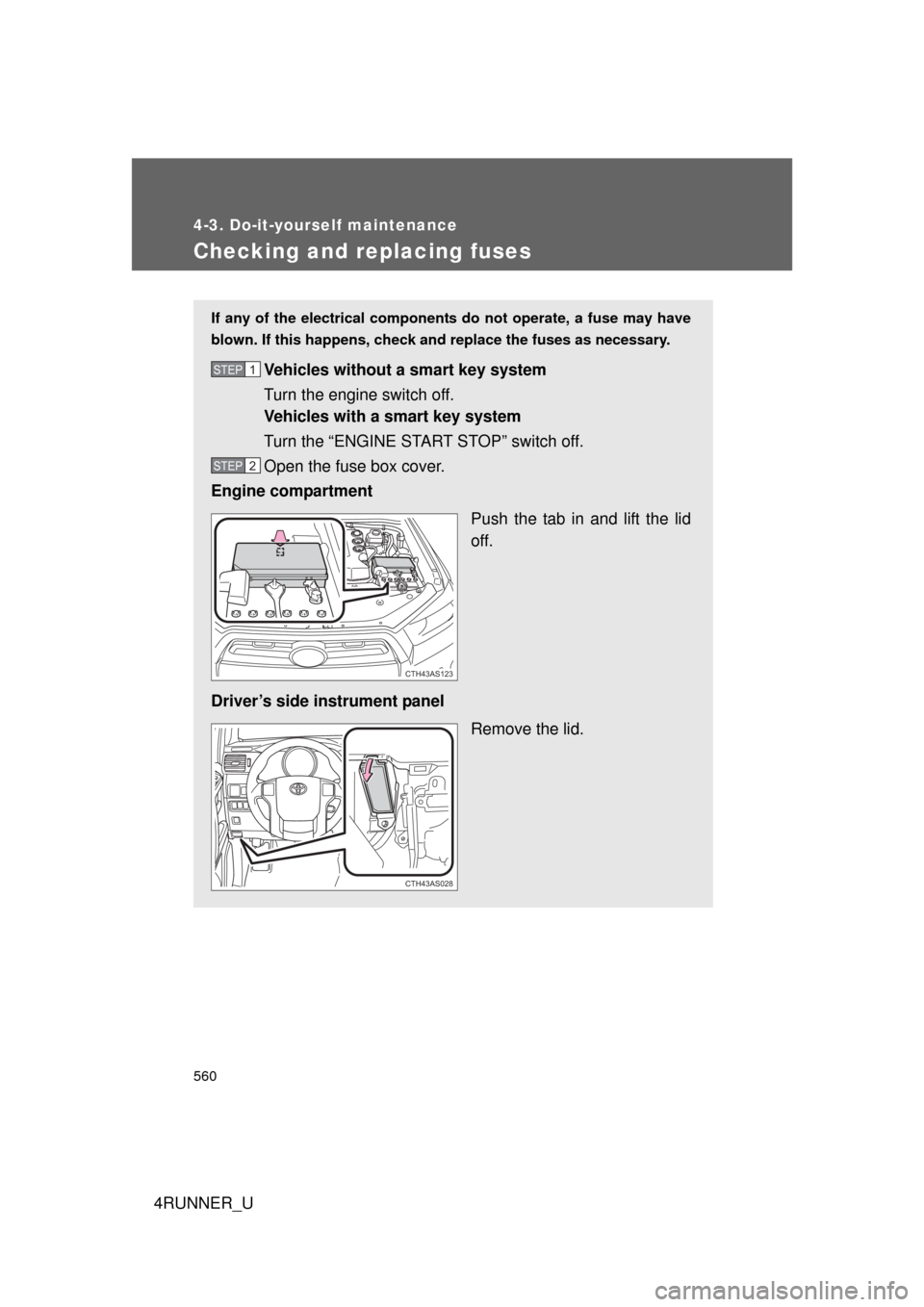

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without a smart key system
Turn the engine switch off.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP 1
STEP 2
CTH43AS123
CTH43AS028

561
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
After a system failure, see “Fuse layout and amperage rat-
ings” (
P. 564) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pull-out
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP 3
STEP 4
CTH43AS029
STEP 5
CTH43AS030
CTH43AS031

562 4-3. Do-it-yourself maintenance
4RUNNER_U
Ty p e CNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e DNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e ENormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
CTH43AS073
CTH43AS074
CTH43AS075

569
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■
After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 570)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

694 Alphabetical index
4RUNNER_U
FuelCapacity ................................640
Fuel gauge ............................ 186
Fuel pump shut off system ....590
Gas station information .........704
Information ............................ 649
Refueling ............................... 109
Type ......................................640
Fuel door...................................109
Fuel filler door .......................... 109
Fuel pump shut off system .................................... 590
Fuses......................................... 560
Garage door opener.................492
Gas station information...........704
Gauges ......................................186
Glove box.................................. 445
Grocery bag hooks .................. 489
Hands-free system (for cellular phone) ................407
Hazard lights
Switch.................................... 582
Head restraints Adjusting ................................. 83
Headlights Replacing light bulbs ............. 570
Switch.................................... 203
Wattage .................................648
Heaters Seat heaters .......................... 474
Side mirrors ...........................331
Hill-start assist control ............268
Hood .......................................... 525
Hooks Cargo hook............................ 486
Cargo net hooks .................... 487
Grocery bag hooks ................489
Horn...........................................185 I/M test ...................................... 521
Identification
Engine ................................... 639
Vehicle .................................. 639
Ignition switch.................. 170, 173
Illuminated entry system......... 443
Indicator lights ......................... 193
Initialization Items to initialize ................... 670
Inside rear view mirror .............. 94
Instrument panel light control .................................... 191
Interior lights Interior lights ......................... 441
Switch ................................... 442
Wattage................................. 648
Intuitive parking assist ............ 221
Jack Vehicle-equipped jack ........... 607
Jack handle .............................. 607
KDSS ......................................... 268
Keyless entry ............................. 49
Keys Electronic key.......................... 32
Engine switch ................ 170, 173
If the electronic key does not operate properly ........... 625
If you lose your keys ............. 623
Ignition switch ............... 170, 173
Key number............................. 32
Keyless entry .......................... 49
Keys ........................................ 32
Mechanical key ....................... 32
Wireless remote control key.... 49
G
H
I
J
K
