2013 TOYOTA 4RUNNER Owners Manual

577
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■
Stop/tail and rear side ma rker light and back-up light
Open the back door and remove
the cover.
Using a flathead screwdriver or
equivalent which is wrapped with
a cloth.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Back-up light
Remove the light bulb. Stop/tail and rear side marker
light
Back-up light
CTH43AS042
STEP 1
CTH43AS043
STEP 2
CTH43AS044
STEP 3

578 4-3. Do-it-yourself maintenance
4RUNNER_U■
Rear turn signal light
Open the back door and remove
the cover.
Using a flathead screwdriver or
equivalent which is wrapped with
a cloth.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
CTH43AS042
STEP 1
CTH43AS045
STEP 2
CTH43AS046
STEP 3

579
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■
License plate light
Remove the screws and lens.
Remove the light bulb.
■ Lights other than the above
If any of the lights listed below has burnt out, have your Toyota
dealer replace it.
●Side turn signal lights (if equipped)
● High mounted stoplight
● Outer foot lights (if equipped)
CTH43AS103
STEP 1
CTH43AS048
STEP 2

580 4-3. Do-it-yourself maintenance
4RUNNER_U
■LED light bulbs
The side turn signal lights and high mounted stoplight consist of a number of
LEDs. If any LEDs burn out, take your v ehicle to your Toyota dealer to have
the light replaced.
■ Condensation build-up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

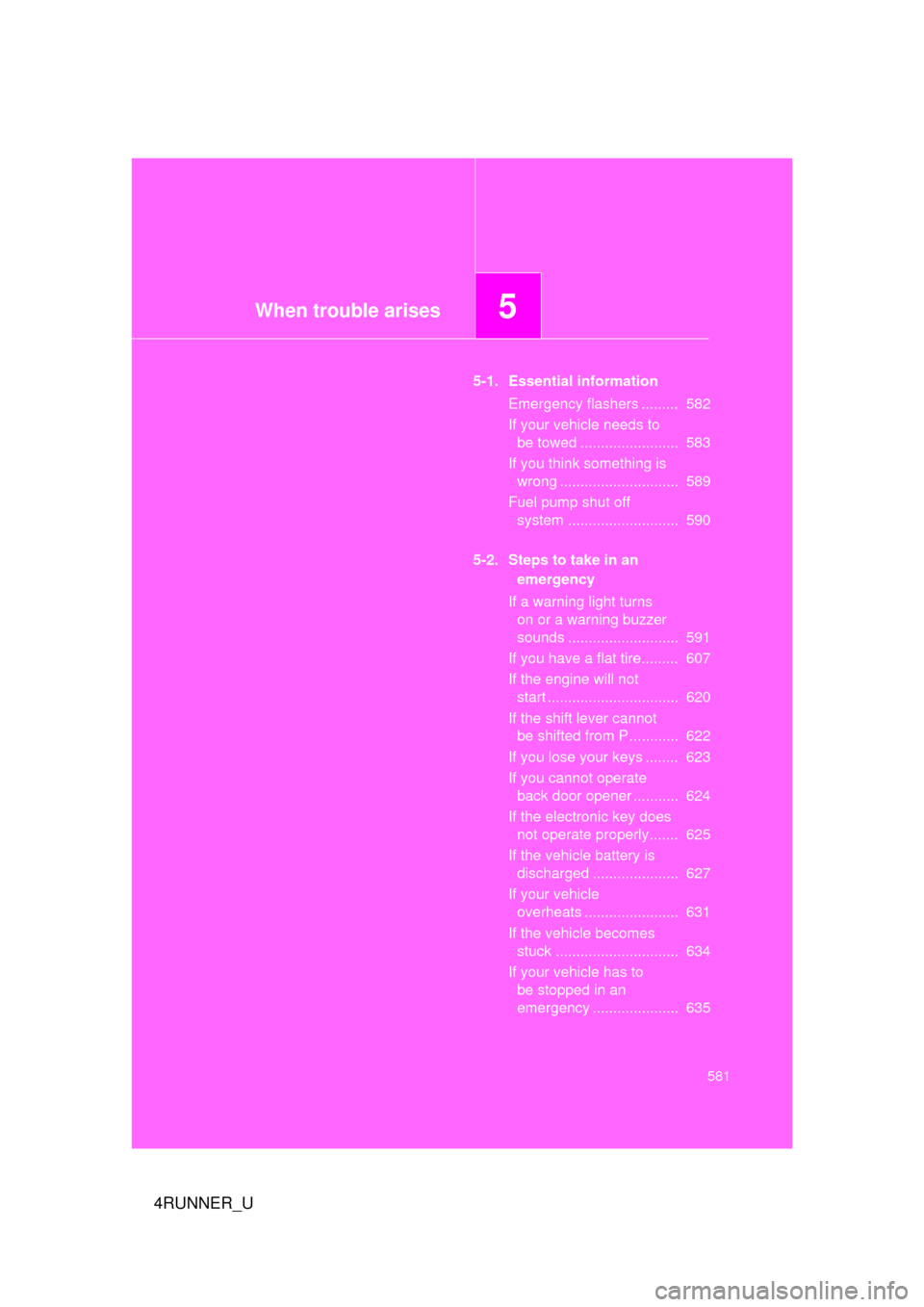

When trouble arises5
581
4RUNNER_U
5-1. Essential informationEmergency flashers ......... 582
If your vehicle needs to be towed ........................ 583
If you think something is wrong ............................. 589
Fuel pump shut off system ........................... 590
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds ........................... 591
If you have a flat tire......... 607
If the engine will not start ................................ 620
If the shift lever cannot be shifted from P ............ 622
If you lose your keys ........ 623
If you cannot operate back door opener ........... 624
If the electronic key does not operate properly....... 625
If the vehicle battery is discharged ..................... 627
If your vehicle overheats ....................... 631
If the vehicle becomes stuck .............................. 634
If your vehicle has to be stopped in an
emergency ..................... 635

582
4RUNNER_U
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if th e vehicle malfunctions or is
involved in an accident.
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
CTH51AS005

5
When trouble arises
583
5-1. Essential information
4RUNNER_U
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet(s).
This should only be attempted
on hard surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
If towing is necessary, we recommend having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift-type
truck or flatbed truck.
Use a safety chain system for all to wing, and abide by all state/pro-
vincial and local laws.
CTH51AS010

584 5-1. Essential information
4RUNNER_UVehicles with a front spoiler only:
Before using the front emer-
gency towing eyelet(s), remove
the cover(s).
Removing the clips
Installing the clips
Towing with a sling-type truck Do not tow with a sling-type truck
to prevent body damage.
CTH51AS007
CTH51AS008
