2013 TOYOTA 4RUNNER Owners Manual

561
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
After a system failure, see “Fuse layout and amperage rat-
ings” (
P. 564) for details about which fuse to check.
Remove the fuse.
Only type A fuse can be
removed using the pull-out
tool.
Check if the fuse is blown.
Ty p e A
Normal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
STEP 3
STEP 4
CTH43AS029
STEP 5
CTH43AS030
CTH43AS031

562 4-3. Do-it-yourself maintenance
4RUNNER_U
Ty p e CNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e DNormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
Ty p e ENormal fuse
Blown fuse
Replace the blown fuse with a
new fuse of an appropriate
amperage rating. The amper-
age rating can be found on the
fuse box lid.
CTH43AS073
CTH43AS074
CTH43AS075

563
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U

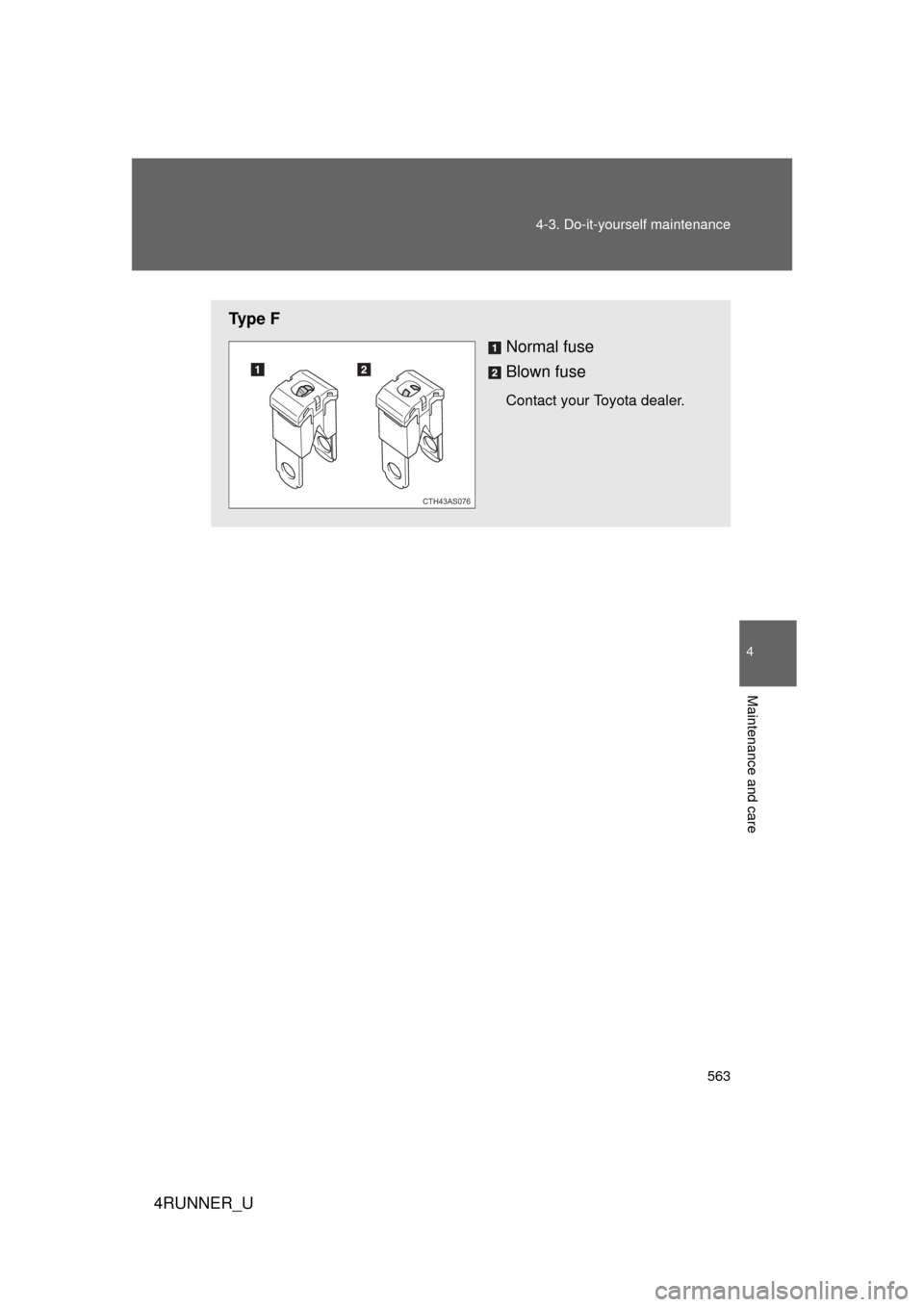

Ty p e F
Normal fuse
Blown fuse
Contact your Toyota dealer.
CTH43AS076

564 4-3. Do-it-yourself maintenance
4RUNNER_U
Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1PTC HTR NO.330 A
PTC heater
2DEF30 ARear window defogger
3DEICER 20 A
Windshield wiper de-icer
4AIR PMP HTR10 AAir pump heater, AI combina-
tion valve
5PTC HTR NO.230 A
PTC heater
6SUB BATT30 ATrailer sub battery
7PTC HTR NO.150 A
PTC heater
8MIR HTR10 AOutside rear view mirror defog-
gers
9TOWING TAIL30 A
Trailer tail light
10A/C COMP10 AAir conditioning system
11STOP10 A
Stop/tail lights
12IG220 AINJ, IGN, GAUGE fuses
13HORN10 AHorn(s)
14EFI 25 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
CTH43AS146

565
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
15A/F20 A
A/F sensor
16H-LP RH-HI10 ARight-hand headlight (high
beam)
17H-LP LH-HI10 ALeft-hand headlight (high
beam)
18HTR50 A
Air conditioning system
19400W INV 80 APower outlets
20ST30 A
Starter system
21H-LP HI20 AH-LP RH-HI, H-LP LH-HI fuses
22ALT-S7.5 A Charging system
23TURN&HAZ15 ATurn signal lights, emergency
flashers
24ETCS10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
25PRB30 A
Automatic running boards sys-
tem
26TOWING30 A
Trailer stop/turn lights
27SHORT PIN 
No circuit
28RAD NO.1 10 A Audio system
29AM27.5 A Starter system
30MAYDAY 7.5 A
MAYDAY
31AMP30 AAudio system
32ABS NO.150 AABS, VSC
33ABS NO.230 A
ABS, VSC
34AIR PMP50 AAIR PMP MTR
35DOME10 AInterior lights, vanity lights
36ECU-B10 AMultiplex communication sys-
tem, meter and gauge
37H-LP RH-LO10 ARight-hand headlight (low
beam)
38H-LP LH-LO10 A
Left-hand headlight (low beam)
39INJ10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
FuseAmpereCircuit

566 4-3. Do-it-yourself maintenance
4RUNNER_U*: Replace the fuse with one of th
e same ampere rating as the origi-
nal
40EFI NO.27.5 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system
41ALT140 A* HTR, 400W INV, A/C COMP,
TOWING TAIL, SUB BATT,
MIR HTR, DEF, DEICER,
STOP, PTC HTR NO.1, PTC
HTR NO.2, PTC HTR NO.3,
S/HTR FR, ACC, P/OUTLET,
IG1, ECU-IG NO.1, ECU-IG
NO.2, WIP, WASHER, KDSS,
4WD, BKUP LP, TOWING
BKUP, DOOR P, DOOR RL,
DOOR RR, DOOR D, P/SEAT
FL, P/SEAT FR, DOOR, A/C,
OBD, DOOR BACK, S/ROOF,
PANEL, TAIL, FOG FR, D/L
NO.2 fuses, AIR PMP HTR
42SPARE10 A

43SPARE15 A
44SPARE20 A
45P/I-B80 A
IG2, EFI, A/F, HORN fuses
46SECURITY10 AMultiport fuel injection system/
sequential multiport fuel injec-
tion system
47SMART 7.5 A
Smart key system
48STRG LOCK 20 ASteering lock system
49TOWING BRK30 A
Trailer brake controller
FuseAmpereCircuit

567
4-3. Do-it-yourself maintenance
4
Maintenance and care
4RUNNER_U
■

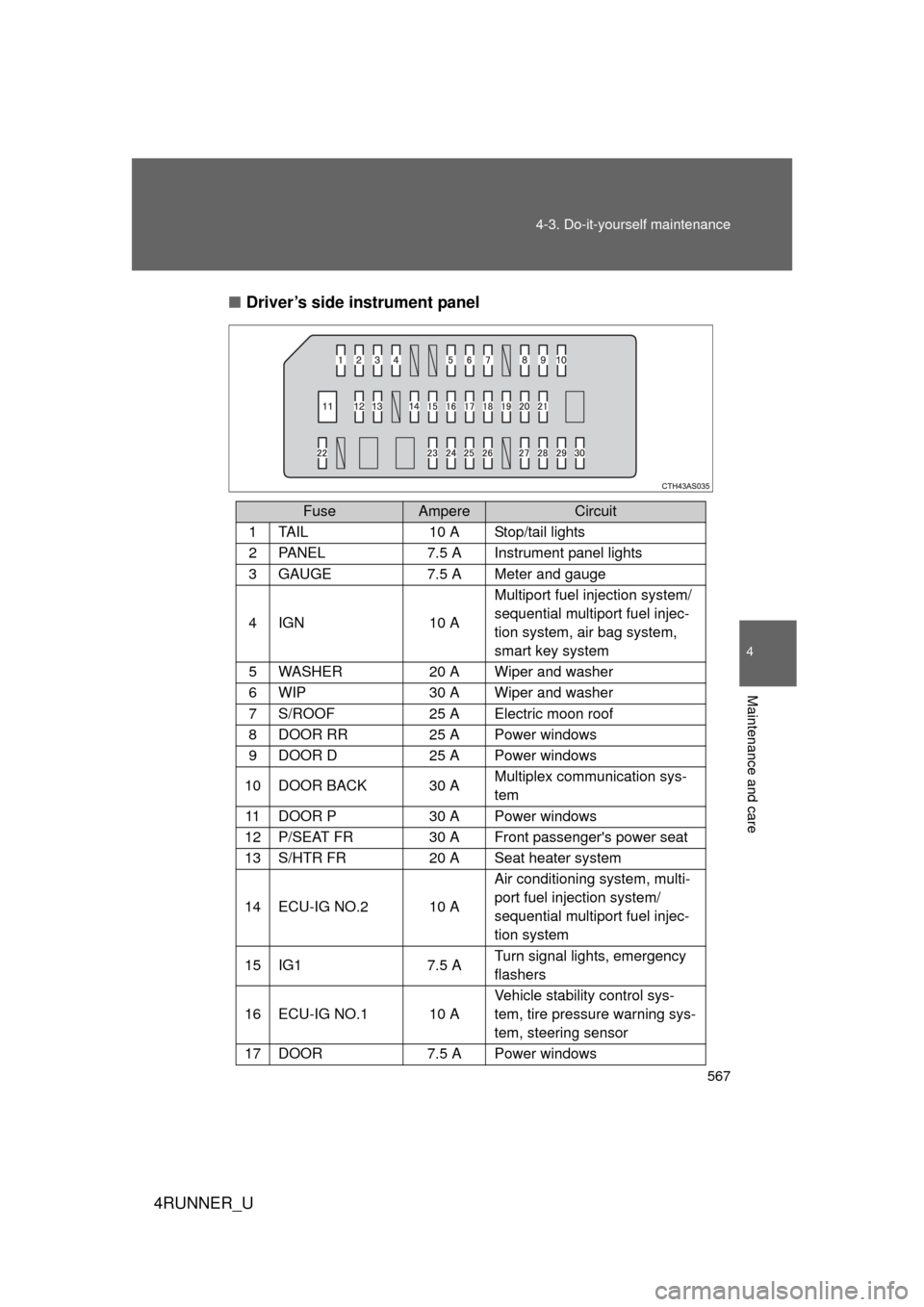

Driver’s side instrument panel
FuseAmpereCircuit
1TA I L10 A Stop/tail lights
2PA N E L7.5 A Instrument panel lights
3GAUGE7.5 A Meter and gauge
4IGN10 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system, air bag system,
smart key system
5WASHER20 A Wiper and washer
6WIP30 A Wiper and washer
7S/ROOF 25 A Electric moon roof
8DOOR RR25 A Power windows
9DOOR D25 A Power windows
10DOOR BACK30 A
Multiplex communication sys-
tem
11DOOR P30 A Power windows
12P/SEAT FR 30 A Front passenger's power seat
13S/HTR FR 20 A Seat heater system
14ECU-IG NO.210 AAir conditioning system, multi-
port fuel injection system/
sequential multiport fuel injec-
tion system
15IG17.5 A
Turn signal lights, emergency
flashers
16ECU-IG NO.110 AVehicle stability control sys-
tem, tire pressure warning sys-
tem, steering sensor
17DOOR7.5 A Power windows

568 4-3. Do-it-yourself maintenance
4RUNNER_U

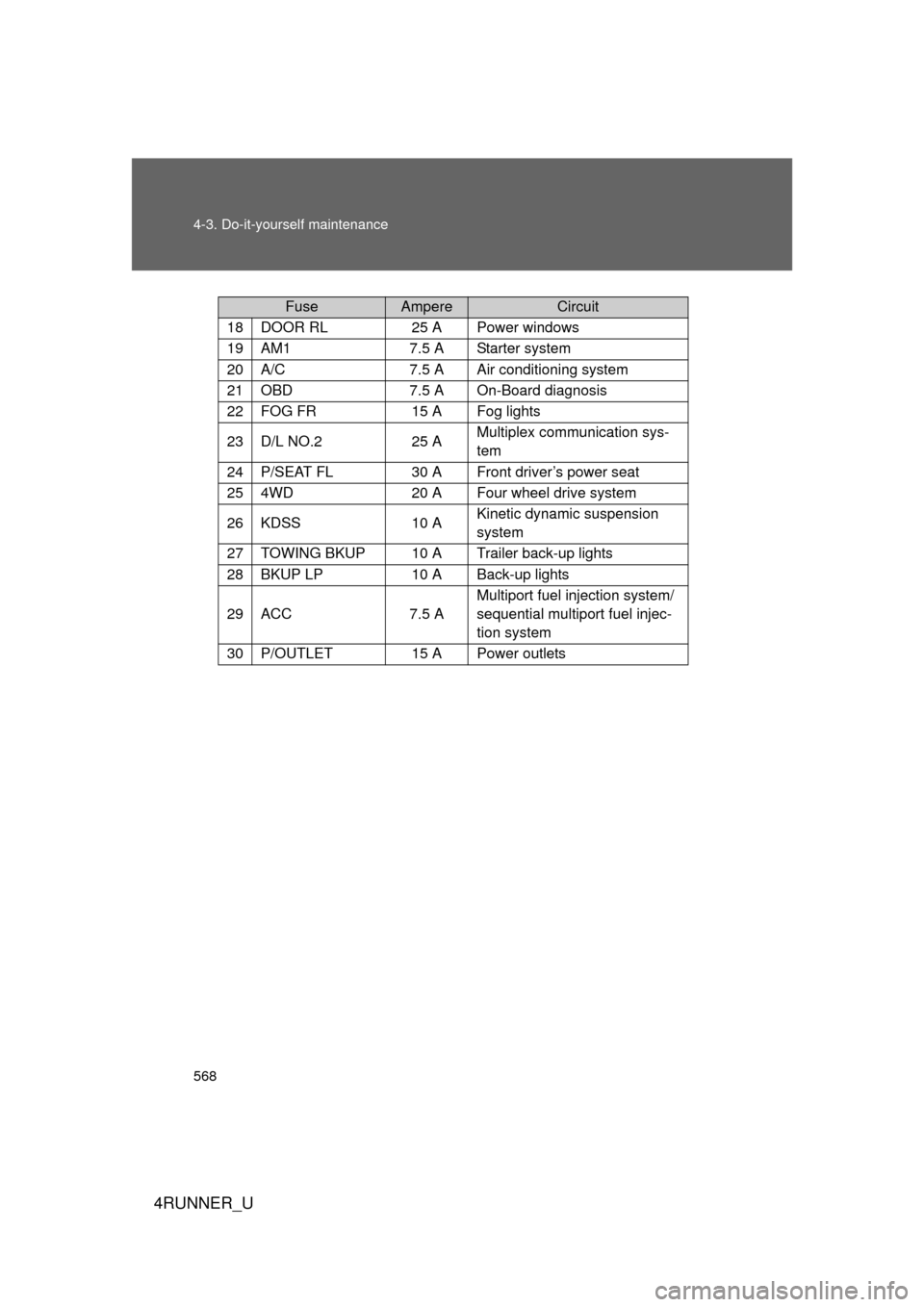

18DOOR RL25 A Power windows
19AM17.5 A Starter system
20A/C7.5 A Air conditioning system
21OBD7.5 A On-Board diagnosis
22FOG FR 15 A Fog lights
23D/L NO.225 AMultiplex communication sys-
tem
24P/SEAT FL30 A Front driver’s power seat
254WD 20 A Four wheel drive system
26KDSS 10 AKinetic dynamic suspension
system
27TOWING BKUP10 A Trailer back-up lights
28BKUP LP10 A Back-up lights
29ACC7.5 A Multiport fuel injection system/
sequential multiport fuel injec-
tion system
30P/OUTLET15 A Power outlets
FuseAmpereCircuit
