FOREWORDThis manual should be considered a per-
manent part of the vehicle and should
remain with the vehicle when resold or oth-
erwise transferred to a new owner or oper-
ator. Please read this manual carefully
before operating your new SUZUKI and
review the manual from time to time. It con-
tains important information on safety, oper-
ation and maintenance.
All information in this manual is based
on the latest product information avail-
able at the time of publication. Due to
improvements or other changes, there
may be discrepancies between informa-
tion in this manual and your vehicle.
SUZUKI MOTOR CORPORATION
reserves the right to make production
changes at any time, without notice and
without incurring any obligation to
make the same or similar changes to
vehicles previously built or sold.
This vehicle may not comply with stan-
dards or regulations of other countries.
Before attempting to register this vehi-
cle in any other country, check all appli-
cable regulations and make anynecessary modifications.
IMPORTANT
WARNING/CAUTION/NOTICE/
NOTE
Please read this manual and follow its
instructions carefully. To emphasize spe-
cial information, the symbol and the
words WARNING, CAUTION, NOTICE
and NOTE have special meanings. Pay
particular attention to messages high-
lighted by these signal words:
NOTE:
Indicates special infor mation to make
maintenance easier or instructions clearer.
WARNING
Indicates a potential hazard that
could result in death or serious
injury.
CAUTION
Indicates a potential hazard that
could result in minor or moderate
injury.
NOTICE
Indicates a potential hazard that
could result in vehicle damage.

Downloaded from www.Manualslib.com manuals search engine ILLUSTRATED TABLE OF CONTENTS
60MK0-14E
EXTERIOR1. Rear Window Wiper (if equipped)
(P.2-55)
2. High-mount Stop Light (P.7-30)
3. Radio Antenna (P.5-6)
4. Engine Hood (P.5-38)
5. Headlight (P.2-50, 7-27)
6. Windshield Wiper (P.2-53)
7. Fuel Filler Cap (P.5-37)
8. License Plate Light (P.7-30)
9. Tailgate (P.2-4)
10. Rear Combination Light (P.7-30)
11. Front Fog Light (if equipped)
(P.2-52, 7-29)
12. Outside Rearview Mirror (P.2-13)
13. Door Locks (P.2-2)
60MH003
12
456 3
7
89
10
11
12
13EXAMPLE

Downloaded from www.Manualslib.com manuals search engine ILLUSTRATED TABLE OF CONTENTS
60MK0-14E
INTERIOR1. Inside Rearview Mirror (P.2-13)
2. Interior Light (P.5-40, 7-27)
3. Sun Visor (P.5-39)4. Electric Mirrors Control Switch (P.2-13)/
Electric Window Controls (P.2-11)5. Overhead Rear Air Conditioning Sys-
tem (if equipped) (P.
5-3
)
6. Assist Grips (P.5-42)
7. Seat Belts (P.2-20)
8. Gearshift Lever (P.3-9)9. Front Seats (P.2-14)
10. Parking Brake Lever (P.3-5)
11. Rear Seats (P.2-16)
60MK039
13
4
2
2
6
7
8
9
11
11
10
7
5
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine ILLUSTRATED TABLE OF CONTENTS
60MK0-14E
INSTRUMENT PANEL1. Front Air Bags (if equipped) (P.2-31)
2. Audio (if equipped) (P.5-7)
3. Hazard Warning Switch (P.2-53)
4. Windshield Wiper and Washer Lever
(P.2-53)/Rear Window Wiper and
Washer Switch (if equipped) (P.2-55)
5. Instrument Cluster (P.2-36)
6. Lighting Control Lever (P.2-50)/
Turn Signal Control Lever (P.2-52)
7. Glove Box (P.5-42)
8. Air Conditioning System (P.5-1)
9. Accessory Socket (P.5-41)
10. Universal Serial Bus (USB) Socket
(if equipped) (P.5-42)
11. Remote Audio Controls (if equipped)
(P.5-30)
12. Tilt Steering Lock Lever (P.2-55)
13. Ignition Switch (P.3-3)
14. Engine Hood Release Handle
(P.5-38)
15. Fuse Box (P.7-23)
16. Front Fog Light Switch (if equipped)
(P.2-52)
60MK024
1234516
789
10 12 13 14 15 16
11
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine BEFORE DRIVING
2
60MK0-14E
60G404
BEFORE DRIVINGKeys ...................................................................................... 2-1
Door Locks .......................................................................... 2-2
Keyless Entry System Transmitter (if equipped) ............. 2-5
Theft Deterrent Alarm System (if equipped) ..................... 2-7
Windows .............................................................................. 2-11
Mirrors .................................................................................. 2-13
Front Seats .......................................................................... 2-14
Rear Seats ............................................................................ 2-16
Seat Belts and Child Restraint Systems ........................... 2-20
Supplemental Restraint System
(air bags) (if equipped) ....................................................... 2-30
Instrument Cluster .............................................................. 2-36
Warning and Indicator Lights ............................................ 2-38
Speedometer ....................................................................... 2-43
Tachometer (if equipped) ................................................... 2-43
Fuel Gauge ........................................................................... 2-44
Temperature Gauge ............................................................ 2-44
Brightness Control .............................................................. 2-45
Information Display ............................................................. 2-46
Lighting Control Lever ........................................................ 2-50
Front Fog Light Switch (if equipped) ................................ 2-52
Turn Signal Control Lever .................................................. 2-52
Hazard Warning Switch ...................................................... 2-53
Windshield Wiper and Washer Lever ................................ 2-53
Tilt Steering Lock Lever ..................................................... 2-55
Horn ...................................................................................... 2-56

Downloaded from www.Manualslib.com manuals search engine 2-1BEFORE DRIVING
60MK0-14E
Keys
54G489
Your vehicle comes with a pair of identical
keys. Keep the spare key in a safe place.
One key can open all of the locks on the
vehicle.
The key identification number is stamped
on a metal tag provided with the keys or on
the keys. Keep the tag (if equipped) in a
safe place. If you lose your keys, you will
need this number to have new keys made.
Write the number below for your future ref-
erence.
Immobilizer System This system is designed to help prevent
vehicle theft by electronically disabling the
engine starting system.
The engine can be started only with your
vehicle’s original immobilizer ignition key
which has an electronic identification code
programmed into it. The key communi-
cates the identification code to the vehicle
when the ignition switch is turned to the
“ON” position. If you need to make spare
keys, see your SUZUKI dealer. The vehicle
must be programmed with the correct iden-
tification code for the spare keys. A key
made by an ordinary locksmith will not
work.
80JM122
If the immobilizer system light blinks when
the ignition switch is in the “ON” position,
the engine will not start.
NOTE:
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to the
“ON” position.
If the light still blinks with the ignition switch
turned to the “ON” position, there may be
something wrong with your key or with theimmobilizer system. Ask your SUZUKI
dealer to inspect the system.
NOTE:
 If you lose your immobilizer ignition key,
see your SUZUKI dealer as soon as pos-
sible to have the lost one deactivated,
then have the new key made by them.
 If you own other vehicles with immobi-
lizer keys, keep those keys away from
the ignition switch when using your
SUZUKI, or the engine may not be
started because they may interfere with
your SUZUKI’s immobilizer system.
 If you attach any metal objects to the
immobilizer key, it may not start the
engine.
KEY NUMBER:
EXAMPLE
NOTICE
The immobilizer key is a sensitive
electronic instrument. To avoid dam-
aging the immobilizer key:
 Do not expose it to impacts, mois-
ture or high temperature such as
on the dashboard under direct sun-
light.
 Keep the immobilizer key away
from magnetic objects.

Downloaded from www.Manualslib.com manuals search engine 2-5BEFORE DRIVING
60MK0-14E
Ty p e 2
60MH009
To open the tailgate, insert the key and
turn it clockwise to unlatch and lift the tail-
gate.
60MH077
You can also unlatch the tailgate by pulling
the release lever located on the outboard
side of the driver’s seat.
Keyless Entry System
Transmitter (if equipped)
81A184
(1) “LOCK” button
(2) “UNLOCK” button
You can lock or unlock all doors (including
the tailgate) simultaneously by operating
the transmitter near the vehicle.
 To lock the doors, push the “LOCK” but-
ton (1) once.
 To unlock only the driver’s door, push the
“UNLOCK” button (2) once.
 To unlock other doors, push the
“UNLOCK” button (2) once again.
The turn signal lights will flash once when
the doors are locked.
NOTICE
Do not use the key to lift up the tail-
gate, or the key may break off in the
lock.
(1)
(2)

Downloaded from www.Manualslib.com manuals search engine 2-6
BEFORE DRIVING
60MK0-14E
When the doors are unlocked:
 The turn signal lights will flash twice.
 If the interior light switch is in the
“DOOR” position, the interior light will
turn on for about 15 seconds and then
fade out. If you insert the key into the
ignition switch during this time, the light
will start to fade out immediately.
Be sure the doors are locked after you
operate the “LOCK” button (1).
NOTE:
If no door is opened within about 30 sec-
onds after the “UNLOCK” button (2) is
operated, the doors will automatically lock
again.
NOTE:
 The maximum operating distance of the
keyless entry system transmitter is about
5 m (16 ft.), but this can vary depending
on the surroundings, especially near
other transmitting devices such as radio
towers or CB (Citizen’s Band) radios.
 The door locks cannot be operated with
the transmitter, if the ignition key is
inserted in the ignition switch.
 When any door is open, the door locks
can be operated only unlock with the
transmitter, and the turn signal light will
not flash.
 If you lose one of the transmitters, ask
your SUZUKI dealer as soon as possible
for a replacement. Be sure to have your
dealer program the new transmitter codein your vehicle’s memory so that the old
code is erased.

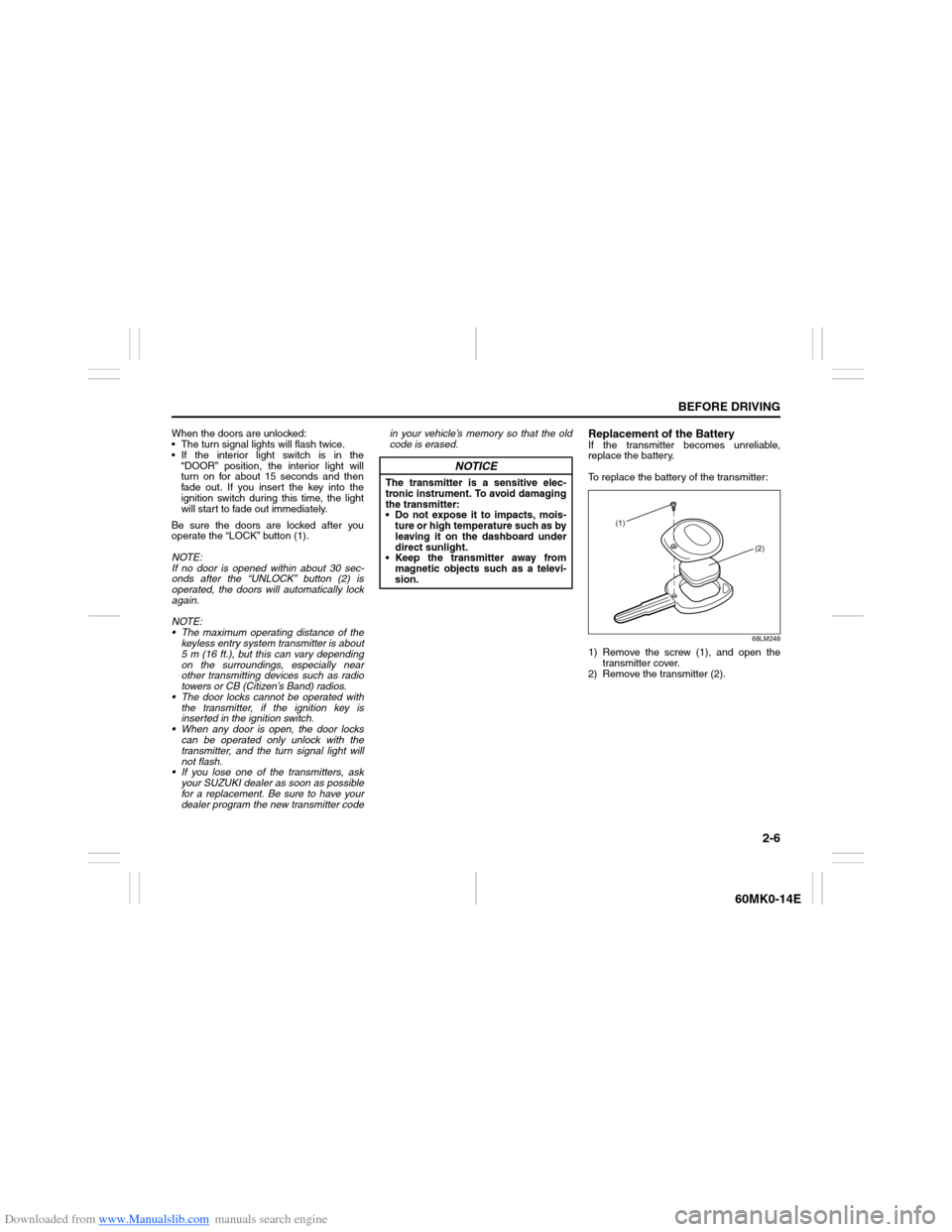

Replacement of the BatteryIf the transmitter becomes unreliable,
replace the battery.
To replace the battery of the transmitter:
68LM248
1) Remove the screw (1), and open the
transmitter cover.
2) Remove the transmitter (2).
NOTICE
The transmitter is a sensitive elec-
tronic instrument. To avoid damaging
the transmitter:
 Do not expose it to impacts, mois-
ture or high temperature such as by
leaving it on the dashboard under
direct sunlight.
 Keep the transmitter away from
magnetic objects such as a televi-
sion.
(1)
(2)
