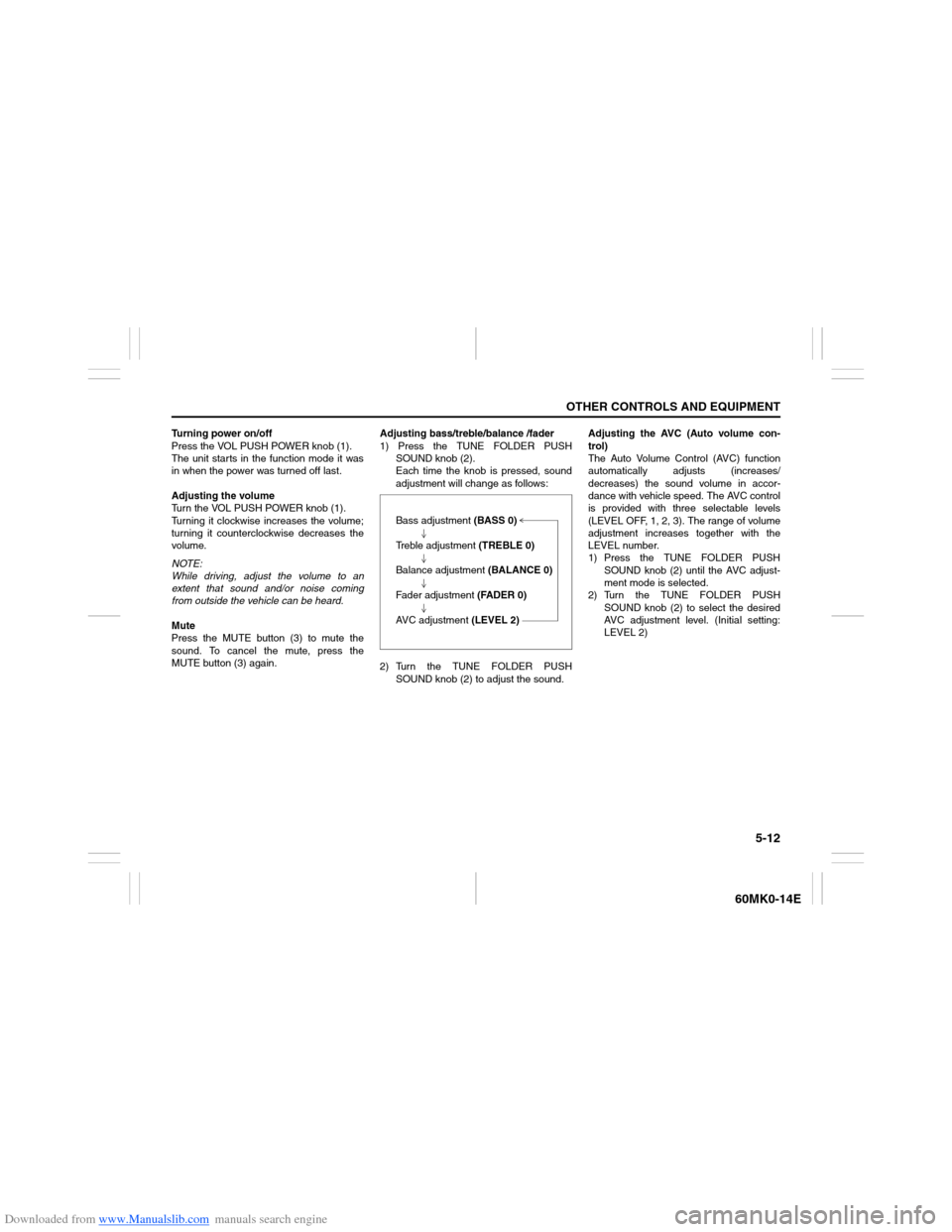

OTHER CONTROLS AND EQUIPMENT
60MK0-14E
Turning power on/off
Press the VOL PUSH POWER knob (1).
The unit starts in the function mode it was
in when the power was turned off last.
Adjusting the volume
Turn the VOL PUSH POWER knob (1).
Turning it clockwise increases the volume;
turning it counterclockwise decreases the
volume.
NOTE:
While driving, adjust the volume to an
extent that sound and/or noise coming
from outside the vehicle can be heard.
Mute
Press the MUTE button (3) to mute the
sound. To cancel the mute, press the
MUTE button (3) again.Adjusting bass/treble/balance /fader
1) Press the TUNE FOLDER PUSH
SOUND knob (2).
Each time the knob is pressed, sound
adjustment will change as follows:
2) Turn the TUNE FOLDER PUSH
SOUND knob (2) to adjust the sound.Adjusting the AVC (Auto volume con-
trol)
The Auto Volume Control (AVC) function
automatically adjusts (increases/
decreases) the sound volume in accor-
dance with vehicle speed. The AVC control
is provided with three selectable levels
(LEVEL OFF, 1, 2, 3). The range of volume
adjustment increases together with the
LEVEL number.
1) Press the TUNE FOLDER PUSH
SOUND knob (2) until the AVC adjust-
ment mode is selected.
2) Turn the TUNE FOLDER PUSH
SOUND knob (2) to select the desired
AVC adjustment level. (Initial setting:
LEVEL 2) Bass adjustment (BASS 0)
Treble adjustment (TREBLE 0)
Balance adjustment (BALANCE 0)
Fader adjustment (FADER 0)
AVC adjustment (LEVEL 2)

Downloaded from www.Manualslib.com manuals search engine 12-1
INDEX
12
60MK0-14E
INDEXSymbols“AIR BAG” Light .................................................................. 2-40Numerics4-Speed Automatic Transaxle ............................................ 3-10AAccelerator Pedal .................................................................. 3-7
Accessory Socket ................................................................ 5-41
Adding Coolant .................................................................... 7-12
Adjusting Seat Position ...................................................... 2-14
Adjusting Seat Position (for 2nd row seats) ..................... 2-16
Adjusting Seatbacks .................................................. 2-15, 2-16
Air Cleaner............................................................................ 7-13
Air Conditioning System .............................................. 5-1, 7-35
All Seat Belts Except Center of 2nd Row Seat.................. 2-23
Anti-Lock Brake System (ABS) .......................................... 3-13
Anti-Lock Brake System (ABS) Warning Light ................. 2-39
Anti-Theft Feature ................................................................ 5-31
Armrest ................................................................................. 5-44
Assist Grips.......................................................................... 5-42
Audio System ......................................................................... 5-7
Automatic Transaxle ........................................................... 3-10
Automatic Transaxle (AT) Fluid.......................................... 7-16
Average fuel consumption......................................... 2-47, 2-49BBattery .................................................................................. 7-22
Bottle holder......................................................................... 5-43
Brake Assist System ........................................................... 3-13
Brake Fluid ........................................................................... 7-17
Brake Pedal ................................................................... 3-7, 7-18Brake System Warning Light .............................................. 2-38
Brakes ................................................................................... 7-17
Braking .................................................................................. 3-12
Brightness Control............................................................... 2-45
Bulb Replacement ................................................................ 7-26
CCatalytic Converter ................................................................ 4-1
CD Player .............................................................................. 5-15
Center Seat Belt of 2nd Row Seat ...................................... 2-24
Central Door Locking System ............................................... 2-3
Changing Engine Oil and Filter............................................. 7-9
Changing Wheels ................................................................... 8-5
Charging Light...................................................................... 2-40
Chassis Serial Number ........................................................ 10-1
Child Restraint Systems ...................................................... 2-27
Child-Proof Locks (rear door) ............................................... 2-3
Clock ..................................................................................... 2-50
Clutch Pedal .................................................................. 3-7, 7-16
Coolant Level Check ............................................................ 7-12
Coolant Replacement .......................................................... 7-12
Corrosion Prevention ............................................................ 9-1
Cup Holder and Storage Area ............................................. 5-43DDaily Inspection Checklist..................................................... 3-1
Door Locks ............................................................................. 2-2
Downshifting maximum allowable speeds .......................... 3-9
Drive Belt ................................................................................ 7-7
Driver’s Seat Belt Reminder ................................................ 2-25
Driver’s Seat Belt Reminder Light ...................................... 2-40
Driving on Hills ....................................................................... 4-3
Driving on Slippery Roads .................................................... 4-4
