TABLE OF CONTENTS
FUEL RECOMMENDATION
1
BEFORE DRIVING
2

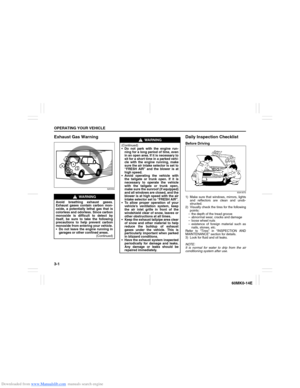

OPERATING YOUR VEHICLE
3
DRIVING TIPS
4

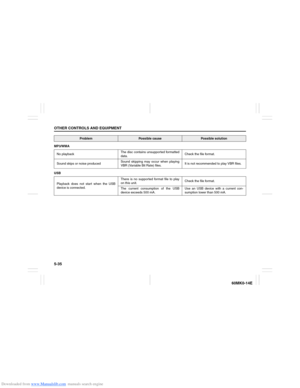

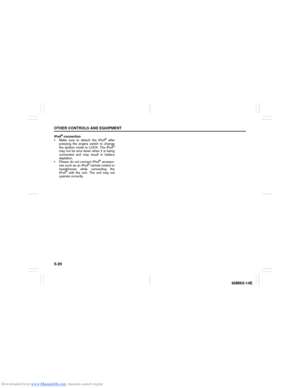

OTHER CONTROLS AND EQUIPMENT
5
VEHICLE LOADING AND TOWING
6

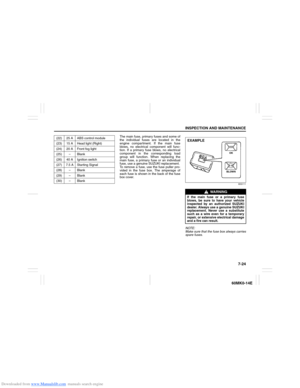

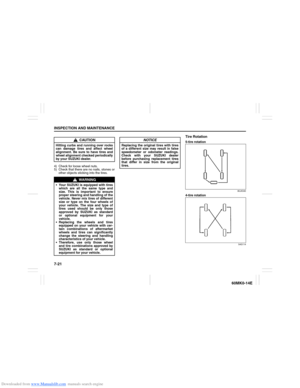

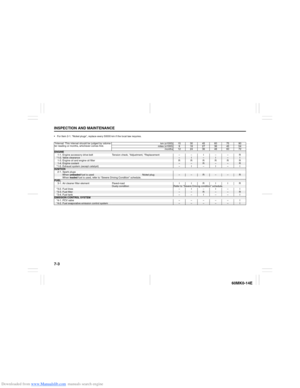

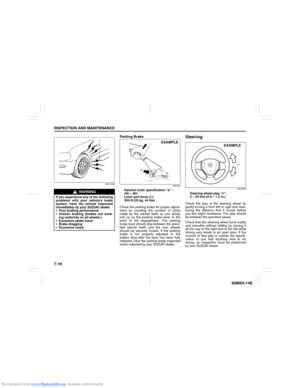

INSPECTION AND MAINTENANCE
7

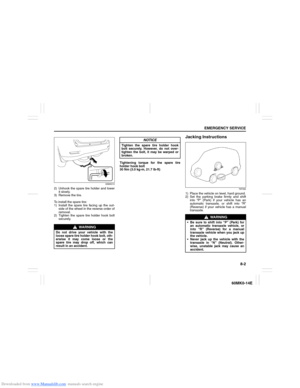

EMERGENCY SERVICE
8
APPEARANCE CARE
9

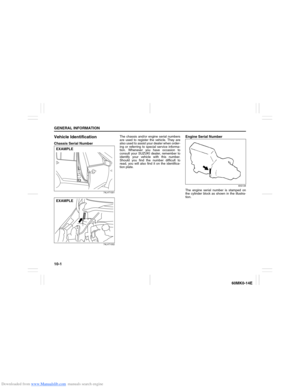

GENERAL INFORMATION
10

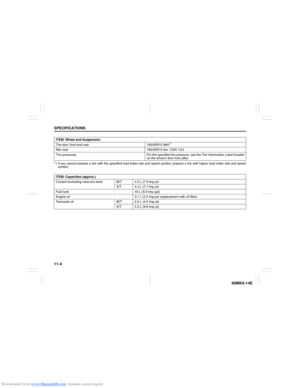

SPECIFICATIONS
11
INDEX
12

Downloaded from www.Manualslib.com manuals search engine ILLUSTRATED TABLE OF CONTENTS
60MK0-14E

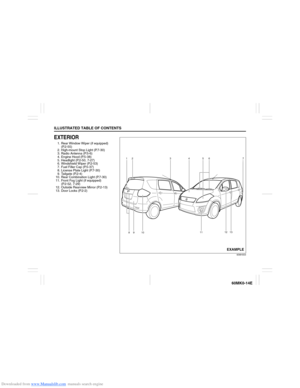

EXTERIOR1. Rear Window Wiper (if equipped)
(P.2-55)
2. High-mount Stop Light (P.7-30)
3. Radio Antenna (P.5-6)
4. Engine Hood (P.5-38)
5. Headlight (P.2-50, 7-27)
6. Windshield Wiper (P.2-53)
7. Fuel Filler Cap (P.5-37)
8. License Plate Light (P.7-30)
9. Tailgate (P.2-4)
10. Rear Combination Light (P.7-30)
11. Front Fog Light (if equipped)
(P.2-52, 7-29)
12. Outside Rearview Mirror (P.2-13)
13. Door Locks (P.2-2)
60MH003
12
456 3
7
89
10
11
12
13EXAMPLE

Downloaded from www.Manualslib.com manuals search engine ILLUSTRATED TABLE OF CONTENTS
60MK0-14E

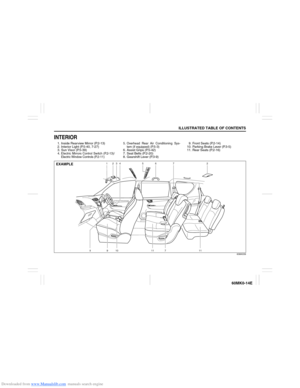

INTERIOR1. Inside Rearview Mirror (P.2-13)
2. Interior Light (P.5-40, 7-27)
3. Sun Visor (P.5-39)4. Electric Mirrors Control Switch (P.2-13)/
Electric Window Controls (P.2-11)5. Overhead Rear Air Conditioning Sys-
tem (if equipped) (P.
5-3
)
6. Assist Grips (P.5-42)
7. Seat Belts (P.2-20)
8. Gearshift Lever (P.3-9)9. Front Seats (P.2-14)
10. Parking Brake Lever (P.3-5)
11. Rear Seats (P.2-16)
60MK039
13
4
2
2
6
7
8
9
11
11
10
7
5
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine ILLUSTRATED TABLE OF CONTENTS
60MK0-14E

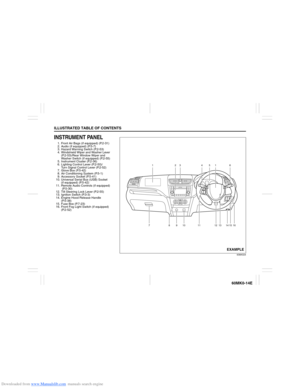

INSTRUMENT PANEL1. Front Air Bags (if equipped) (P.2-31)

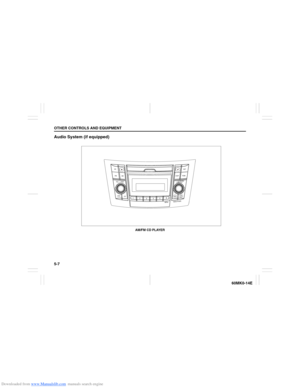

2. Audio (if equipped) (P.5-7)
3. Hazard Warning Switch (P.2-53)
4. Windshield Wiper and Washer Lever
(P.2-53)/Rear Window Wiper and
Washer Switch (if equipped) (P.2-55)
5. Instrument Cluster (P.2-36)
6. Lighting Control Lever (P.2-50)/
Turn Signal Control Lever (P.2-52)
7. Glove Box (P.5-42)
8. Air Conditioning System (P.5-1)
9. Accessory Socket (P.5-41)
10. Universal Serial Bus (USB) Socket
(if equipped) (P.5-42)
11. Remote Audio Controls (if equipped)
(P.5-30)
12. Tilt Steering Lock Lever (P.2-55)
13. Ignition Switch (P.3-3)
14. Engine Hood Release Handle
(P.5-38)
15. Fuse Box (P.7-23)
16. Front Fog Light Switch (if equipped)
(P.2-52)
60MK024
1234516
789
10 12 13 14 15 16
11
EXAMPLE

Downloaded from www.Manualslib.com manuals search engine FUEL RECOMMENDATION
1
60MK0-14E
65D394
FUEL RECOMMENDATIONFuel Recommendation ........................................................ 1-1

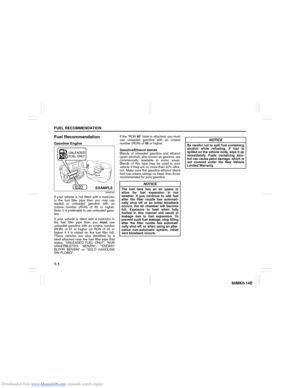

Downloaded from www.Manualslib.com manuals search engine 1-1FUEL RECOMMENDATION
60MK0-14E
Fuel RecommendationGasoline Engine
60MK040
If your vehicle is not fitted with a restrictor
in the fuel filler pipe then you may use
leaded or unleaded gasoline with an
octane number (RON) of 85 or higher.
Note, it is preferable to use unleaded gaso-
line.
If your vehicle is fitted with a restrictor in
the fuel filler pipe then you must use
unleaded gasoline with an octane number
(RON) of 91 or higher (or RON of 95 or
higher if it is stated on the fuel filler lid).
These vehicles are also identified by a
label attached near the fuel filler pipe that
states: “UNLEADED FUEL ONLY”, “NUR
UNVERBLEITES BENZIN”, “ENDAST
BLYFRI BENSIN” or “SOLO GASOLINA
SIN PLOMO”.If the “RON 95” label is attached, you must
use unleaded gasoline with an octane
number (RON) of 95 or higher.
Gasoline/Ethanol blends
Blends of unleaded gasoline and ethanol
(grain alcohol), also known as gasohol, are
commercially available in some areas.
Blends of this type may be used in your
vehicle if they are no more than 20% etha-
nol. Make sure the gasoline-ethanol blend
fuel has octane ratings no lower than those
recommended for pure gasoline.
EXAMPLE
NOTICE
The fuel tank has an air space to
allow for fuel expansion in hot
weather. If you continue to add fuel
after the filler nozzle has automati-
cally shut off or an initial blowback
occurs, the air chamber will become
full. Exposure to heat when fully
fuelled in this manner will result in
leakage due to fuel expansion. To
prevent such fuel leakage, stop filling
after the filler nozzle has automati-
cally shut off, or when using an alter-
native non-automatic system, initial
vent blowback occurs.
NOTICE
Be careful not to spill fuel containing
alcohol while refueling. If fuel is
spilled on the vehicle body, wipe it up
immediately. Fuels containing alco-
hol can cause paint damage, which is
not covered under the New Vehicle
Limited Warranty.

Downloaded from www.Manualslib.com manuals search engine BEFORE DRIVING
2
60MK0-14E
60G404
BEFORE DRIVINGKeys ...................................................................................... 2-1
Door Locks .......................................................................... 2-2
Keyless Entry System Transmitter (if equipped) ............. 2-5
Theft Deterrent Alarm System (if equipped) ..................... 2-7
Windows .............................................................................. 2-11
Mirrors .................................................................................. 2-13

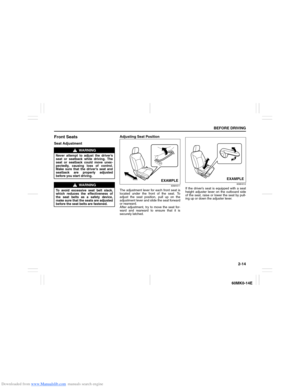

Front Seats .......................................................................... 2-14
Rear Seats ............................................................................ 2-16

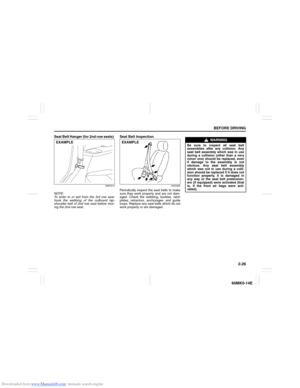

Seat Belts and Child Restraint Systems ........................... 2-20

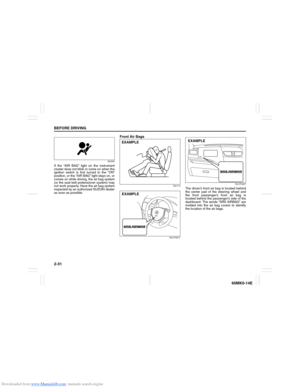

Supplemental Restraint System
(air bags) (if equipped) ....................................................... 2-30

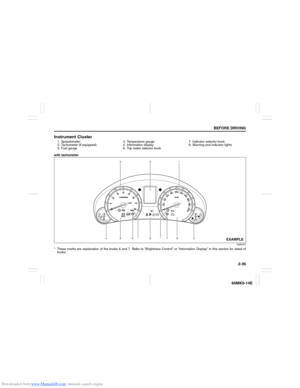

Instrument Cluster .............................................................. 2-36
Warning and Indicator Lights ............................................ 2-38

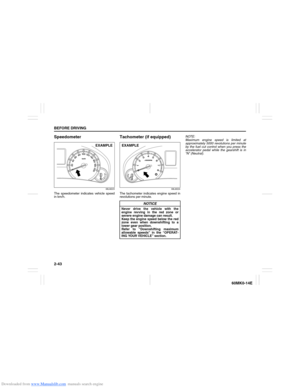

Speedometer ....................................................................... 2-43
Tachometer (if equipped) ................................................... 2-43

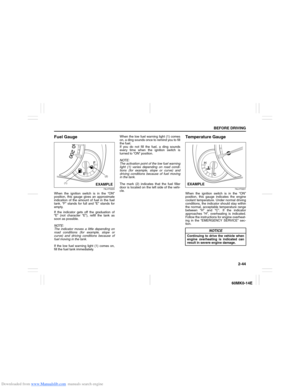

Fuel Gauge ........................................................................... 2-44
Temperature Gauge ............................................................ 2-44
Brightness Control .............................................................. 2-45
Information Display ............................................................. 2-46

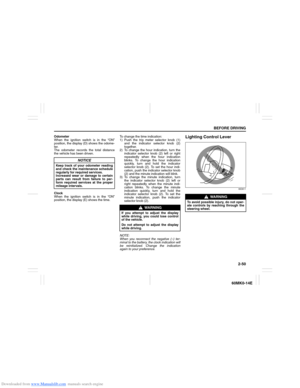

Lighting Control Lever ........................................................ 2-50

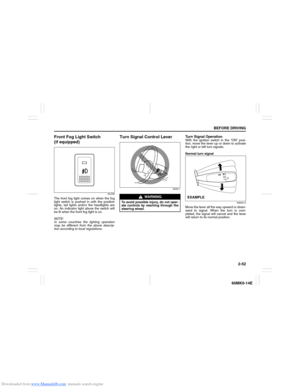

Front Fog Light Switch (if equipped) ................................ 2-52
Turn Signal Control Lever .................................................. 2-52
Hazard Warning Switch ...................................................... 2-53

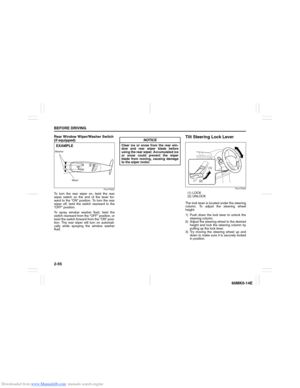

Windshield Wiper and Washer Lever ................................ 2-53
Tilt Steering Lock Lever ..................................................... 2-55
Horn ...................................................................................... 2-56

Downloaded from www.Manualslib.com manuals search engine 2-1BEFORE DRIVING
60MK0-14E

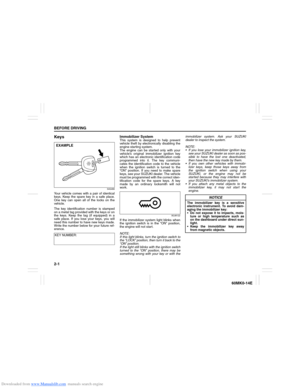

Keys
54G489
Your vehicle comes with a pair of identical
keys. Keep the spare key in a safe place.
One key can open all of the locks on the
vehicle.
The key identification number is stamped
on a metal tag provided with the keys or on
the keys. Keep the tag (if equipped) in a
safe place. If you lose your keys, you will
need this number to have new keys made.
Write the number below for your future ref-
erence.
Immobilizer System This system is designed to help prevent
vehicle theft by electronically disabling the
engine starting system.
The engine can be started only with your
vehicle’s original immobilizer ignition key
which has an electronic identification code
programmed into it. The key communi-
cates the identification code to the vehicle
when the ignition switch is turned to the
“ON” position. If you need to make spare
keys, see your SUZUKI dealer. The vehicle
must be programmed with the correct iden-
tification code for the spare keys. A key
made by an ordinary locksmith will not
work.
80JM122
If the immobilizer system light blinks when
the ignition switch is in the “ON” position,
the engine will not start.
NOTE:
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to the
“ON” position.
If the light still blinks with the ignition switch
turned to the “ON” position, there may be
something wrong with your key or with theimmobilizer system. Ask your SUZUKI
dealer to inspect the system.
NOTE:
 If you lose your immobilizer ignition key,
see your SUZUKI dealer as soon as pos-
sible to have the lost one deactivated,
then have the new key made by them.
 If you own other vehicles with immobi-
lizer keys, keep those keys away from
the ignition switch when using your
SUZUKI, or the engine may not be
started because they may interfere with
your SUZUKI’s immobilizer system.
 If you attach any metal objects to the
immobilizer key, it may not start the
engine.
KEY NUMBER:
EXAMPLE
NOTICE
The immobilizer key is a sensitive
electronic instrument. To avoid dam-
aging the immobilizer key:
 Do not expose it to impacts, mois-
ture or high temperature such as
on the dashboard under direct sun-
light.
 Keep the immobilizer key away
from magnetic objects.
