2013 SSANGYONG KORANDO seat adjustment

Power seat switch
(1) Power seat switch (Driver side)
4) Power Seat Switch Assembly
Seat sliding
Seatback reclining
Seat height adjustment A.
B.
C.
Seat sliding Seatback reclining Seat height adjustment
Power seat switch

7410-00
2. WARNINGS FOR POWER SEAT
Adjust the driver seat before driving.
Make sure that the seat is firmly secured after adjusting.
Never drive the vehicle with the head restraint removed or lowered excessively. Otherwise, you
r
neck, spine or other parts of the body can be severely injured in the event of an accident.
If you recline the seatback excessively, you could slide under the seat belt and be injured severely
in a collision.
Do not put any object that could damage the seat on the seat.
The front and rear seats are equipped with the heated wire (seat warmer) system. Using the seat
warmer system excessively may cause minor burns. The following occupants should exercise
special care when using the heated wire seat.
Infants, children, old or handicapped persons
Persons with sensitive skin
Exhausted persons
Persons who is drunk or took medicine which causes drowsiness such as sleeping pills, cold
tablets, etc. -
-
-
-
Do not place anything on the seat that insulates against the heat, such as a blanket or cushion.
Make sure that the head restraints are in place and secured properly. Never drive the vehicle with
the head restraint removed.
To minimize the injuries in a collision or an abrupt stop, make sure the seatback is in the upright
position before driving. If the seatback is reclined too much, the occupant could slide under the seat
belt in a collision or an abrupt stop and cannot be protected properly by the air bag system.
3. CAUTIONS FOR POWER SEAT
You can operate the power seat with the ignition switch OFF. However, frequent operation of the
seat switch with the engine stopped can result in battery becoming discharged.
Operating more than one seat adjustment switch at the same time can cause damage to the seat
motor. Therefore, operate the seat switch only one at a time.
Do not use organic solvents such as benzene, thinner, alcohol or gasoline to prevent the seat cove
r
from being damaged while cleaning.
Do not operate the seat position adjustment switch forcefully when the seat does not move or it
contacts an object.
If the power seat is not operated, check and correct the problem before driving off.

Head restraint adjustment (Height)
To raise the head restraint, pull upward on
the head restraint. To lower the head
restraint, push downward on the head
restraint with the head restraint sleeve (A)
pressed.
Head restraint adjustment (Tilting)
The head restraint can be moved
forward/backward.
3. SEAT ADJUSTMENT AND OPERATION
1) Front Seat
There are 2 types of front seats: a) power seat that uses electric motor to move the seat and adjust the
seatback and seat cushion; b) manual seat that a user has to operate the lever manually to adjust the
seat.
However the head restraint and driver seat lumber support should be adjusted manually for both types of
seats. Heated wire is installed in the seatback and seat cushion, and ventilation function may be added
to driver seat depending on vehicle specifications. The switch for the front seat heated wire and
ventilation is located on the TGS lever side.
The front part of the active head restraint is separated and moved forward to protect the occupant's neck
in the event of a rear-end collision. The active head restraints may be installed to both driver and
passenger seats depending on the vehicle specifications.
Head restraint adjustment

7410-00
Power seat Manual seat
Moving the upper part of the recliner knob
forward/backward adjusts the seatback angle by
activating the recliner motor. Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired angle
to lock the seatback.
Power seat Manual seat
Moving the slide knob forward/backward moves
the seat forward/backward by activating the slide
motor.To move the seat forward or backward, pull up and
hold the seat slide lever and move the seat to the
desired position.

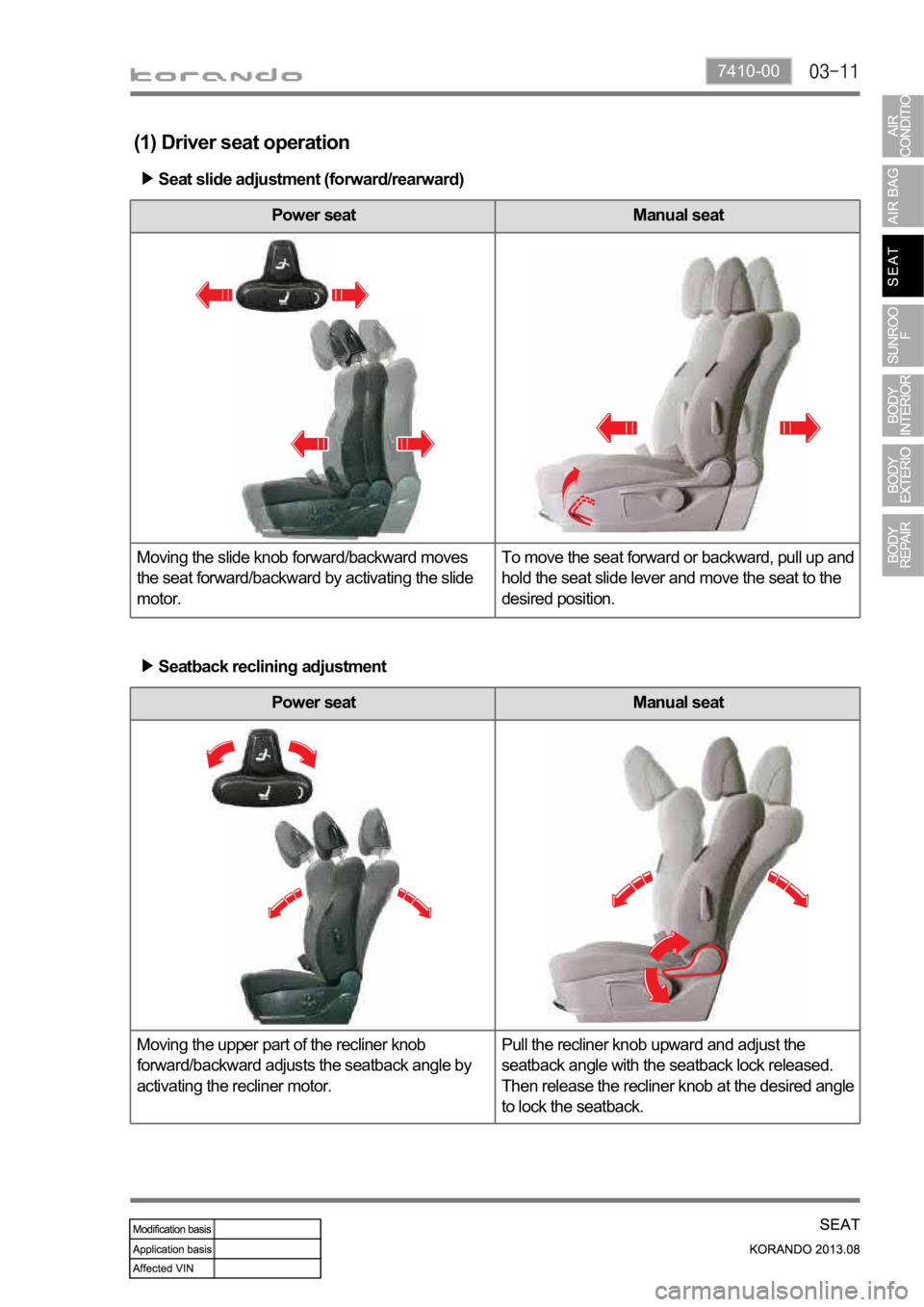

(1) Driver seat operation
Seat slide adjustment (forward/rearward)
Seatback reclining adjustment

Power seat Manual seat
Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.Lowering the lumbar support lever moves the
lumbar support to the forward position, and raising
the lever moves the lumbar support to the
backward position.
Power seat Manual seat
Moving the slide switch upward/downward moves
the seat cushion upward/downward as the front &
rear up/down motors rotate the rail.Pulling the recliner knob upward/downward moves
the seat upward/downward.
Seat adjustment (height)
Driver seat lumbar support adjustment

Seatback reclining adjustment
Pull the recliner knob upward and adjust the
seatback angle with the seatback lock released.
Then release the recliner knob at the desired
angle to lock the seatback.
Seat slide adjustment (forward/rearward)
To move the seat forward or backward, pull up
and hold the seat slide lever and move the seat
to the desired position.
Passenger seat heated wire switch
Heated wire and
ventilationHeated wirePassenger seat heated wire

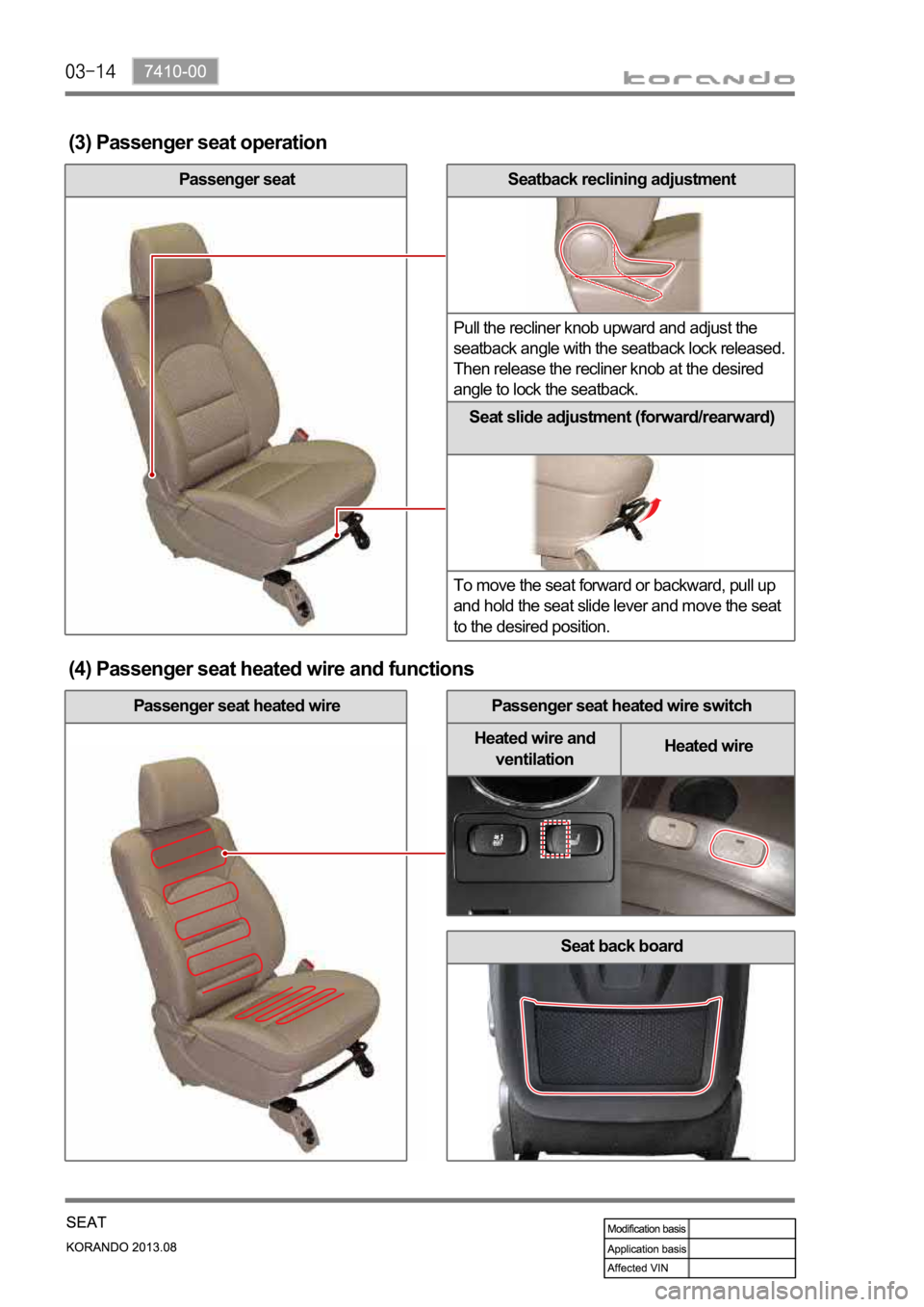

(3) Passenger seat operation
Passenger seat
(4) Passenger seat heated wire and functions
Seat back board

Head restraint adjustment (Height)
3) Rear Seat
(1) Rear seat operation
The rear seat is a 6:4 split seat and a manual seat that the angle of the head restraint and seatback of the
seat can be adjusted. And the heated wires in the rear seat cushion and seatback can be operated with
rear seat heated wire switches located on the LH/RH rear door trim.
The head restraint can be raised
without pressing the head
restraint sleeve (A) or lowered
with the sleeve (A) pressed.
Seatback reclining adjustment
To adjust the seatback angle,
pull the lock release lever on the
upper part of the seat to release
the lock.
