2013 SSANGYONG KORANDO belt

Front seat heated wire and ventilation switch
Heated wire Heated wire and
ventilation
Front seat belt (3-point type)Front seat and seat switch
1. SEAT/SEAT BELT OVERVIEW
The seat is divided into front seat (driver & passenger) and rear seat.
The front seat has the heated wire in the seat cushion and seatback and the rear seat has it in the seat
cushion. The ventilation function is only applied to the driver seat. The seat belts of all seats are 3-point
type.
2. SEAT/SEAT BELT LAYOUT
Driver seat heated
wire switch
Passenger seat
heated wire switchDriver seat heated
wire switch
Driver seat
ventilation
switchPassenger
seat heated
wire switch

7410-00
Rear seat belt (3-point type)
Rear LH, center Rear RH
Rear seat
Rear seat heated wire switch
LH RH
Rear seat belt - LH
Rear center
seat beltRear seat
belt - RH
Rear double buckle
- 1st rowRear buckle -
1st row

7410-00
The 3-point type seat belts are mounted on the driver seat, passenger seat and rear seats (LH, RH,
Center). The seat belts on the front seats (driver's/passenger's) include pretensioner feature which
rewinds the seat belt immediately to protect the occupant's face and chest when a strong frontal collision
occurs.
Front 3-point type seat belt
(Driver & Passenger seats)
Rear 3-point type seat belt (RH)
Front seat belt
Height adjuster
Rear seat belt - RH Rear seat belt - LH
Rear double buckle -
1st row
Rear center seat belt
Rear buckle - 1st row
6) Seat Heated Wire and Ventilation
(1) Seat belt configuration
3-point type seat belt
(RR center, LH)

Rear seat belt - LH/RH (3-point type)Rear center seat belt (3-point type)

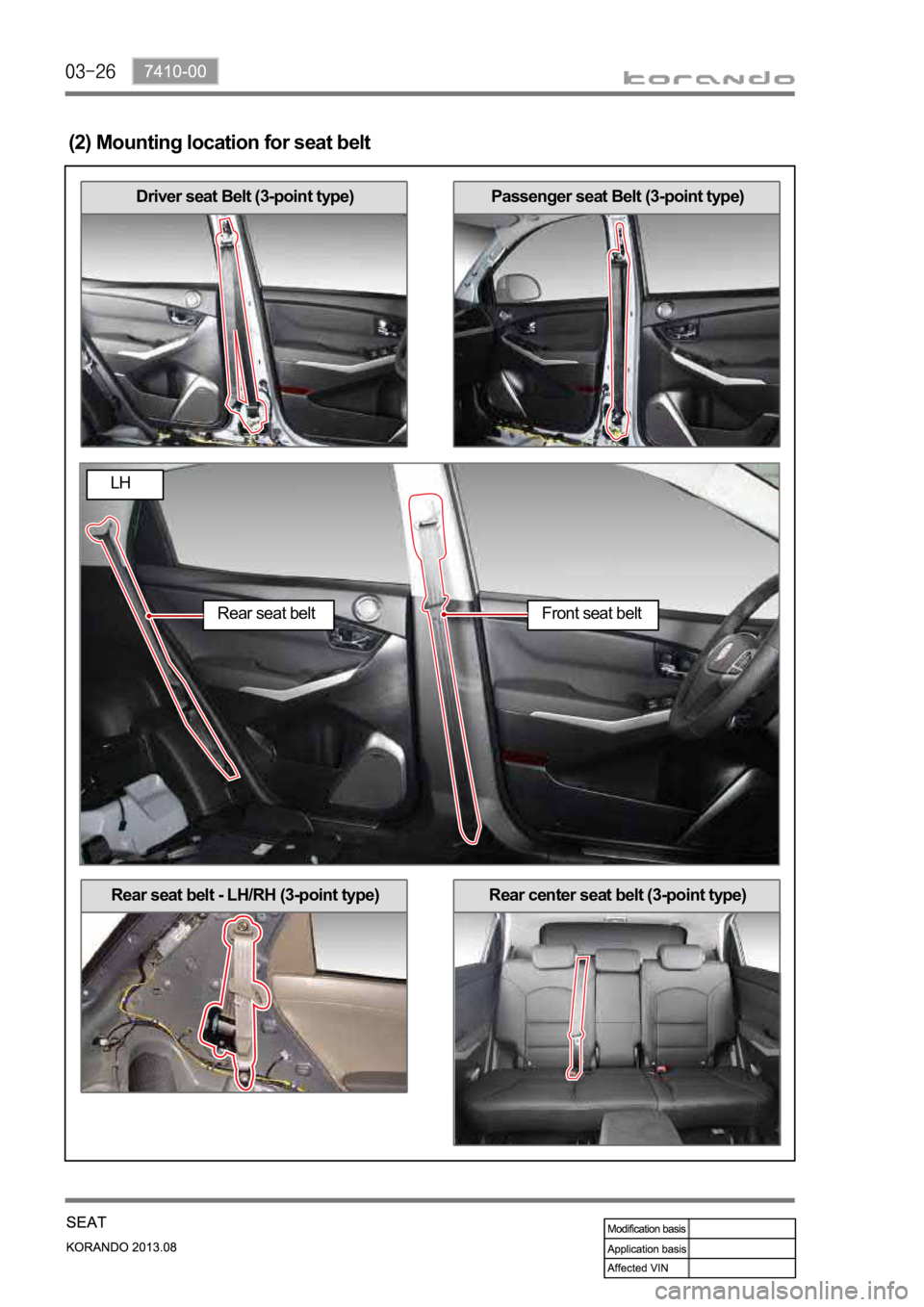

(2) Mounting location for seat belt
Driver seat Belt (3-point type)Passenger seat Belt (3-point type)
LH
Rear seat belt Front seat belt

7410-00
Pretensioner
Driver sidePassenger side
7) Mounting Location for Pretensioner
The seat belt pretensioner retracts the seat belt instantly by igniting the inflator in the pretensioner when
the front air bag system is activated. It also improves the safety effect of the seat belt by preventing the
front seat occupants from moving forward and keeping occupants in a stable posture.
The load limiter is also installed to reduce the chest impact to a front seat occupant by loosening the seat
belt while maintaining the force applied by the seat belt uniformly when the pretensioner retracts the seat
belt instantly. The seat belt pretensioner is operated first, and then the load limiter is activated.
Height adjuster
This feature improves
comfort and enhances
safety performance in the
event of a collision by
adjusting the shoulder belt
to the desired length to
restrain the occupant.

1) Child Restraint System Type
There are 2 types in the child restraint system.
- Fixing using seat belt
- Fixing using ISOFIX (for the vehicle with ISOFIX system)
2) Child Restraint System Fixing Type
4. CHILD RESTRAINT SYSTEM (ISO FIX)
Item Weight AgeFixing
methodRear
LH/RH
seat Passenger seat/
Rear center seat
Reversed seat< 10kg 6 to 9 months Seat belt U/SU X
< 13kg 12 to 15 months Seat belt U/SU X
Front face seat 9~18kg 9 to 48 monthsSeat belt /
ISOFIX seatU/UF/SU X
Booster seat 15~25kg 4 to 6 years Seat belt U X
Booster cushion 22~36kg 6 to 11 years Seat belt U X
U: General child restraint system which should be fixed with the seat belt approved by official institute.
UF/SU: General child restraint system which should be fixed with the ISOFIX system approved by
official/semiofficial institute.
X: Seat which is not allowed to use child restraint system. -
-
-

7410-00
3) ISO FIX
Installation using lower latch
There are marks (A), which indicate that the
ISOFIX for child restraint system can be fixed,
at the bottom of the rear seatback as shown in
the figure.
Attach the ISOFIX child restraint system (C) to
the two latches (B) located at the bottom of the
rear seat.
If a ISOFIX child restraint system is used, the
seat belt is not needed.
No lower anchor is installed to the rear center
seat.
The approved ISOFIX child restraint system
can be mounted to the vehicle with ISOFIX
system (2 lower latches and one rear seatback
anchor). -
-
-
-
-
When installing ISOFIX child restraint system to the vehicle, all the seat belts in the rear seat should
be buckled.
The mounting latches and anchors for the ISOFIX system are only for the child restraint system, so
DO NOT install any restraint system other than ISOFIX specifications, seat belt or other device to
these latches or anchors. -
-

Installation using rear seatback anchor
There are anchors (for hook mounting) for fixing child restraint system, on the back side of the rear
seatback as shown in the figure. -
Route the belt of the child restraint system over the seatback of the rear seat.
Attach the hook of the child restraint system belt to the anchor firmly, and securely tighten the child
restraint to the seat. -
-
