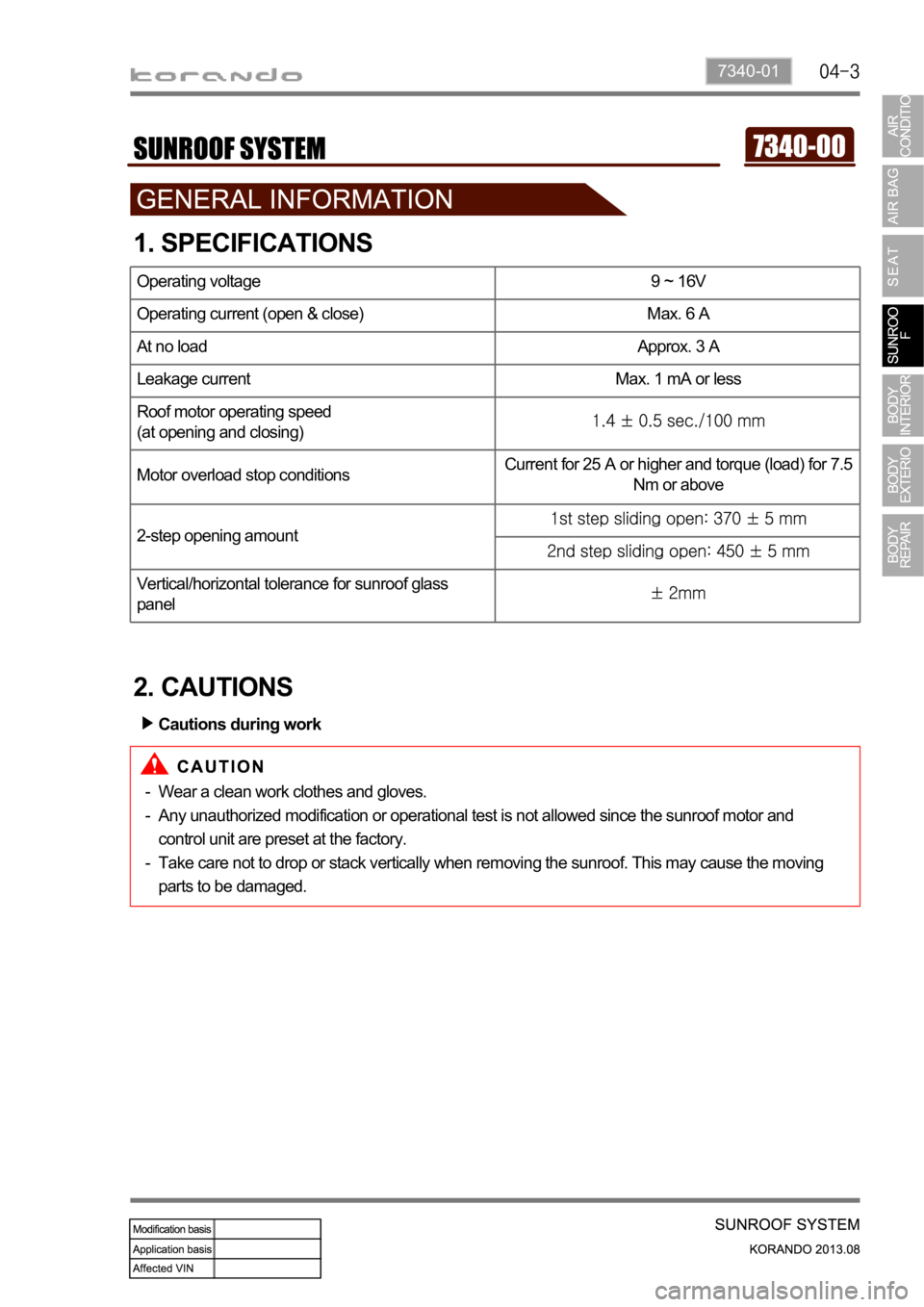

7340-01
1. SPECIFICATIONS
2. CAUTIONS
Operating voltage 9 ~ 16V
Operating current (open & close) Max. 6 A
At no load Approx. 3 A
Leakage current Max. 1 mA or less
Roof motor operating speed
(at opening and closing)
Motor overload stop conditionsCurrent for 25 A or higher and torque (load) for 7.5
Nm or above
2-step opening amount
Vertical/horizontal tolerance for sunroof glass
panel
Cautions during work
Wear a clean work clothes and gloves.
Any unauthorized modification or operational test is not allowed since the sunroof motor and
control unit are preset at the factory.
Take care not to drop or stack vertically when removing the sunroof. This may cause the moving
parts to be damaged. -
-
-
