2013 SSANGYONG KORANDO parking

8710-01
Abnormal wiper parking signal stop (GND)
The wiper system sends the corresponding signal of current status with IGN ON and wiper AUTO
switch ON. (The wiper motor is operated only when the request signal from the rain sensor is
received.) A. Operation 1. (When the wiper motor parking signal stopped at GND)
Abnormal wiper parking signal stop (IGN)
The wiper system sends the corresponding signal of current status for 2 seconds (T2) with IGN ON
and wiper AUTO switch ON.
After the 2 seconds (T2), the system outputs the signal of the stopped status.
(The wiper motor is operated only when the request signal from the rain sensor is received.) A.
B. Operation 1. (When the wiper motor parking signal stopped at ING)

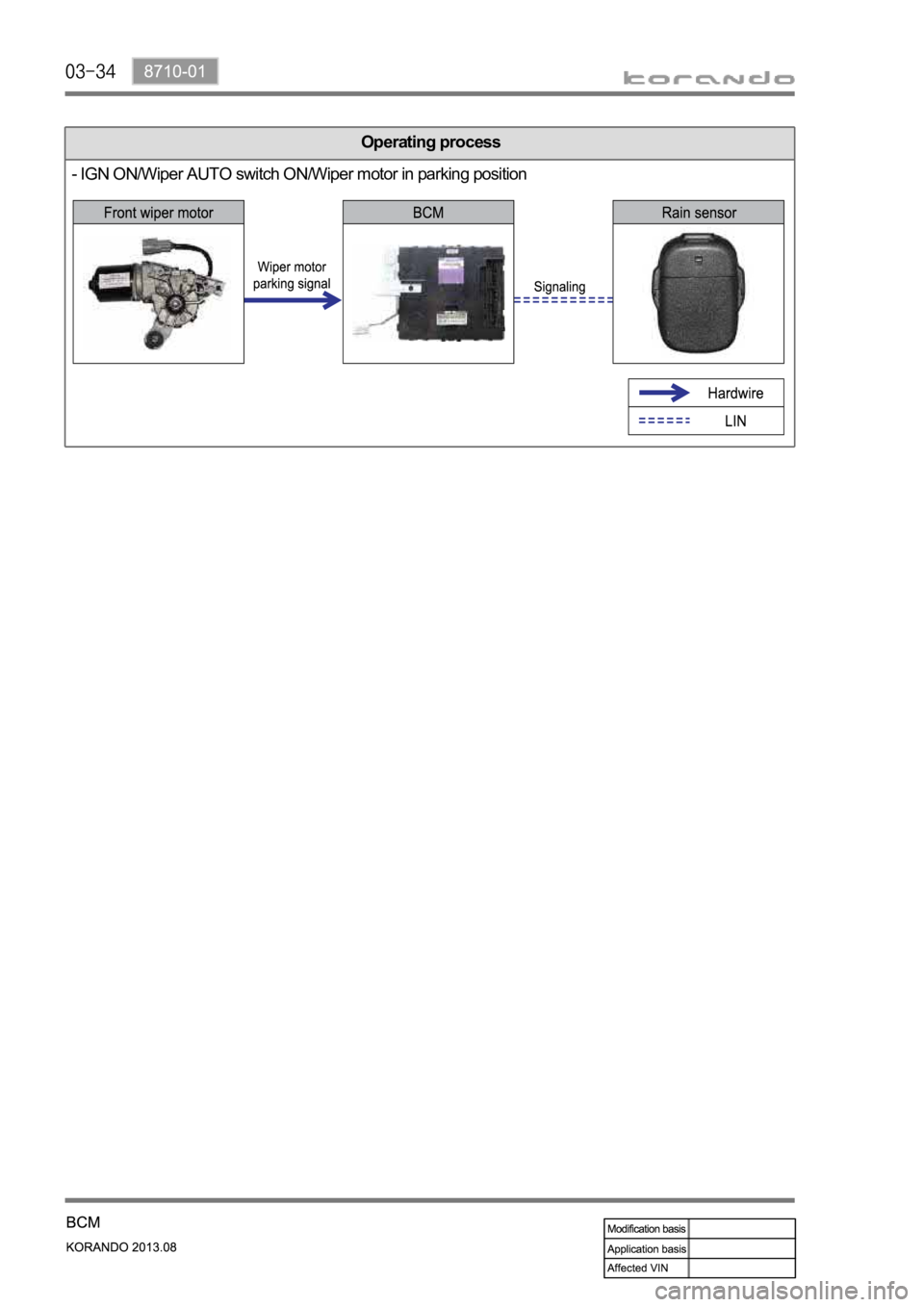

Operating process
- IGN ON/Wiper AUTO switch ON/Wiper motor in parking position

Wiper LO/HI control
When front or rear washer signal is input during the wiper LO/HI operation, the front or rear washer
motor is activated.
The AUTO washer input is overridden during wiper LO/HI operation. A.
B. Operation 1.
When the signal from the wiper LO/HI switch is received, the wiper LO/HI relay is turned ON/OFF.
(The wiper LO relay is always activated when the HI relay is activated.)
If the ignition turned OFF while the wiper is operated, the wiper stops operating when the wiper
motor parking signal is input.
If no wiper motor parking signal is input during the wiper LO/HI operation, the wiper relay continues
working. (If no wiper parking signal is input for 3 seconds of wiper AUTO operation, wiper relay is
deactivated after 5 seconds - failure notification)
When the ignition is turned OFF during the wiper HI operation, the wiper is operated in LO mod and
then returns to the parking position. -
-
-
-

Indicator
(amber)
Brake warning lamp (brake fluid)
ABS warning lamp
Passenger air bag disable indicator
Indicator
(red)
Indicator
(amber)
Indicator
(red)
EPS
Indicator
(amber)
Immobilizer indicator
This indicator comes on when the passenger air bag OFF switch is operated.
This indicator comes on the immobilizer (transponder) is not certified. This lamp comes on when the parking brake is applied or the brake fluid
is insufficient.
If this lamp doesn't go off after the parking brake is released, check the
brake fluid level first and then fluid leakage. -
-
This warning light comes on when the ignition switch is turned to ON
and should go out if the system is normal -
This indicator comes on when the EPS system is faulty.

8) Buzzer
Specifications
Function Signal
Part name PKM17EPP-2002-B0 (MURATA, Piezoelectric Sound Components)
Permitted input voltage 25 VP-P or less
Operating temperature
Storage temperature
Sound pressure level 70 dB/min (3 Vp-p, 2 kHz, square wave, 10 cm)
Capacitance
Priority of instrument cluster buzzer output
If there are multiple signals at a time, the operation should be completed by the priority.
Priority
ItemBuzzer output
time
Operating condition
ON OFF
1 PAS See PAS
2 ESP 0.1sec 0.1secInstrument cluster buzzer output signal is
received from ABS/ESP
3Engine overheat
warning lamp0.5sec 0.5sec
4Water separator
warning light0.5sec 0.5secWater separator warning light ON with
IGN ON
5 Parking brake 2.8sec 1.5secParking brake applied depending on
vehicle speed

8010-01
9) PAS (Parking Aid System)
(2) Self Diagnosis Mode
Operating conditions
Fail condition (However, no obstacle should be within 30 cm)
1. The signal wire is open
2. The power wire (+ and -)is open -
Buzzer interval during self diagnosis
(1) Sensor Operating Process
The ultrasonic sensors transmit ultrasonic waves and receive the reflected waves from an obstacle to
Self diagnosis is performed once when the ignition is switched on (gear shift lever in "R" position). If the
system is defective (Fail) due to open sensor or communication problem, the information for the failed
sensor is sent to the instrument cluster.

8010-01
Pin No. Message Operating condition
Domestic Export
Smart key
warningLCD display shows this message for 10 seconds
when the ignition switch or Smart key system is
defective.
This message comes on for approx. 10 seconds if
the low smart key battery is detected when the
ignition switch is pressed or the engine is started.
Door/PASLCD display shows this message when the door,
engine hood or tailgate is open.
Parking aid
systemIf any obstacle is detected in the rear of the vehicle
when the shift lever is moved to "R" position with IGN
ON, each sensor shows its position and distance.
If any error is detected during initial diagnosis, it is
displayed as "?". Other than that is operated in the
same way as the PAS distance measurement mode.
Cruise
controlThis message comes on when the cruise control
system is activated.
This message comes on when the cruise control
system is deactivated.
This message comes on when the cruise switch is
moved to the ECO position.Pin No. Message Operating condition
TailgateIf the tailgate is open, open status messages are
displayed in 4-step graphics.

Outside rearview mirror switch
(1) Overview
Outside mirror folding/unfolding switch
The outside mirrors are folded/unfolded
whenever pressing this switch.
Mirror selection switch
LH: Driver side mirror
RH: Passenger side mirror A.
B.Mirror aiming switch
Adjust the selected mirror up, down, left,
or right by pressing the corresponding
edges of the switch to get a desired view. C. It is mounted to the door trim and can be adjusted to up, down, left or right so that the driver can obtain a
clear view of the rear of the vehicle depending on the driver's physical condition. The driver can fold the
outside rearview mirror when passing by the narrow road or parking the vehicle. Do not fold or unfold the
outside rearview mirrors manually since the outside rearview mirror folding switch is a push-lock type
switch. This may cause a malfunction of the relevant devices.
2) Outside Mirror Switch
