7410-00
Pretensioner
Driver sidePassenger side

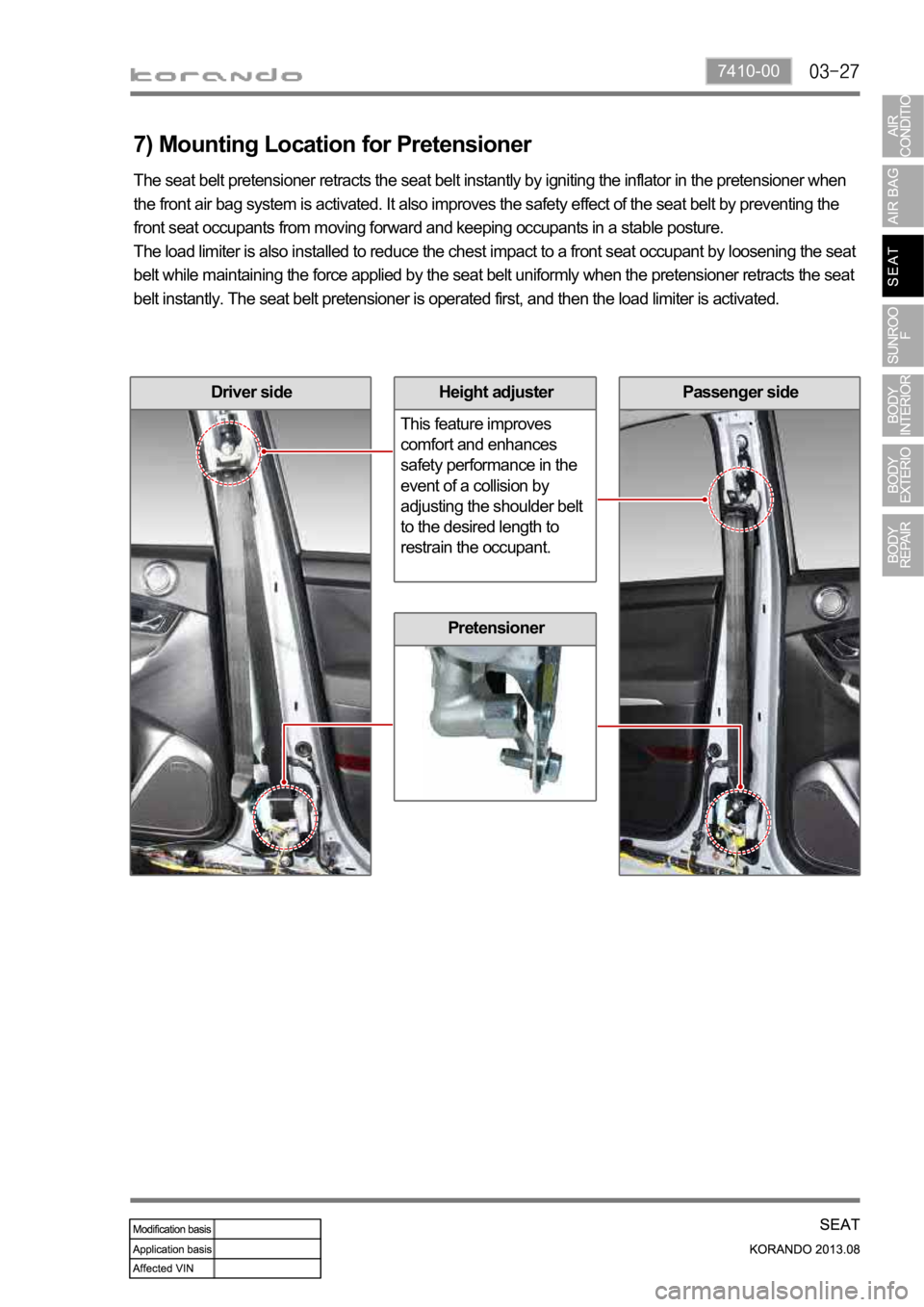

7) Mounting Location for Pretensioner
The seat belt pretensioner retracts the seat belt instantly by igniting the inflator in the pretensioner when
the front air bag system is activated. It also improves the safety effect of the seat belt by preventing the
front seat occupants from moving forward and keeping occupants in a stable posture.
The load limiter is also installed to reduce the chest impact to a front seat occupant by loosening the seat
belt while maintaining the force applied by the seat belt uniformly when the pretensioner retracts the seat
belt instantly. The seat belt pretensioner is operated first, and then the load limiter is activated.
Height adjuster
This feature improves
comfort and enhances
safety performance in the
event of a collision by
adjusting the shoulder belt
to the desired length to
restrain the occupant.
