2013 SKODA RAPID SPACEBACK technical data

Remote control160Emergency unlocking/locking161
Replacing windscreen wiper blades
162
Fuses and light bulbs
163
Fuses
163
Bulbs
166
Technical data
Technical data
172
Vehicle data
172
Index
4Table of Contents

Driving through water and driving off made-up roads
Introduction
This chapter contains information on the following subjects:
Driving through water
105
Driving off paved roads
105WARNINGImmediately after driving through water, mud, slush and the like, braking
effectiveness will be temporarily impaired » page 99, Information on brak-
ing . For this reason, sudden and violent braking manoeuvres are to be avoi-
ded - there is a risk of accident!
Driving through water
Fig. 104
Driving through water
Read and observe on page 105 first.
The following instructions must be observed if vehicle damage is to be avoided when driving through water (e.g. flooded roads).
›
Therefore, always determine the depth of the water before driving through
water.
The water level must not reach above the web of the lower beam » Fig. 104.
›
Do not drive any faster than at a walking speed.
At a higher speed, a water wave can form in front of the vehicle which can
cause water to penetrate into the engine's air induction system or other parts
of the vehicle.
›
Never stop in the water, do not reverse and do not switch the engine off.
CAUTION■ When driving through water, some parts of the vehicle such as the engine,
gearbox, chassis or electrics can be severely damaged.■
Oncoming vehicles can generate water waves which can exceed the permis-
sible water level for your vehicle.
■
Potholes, mud or rocks can be hidden under the water, making it difficult or
impossible to drive through water.
■
Do not drive through salt water, as the salt can cause corrosion. A vehicle
coming into contact with salt water is to be thoroughly rinsed with fresh wa-
ter.
Driving off paved roads
Read and observe
on page 105 first.
Only drive on such roads and in such terrain, which match the vehicle parame-ters » page 172 , Technical data as well as your driving skills.
The driver is always responsible for deciding whether the vehicle can handle
travelling in the given terrain.
WARNINGDrive particularly considerately and pro-actively when not on paved roads.■Always adjust your driving to the current terrain and weather conditions.
Excessive speed or incorrect driving manoeuvres can cause damage to the
vehicle and lead to serious injuries.■
Objects trapped under the base of the vehicle can damage the fuel lines,
the brake system, the seals and other parts of the chassis. Check the un-
derside of the vehicle and remove the trapped objects.
■
Combustible objects such as dry leaves or twigs caught under the base of
the vehicle could ignite on hot vehicle parts - risk of fire!
CAUTION
■ Pay attention to the ground clearance of the vehicle! When driving over ob-
jects which are larger than the ground clearance, the chassis and its compo-
nents can get damaged.■
Drive slowly in unknown terrain and watch out for unexpected obstacles,
such as potholes, rocks, stumps, etc.
■
Check up on confusing sections of unpaved roads before travelling on them
and consider whether such travelling is possible without risk.
105Starting-off and Driving

Trailer
Introduction
This chapter contains information on the following subjects:
Loading a trailer
116
Driving with a trailer
116
Anti-theft alarm system
117WARNINGAlways drive particularly carefully with the trailer.
Loading a trailer
Read and observe
on page 116 first.
The vehicle/trailer combination must be balanced. Whereby the maximum per-missible draw bar load must be utilised. If the draw bar load is too low, it jeop-
ardises the performance of the vehicle/trailer combination.
Distribution of the load
Distribute the load in the trailer in such a way that heavy items are located as
close to the axle as possible. Secure the items from slipping.
The distribution of the weight is very poor if your vehicle is unladen and the
trailer is laden. Maintain a particularly low speed if you cannot avoid driving
with this combination.
Tyre pressure
Correct the tyre inflation pressure on your vehicle for a “full load” » page 143,
Service life of tyres .
Towing capacity and trailer weight
The permissible trailer load must not be exceeded under any circumstan-
ces » page 172 , Technical data .
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The trailer loads specified apply only to altitudes up to 1,000 metres above
mean sea level.
The engine output falls as altitude increases, as does the vehicle's climbing
power. Therefore, for every additional 1,000 m in height (or part), the maximum
permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-
cle and the loaded trailer.
The trailer and draw bar load information on the type plate of the towing de-
vice is merely a test value for the towing device. The vehicle-specific values
are detailed in the vehicle documents.WARNING■ Do not exceed the maximum permissible axle and draw bar load and the
maximum permissible total or towed weight of the vehicle and the trailer -
risk of accident and serious injuries!■
A sliding cargo can adversely affect stability and driving safety significant-
ly - there is a risk of accident!
Driving with a trailer
Fig. 118
Swivel out the 13-pin power
socket
Read and observe on page 116 first.
Before starting off
›
Grip the 13-pin socket on the handle
A
and swing out in the direction of the
arrow » Fig. 118 .
›
Lift off protective cap
5
» Fig. 110 on page 112 towards the top.
After the journey
›
Grip the 13-pin socket on the handle
A
and swing out against the direction
of the arrow » Fig. 118.
›
Place the protective cover
5
» Fig. 110 on page 112 on the ball head. 
116Driving

Technical data
Technical data
Vehicle data
Introduction
This chapter contains information on the following subjects:
Vehicle characteristics
172
Operating weight and payload
172
Measurement of fuel consumption and CO 2 emissions according to ECE
Regulations and EU Directives
173
Dimensions
174
Angle
175
Vehicle-specific details per engine type
176
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reduc- ing equipment, e.g. air conditioning system.
Vehicle characteristics
Fig. 169
Vehicle data sticker/type plate
Vehicle data sticker
The vehicle data sticker » Fig. 169 -
 is located on the base of the luggage
compartment and is also stuck into the service schedule.
The vehicle data sticker contains the following data.
Vehicle identification number (VIN)
Vehicle type
Gearbox code/paint number/interior equipment/engine output/engine
code
Partial vehicle description
Type plate
The type plate » Fig. 169 - 
is located at the bottom of the B-pillar on the
driver's side.
The type plate contains the following data. Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)
Maximum permissible front axle load
Maximum permissible rear axle load
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into
the engine compartment on the right hand suspension strut dome. This num-
ber is also located on a sign on the lower left hand edge below the windscreen
(together with a VIN bar code), and on the type plate.
Engine number
The engine number (three-digit identifier and serial number) is stamped on the engine block.WARNINGDo not exceed the specified maximum permissible weights – risk of acci-
dent and damage!
Operating weight and payload
Operating weight
This value represents the minimum operating weight without additional
weight-increasing equipment such as air conditioning system, spare wheel, or
trailer hitch.
The specified operating weight is for orientation purposes only. 
123456789172Technical data

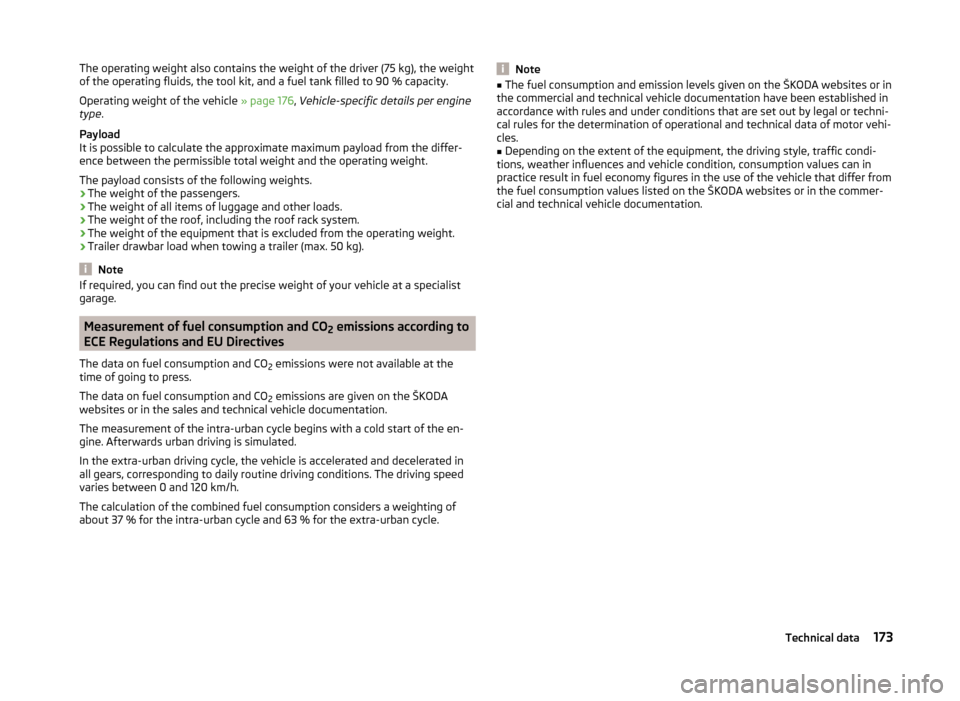

The operating weight also contains the weight of the driver (75 kg), the weight
of the operating fluids, the tool kit, and a fuel tank filled to 90 % capacity.
Operating weight of the vehicle » page 176, Vehicle-specific details per engine
type .
Payload
It is possible to calculate the approximate maximum payload from the differ-
ence between the permissible total weight and the operating weight.
The payload consists of the following weights.
› The weight of the passengers.
› The weight of all items of luggage and other loads.
› The weight of the roof, including the roof rack system.
› The weight of the equipment that is excluded from the operating weight.
› Trailer drawbar load when towing a trailer (max. 50 kg).
Note
If required, you can find out the precise weight of your vehicle at a specialist
garage.
Measurement of fuel consumption and CO 2 emissions according to
ECE Regulations and EU Directives
The data on fuel consumption and CO 2 emissions were not available at the
time of going to press.
The data on fuel consumption and CO 2 emissions are given on the ŠKODA
websites or in the sales and technical vehicle documentation.
The measurement of the intra-urban cycle begins with a cold start of the en-
gine. Afterwards urban driving is simulated.
In the extra-urban driving cycle, the vehicle is accelerated and decelerated in
all gears, corresponding to daily routine driving conditions. The driving speed
varies between 0 and 120 km/h.
The calculation of the combined fuel consumption considers a weighting of
about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.
Note■ The fuel consumption and emission levels given on the ŠKODA websites or in
the commercial and technical vehicle documentation have been established in
accordance with rules and under conditions that are set out by legal or techni-
cal rules for the determination of operational and technical data of motor vehi-
cles.■
Depending on the extent of the equipment, the driving style, traffic condi-
tions, weather influences and vehicle condition, consumption values can in
practice result in fuel economy figures in the use of the vehicle that differ from
the fuel consumption values listed on the ŠKODA websites or in the commer-
cial and technical vehicle documentation.
173Technical data

DimensionsFig. 170
Principle sketch: Vehicle dimensions
Vehicle dimensions (mm)
» Fig. 170SpecificationValueAHeightBasic dimension1459/1471 a)Vehicles with a rough road package.1472/1484 a)B
Front track
Basic dimension1457For vehicles fitted with the 1.2 l/55 kW MPI and 1.2 l/63 kW TSI engines and 14"
wheel rims.1463CWidth1706D
Rear track
Basic dimension1494For vehicles fitted with the 1.2 l/55 kW MPI and 1.2 l/63 kW TSI engines and 14"
wheel rims.1500EWidth including exterior mirror1940FClearanceBasic dimension134Vehicles with a rough road package.141GWheel base2602HLength4304a)
Valid for vehicles with the Amundsen+ navigation system.
174Technical data

AngleFig. 171
Principle illustration: Departure
angle
Angle » Fig. 171
Overhang angle, front
Overhang angle, rear
Departure angle
Transition from the horizontal plane to an upward slope or from a downward
slope back to the plane.
The angle indication determines the angle at which you can drive the vehicle
down the embankment, at a slow speed, without the bumper or the under-
body of the vehicle touching the ground.
Overhang angle (°)
Overhang angle, frontOverhang angle, rear13.816.5AB175Technical data

Vehicle-specific details per engine typeThe specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational
and technical data for motor vehicles.
1.2 l/55 kW MPI engine
Output (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm 3
)55/5400112/37503/1198 Performance and WeightsMG5Top speed (km/h)172Acceleration 0-100 km/h (s)13.8Operating weight (in kg)1130Permissible trailer load, braked (kg)750 a)
/ 950 b)Permissible trailer load, unbraked (kg)560a)
Slopes up to 12 %.
b)
Slopes up to 8 %.
1.2 ltr./63 kW TSI engine
Output (kW per rpm)Max. torque (Nm per rpm)Number of cylinders/displacement (cm 3
)63/4800160/1500-35004/1197 Performance and WeightsMG5Top speed (km/h)180Acceleration 0-100 km/h (s)11.7Operating weight (in kg)1150Permissible trailer load, braked (kg)900 a)
/ 1100 b)Permissible trailer load, unbraked (kg)570a)
Slopes up to 12 %.
b)
Slopes up to 8 %.

176Technical data
