CAUTION■“Never repair” fuses, and do not replace them with fuses of a higher amper-
age – risk of fire! This may also cause damage at other points in the electrical
system.■
If a newly inserted fuse blows again after a short time, have the electrical
system checked as quickly as possible by a specialist garage.
■
A blown fuse is recognisable by the molten metal strip. Replace the faulty
fuse with a new one of the same amperage.
Note
■
We recommend always carrying replacement fuses in the vehicle. A box of
replacement fuses can be purchased from ŠKODA Original Accessories.■
There can be several power-consuming devices for one fuse.
■
Multiple fuses may exist for a single power-consuming device.
Fuses in the dash panel
Fig. 154
Underside of the dash panel: Dis-
tribution board cover
Read and observe and on page 163 first.
The fuses are located on the bottom of the dash panel behind a cover.
Replacing fuses
›
Remove the cover of the fuse box » Fig. 154 in the direction of the arrow.
›
Remove the plastic clip from the holder in the fuse box cover in the dash
panel.
›
Place the clip on the respective fuse and pull this fuse out.
›
Insert a new fuse.
›
Reinsert the cover into the dash panel in the opposite direction to the arrow
such that the guide pins are guided into the dash panel openings.
Carefully push the cover in.
Assignment of the fuses in the dash panelFig. 155
Schematic representation of the fuse box for vehicles with left-
hand steering/right-hand steering
Read and observe
and on page 163 first.
No.Power consumer1S-contact2START - STOP3Instrument cluster, headlight range adjustment, telephone, oil level
sensor, diagnostic port, dimmable interior rear-view mirror4Control unit for ABS/ESC, steering angle sensor strip with switches5Petrol engine: Speed regulating system6Reversing light (manual gearbox)7Ignition, engine control unit, automatic gearbox8Brake pedal switch, clutch switch, engine cooling fan9Operating controls for the heating, electronic control unit for air con-
ditioning system, park distance control, window lift, engine cooling
fan, heated washer nozzles10DC-DC converter11Mirror adjustment12Control unit for trailer detection13Electronic control unit for automatic gearbox, selector lever of the
automatic gearbox14Lights and visibility15Not assigned 164Do-it-yourself

›Switch off the ignition and all of the lights before replacing a bulb.
› Faulty bulbs must only be replaced with the same type of bulbs. The designa-
tion is located on the light socket or the glass bulb.
› A stowage compartment for replacement bulbs is located in a plastic box in
the spare wheel or underneath the floor covering in the boot.WARNING■ Always read and observe the warning notes before completing any work
in the engine compartment » page 131, Engine compartment .■
Accidents can be caused if the road in front of the vehicle is not suffi-
ciently illuminated and the vehicle cannot be seen or can only be seen with
difficulty by other road users.
■
H7 and H15 bulbs are pressurised and may burst when changing the bulb -
risk of injury! We therefore recommended wearing gloves and safety
glasses when changing a bulb.
■
Gas discharge bulbs (xenon bulbs) operate with a high voltage, professio-
nal knowledge is required – risk of death!
■
Switch off the respective vehicle light when changing the bulb.
CAUTION
Do not take hold of the glass bulb with naked fingers (even the smallest
amount of dirt reduces the working life of the light bulb). Use a clean cloth,
napkin, or similar.
Note
■ This Owner's Manual only describes the replacement of bulbs where it is pos-
sible to replace the bulbs on your own without any complications arising. Other
bulbs must be replaced by a specialist garage.■
We recommend that a box of replacement bulbs always be carried in the ve-
hicle. Replacement bulbs can be purchased from ŠKODAOriginal Accessories.
■
We recommend having the headlight settings checked by a specialist garage
after replacing a bulb in the main, low or fog beam.
■
In case of failure of a xenon gas discharge lamp or an LED diode, visit a spe-
cialist garage.
Bulb arrangement in the headlightsFig. 159
Principle sketch: Headlights
Read and observe and on page 167 first.
Bulb arrangement » Fig. 159
Low beam » page 167 or low beam with xenon gas discharge lamp
Main beam, separate daytime running lights, and parking light » page 168
Turn signal light (at the front) » page 168
Replacing the low beam bulb
Fig. 160
Headlight with halogen bulb:
Bulb for low beam
Read and observe and on page 167 first.
›
Remove the protective cap
A
» Fig. 159 on page 167 .
›
Remove the connector with the bulb by jiggling it out in the direction of the
arrow » Fig. 160 .
›
Remove the connector.
›
Insert a new light bulb in such a way that the fixing lugs of the bulb fit in the
recesses of the reflector.
›
Attach the connector.
›
Fit the protective cap
A
» Fig. 159 on page 167 .
ABC167Fuses and light bulbs

Brake fluid137
Checking138
Information messages31
brake pedal (automatic gearbox) indicator light
36
brakes Driving in
104
Brakes Brake booster
99
Brake fluid138
Braking and stabilisation systems106
Handbrake100
Information messages31
Brakes and parking99
Braking Information on braking
99
Breakdown kit155
bulb rear lamp
170
Bulbs Replacing
166
Buttons in the driver's door Electric power windows
51
C
Car computer See multifunction display
39
Care and maintenance119
Car park ticket holder69
Carrier83
Cavity protection125
Central locking45
Central locking button48
Change Engine oil
134
Changing Front turn signal bulb
168
Wheels151
Changing a wheel Follow-up work153
Preliminary work151
Removing and attaching a wheel152
Charging a vehicle battery140
Check Fit ball head properly
114
Checking Battery electrolyte level
140
Brake fluid138
Coolant137
Engine oil135
Oil level135
Windscreen washer fluid134
Checks Statutory checks
119
Children and safety20
Child safety Side airbag
21
Child safety lock48
Child seat Classification
22
ISOFIX22
on the front passenger seat20
TOP TETHER23
Use of child seats22
Use of ISOFIX child seats23
Chrome parts see vehicle care
124
Cigarette lighter70
cleaning chrome parts
124
Cleaning Alcantara
128
and maintaining belts128
artificial leather128
headlight glasses125
materials128
natural leather127
plastic parts124
seats covers of the electrically heated seats128
wheels126
Cleaning safety belt
128
Cleaning seat covers
128
Cleaning the interior artificial leather
128
Seat covers128
Cleaning the outside of the vehicle Decorative films
124
Cleaning the vehicle exterior Cavity protection
125
Door locking cylinder125
Headlight glasses125
Under-body protection126
wheels126
Windows and external mirrors125
Cleaning vehicle122
Cleaning vehicle exterior123
Plastic parts124
Rubber seals124
Vehicle paint work123
Wiper blades126
Clean interior Safety belt
128
clean outside of vehicle chrome parts
124
Climatronic air distribution control
85
Operating elements87
Clothes hook74
Cockpit 12-Volt power outlet
71
Ashtray71
Cigarette lighter70
General view25
Lights58
storage compartments68
useful equipment68
181Index

COMING HOME57
compartments68
Computer See multifunction display
39
convenience turn signal55
Coolant136
Checking137
Information messages32
Replenishing137
Temperature gauge27
Warning light32
Cooling system cost-effective use
88
malfunctions88
CORNER See Fog lights with CORNER function
56
Correct seated position7
Driver7
Front passenger8
Instructions9
Rear seats9
Counter for distance driven28
cruise control operation
108
operation description109
Cruise control system Warning light
36
Cruise Control System108
Cup holders70
D
DAY LIGHT See Daytime running lights
54
Daytime running lights54
Dazzle see sun screen of the panoramic roof
60
De-icing windows
125
Deactivating an airbag18
Decorative films124
Defrosting rear window59
Delayed locking of the boot lid see boot lid
51
Departure angle175
Diesel refer to Fuel
131
Diesel fuel Operation in winter
131
Diesel particle filter Information notices
34
Warning light34
Digital Clock Time
29
Dipstick135
Disconnecting and reconnecting vehicle battery
141
Display27
Compass points43
Coolant temperature27
Fuel supply28
Gear changes38
Service intervals43
Display a low temperature38
Display of the second speed29
Disposal Acceptance and recycling of used vehicles
121
Distance driven28
Door Child safety lock
48
Closing49
Emergency locking161
Opening49
Warning light for open door31
Door open Warning light
31
Double-sided floor covering79
Driving Driving through water105
Emissions173
Fuel consumption173
Maximum speed176
off made-up roads105
Driving economically Tips
104
Driving in Brake linings
104
the engine104
Tyres104
Driving off made-up roads105
Driving through water105
Driving with a trailer116
E
Economical driving and environmental friendli- ness
104
EDL107
Electrical power windows Button in the driver's door
51
Button in the rear door52
Buttons in the driver's door52
Electronic Differential Lock (EDL)107
Electronic immobilizer97
Electronic Stability Control (ESC)106
Emergency Changing a wheel
151
Hazard warning light system57
jump-starting158
Jump-starting157
Locking the door without a locking cylinder161
Selector lever-unlocking162
Towing the vehicle158
Towing the vehicle using the tow hitch160
Tyre repair155
Unlocking the tailgate162
emergency equipment reflective vest
149
182Index

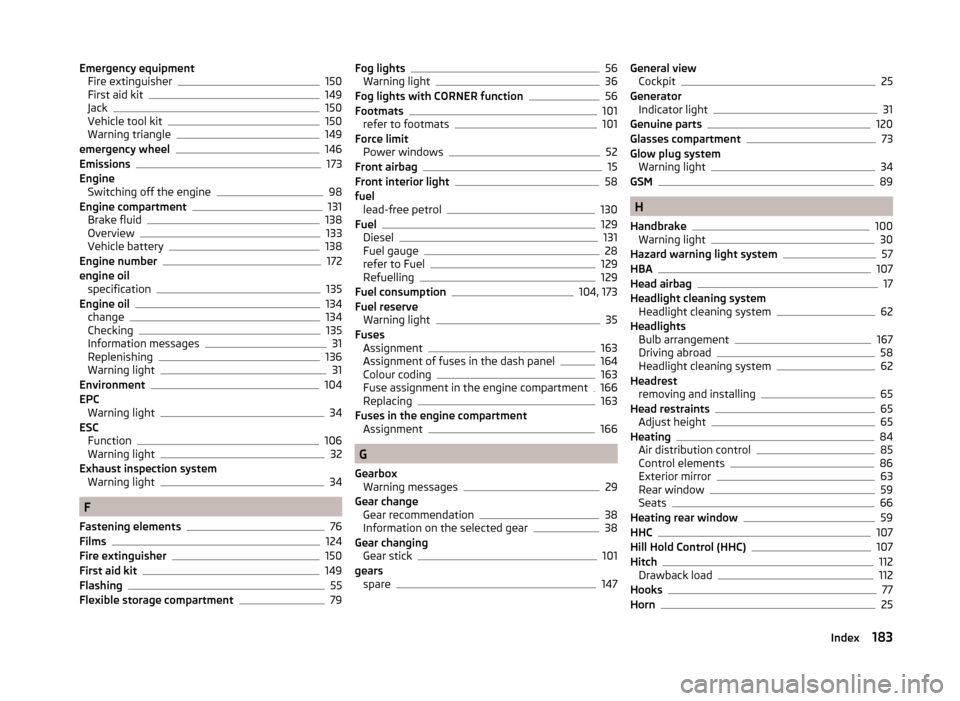

Emergency equipmentFire extinguisher150
First aid kit149
Jack150
Vehicle tool kit150
Warning triangle149
emergency wheel146
Emissions173
Engine Switching off the engine
98
Engine compartment131
Brake fluid138
Overview133
Vehicle battery138
Engine number172
engine oil specification
135
Engine oil134
change134
Checking135
Information messages31
Replenishing136
Warning light31
Environment104
EPC Warning light
34
ESC Function
106
Warning light32
Exhaust inspection system Warning light
34
F
Fastening elements
76
Films124
Fire extinguisher150
First aid kit149
Flashing55
Flexible storage compartment79
Fog lights56
Warning light36
Fog lights with CORNER function56
Footmats101
refer to footmats101
Force limit Power windows
52
Front airbag15
Front interior light58
fuel lead-free petrol
130
Fuel129
Diesel131
Fuel gauge28
refer to Fuel129
Refuelling129
Fuel consumption104, 173
Fuel reserve Warning light
35
Fuses Assignment
163
Assignment of fuses in the dash panel164
Colour coding163
Fuse assignment in the engine compartment166
Replacing163
Fuses in the engine compartment Assignment
166
G
Gearbox Warning messages
29
Gear change Gear recommendation
38
Information on the selected gear38
Gear changing Gear stick
101
gears spare
147
General viewCockpit25
Generator Indicator light
31
Genuine parts120
Glasses compartment73
Glow plug system Warning light
34
GSM89
H
Handbrake
100
Warning light30
Hazard warning light system57
HBA107
Head airbag17
Headlight cleaning system Headlight cleaning system
62
Headlights Bulb arrangement
167
Driving abroad58
Headlight cleaning system62
Headrest removing and installing
65
Head restraints65
Adjust height65
Heating84
Air distribution control85
Control elements86
Exterior mirror63
Rear window59
Seats66
Heating rear window59
HHC107
Hill Hold Control (HHC)107
Hitch112
Drawback load112
Hooks77
Horn25
183Index

Hydraulic Brake Assist (HBA)107
I
Ice scrapers
125
Ignition see ignition lock
98
Ignition lock98
Immobilizer97
Indicator lights30
Individual settings Locking
47
Unlocking47
Inertia reels13
Information system37
Compass point display43
Display a low temperature38
Door warning39
Gear recommendation38
MAXI DOT display42
Multifunction display39
Operation37
Service interval display43
instrument cluster Auto Check Control
29
Instrument cluster26
Counter for distance driven28
Display27
Display of the second speed29
Fuel gauge28
Indicator lights30
Overview26
Revolution counter27
see instrument cluster26
Speedometer27
Temperature gauge27
Interior care126
Natural leather127
Interior monitor50
ISOFIX22
J
Jack
150
Jump-starting157, 158
K
Key Locking
47
Start the engine98
Unlocking47
L
Lamp failure Indicator light
33
Lamps Warning lights
33
Leather Natural leather care
127
LEAVING HOME57
Lever Main beam
55
Turn signal55
Windscreen wipers61
lever lock selection (automatic gearbox) indicator light
36
Light COMING HOME / LEAVING HOME
57
Daytime running lights54
Fog lights with CORNER function56
Parking light58
Replacing bulbs166
Lighting Luggage compartment
75
Lights53
Automatic driving lamp control55
Beam range adjustment53
Cockpit58
Fog lights56
Hazard warning light system57
Headlight flasher55
Indicator lights30
Low beam53
Main beam55
Parking light53
Rear fog light56
switching on/off53
Turn signal55
Lock/unlock steering lock97
Locking Individual settings
47
Key47
Remote control46
Locking and unlocking the vehicle from the in- side
48
Locking the door without a locking cylinder Emergency
161
Low beam53
Luggage compartment75
Cover77
Emergency unlocking162
Fastening elements76
Fixing nets76
Flexible storage compartment79
Lighting75
Unlocking the tailgate162
Variable loading floor80
Luggage compartment cover77
Luggage compartment lid50
Luggage Storage Storage net bag
79
M
Main beam
55
Warning light36
Maintenance see vehicle care
123
Manual air conditioning Air distribution control
85
Operating elements86
184Index
