2013 Seat Leon 5D SOUND SYSTEM 2.0

SEAT SOUND SYSTEM 2.0
Owner ’s manual
5P0012720DA
Inglés
5P0012720DA
(10.13)
(GT9)

Table of ContentsGeneral information . . . . . . . . . . . . . . . .2
Important Information . . . . . . . . . . . . . .
3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Before using the unit for the first time . . . . . .
4
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
General information on operating the unit . .
8
Audio mode . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
FM and AM Radio mode . . . . . . . . . . . . . . . . . . . .
10
RDS* and TP* radio data services (TrafficProgramme) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
DAB* radio mode . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
External audio sources (AUX and audioBluetooth®) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28

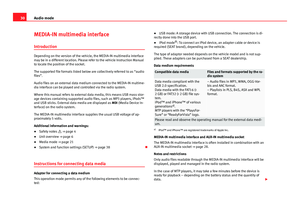

MEDIA-IN multimedia interface . . . . . . . . . . . . .
30
External CD changer* . . . . . . . . . . . . . . . . . . . . . .
34
Settings menus . . . . . . . . . . . . . . . . . . . . . .
37
Sound settings (SOUND) . . . . . . . . . . . . . . . . . . .
37
System and function settings (SETUP) . . . . . .
38Abbreviations . . . . . . . . . . . . . . . . . . . . . . . .42

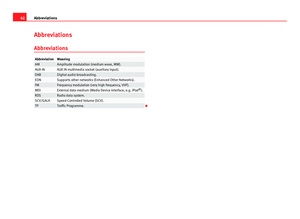

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
42
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
431Table of Contents

2General informationGeneral informationThis manual contains information, recommendations, advice and warningsrelated to your radio system. The other publications in the vehicle documen-tation contain further information of which you should be aware for yourown safety and for that of your passengers.
Ensure that the onboard documentation is kept in the vehicle at all times.This is especially important when lending or selling the vehicle to anotherperson.
This manual contains a description of the equipment supplied with the ve-hicle at the time of press. Some of the units described herein will not beavailable until a later date or is only available in certain markets.
The illustrations are intended as a general guide and may vary from theequipment fitted in your vehicle in some details.
The screen colour and the colour of the information displayed on it can varyaccording to vehicle model.
Directions and positions of components (e.g. right, left, front, rear) are al-ways relative to the direction of travel of the vehicle unless otherwise sta-ted.
The equipment marked with an asterisk is only supplied as standard incertain model versions, is optional in others or is only available in spe-cific countries.
Registered trademarks are marked ®. The absence of this symbol doesnot constitute a waiver of the rights concerning any proprietary name.
The section is continued on the following page.
Marks the end of a section.
®WARNINGTexts preceded by this symbol contain information on safety. They warnyou about possible dangers of accident or injury.
CAUTION
Texts with this symbol draw your attention to potential sources of damageto your vehicle.
For the sake of the environment
Texts preceded by this symbol contain relevant information concerning envi-ronmental protection.
Note
Texts preceded by this symbol contain additional information.


3Important InformationImportant InformationImportant Information. Traffic safety
Travelling on today's roads requires the driver's full attention at all times.
Only operate the radio system and its various functions when the traffic sit-uation really permits this.
WARNING●Before starting the trip, you should familiarise yourself with the dif-ferent radio functions.●
High audio volume may represent a danger to you and to others.
●
Adjust the volume in a way that you can distinguish surroundingnoise, for example, horns and sirens, etc.
●
Radio settings should be made when the car is stopped or by a pas-senger.
Note
Separate the radio card and keep it in a safe place, but never inside the ve-hicle. If the card bearing the radio code is lost, go to a SEAT dealership,where you will be given help.
Note
●The anti-theft coding does not need re-entering if the battery has onlybeen disconnected. In this case, switch the ignition on before switching onthe sound system.
●
The card bearing the radio code is available according to the model ofthe vehicle.


4IntroductionIntroductionBefore using the unit for the first timeBefore using the unit for the first time, carry out the following steps. Thiswill enable you to use the unit safely and make full use of the functions itprovides:Observe the basic safety notes .⇒ page 4.Familiarise yourself with the unit overview.⇒ page 6.Use suitable data media for Media mode.⇒ page 21.

Safety notes
WARNINGAccidents and injuries can occur if the driver is distracted. Operating theinfotainment system while driving can distract your attention from thetraffic.
●
Always drive carefully and responsibly.
●
Select volume settings that allow you to easily hear signals from out-side the vehicle at all times (e.g. emergency service sirens).
●
Setting the volume too high may damage your hearing. This also ap-plies if you are exposed to high volumes for short periods only.
WARNINGThe volume level may suddenly change when you switch audio source orconnect a new audio source.●
Reduce the base volume before switching audio source or connectinga new audio source ⇒ page 8.
WARNINGConnecting, inserting or removing a data medium while the vehicle is inmotion can distract you from the road and lead to accidents.WARNINGConnecting leads for external devices may obstruct the driver.●
Arrange the connecting leads so that they do not obstruct the driver.WARNINGExternal devices that are placed loose in the vehicle or not properly se-cured could be flung though the interior and cause injuries during a sud-den driving or braking manoeuvre, or in the event of an accident.
●
You should never position or attach an external device on a door, onthe windscreen or above or near to the areas marked “AIRBAG” on thesteering wheel, the dash panel and the seat backrests, or between theseareas and the vehicle occupants. External devices can cause serious in-jury in an accident, especially when the airbags inflate.

5IntroductionWARNINGAn armrest may obstruct the driver's arm movements, which could causeaccidents and severe injuries.●
Always keep the armrest closed while the vehicle is in motion.
WARNINGOpening the housing on a CD player can lead to injuries from invisible la-ser radiation.●
CD players should only be repaired by a qualified workshop.
CAUTION
●When inserting and removing the CD, always hold it at right angles tothe front of the unit without scratching or tilting it.●
Inserting a second CD while a CD is already inserted or being ejectedmay damage the CD player. Always wait until the data medium is completelyejected.
CAUTION
The CD drive can be damaged by any foreign objects attached to a data me-dium, and by irregularly shaped data media.●
Only clean standard 12 cm CDs should be used.
–
Do not affix stickers or other items to the data medium. Stickers maypeel off and damage the drive.
–
Do not insert 8 cm single CDs or irregularly shaped CDs or DVDs.
–
Do not insert DVD Plus discs, dual discs or flip discs, as these arethicker than normal CDs.
CAUTION
The vehicle loudspeakers may be damaged if the volume is too high or thesound is distorted.


6IntroductionUnit overviewFig. 1
Overview of the control elements
The Radio Sound System 2.0 is available in different versions, which can bedistinguished by the button labelling. In the diagram these buttons are rep-resented without markings (in Fig. 1:
2
and
9
).
 Rotary/push knob:
–Press to switch on or off ⇒ page 8.
–Turn to adjust the volume ⇒ page 8.
Unit buttons: Press to activate one of the functions. The labelling andfunction depends on the particular version of the unit.
–RADIO: To change to Radio mode. In Radio mode, to change the fre-quency band and the indication of the station buttons ⇒ page 10.
–BAND: To change to Radio mode. In Radio mode to change the fre-quency band between FM and AM and the indication of the stationbuttons ⇒ page 10.
12

7Introduction–FM: switch to FM radio mode. In FM radio mode change the displayof the station buttons ⇒ page 10.
–AM: switch to AM radio mode. In AM radio mode change the displayof the station buttons ⇒ page 10.
–MEDIA: To change to Media mode. In Media mode to select anothermedia source ⇒ page 21.
–MENU: To view the additional functions of the active mode (Radio,Media, etc.). In the additional functions view press the function but-ton SETUP to view the system and function settings ⇒ page 38.
–TP: To switch on or off the traffic news function (Traffic Programme)⇒ page 15.
SOUND: Press to open the sound settings ⇒ page 37.
CD slot: To insert and eject CDs ⇒ page 21.
Screen: The brightness can be adjusted ⇒ page 38.
EJECT: Press to eject the CD ⇒ page 21.
Function buttons: The active function is shown with the correspondingbutton in the display and is activated by pressing ⇒ page 8.
Setting knob: the function of this button depends on the unit's operat-ing state.
–Turn in all Radio modes to tune the stations or channels manuallyand press to start and stop the scan function (SCAN) ⇒ page 10.
–Media mode: Turn to change track manually and press to start andstop the scan function (SCAN) ⇒ page 21.
–In a settings menu turn to change a setting ⇒ page 37.
345678 ...  Rocker switch: The labelling and function depends on the partic-ular version of the unit.
– ENS / ... : Press briefly to the right or left in DAB Radio mode tochange to the next or previous set of DAB stations ⇒ page 18.
– FOLDER  or ... / FLDR : Press briefly to the right or left in Mediamode to change the folder or playlist ⇒ page 21.
 SEEK / TRACK  Rocker switch:
–Press briefly to the right or left to change station in all Radio modes⇒ page 10.
–Press briefly to the right or left in Media mode to change track (title)and hold to fast forward and rewind ⇒ page 21.
910
