17B-15V2 MR-376-X76-17B050$060.mif
PETROL INJECTION
Fault finding – Replacement of components17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18

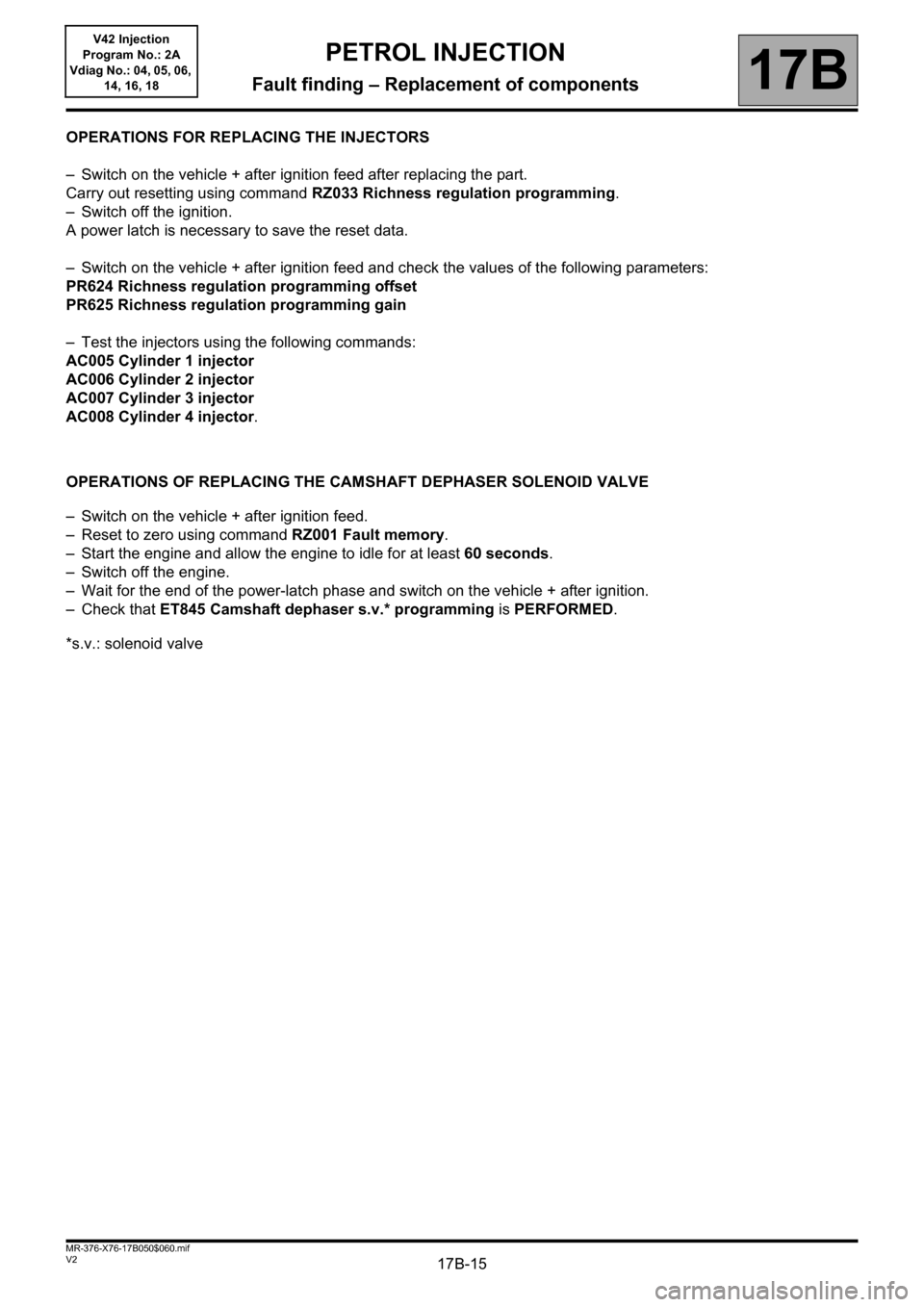

OPERATIONS FOR REPLACING THE INJECTORS
– Switch on the vehicle + after ignition feed after replacing the part.
Carry out resetting using command RZ033 Richness regulation programming.
– Switch off the ignition.
A power latch is necessary to save the reset data.
– Switch on the vehicle + after ignition feed and check the values of the following parameters:
PR624 Richness regulation programming offset
PR625 Richness regulation programming gain
– Test the injectors using the following commands:
AC005 Cylinder 1 injector
AC006 Cylinder 2 injector
AC007 Cylinder 3 injector
AC008 Cylinder 4 injector.
OPERATIONS OF REPLACING THE CAMSHAFT DEPHASER SOLENOID VALVE
– Switch on the vehicle + after ignition feed.
– Reset to zero using command RZ001 Fault memory.
– Start the engine and allow the engine to idle for at least 60 seconds.
– Switch off the engine.
– Wait for the end of the power-latch phase and switch on the vehicle + after ignition.
– Check that ET845 Camshaft dephaser s.v.* programming is PERFORMED.
*s.v.: solenoid valve
17B-181V2 MR-376-X76-17B050$120.mif
PETROL INJECTION
Fault finding – Parameter summary table17B
V42 Injection
Program No.: 2A
Vdiag No.: 04, 05, 06,
14, 16, 18
Tool
ParameterDiagnostic tool title
PR344 Pressure sensor voltage
PR427Average pinking signal
PR429Measured throttle position
PR444Integral idling speed regulation correction
PR446Upstream O2 sensor heating resistance
PR447Downstream O2 sensor heating resistor
PR448Ignition advance
PR469Cylinder 1 pinking value
PR471Cylinder 2 pinking value
PR473Cylinder 3 pinking value
PR475Cylinder 4 pinking value
PR492Motorised throttle position setpoint
PR538Measured throttle voltage, gang 2
PR539Measured throttle voltage gang 1
PR606Adaptive idling speed correction
PR624Richness regulation programming offset
PR625Richness regulation programming gain
PR743Alcohol level estimated in the tank
PR770Camshaft offset
PR814Number of active heating resistors
PR831Combustion misfiring counter
