WINDOWS

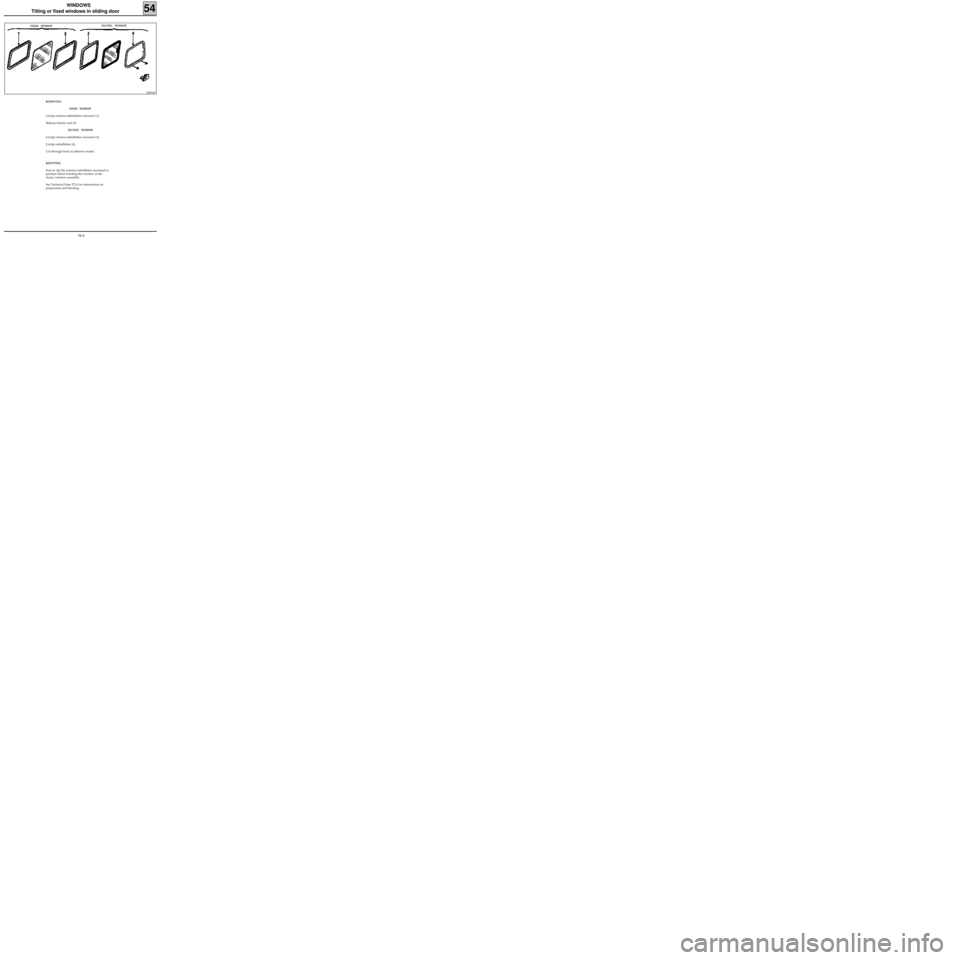

Tilting or fixed windows in sliding door
REFITTING
Seat or clip the exterior embellisher surround in
position before bonding the window or the
frame/window assembly.
See Technical Note 371A for information on
preparation and bonding.
54
REMOVING
FIXED WINDOW
Unclip exterior embellisher surround (1).
Release interior seal (2).
TILTING WINDOW
Unclip exterior embellisher surround (3).
Unclip embellisher (4).
Cut through bead of adhesive mastic.
PRB5403
FIXED WINDOWTILTING WINDOW
54-4

WINDOWS
Fixed or moving side window
54
REMOVING
FIXED WINDOW
Unclip exterior embellisher surround (1).
Release inside seal (2).
MOVING WINDOW
Unclip exterior embellisher (3).
Unclip embellisher (4).
Cut through bead of adhesive mastic.
PRB5404
REFITTING
Seat or clip the exterior embellisher surround in
position before bonding the window or the
frame/window assembly.
See Technical Note 371A for information on
preparation and bonding.
NOTE: Metal/glass primer (green bottle) must be
applied to the frame when a frame is replaced.
54-5

WINDOWS
Window in rear door and window in tailgate
When the screen wiper arm has been removed,
disconnect the wiring harness for the rear screen
heater.
Remove:
- window (window in rear door),
- exterior embellisher surround for tailgate
window (bonded window).
See Technical Note 371A for information on
preparation and bonding.
54
REMOVING
PRB5405
13256S
54-6

WINDOWS
Moving window/latch
Separate the window and the lip.
54
REMOVING WINDOW
PRB5406
13332R
Unclip embellisher.
Remove screws (A) holding window in position.
13333R
54-7

WINDOWS
Moving window/latch
Remove cover.
54
REMOVING THE LATCH
13253R
Unclip latch.
13252R
54-8
