2013 RENAULT KANGOO M warning light

83A-14
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$030.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Allocation of computer tracks83A
CONNECTOR (24-track black)
Tracks Description
1Control - software lock indicator light
2Coolant temperature warning light - control
3Right turn signal indicator light
4Emission control fault warning light
5Rear fog lights indicator light
6Front fog lights indicator light
7 Earth
8Earth
9+ Battery supply
10After ignition supply
11+ Side lights supply
12Coolant temperature + signal
13Alternator charge warning light - control
14Left turn signal indicator light
15Preheating/electronic fault warning light
16Handbrake + fluid level warning light - control
17Heated rear screen indicator light
18Not used
19Not used
20Airbag fault warning light
21Rev counter signal
22Vehicle speed signal
23Trip computer scroll - control
24Fuel sending unit + signal

83A-16
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
83A
ENGINE SPEED
DISPLAY AT ZERO OR INCONSISTENT SIGNAL ALP1
COOLANT TEMPERATURE
NO SIGNAL OR INCONSISTENT SIGNAL ALP2
Fuel level
THE FUEL LEVEL INDICATOR DOES NOT DISPLAY FULL ALP3
ADDITION OF FUEL NOT REGISTERED (NOT FULL) ALP4
DISPLAY JAMMED WHEN DRIVING (NOT MECHANICAL) ALP5
FAULT WITH NO WARNING GIVEN BY WARNING LIGHT (NO
ADDITION OF FUEL SINCE THE FAULT)ALP6
FAULT WITH NO WARNING GIVEN BY WARNING LIGHT (ADDITION
OF FUEL SINCE THE FAULT)ALP7
FAULT WITH DELAYED WARNING ALP8
SEVERITY LEVEL 2 INJECTION FAULT / COOLANT TEMPERATURE
THE WARNING LIGHT REMAINS LIT ALP9
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints

83A-17
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints83A
LEVEL 1 INJECTION FAULT
THE WARNING LIGHT REMAINS LIT ALP10
VEHICLE SPEED
DISPLAY AT ZERO OR INCONSISTENT SIGNAL ALP11
AIRBAG FAULT
THE WARNING LIGHT REMAINS LIT ALP12
OIL PRESSURE WARNING
THE WARNING LIGHT REMAINS LIT ALP 13
DIRECTION INDICATOR LIGHTS
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP14
REAR FOG LIGHTS
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP15

83A-18
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints83A
FRONT FOG LIGHTS
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP16
ABS FAULT
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP17
ENGINE IMMOBILISER
THE ENGINE IMMOBILISER WARNING LIGHT REMAINS LIT OR
FLASHES WHEN DRIVINGALP18
WARNING LIGHT REMAINS NOT LIT WHEN NOT UNDER AFTER
IGNITION FEEDALP19
BATTERY CHARGE FAULT
WARNING LIGHT REMAINS LIT (engine running) ALP20
HANDBRAKE APPLIED AND FAULT DETECTED ON BRAKING CIRCUIT
THE WARNING LIGHT OPERATES INCONSISTENTLY (WITHOUT
ABS)ALP21
THE WARNING LIGHT OPERATES INCONSISTENTLY (WITH ABS) ALP22

83A-19
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints83A
*CPE: Electric central door lockingHEATED REAR SCREEN
THE WARNING LIGHT DOES NOT LIGHT UP ALP23
INSTRUMENT PANEL
NO DISPLAY WHEN IGNITION IS SWITCHED ON ALP24
TRIP COMPUTER OR TRIP METER OR CLOCK
RESET WHENEVER THE IGNITION IS SWITCHED OFF ALP25
DOOR OPEN WARNING LIGHT
THE WARNING LIGHT DOES NOT ILLUMINATE (WITHOUT ELECTRIC
CENTRAL DOOR LOCKING*)ALP26
THE WARNING LIGHT DOES NOT ILLUMINATE (WITH ELECTRIC
CENTRAL DOOR LOCKING*)ALP27

83A-27
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$060.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP 6Fault with no warning given by warning light (no addition of fuel
since the fault)
NOTESPut the vehicle in + after ignition.
See Wiring Diagrams Technical Note for Kangoo VLL.
Check the instrument panel warning lights, component code
247.Replace the instrument panel,
component code 247 (see MR
430, Mechanical, 83A,
Instrument panel, Instrument
panel: Removal - Refitting). Does the fuel warning light illuminate for 3 seconds when
+ after ignition is switched on?
The warning resistance is equal to 290 .
With the ignition off, disconnect the fuel sender connector,
component code 199 and then check the resistance using a
multimeter.Replace the sender, component
code 199 (see MR 374,
Mechanical, 19C, Fuel tank,
Pump - Sender: Removal -
Refitting). Is this value greater than or equal to the warning value
corresponding to the type of fuel?
NO
YES
NO
A
YES

83A-29
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$060.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP 7Fault with no warning given by warning light (addition of fuel
since the fault)
NOTESPut the vehicle in + after ignition.
See Wiring Diagrams Technical Note for Kangoo VLL.
Check the instrument panel warning lights, component
code 247.
Does the fuel warning light illuminate for 3
seconds when + after ignition is switched on?Replace the instrument panel, component
code 247 (see MR 430, Mechanical, 83A,
Instrument panel, Instrument panel:
Removal - Refitting).
After filling the fuel tank, has the fuel level on the
instrument panel changed?Consult the interpretation of ALP4 Addition
of fuel not registered (not full).
Empty the fuel tank and consult the interpretation of
ALP6 Fault with no warning given by warning light
(no addition of fuel since the fault).
NO
YES
NO
YES

83A-30
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$060.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A

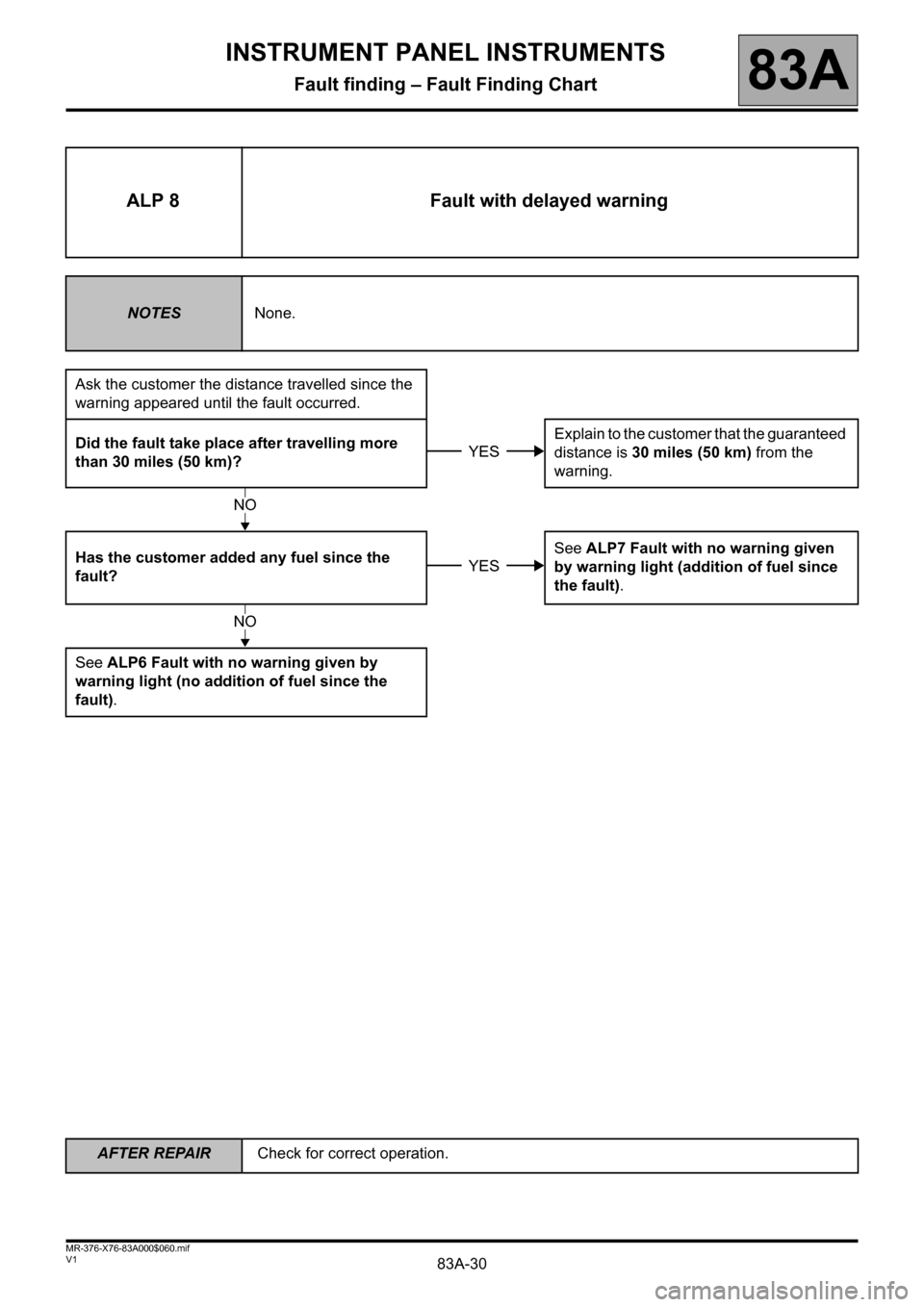

ALP 8 Fault with delayed warning
NOTESNone.
Ask the customer the distance travelled since the
warning appeared until the fault occurred.
Did the fault take place after travelling more
than 30 miles (50 km)?Explain to the customer that the guaranteed
distance is 30 miles (50 km) from the
warning.
Has the customer added any fuel since the
fault?See ALP7 Fault with no warning given
by warning light (addition of fuel since
the fault).
See ALP6 Fault with no warning given by
warning light (no addition of fuel since the
fault).
YES
NO
YES
NO
